National Instruments PCI-DIO-96 Digital I/O Interface

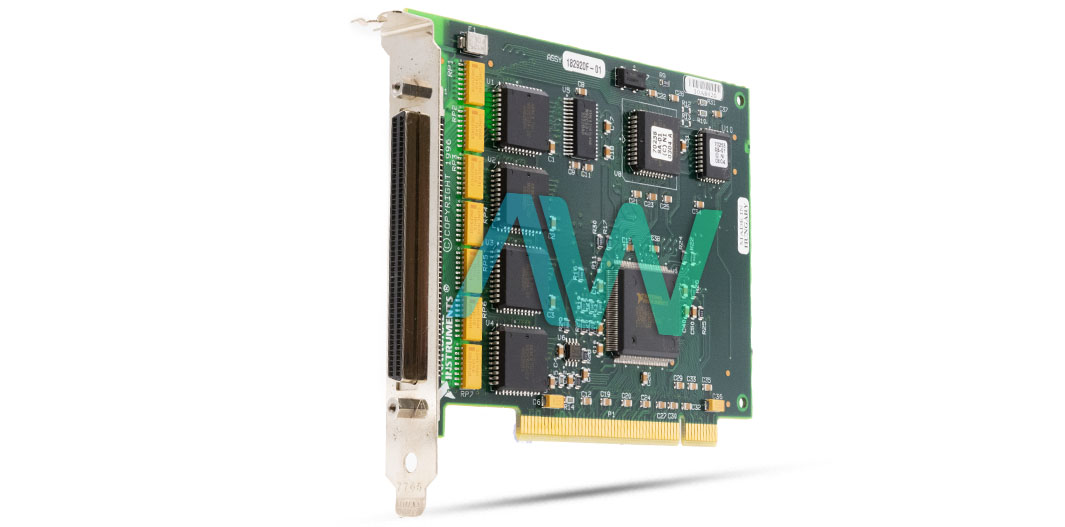

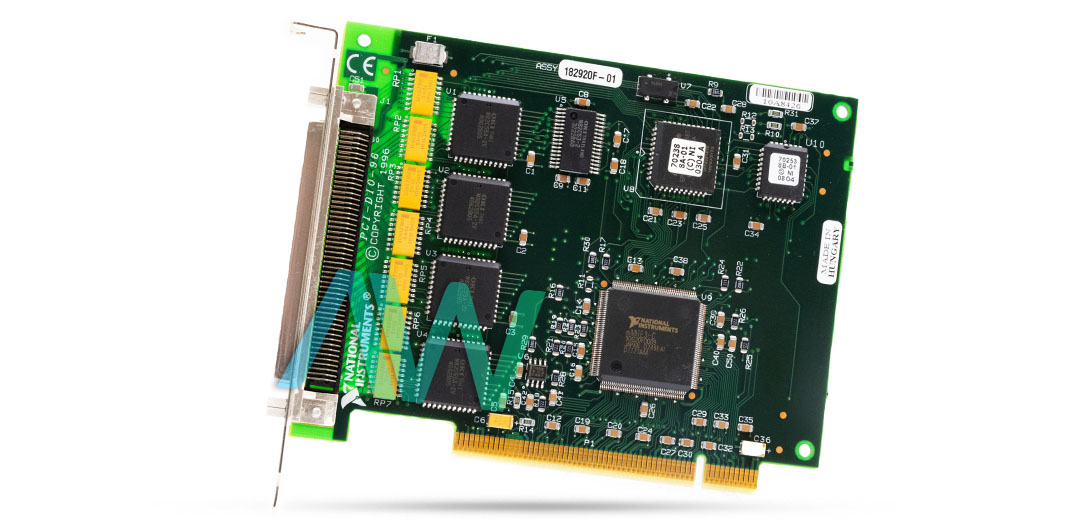

The NI PCI-DIO-96 (Part Numbers: 777387-01, 182920-01) is a 96 Channel, 24-bit Digital I/O Interface featured with TTL/CMOS, bidirectional and unidirectional characteristics, and 2-wire handshake capability. This I/O Interface is entirely compatible with the NI-DAQmx driver. Thus, it can be configured directly. The NI PCI-DIO-96 comes equipped with four PPI or Programmable Peripheral Interface chips, which are used for the controlling of all 96 bits. For additional functions such as amplification, excitation, and isolation signal generation for relays, the user can always go with the SCXI modules and accessories available and sold separately by National Instruments.
This board makes it possible for the user to utilize their computer as a digital I/O system for laboratory testing, industrial process management, and productions testing. The NI PCI-DIO-96 features an 82C53 programmable interval timer, which can be used for register-level programming. The interval timer can also generate timed interrupt commands directly to the user’s computer.
The NI PCI-DIO-96 is fully compatible with the PCI Local Bus Specification, Revision 2.1. It also tends to operate with a known power-up state. The device operates using the NI-DAQ driver software, and can easily be used with software packages such as LabVIEW, LabVIEW Application Builder for Windows, LabWindows/CVI, and LabVIEW Full Development System for Windows. This model contains bias resistors that control the power-up state of the digital I/O lines. At power up, each I/O line is pulled either high or low, employing a 100 kΩ bias resistor. The default power state of each digital I/O line is high because in this model all the 100 kΩ bias resistors pull up on the device startup. The device has a 100-pin I/O connector which can be connected to 50-pin accessories with the R1005050 cable. It has a power consumption rate of 400 mA, a recommended operating temperature range of 0 to 55 °C, and a storage temperature range of –20 to 70 °C. The device weighs 3.6 oz., and measures 5.4 x 4.2 in. in dimensions.
PCI-DIO-96 Obsolete Status has been announced by National Instruments, but this model will still be available for purchase and repairs at Apex Waves.
| Model | PCI-DIO-96 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 777387-01, 182920-01 |
| Type | Digital I/O Interface |
| Channels | 96 I/O |
| Driver | NI-DAQ 7 |
| Power-on State | Inputs (high-Z), pulled up through 100 kΩ |
| Dimensions | 5.4 × 4.2 in. |
| Weight | 3.6 oz. |
| Warranty | Three Year Warranty |
| PCI-DIO-96 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PCI-DIO-96:
18292, 182920-01, 182920-21, 182920B-01, 182920C-01, 182920D-01, 182920F-01, 182920G-01, 182920H-01, 182920H-50, 182920J-01, 182920J-50, 182920K-01, 182920K-50, 182920L-01L, 182920M-01L, 193758B-02L, 777098-01, 777387-01, 779196-50
National Instruments PCI-DIO-96 Frequently Asked Questions
Question: Which type of I/O connector does the PCI DIO 96 card have?
Answer: The PCI DIO 96 card has a 100-pin female 0.050 series D-type I/O connector.
Question: What is the power consumption of the PCI-DIO-96 National Instruments?
Answer: The power consumption of the PCI-DIO-96 National Instruments is 400 mA at +5 VDC (±5%).
Question: Which types of signal conditioning hardware and enclosures can be used with the NI PCI-DIO-96?
Answer: The NI PCI-DIO-96 can be used with the SCXI Signal Conditioning System, SSR Series Modules, SC-206x Devices, ER-8 and ER-16 Electromechanical Relays, and CA-1000 Custom Connectivity Enclosure.
Question: Which type of handshaking is possible on the PCI-DIO-96?
Answer: Bidirectional, output, or input handshaking is possible on the PCI-DIO-96.
PCI-DIO-96 PDF Manuals
DAQ GETTING STARTED GUIDE FOR PCI PCI EXPRESS.PDF
DAQ GETTING STARTED READ ME FIRST NI DAQMX AND DAQ DEVICE INSTALLATION GUIDE.PDF
NI 65XX PINOUT LABEL FOR THE SCB 100A NOTE TO USERS.PDF
NI 65XX PINOUT LABELS FOR THE SCB 100 NOTE TO USERS.PDF
PCI-DIO-96 PXI 6508 PCI 6503 USER MANUAL.PDF
