PXI-6533
Modular Systems > National Instruments > DIO Series
| Description: | PXI-6533, 20 MHz Sample Rate, PXI Digital I/O Module |
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

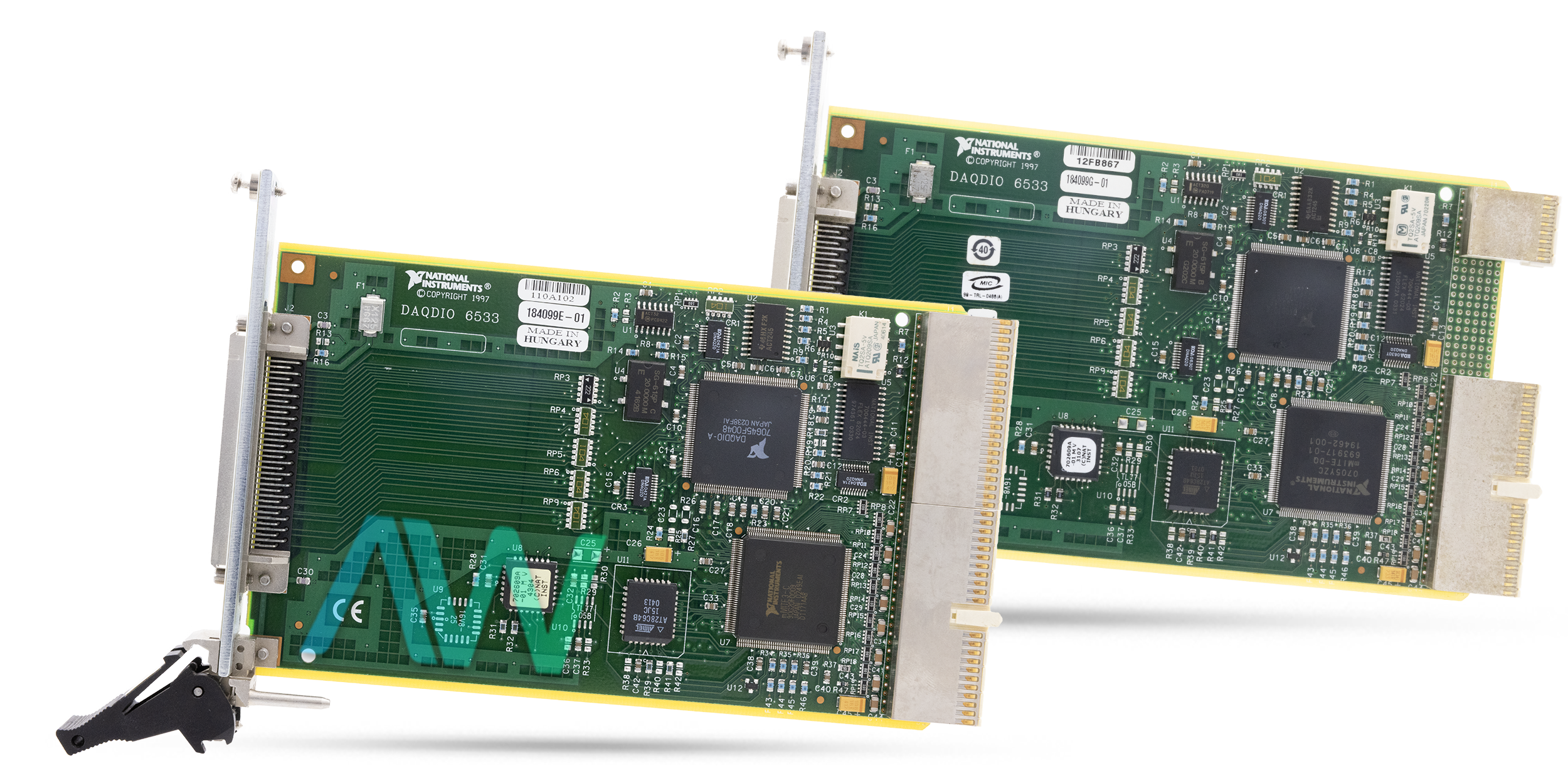

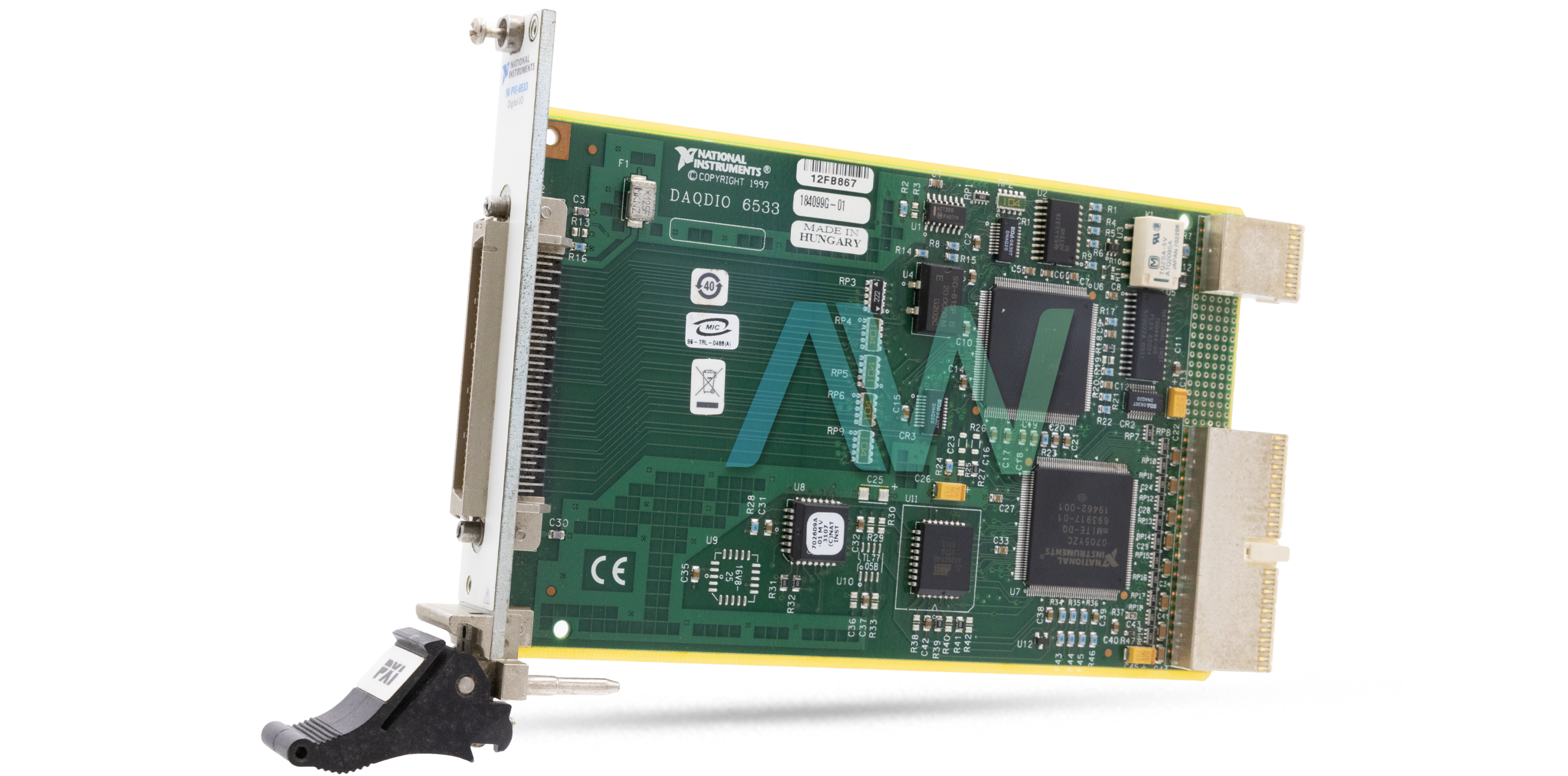

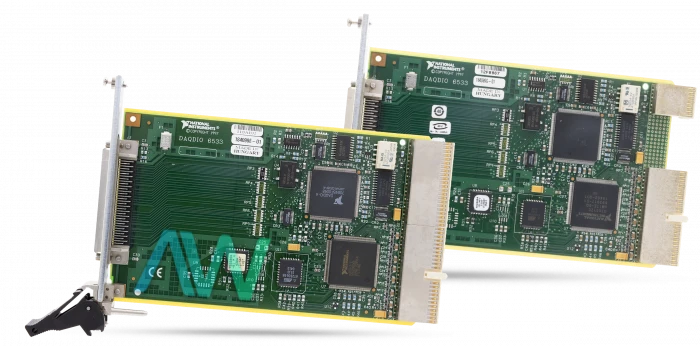

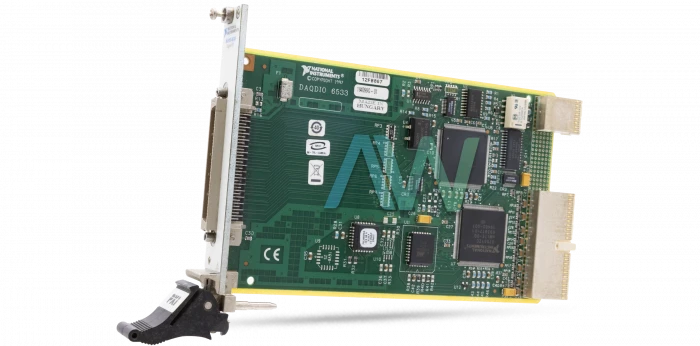

National Instruments PXI-6533 PXI Digital I/O Module
Featured with up to 13.3 MB per second Pattern I/O, 77.8 MB per second Handshaked I/O, and 32 Digital I/O Lines, the National Instruments PXI-6533 (Part number: 777429-01) is a Digital I/O Interface Module. This device offers 32 individually configurable digital data lines. Users can configure any line as input or output, grouped into four 8-bit ports. In addition, each line can sink or source 24 mA of current.
The NI PXI 6533 can easily be installed in any 5 V peripheral slot in the PXI chassis. With this module, the user can load a buffer of data into the onboard integrated memory and continuously loop through that data block if they need a repeated generation of the same block of data. With this option, data is transferred from the computer`s memory to device memory. Later, the device generates the same block of data from its memory. This allows the user to process data at higher rates. When operating on DMA, the National Instruments PXI-6533 transfers data in 32-byte deep blocks. This module also allows the user to create event-driven application programs. The NI PXI-6533 can be programmed to create a message when designated settings are met.
The PXI 6533 NI has a 20 MHz maximum sample rate and NI-DAQ driver software included. NI-DAQ allows for an effortless upgrade path, and is compatible with software packages/application development environments (ADEs) such as LabVIEW, LabWindows/CVI, ComponentWorks, and VirtualBench. As far as its triggering capabilities are concerned, the National Instruments PXI-6533 Digital I/O Module offers TTL/CMOS compatible digital pattern and rising or falling edge triggers, with a voltage level of 5 V. Its pattern trigger detection capability includes the detection of pattern match or mismatch on user-defined data lines. This module can recognize a minimum pulse width of 10 ns for edge triggers, and is equipped with a 68-pin male SCSI-II I/O connector. It has a recommended operating temperature range of 0 to 55 °C.The device measures 6.4 x 3.9 in. in dimensions.
PXI-6533 Obsolete Status has been declared by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.
| Model | PXI-6533 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777429-01 |
| Type | PXI Digital I/O Module |
| Channels | 32 |
| Maximum Rate | 20 MHz |
| Voltage Levels | 5 V TTL/CMOS |
| Dimensions | 6.4 x 3.9 in. |
| I/O Connectors | 68-pin male SCSI-II type |
| Warranty | Three Year Warranty |
| PXI-6533 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXI-6533:
0.0184099, 18409.9, 184099-01, 184099-07, 184099A-01, 184099B-01, 184099B-07, 184099C-01, 184099D-01, 184099D-07, 184099F-01, 184099F-07, 184099G-01, 184099H-01, 184433B-01, 777429-01, 777837-03
National Instruments PXI-6533 Frequently Asked Questions
Question: What is the power requirement for the NI PXI-6533 at +5 VDC?
Answer: The NI PXI-6533 has a power requirement of 1.3 A at +5 VDC.
Question: What types of triggers are available on the PXI 6533 NI?
Answer: The following triggers are available on the PXI 6533 NI: rising or falling edge and digital pattern.
Question: What is the hysteresis of the PXI-6533?
Answer: The PXI-6533 has a 500 mV hysteresis.
Question: Where can I find the PXI 6533 manual?
Answer: The PXI 6533 manual is available for download on apexwaves.com.
PXI-6533 PDF Manuals
ARCHIVED DIO 6533 USER MANUAL.PDF
ARCHIVED LABVIEW DATA ACQUISITION BASICS MANUAL.PDF
ARCHIVED NI 6533 6534 SPECIFICATIONS.PDF
ARCHIVED NI 653X USER MANUAL FOR TRADITIONAL NI DAQ.PDF
ARCHIVED NI DAQ FOR MAC OS RELEASE NOTES.PDF
ARCHIVED NI DAQ USER MANUAL FOR PC COMPATIBLES.PDF
ARCHIVED NI PXI-6533 LETTER OF VOLATILITY.PDF
ARCHIVED TRADITIONAL NI DAQ USER MANUAL.PDF
DAQ GETTING STARTED GUIDE FOR PXI PXI EXPRESS.PDF
DAQ GETTING STARTED READ ME FIRST NI DAQMX AND DAQ DEVICE INSTALLATION GUIDE.PDF
GUIDE D_INITIATION DAQ POUR PXI PXI EXPRESS.PDF
SC 205X SERIES USER MANUAL.PDF
C3A0 LIRE EN PREMIER GUIDE DE28099INSTALLATION DE NI DAQMX ET DES PC3A9RIPHC3A9RIQUES DAQ.PDF
PXI-6533 Diagrams
