PCI-6035E
Modular Systems > National Instruments > E Series
| Description: | PCI-6035E, 200 kS/s, 16-Bit, 16-Channel, Multifunction DAQ |
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

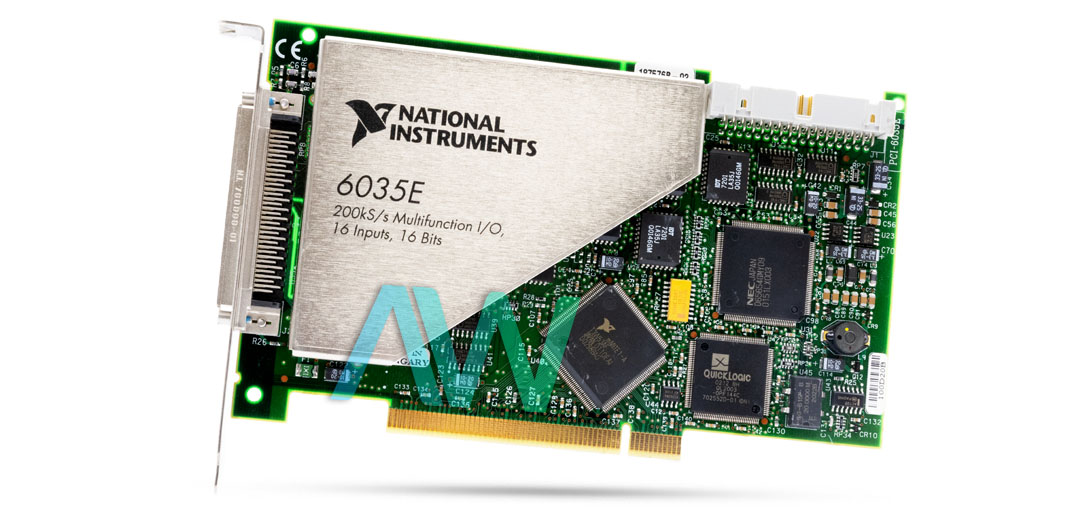

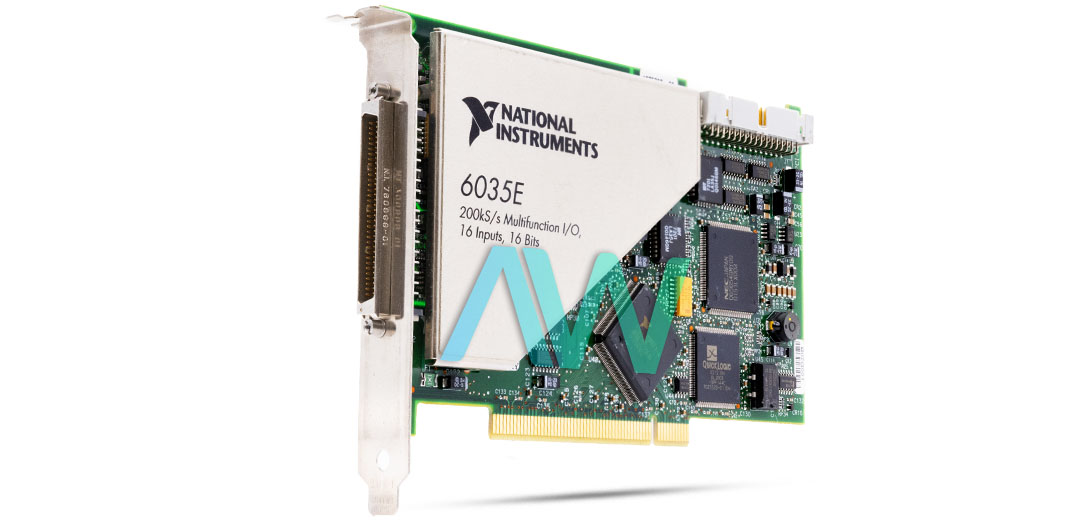

National Instruments PCI-6035E Multifunction DAQ
The NI PCI-6035E (Part Number: 778026-01) minimal effort DAQ board uses E Series developments to pass on tried and true estimations in a broad assortment of employments. The user can achieve up to 200 kS/s sample rate and 16-bit resolution with 16 single-ended or 8 differential channels. The PCI-6035E furthermore incorporates two 12-bit straightforward outputs. Dependent upon the user’s hard drive, the PCI-6035E can stream to plate at rates up to 200 kS/s. It has 8 digital I/O lines with a TTL/CMOS compatibility. A ground-referenced banner source is related by one means or another to the building structure ground and is, in this way, viably connected with a common conviction point in regard to the NI PCI-6035E device, expecting that the PC is associated with a comparative power system. Non-separated outputs of instruments and contraptions that interface with the building power structure fall into this class. The device is equipped with a 68-pin male SCSI-II I/O connector.
The PCI-6035E comes with input multiplexers on the device. The PGIA changes more than two data signals to a banner that is the qualification between the two data signals expanded by the gain setting of the device. This model comes with an A/D converter or ADC that estimates the output voltage when it plays out A/D changes. For greater source impedances, this affiliation leaves the differential signal route generally out of change. The output voltage of this model is located to the ground for the gadget. For greater source impedances, this affiliation leaves the differential signal route generally out of change. In this model, the commotion is related to the ground, so it will couple electrostatically onto the positive and will not couple onto the negative line.
The NI device weighs 5.8 oz, and measures 6.9 x 4.2 in. in physical dimensions. It has a recommended operating temperature range of 0 to 55 °C, a storage temperature of –20 to 70 °C, a non-condensing relative humidity range of 10 to 90%.
PCI-6035E End of Life Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.
| Model | PCI-6035E |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 778026-01 |
| Type | Multifunction DAQ Device/Module |
| Analog Input Channels | 16 (16-Bit, 200 kS/s) or 8 differential |
| Analog Output Channels | 02 (12-Bit) |
| Digital Input/Output | 08 (TTL/CMOS Compatibility) |
| Timing I/O | 02 Counter/Timer I/O (24 bits, 20MHz ) |
| I/O Connector | 68-pin male SCSI-II type |
| Power Requirements | +5 VDC - 0.9 A |
| Dimensions | 6.9 × 4.2 in. |
| Weight | 5.8 oz. |
| Driver Software | NI-DAQ |
| Warranty | Three Year Warranty |
| PCI-6035E Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
National Instruments PCI-6035E Frequently Asked Questions
Question: Is the PCI-6035 the same card as the PCI-6035E?
Answer: Yes, NI changed the name of the PCI-6035 to the PCI-6035E.
Question: How do I fix error 88705 on the NI PCI-6035E?
Answer: Error 88705 on the NI PCI-6035E is related to the NI Device Loader not starting. To fix the error, you should log in as an administrator or as a user with administrator privileges. Navigate to Start » Control Panel » System and Security » Administrative Tools »Services. Right click on the NI Device Loader service and click Properties in the menu. Ensure the service is Started; if not, click Start.
Question: What is the amplifier input impedance of the PCI 6035E?
Answer: The amplifier input impedance of the PCI 6035E is 100 GΩ in parallel with 100 pF when powered on and 820 Ω when powered off or for overload.
Question: What is the FIFO buffer size of the NI PCI 6035E?
Answer: The NI PCI 6035E does not have a FIFO buffer.
PCI-6035E PDF Manuals
ARCHIVED E SERIES CALIBRATION PROCEDURE FOR TRADITIONAL NI DAQ 5BLEGACY5D .PDF
ARCHIVED LABVIEW DATA ACQUISITION BASICS MANUAL.PDF
ARCHIVED NI DAQ FOR MAC OS RELEASE NOTES.PDF
ARCHIVED NI DAQ USER MANUAL FOR PC COMPATIBLES.PDF
ARCHIVED PCI E SERIES REGISTER LEVEL PROGRAMMER MANUAL.PDF
ARCHIVED SCXI MS100 TEMPERATURE MEASUREMENT SYSTEM INSTALLATION GUIDE.PDF
ARCHIVED TRADITIONAL NI DAQ USER MANUAL.PDF
DAQ GETTING STARTED GUIDE FOR PCI PCI EXPRESS.PDF
DAQ GETTING STARTED READ ME FIRST NI DAQMX AND DAQ DEVICE INSTALLATION GUIDE.PDF
DAQ MULTIFUNCTION I O MIO AND SIMULTANEOUS MULTIFUNCTION I O SMIO DEVICES CALIBRATION PROCEDURE.PDF
GUIDE D_INITIATION DAQ POUR PCI PCI EXPRESS.PDF
MULTIFUNCTION IO PRODUCT FLYER.PDF
NI 6034E 6035E 6036E FAMILY SPECIFICATIONS.PDF
