PXI-1042Q
Modular Systems > National Instruments > PXI Chassis
| Description: | PXI-1042Q, 8-Slot, 3.5 mm Pitch, Quiet PXI Chassis |
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

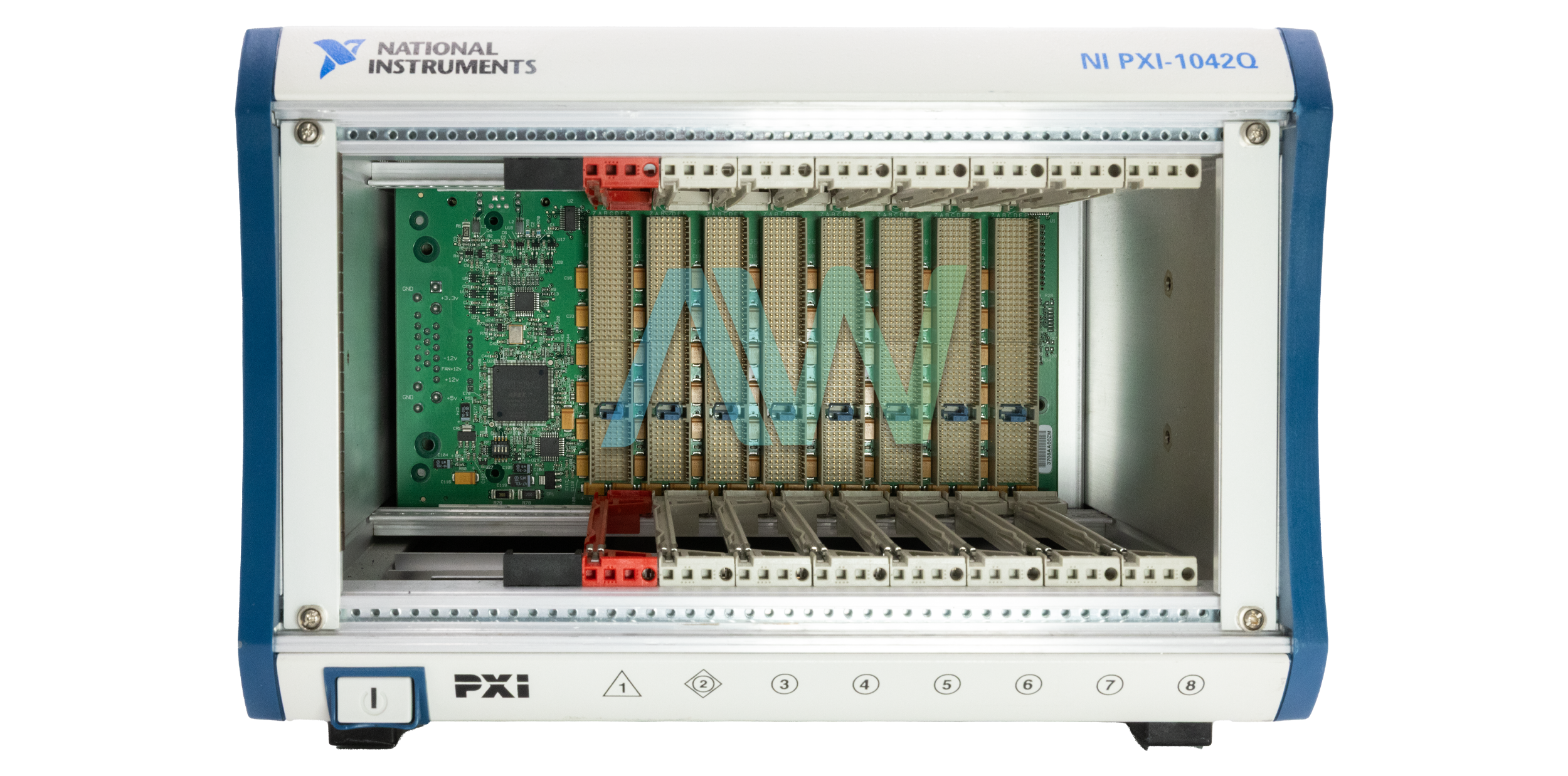

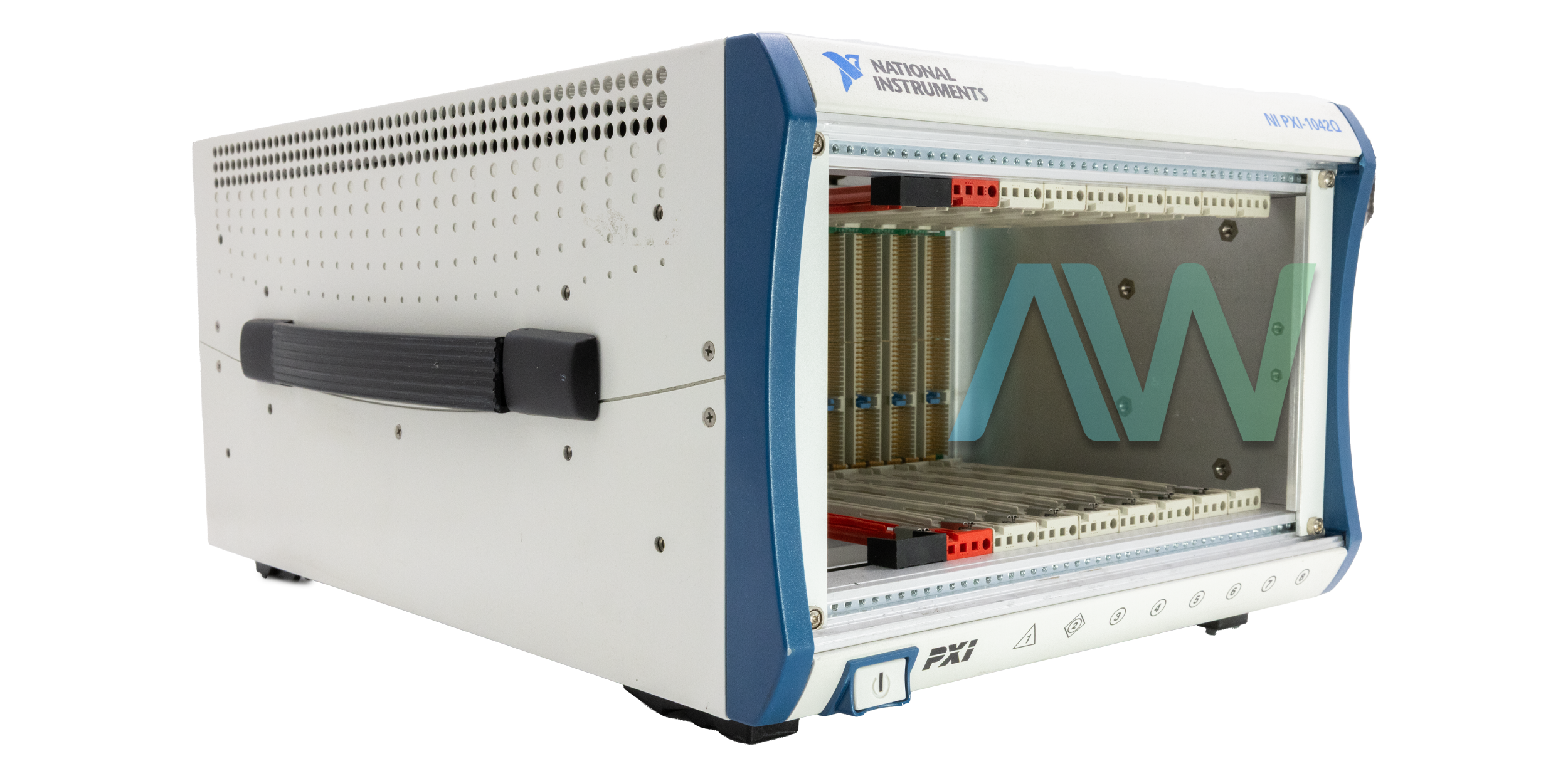

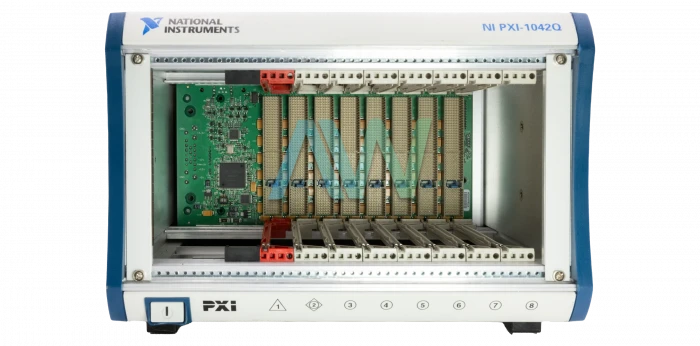

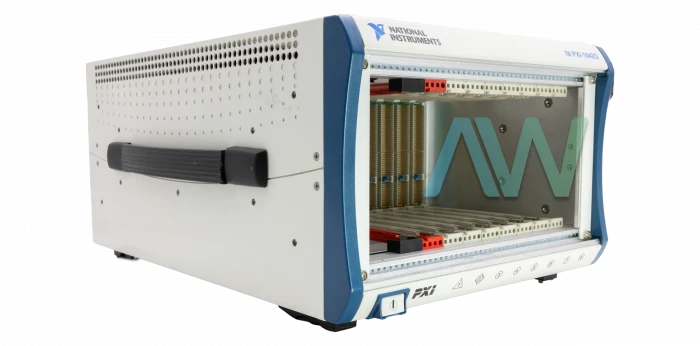

National Instruments PXI-1042Q Chassis
The PXI-1042Q (Part Number: 778636-02) Chassis incorporates two framework fans and a power supply fan to give filtered, forced-air cooling that surpasses the cooling requests of PXI and CompactPCI modules. The PXI-1042Q offers a HIGH fan setting to expand cooling and an AUTO fan setting to limit acoustic discharges. The chassis screen air intake temperature and modifies fan speed accordingly. With this innovation, the PXI-1042Q accomplishes acoustic noise levels as low as 43 dBA (sound weight level estimated at operator position according to ISO 7779). The lower acoustic discharges make the PXI-1042Q a perfect instrument for office, research, or benchtop applications. The 8-slot device has a maximum system bandwidth of 132 MB per second, with a slot cooling capacity of 30 W. Its 8 slots are equipped with 8 PXI trigger lines.
The PXI-1042Q can work with 3U PXI and CompactPCI modules. This model additionally includes a broadened temperature range and a detachable, high performance AC power supply. This chassis is designed with the NI Measurement and Automation Explorer (MAX) tool. With this product arrangement apparatus, clients can undoubtedly design PXI-1042 Series frameworks without the tedious manual establishment of introduction records. MAX makes the pxisys.ini record that characterizes the format and parameters of the user’s PXI framework including suspension, controller, and plug in modules.
The PXI-1042Q chassis offers a removable high-performance general AC control supply with built in current insurance. A disengaged 12 VDC line gives energy to the cooling fans, fundamentally decreasing electrical noise on the chassis backplane. The PXI-1042Q chassis consolidates the power supply and fans into a solitary secluded unit that the user can evacuate rapidly for the benefit of bringing about a mean time to repair (MTTR) of under five minutes. The NI instrument has an AC input voltage range of 100 to 240 VAC, an AC operating voltage range of 90 to 264 VAC, and an AC input frequency of 50/60 Hz. The device is equipped with a male 9-pin D-SUB (DB-9) connector found on the rear panel, and two BNC connectors.
PXI-1042Q Mature Status has been announced by National Instruments, but the chassis will still be available for purchase and repairs by Apex Waves.
| Model | PXI-1042Q |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 778636-02 |
| Type | Chassis |
| Slots | 8 |
| Maximum System Bandwidth | 132 MB/s |
| Slot Cooling Capacity | 30 W |
| PXI Slots | 7 |
| Warranty | Three Year Warranty |
| PXI-1042Q Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the PXI-1042Q:
18.8193, 188193F-04L, 188193G-04L, 19104.3, 191043A-01, 191043B-01, 191043C-01, 191043D-01, 191043F-01L, 191043G-01L, 19123.8, 191238A-01, 191238B-01, 191238C-01, 191238D-01, 191238F-01, 191238F-01L, 191238G-01L, 191304A-01, 191304B-01, 191403F-01L, 778636-02
National Instruments PXI-1042Q Frequently Asked Questions
Question: What is the noise level like on the PXI-1042Q Chassis? Would this be a good device to have in a classroom?
Answer: The PXI-1042Q Chassis has reduced acoustic noise emissions, making it perfect for laboratory and educational settings.
Question: Why will my PXI 1042Q not turn on after I plug it in? There is no sound, no fan, and no lights.
Answer: If you are not having any reaction when you plug in your PXI 1042Q, it’s likely that the device is broken, or your power supply does not meet the minimum requirements.
Question: Is the power supply on the National Instruments NI PXI-1042Q removable?
Answer: Yes, the National Instruments NI PXI-1042Q has a high-performance, removable AC power supply.
Question: How is the fan speed adjusted on the PXI-1042Q?
Answer: The PXI-1042Q has a temperature-sensing module that can adjust fan speed based on air-intake temperature.
PXI-1042Q PDF Manuals
8 SLOT PXI BACKPLANE INSTALLATION GUIDE.PDF
ARCHIVED NI PXI 1042 1042Q LETTER OF VOLATILITY.PDF
ARCHIVED NI PXI 8109 INSTALLATION GUIDE.PDF
ARCHIVED NI PXI 8109 USER MANUAL AND SPECIFICATIONS.PDF
NI PXI 1042 SERIES POWER SUPPLY SHUTTLE USER GUIDE.PDF
NI PXI 1042 SERIES USER MANUAL AND SPECIFICATIONS.PDF
NI PXI 8250 INSTALLATION GUIDE.PDF
NI PXI 8250 USER MANUAL AND SPECIFICATIONS.PDF
PXI 1042 1042Q LETTER OF VOLATILITY.PDF
PXI EXPRESS CHASSIS PRODUCT FLYER.PDF
PXI PXI EXPRESS CHASSIS FAN FILTER KIT.PDF
PXI-1042Q Diagrams
