PXI-4065
Modular Systems > National Instruments > PXI Digital Multimeters
| Description: | NI PXI-4065, AC Coupling, 6.5 Digit, 3 kS/s Sample Rate, PXI Digital Multimeter |
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

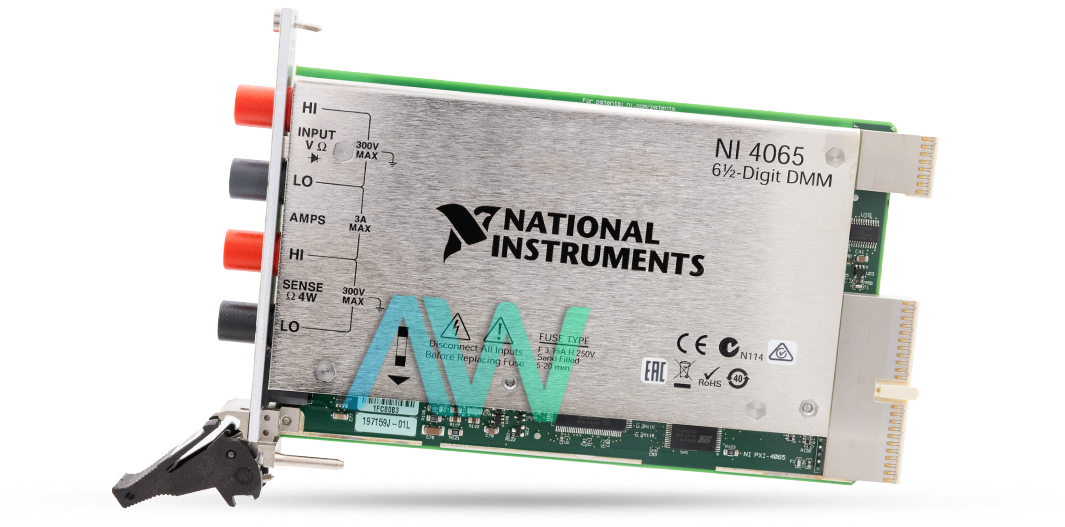

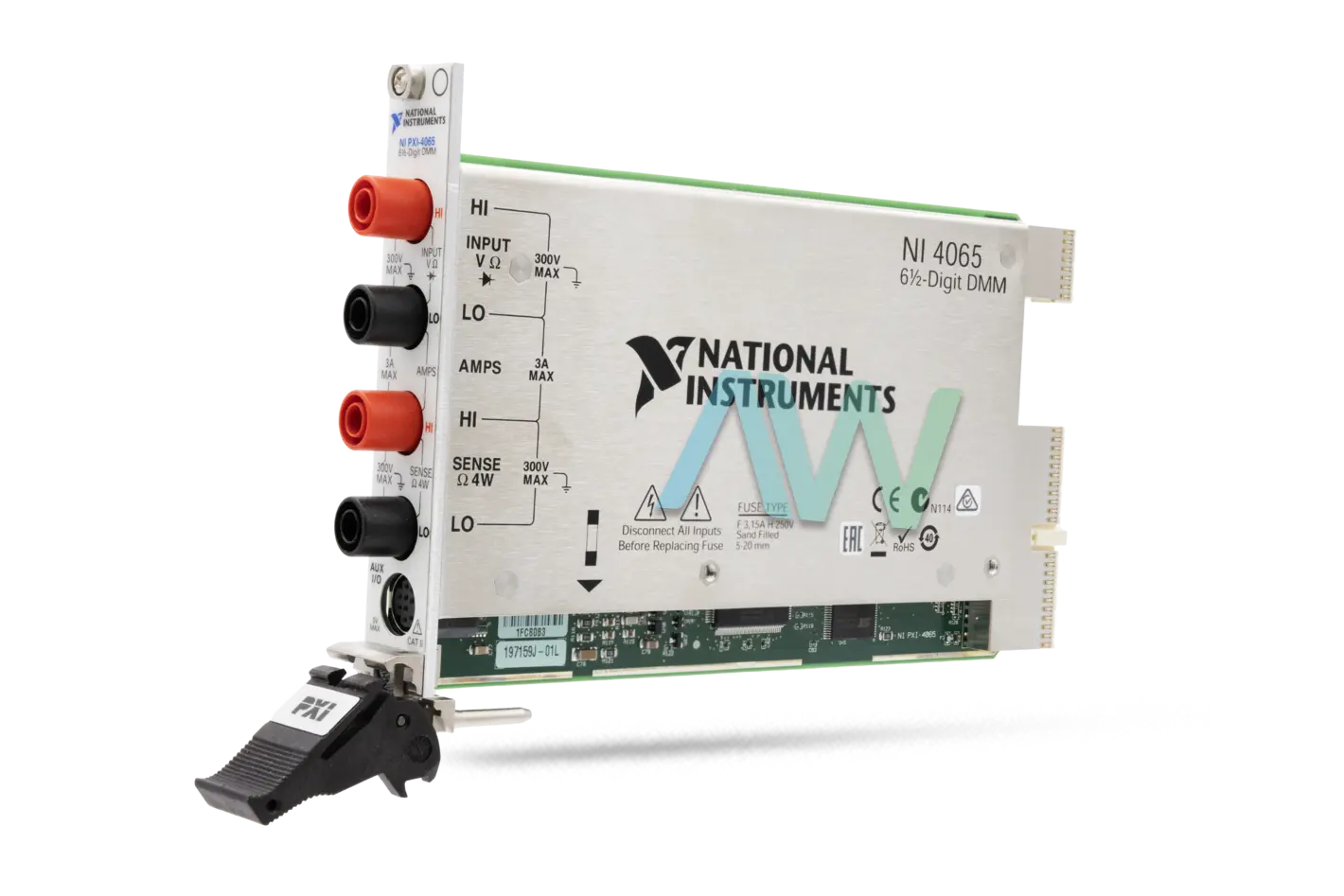

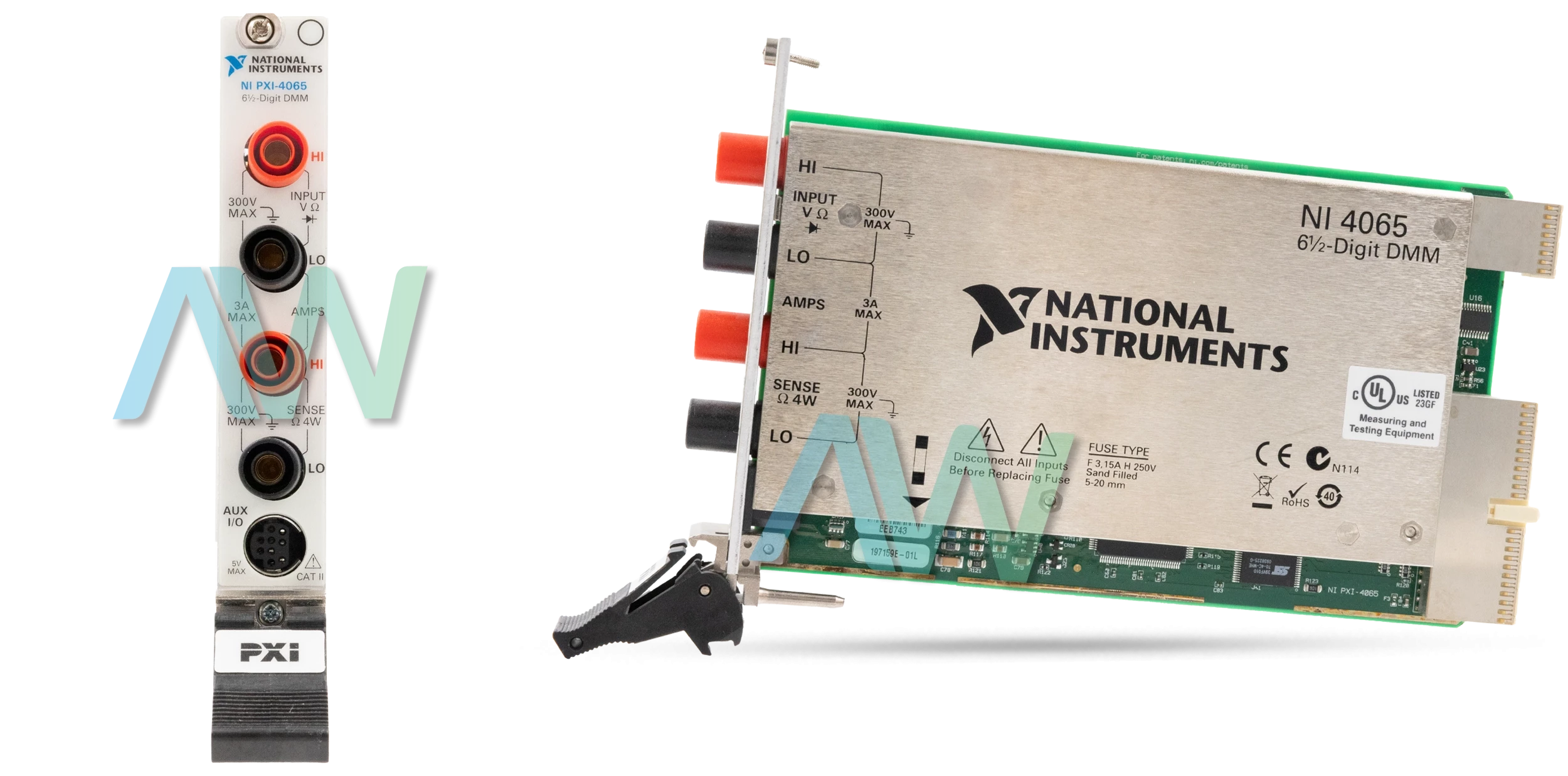

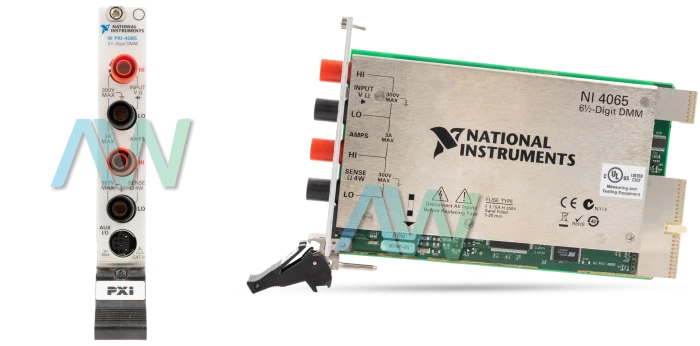

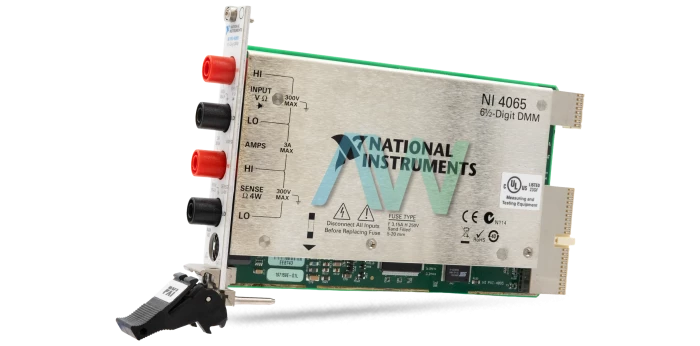

National Instruments PXI-4065 PXI Digital Multimeter
The National Instruments PXI-4065 (Part Numbers: 780011-01, 190310G-01L) is a 300 V, 6½-Digit PXI Digital Multimeter. An ideal choice for educational laboratories, OEMs, or other cost-conscious measurement and test applications, this multimeter is capable of creating 2 wire or 4 wire resistance. In addition, the NI PXI-4065 is able to perform diode tests and can accurately measure current and voltage for both AC and DC. The bandwidth of this DMM boasts 6.5 digits of resolution.
The PXI-4065 Digital Multimeter is designed with excellent trigger characteristics, as it can receive various types of input triggers through both PXI Trigger lines and a AUX I/O connector. These input triggers are generated at a minimum pulse width of 200 ns. The PXI-4065 DMM is also able to output triggers at a pulse width of 1 μs and a logic level of 3.3 V.
The system speeds for both the AC and DC systems of the NI PXI-4065 have a maximum trigger rate of 2.5 kHz and a trigger latency of <1 μs. The power consumption of the device, from the PXI backplane, is <3 W. The power consumption of the DMM differs depending on the power rail that is used.
Physically, the NI PXI-4065 is designed as a one slot 3U PXI module that measure dimensions of 21.6 cm × 2.0 cm × 13.0 cm (8.5 in. × 0.8 in. × 5.1 in.) and weighs in at 351.5 g (12.4 oz). The recommended operating temperature range of the device is 0 to 55 °C, and it has a storage temperature range of -40 °C to 70 °C.
Additional specifications for the PXI-4065 can be found in the user manuals and datasheets under the "Manuals & PDFs" tab.
| Model | PXI-4065 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 780011-01, 190310G-01L |
| Type | PXI Digital Multimeter |
| Digits of Resolution | 6.5 |
| DC Voltage Range | -300 V to 300 V |
| DC Current Range | -3 A to 3 A |
| Dimensions | 8.5 x 0.8 x 5.1 in. |
| Weight | 12.4 oz. |
| Warranty | Three Year Warranty |
| PXI-4065 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PXI-4065:
197159A-01L, 197159B-01L, 197159C-01L, 197159D-01L, 197159E-01L, 197159F-01L, 197159G-01L, 197159H-01L, 197159J-01L, 197159K-01L, 197159L-01L, 780011-01
National Instruments PXI-4065 Frequently Asked Questions
Question: What is the sample rate of the NI PXI-4065 DMM?
Answer: The NI PXI-4065 DMM has a sample rate of 3 kS/s.
Question: What is the basic DC voltage accuracy of the PXI-4065 6.5 Digit DMM?
Answer: The PXI-4065 6.5 Digit DMM has a basic DC voltage accuracy of 90 ppm.
Question: What is the PXI-4065 calibration interval?
Answer: The suggested PXI-4065 calibration interval is one year.
Question: Does the NI PXI-4065 have L&C measurements available?
Answer: No, the NI PXI-4065 does not have L&C measurements.
Question: Is the PXI-4065 capable of self-calibration?
Answer: No, to calibrate the PXI-4065, you need an external device with a higher accuracy
