PCI-6120
Modular Systems > National Instruments > S Series
| Description: | PCI-6120, 4 AI, 8 DIO, Multifunction I/O Device |
(expedited shipping options available)
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

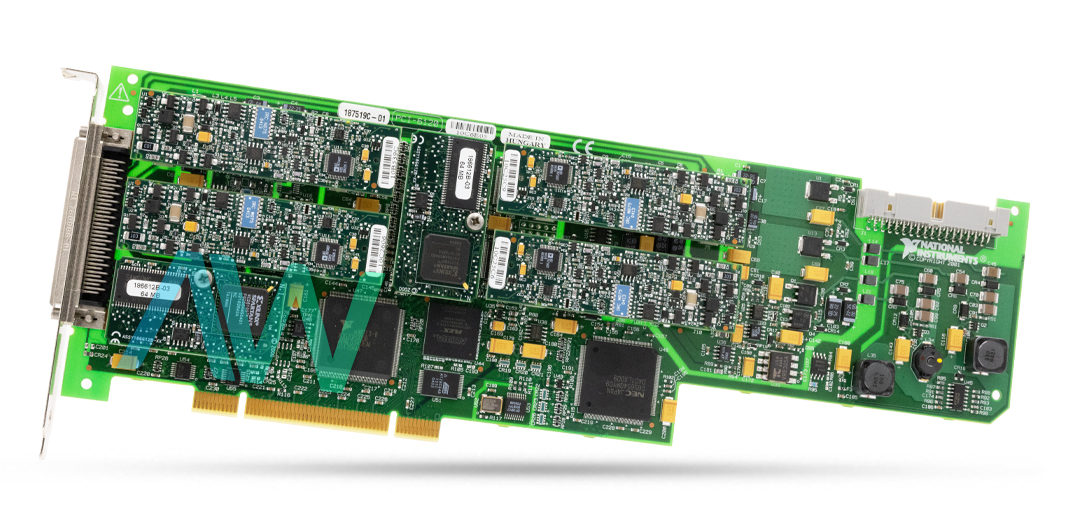

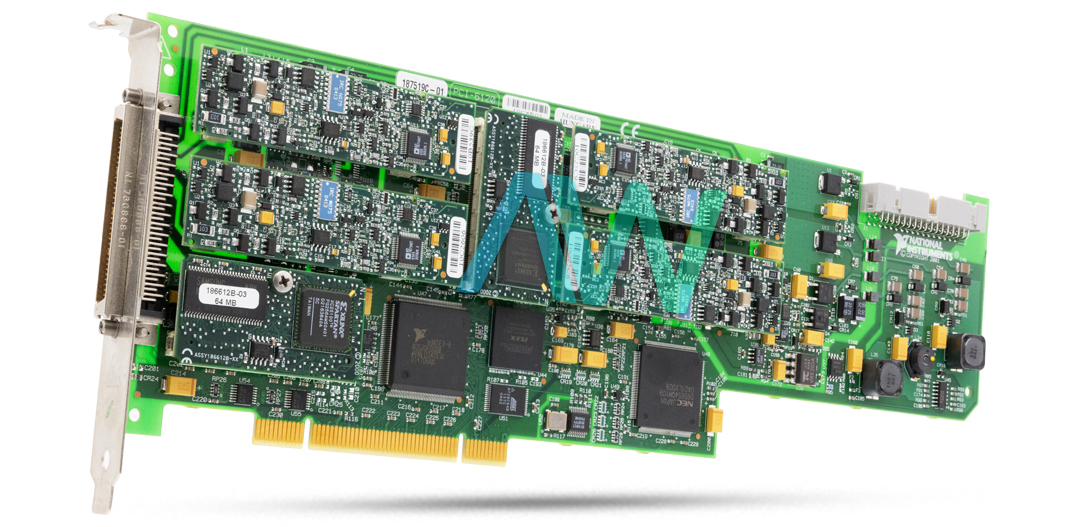

National Instruments PCI-6120 Multifunction I/O Device
The PCI-6120 is a Multifunction I/O Device developed by National Instruments. The part number of the PCI-6120 is 778397-01. The PCI-6120 is used for data acquisition and can synchronize analog input, output, and digital channels. This feature is useful for stimulus/response applications. The PCI-6120 is a full-length module. Therefore, it is compatible with only specific chassis. The compatible chassis slot must accommodate full-length modules.
The PCI-6120 Multifunction I/O Device has four analog input channels. The input channel resolution is 16 bits. The input channels support simultaneous sampling. The maximum sampling rate of the PCI-6120 is 800 kS/sec. The input channels are the AC/DC coupled type. The input channels can bear an overvoltage of 42 V without damaging the device. This device also has a FIFO buffer. The memory of the buffer is 32 MS.
The PCI-6120 device also features a 5-pole Bessel filter. This filter is optional and can be enabled through software. The frequency of the Bessel filter is 100 kHz. This device has two 16-bit analog output channels. The voltage range of the output channels is +10V. The output channels have protection against short-circuiting to ground.
The PCI-6120 Multifunction I/O Device also has eight digital lines. These lines are programmable. At start-up, these channels are set as input channels. The buffer size of the digital I/O channels is 2,048 bits. The transfer rate of the PCI-6120 device’s digital channels is 10 Mwords/s. These digital channels are compatible with TTL/CMOS.
The PCI-6120 device has two counters/timers. The frequency of the counters is 24 bits. The base clocks of 20 MHz and 100 kHz are available in this device. For interfaces, the PCI-6120 device has a 68-pin connector.
Apex Waves will continue to Buy, Sell, and Repair EOL NI Hardware in perpetuity. While the PCI-6120 entered the NI Maintenance phase on March 31, 2022, it will remain available with Apex Waves. Request your quote today!
| Model | PCI-6120 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 778397-01 |
| Series | S Series |
| Type | Multifunction DAQ |
| Channels | 4 Analog Inputs (16-Bit, 1 MS/s) 2 Analog Outputs (16-Bit,4 MS/s) 8 Digital Inputs/Outputs (5 V/TTL Compatibility) 2 Counter/Timer I/O (24 bits, 20MHz ) |
| I/O Connector | 68-pin male SCSI II type |
| Power Requirements | +5 VDC - 2.0 A |
| Dimensions | 12.3 × 4.2 in |
| Software | NI-DAQmx Measurement & Automation Explorer configuration utility VI Logger Lite data-logging software |
| Warranty | 2-3 Year Warranty |
| PCI-6120 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for PCI-6120:
1.87519E-46, 18751.9, 187519-51, 187519A-01, 187519B-01, 187519B-51, 187519C-01, 187519C-51, 187519D-01, 187519D-51, 187519F-01, 187519F-51, 187519G-01, 187519G-51, 187519H-01, 187519H-51, 187519J-01, 187519J-51, 187519K-01, 187519K-51, 187519L-01, 187519L-01L, 187522C-01, 187522D-01L, 778397-01
National Instruments PCI-6120 Frequently Asked Questions
Question: Which series does the PCI-6120 belong to?
Answer: The PCI-6120 belongs to the S Series, which means it has simultaneous sampling capability.
Question: Does the NI PCI 6120 require any accessories?
Answer: The NI PCI 6120 requires a connector block and a multifunction cable.
Question: What is the analog input absolute accuracy of the NI PCI-6120?
Answer: The analog input absolute accuracy of the NI PCI-6120 is 76 mV.
Question: What is the analog input FIFO buffer size for the PCI-6120?
Answer: The analog input FIFO buffer size for the PCI-6120 is 32 MS.
PCI-6120 PDF Manuals
DAQ GETTING STARTED GUIDE FOR PCI PCI EXPRESS.PDF
DAQ GETTING STARTED READ ME FIRST NI DAQMX AND DAQ DEVICE INSTALLATION GUIDE.PDF
NI 6110 6111 6115 6120 CALIBRATION PROCEDURE 28FOR TRADITIONAL NI DAQ 5BLEGACY5D29.PDF
NI 6115 6120 LETTER OF VOLATILITY.PDF
NI 6115 6120 SPECIFICATIONS.PDF
NI 61XX PINOUT LABEL FOR THE SCB 68.PDF
NI 61XX PINOUT LABEL FOR THE SCB 68A.PDF
