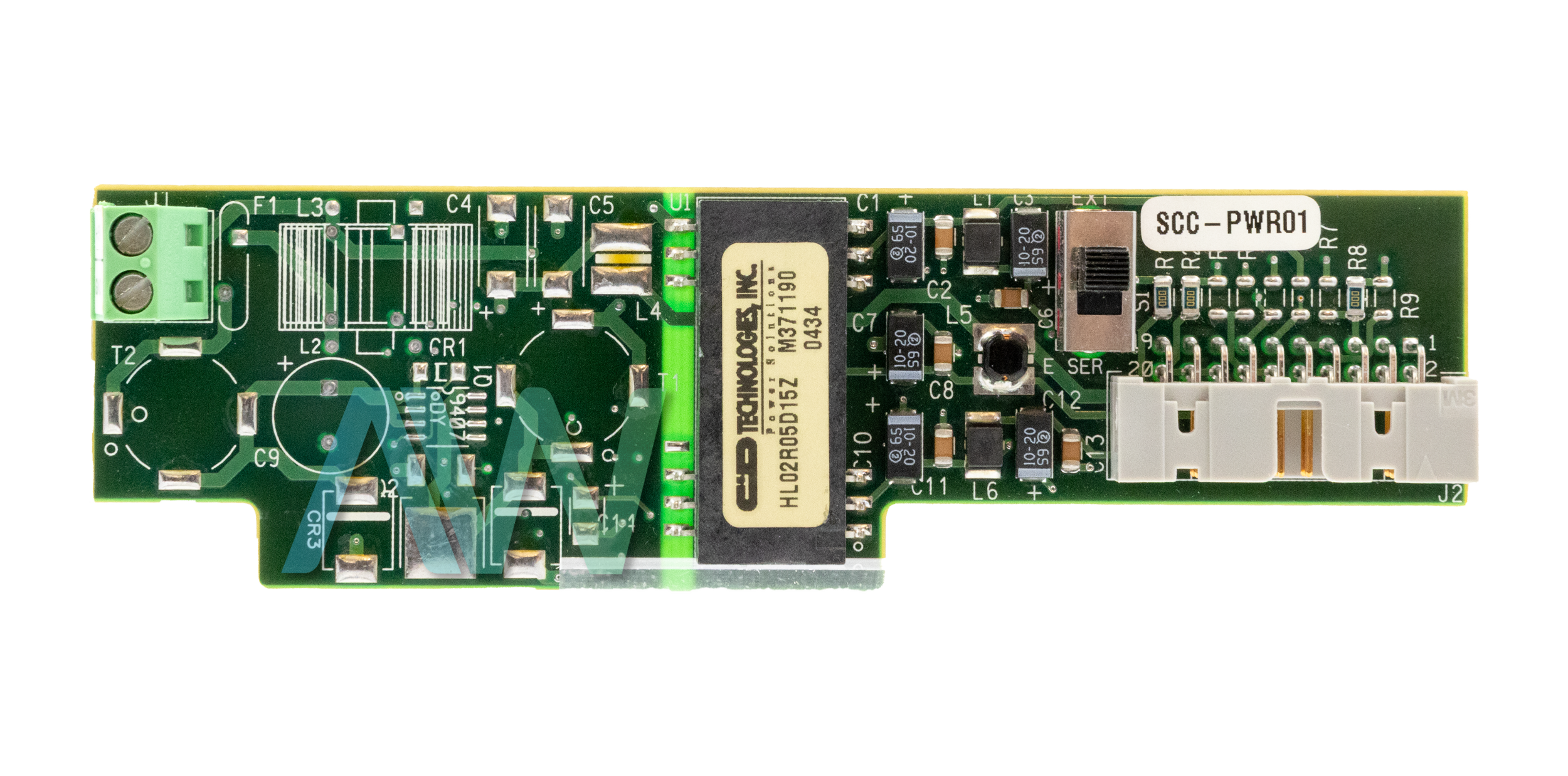

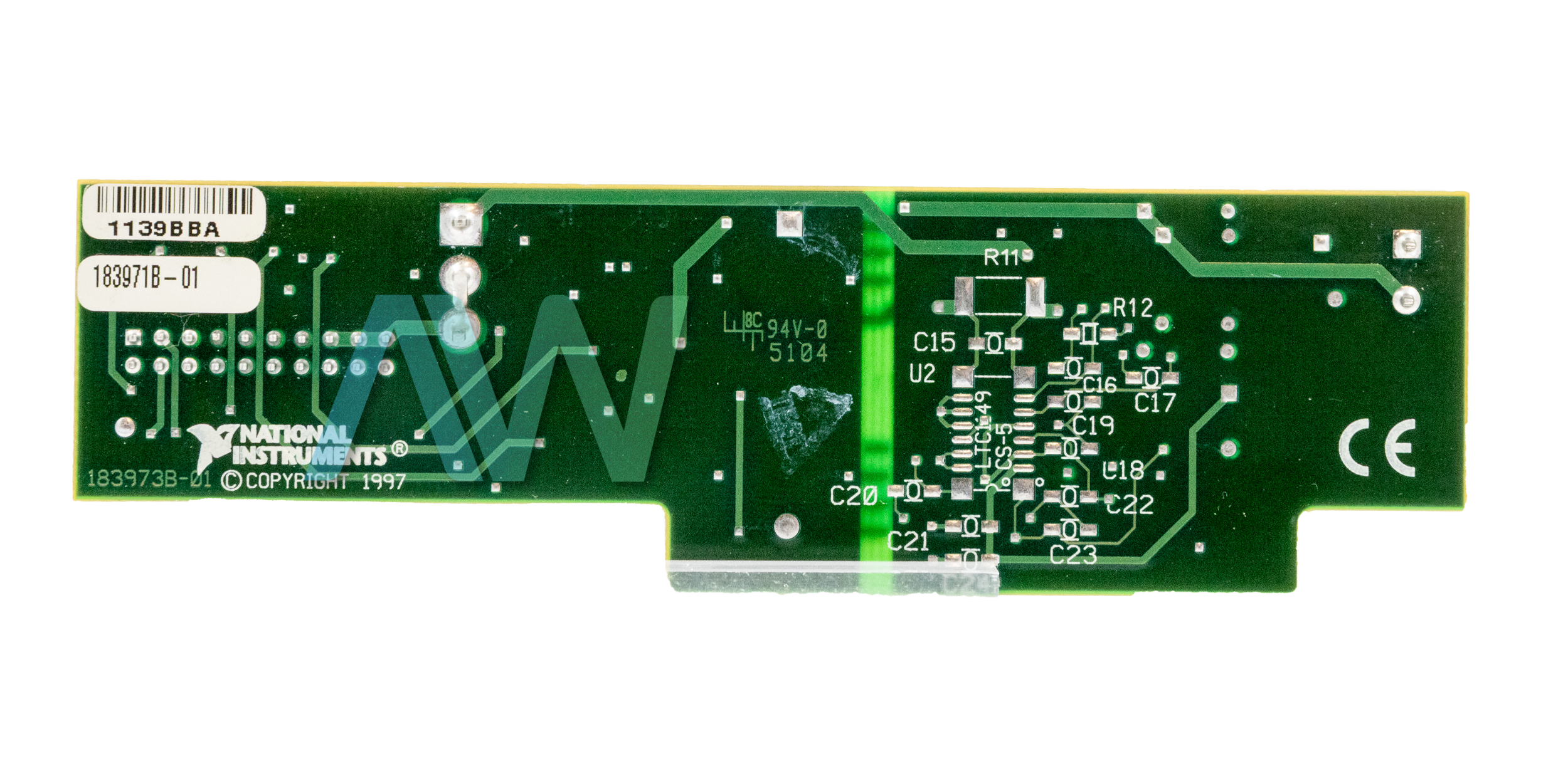

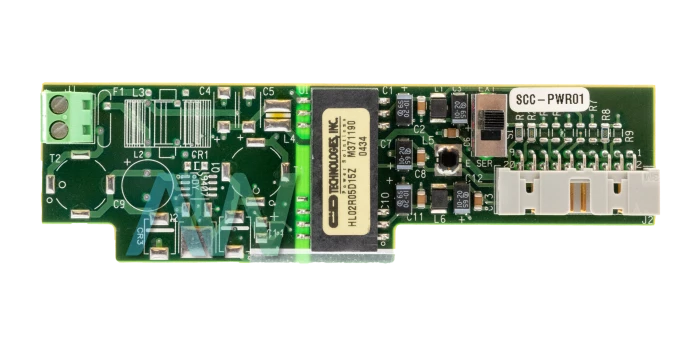

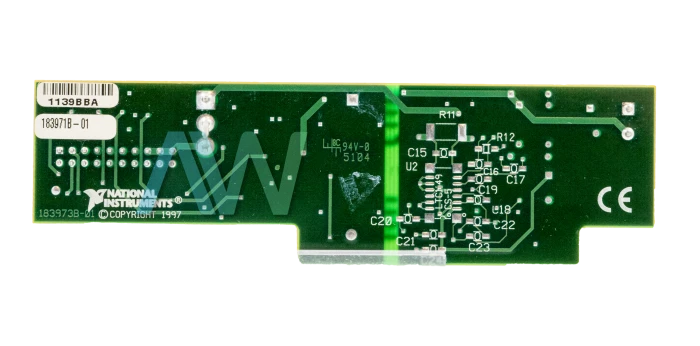

National Instruments SCC-PWR01 Power Supply Board
The SCC-PWR01 (Part Number: 183971-01) is a product of National Instruments. This Power Supply Board is a world-class instrument. It provides power to SCC modules and the SCC modules provide signal conditioning to a DAQ system. Data acquisition devices enable us to measure temperature, pressure, sound, voltage or current.
The SCC-PWR01 Power Supply Board provides analog power supply to SCC modules. This model converts +5 Volts to +15 Volts and additionally +5 Volts to -15 Volts. SCC modules use this analog power supply to fulfill their power needs. The user can set this Power Supply Board to two different modes. The two modes have a few differences. The source of +5 Volts provides two different options. The high-quality SCC-PWR01 has a switch named S1. The user can set it at E/M series and utilizes the power of +5 Volts from the E/M Series device. The user can also set it as the EXT (external) option. The user must connect it to +5 Volts supply in case of the EXT (external) option.
The SCC-PWR01 Power Supply Board has a digital power of +5 Volts only for the SC2345/2350 carrier. This model converts this +5 Volts digital power supply to the +15 Volts analog power supply and provides this analog power supply to SCC modules. The SCC-PWR01 Power Supply Board provides two types of input supply. The output efficiency of this power module is 100% for +5 Volts DC (Direct Current). For +15 VDC and -15 VDC, its output efficiency is 62%.
When the SCC-PWR01 is paired with the SC-2345, the package is listed as part number 777458-01. The SCC-PWRO1 can also be paired with the SC-2345 in the following ways: with configurable connectors (part number: 777722-01), and with configurable connectors for DAQPAD (part number: 778018-01).
| Model | SCC-PWR01 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 183971-01 |
| Type | Power Supply Board |
| Input | 5 VDC ±5% from an external source, or +5 VDC from E Series or Basic multifunction DAQ device |
| Output | +5 VDC, 100% efficiency ±15 VDC, 62% efficiency |
| Dimensions | 3.5 by 1.2 by 0.7 in. |
| Warranty | Three Year Warranty |
| SCC-PWR01 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
