USB-8451
Modular Systems > National Instruments > Serial Interface Devices
| Description: | NI USB-8451, 12 MHz, USB Series B, 8 Digital I/O Lines, Full-Speed I2C/SPI Interface Device |
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

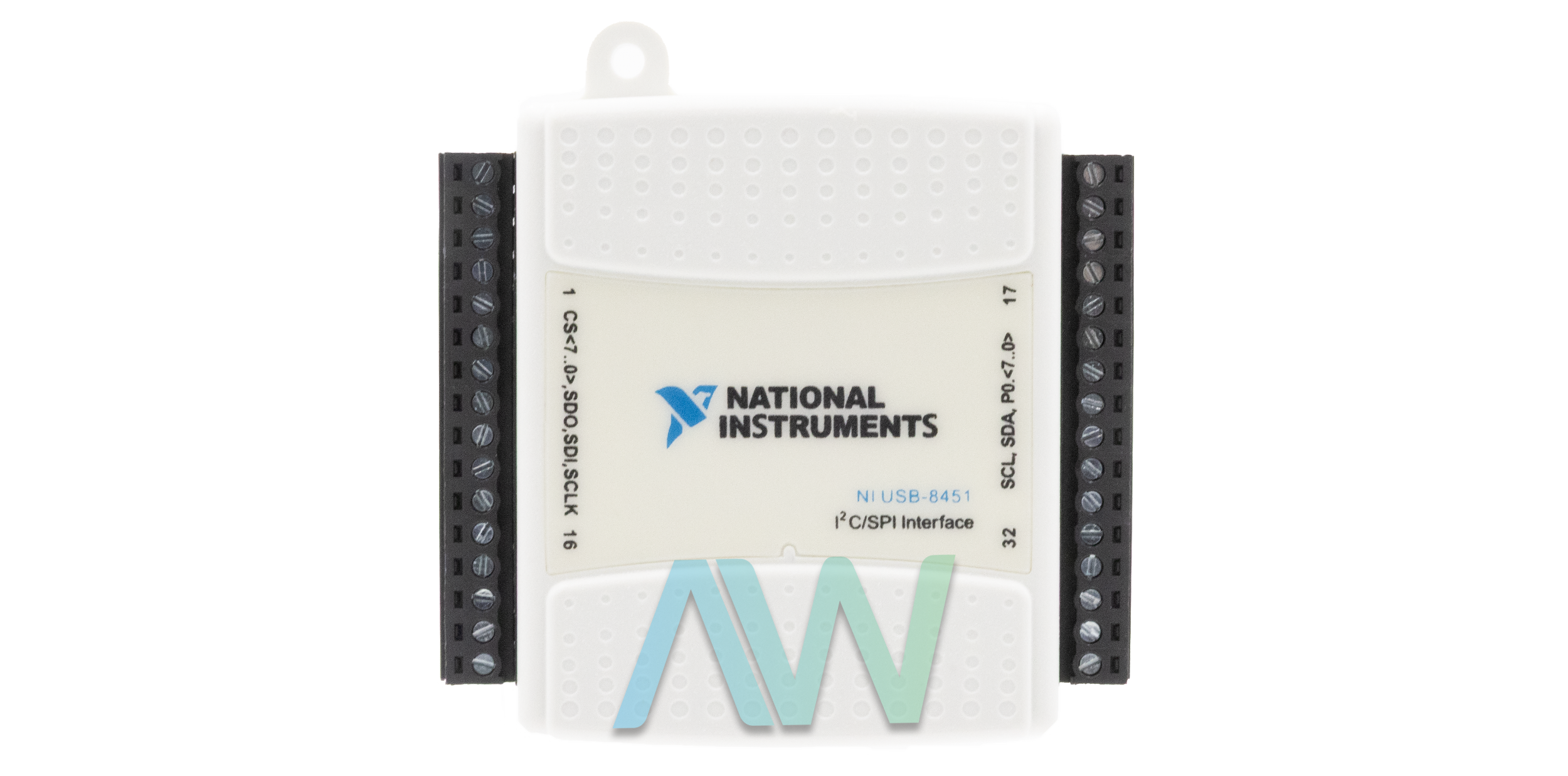

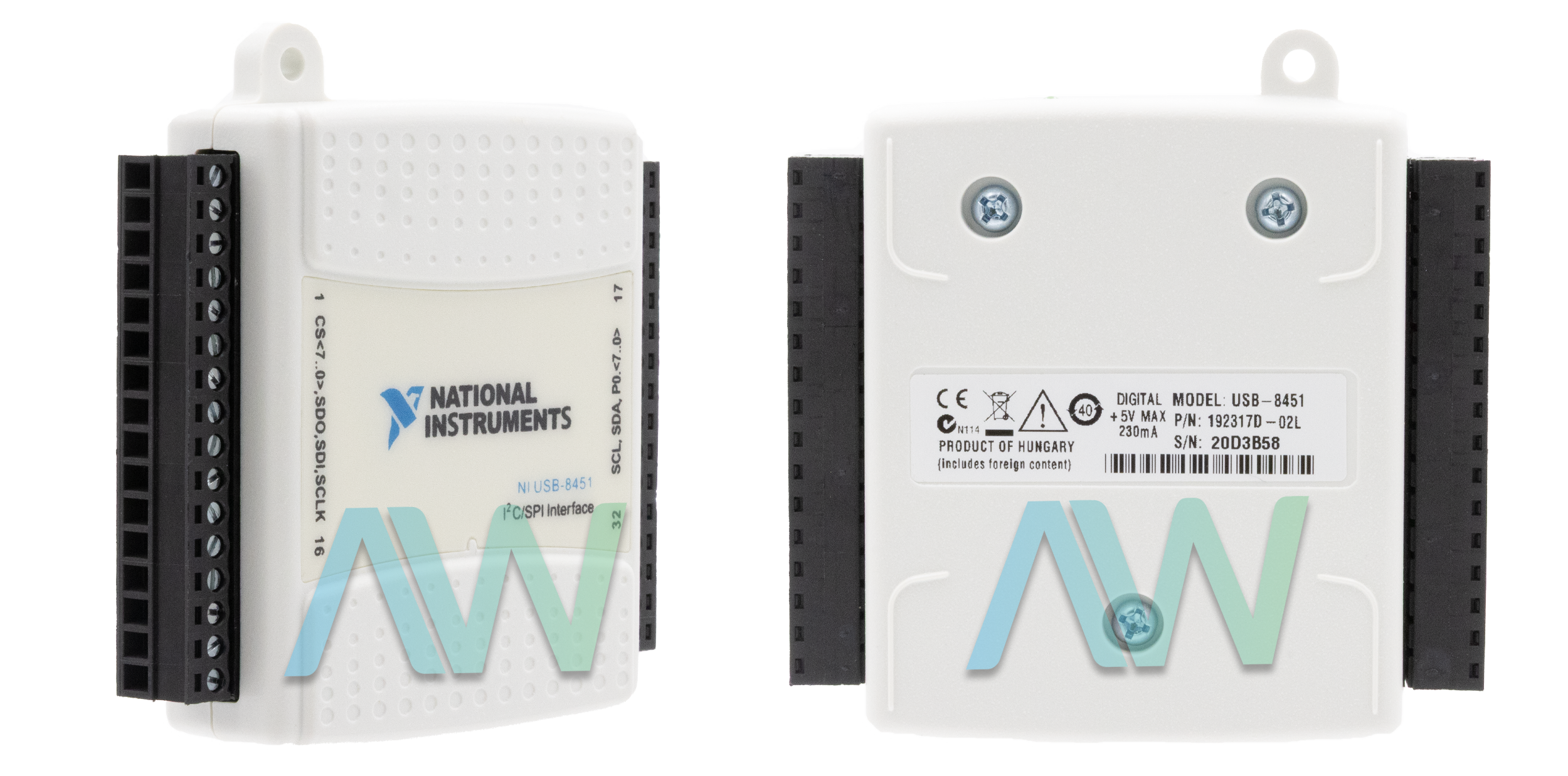

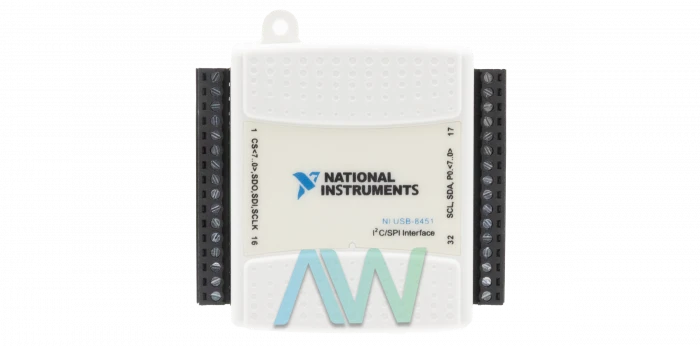

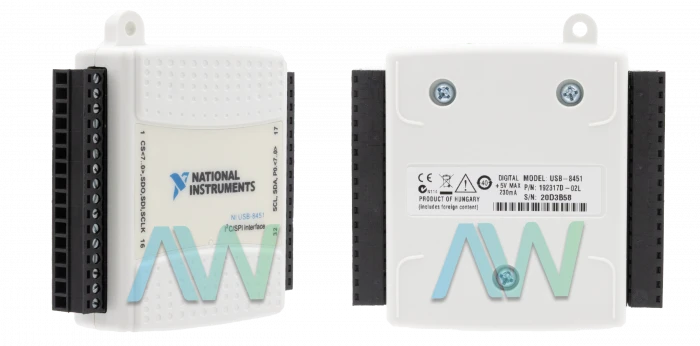

National Instruments USB-8451 I2C/SPI Interface Device
The USB-8451 (Part Numbers: 779553-50, 779553-01, 192317D-02, and 192317D-02L) is a bus-powered, full-speed I²C/SPI Interface Device from National Instruments. This device is made to connect to and communicate with integrated circuits (I2C), peripheral interface devices, and System Management Busses. With its eight digital I/O lines, the NI USB-8451 Interface Device is a portable communication solution intended for use with consumer electronics and integrated circuits. Each of these lines may be configured independently to function as a static digital input or output line. In addition, they can be utilized in a variety of applications such as I2C device configuration or toggling LEDs. The I/O connectors of this Interface Device include a USB series B receptacle and two 16-position screw terminal plug headers.
The NI USB-8451 Interface Device, in contrast to PCI interfaces, may be utilized in close proximity to I2C/SPI devices, which minimizes noise issues and the length of the l2C bus. The NI USB-8451 is a self-sufficient device, meaning it doesn't require an external power source. Rather, the full-speed USB interface typically offers 80 mA of power with a 500 mA maximum. To protect against potential damage, this Interface Device offers integrated protection against overcurrent, overvoltage, and undervoltage conditions on each SPI, DIO, and SPI CS signal. There are four SPI modes and an advanced API for custom I2C and SPi transactions.
Intended for indoor use only, the NI USB-8451 should be operated within a temperature range of 0 °C to 45 °C, and it can be kept within a storage temperature range of 40 °C to 85 °C. Without connectors attached, the NI device measures 6.35 cm × 8.51 cm × 2.31 cm (2.50 in. × 3.35 in. × 0.91 in.) in dimensions. With connectors included, the dimensions measure 8.18 cm × 8.51 cm × 2.31 cm (3.22 in. × 3.35 in. × 0.91 in.). In total, the NI USB-8451 Interface Device weighs 84 g (3 oz).
The NI USB-8451 entered the Maintenance product life cycle phase on March 31, 2022, but it will remain available for repair or purchase with Apex Waves. Request your quote today!
| Model | USB-8451 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 779553-50, 779553-01, 192317D-02, 192317D-02L |
| Type | I2C/SPI Interface Device |
| DIO Lines | 8 |
| Maximum I2C Clock Rate | 250 kHz |
| Maximum SPI Clock Rate | 12 MHz |
| Dimensions | 2.50 in. × 3.35 in. × 0.91 in. |
| Weight | 3 oz. |
| Warranty | Three Year Warranty |
| USB-8451 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the USB-8451:
192317B-52, 192317C-02, 192317C-52, 192317D-02L, 192317D-52L, 779544-01, 779553-01, 779553-50
National Instruments USB-8451 Frequently Asked Questions
Question: What is the difference between the two part numbers for the USB 8451 National Instruments?
Answer: The first part number for the USB 8451 National Instruments, 779553-50, is not an enclosed device. However, the second part number, 779553-01, is an enclosed device.
Question: What is the NI USB 8451 driver?
Answer: The NI USB 8451 driver is NI-845x.
Question: What are the power requirements for the NI USB 8451?
Answer: The power requirements for the NI USB 8451 are 80 mA typical, 500 mA maximum for 4.10 to 5.25 VDC and 300 µA standby mode, A standby mode, 500 µA maximum for USB suspend.
Question: What is the output driver type on the NI USB-8451?
Answer: The output driver type on the NI USB-8451 is push-pull (active drive) or open-drain, software selectable.
