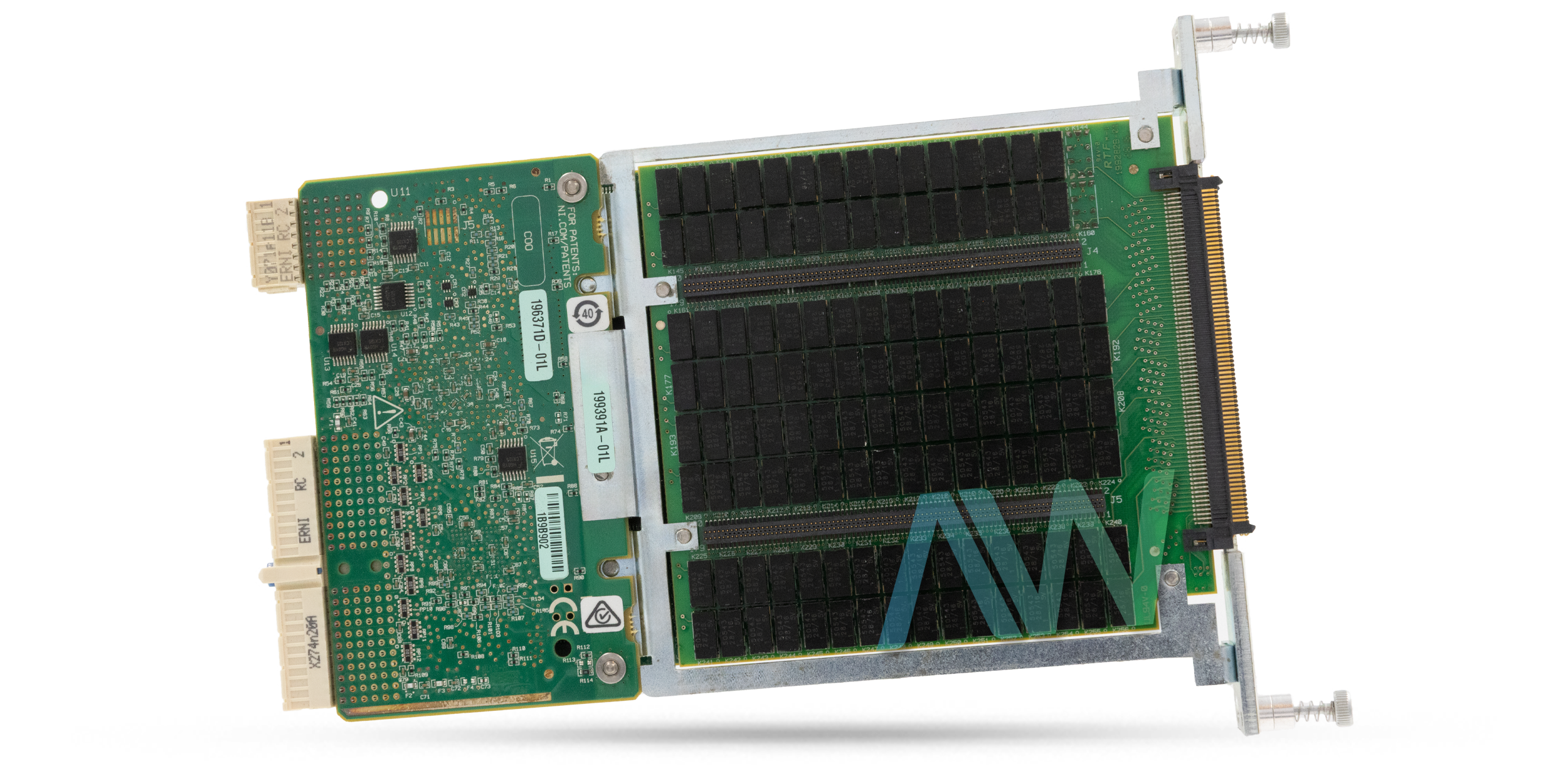

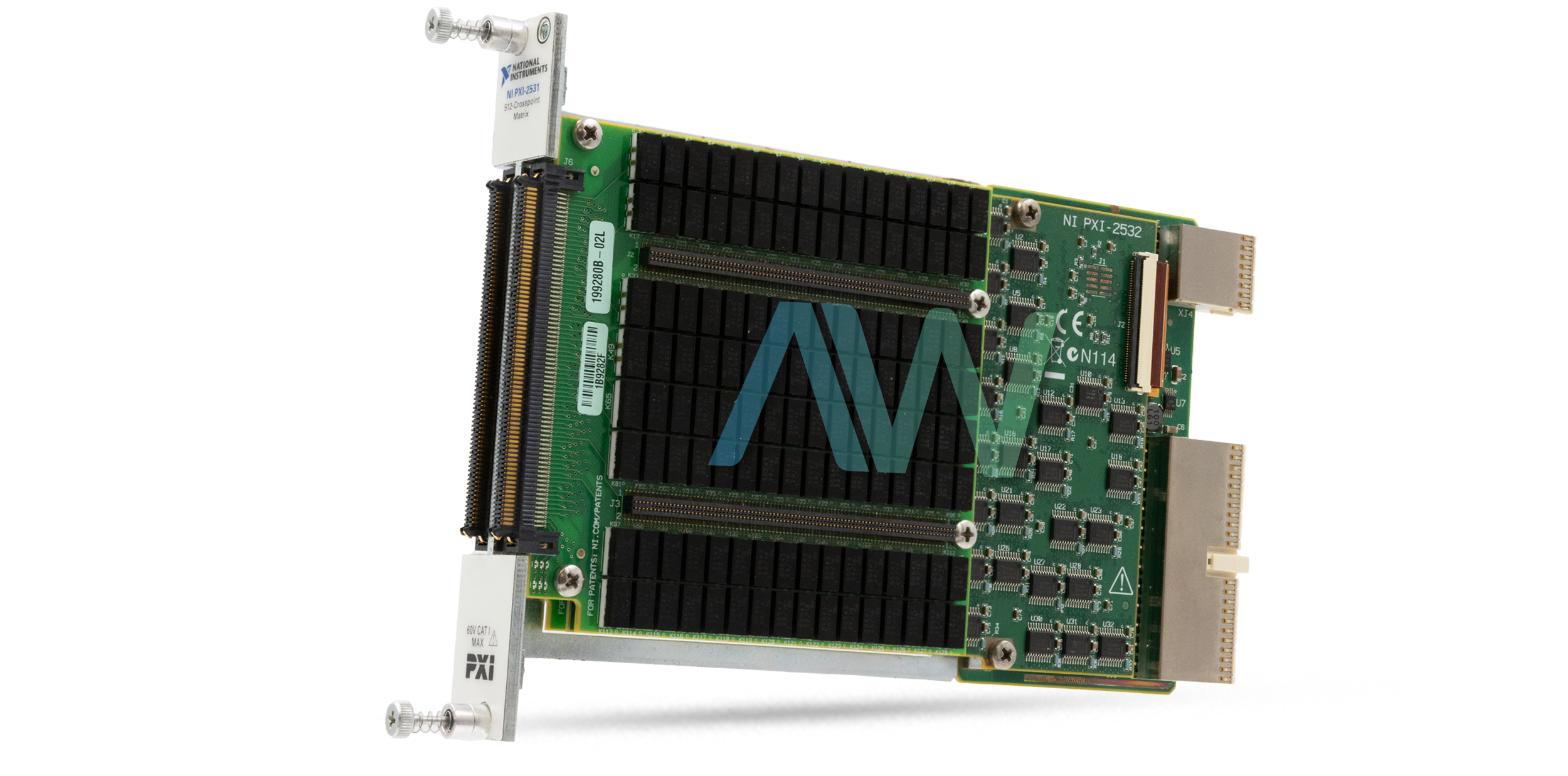

National Instruments PXI-2531 PXI Matrix Switch Module
The National Instruments PXI-2531 (Part Number: 778572-31) is a high-density, 1-Wire, 512 Crosspoint PXI Matrix Switch Module. This model is built specifically to serve automated test systems with a high-channel-count. The NI PXI-2531 comes equipped with the compact, fast reed relays designed to switch at high speeds, i.e. up to 2000 cycles/s. With this module, users can achieve various topologies, including: a 1-wire dual 8 × 32 matrix, 1-wire dual 8 × 32 matrix, 1-wire 8 × 64 matrix, and 1-wire 4 × 128 matrix.
The NI PXI-2531 is designed to provide 0.5 A switching or carry current and 10 W maximum switching power per channel. In typical conditions, with 50 Ω termination, this module offers ≥20 MHz bandwidth and <-70 dB, typical channel-to-channel crosstalk within a frequency band of 10 kHz to 100 kHz. This switch module comes equipped with 2 x 150 position Samter ERM8 Series I/O connectors. The mechanical relay life and actuating or release time of the relays used in this module is 1 x 109 cycles and 0.25 ms respectively.
The PXI-2531 has a simultaneous drive limit of 40 relays, with a 0.25 ms relay operating time. However, when used in a PXI Express chassis, 64 relays can be driven simultaneously. This Matrix Switch Module can receive trigger signals through PXI trigger lines (0 to 7) at 150 ns minimum pulse width. To output trigger signals, it utilizes the same PXI trigger lines, but at 1 µs to 62 µs programmable pulse width.
Model | PXI-2531 (778572-31) |
---|---|
Manufacturer | National Instruments |
Type | PXI Matrix Switch Module |
Crosspoints | 512 |
Banks | 1, 2 |
Rows | 4, 8 |
Columns | 32, 64, 128 |
Dimensions | 8.5 x 0.8 x 5.1 in. |
Weight | 1 lb. |
Warranty | 2-3 Year Warranty |
PXI-2531 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for the PXI-2531:
199280B-01L, 199391A-01L, 199391B-01L, 778572-31
National Instruments PXI-2531 Frequently Asked Questions
Question: What is the switch bandwidth of the NI PXI-2531?
Answer: The switch bandwidth of the NI PXI-2531 is 20 MHz.
Question: What is the scan rate of the PXI-2531?
Answer: The PXI-2531 has a scan rate of 2,000 cycles/s.
Question: What type of relays does the PXI-2531 have?
Answer: The PXI-2531 has reed relays.
Question: What type of I/O connectors are on the PXI-2531?
Answer: The PXI-2531 has 2, 150 pos, Samtec ERM8 series I/O connectors.
PXI-2531 PDF Manuals
NI PXI PXIE 2531 SPECIFICATIONS.PDF
PXI PXIE 2531 2532 2532B LETTER OF VOLATILITY.PDF
PXI-2531 Diagrams
Why Buy From Apex Waves:
"The business transaction was super easy and friendly."
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
PXI-2531
Modular Systems > National Instruments > PXI Matrix Switch Modules
1-800-915-6216
- Description
- Technical Specifications
- FAQ
- Manuals & PDFs

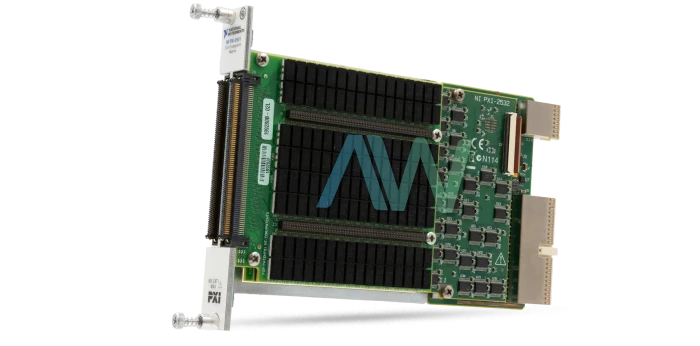

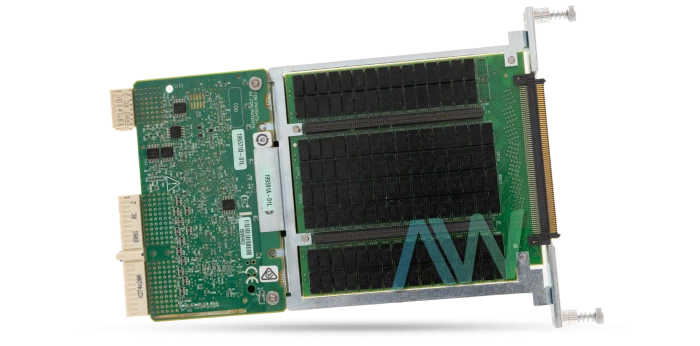

National Instruments PXI-2531 PXI Matrix Switch Module
