PXI-4071 In Stock | Ships Today
PXI-4071, 7.5 Digit Resolution, 1.8 MS/s Sample Rate, PXI Digital Multimeter
Need an Official Quote?
National Instruments PXI-4071 PXI Digital Multimeter

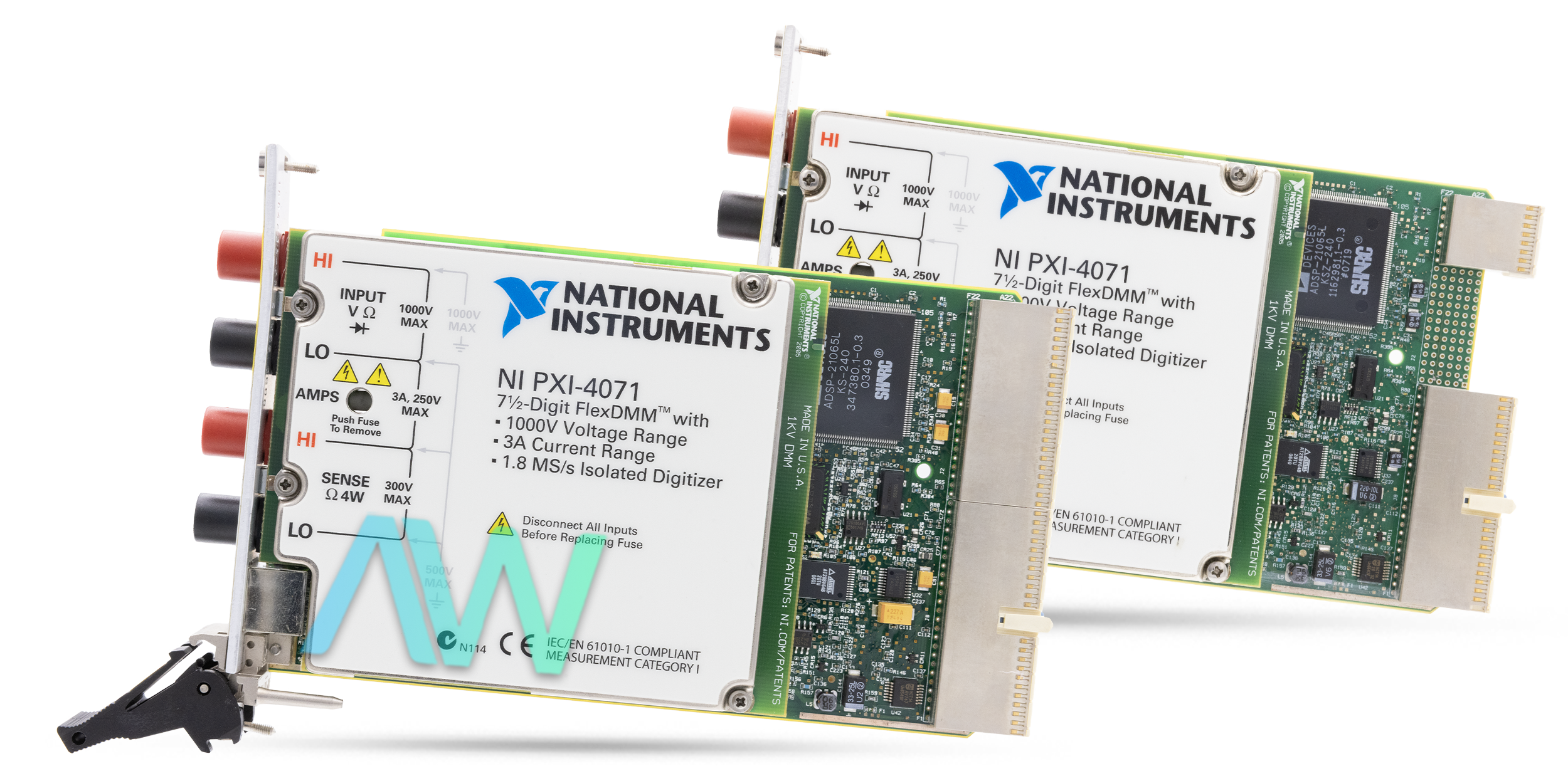

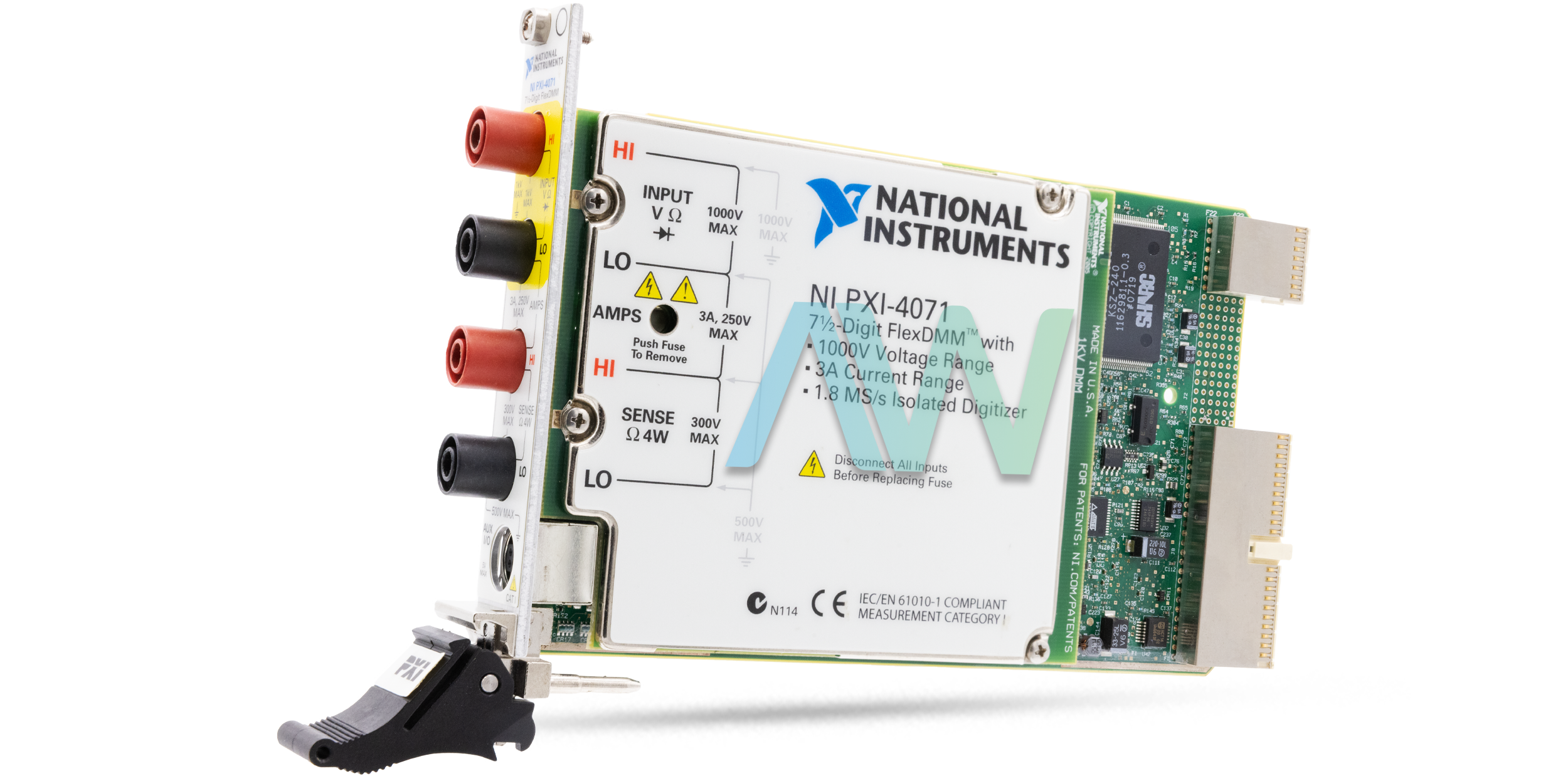

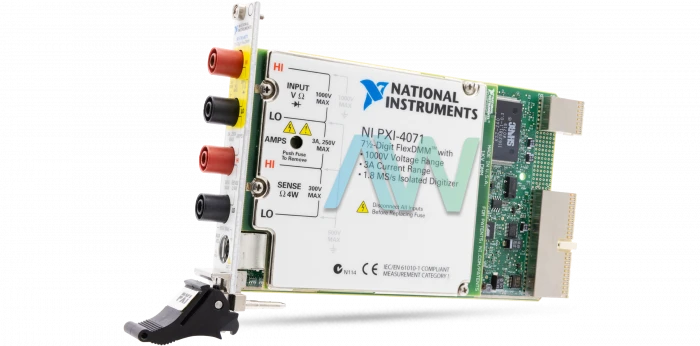

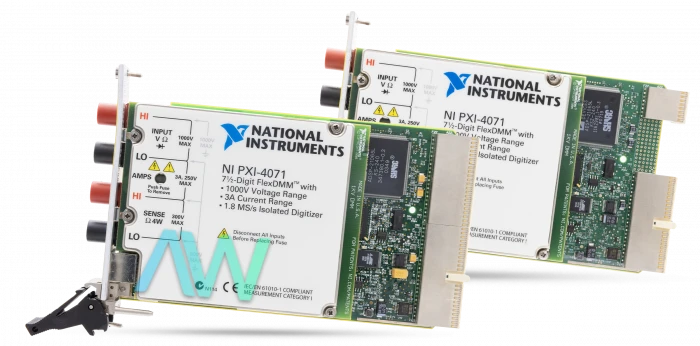

The NI PXI-4071 (Part Number: 778271-01) is a FlexDMM, multifunction 3U PXI module that gives the estimation ability found in a high-resolution digital multimeter (DMM) and a digitizer. As a DMM, the PXI-4071 makes quick, precise voltage estimations from ±10 nV to 1000 V, current estimations from ±1 pA to 3 An, resistance estimations from 100 Ω to 5 GΩ, and takes recurrence/period and diode estimations. The device has a DC current range of -3 A to 3 A. In the high-voltage, confined digitizer mode, the PXI-4071 can get DC-coupled waveforms at test rates up to 1.8 MS/s in all voltage and current modes. Utilizing the examination capacities in NI LabVIEW programming, the user can study these waveforms in time and recurrence. The PXI-4071 offers prevalent speed, exactness, and usefulness, making it a great choice for use in robotized tests.
This model outperforms traditional 7 1/2-digit DMM speed/execution boundaries by utilizing a modern architecture that exploits the fast PXI bus. At 7 1/2 digits, the PXI-4071 accomplishes DC reading rates of 7 S/s. For applications requiring higher throughput, it has a high DC reading rate of 10 kS/s at 4 1/2 digits (these rates are no less than five times quicker than the original GPIB-controlled DMMs). The device when AC coupled, has an auto range time of 250 ms (for both AC V and AC 1), a range/function change of 10/s, a trigger latency and maximum trigger rate of 2 µs and 1 kHz respectively. The device has a warm-up time of 1 hour before operation.
The PXI-4071 can import and export triggers, making it simple to coordinate them with any multiplexer/matrix switch modules. Specifically, the FlexDMM incorporates consistently with National Instruments switch offerings. For example, with NI switch modules and NI Switch Executive switch management software, the user can quantify a huge number of channels, consisting of voltages, thermocouples, RTDs, and thermistors. The user can also keep a firm control on the cost of their framework.
Additional specifications for the PXI-4071 can be found in the datasheets and manuals under the "Manuals & PDFs" tab.
Apex Waves stocks End-of-Life NI Hardware for purchase and repairs in perpetuity. While the PXI-4071 is no longer available with National Instruments, the Digital Multimeter will remain available with us.
| Model | PXI-4071 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 778271-01 |
| HTS Code | 8471804000 |
| Type | PXI Digital Multimeter |
| Maximum Sample Rate | 1.8 MS/s |
| DC Voltage Range | -1000V to 1000 V |
| DC Current Range | -3 A to 3 A |
| Digits of Resolution | 7.5 |
| Driver Software | NI-DMM driver |
| Calibration Interval | 2 years |
| Warm-Up Time | 1 hour |
| Maximum Trigger Rate (DC) | 6 kHz |
| Maximum Trigger Rate (AC) | 1 kHz |
| Maximum voltage to earth ground at AUX I/O connector | 5.5 V DC |
| Trigger Compatibility | LVTTL/TTL |
| Dimensions | 8.5 x 0.8 x 5.1 in. |
| Weight | 11 oz. |
| Warranty | Three Year Warranty |
| PXI-4071 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the PXI-4071:
190299B-01, 190299C-01, 190299D-01, 190299F-01, 190299F-01L, 185828V-01L, 190299G-01L, 185828X-02L, 190299H-01L, 19029.9, 190299J-01L, 1914.85, 191485A-02, 191485B-02, 191485C-02, 191485D-02, 191485F-02, 191485G-02, 191485H-02, 191485J-02, 191485K-02, 191485K-02L, 191485L-02L, 191485M-02L, 191485N-02L, 193030A-01, 193030A-01L, 196176A-02L, 200037A-01, 200051A-01, 778271-01
Associated NSNs for the PXI-4071:
5998-01-565-3226 (5998015653226)
National Instruments PXI-4071 Frequently Asked Questions
Question: Does the NI DMM 3.0.5 driver support the PXI-4071?
Answer: Yes, the NI DMM 3.0.5 driver supports the PXI-4071.
Question: My National Instruments NI PXI-4071 is failing when I run a self-test in Measurement & Automation Explorer. The error that appears is Error -223911. What does this mean and how do I prevent this error?
Answer: Error -223911 occurs after the DM module alias is renamed. This can be prevented by restarting Measurement & Automation Explorer (MAX) after every rename.
Question: While reading the PXI DMM 4071 specifications, I saw “Range or Function Changes = 10/s.” What are the Range or Function Changes?
Answer: For the PXI DMM 4071, the voltage/current range or the function can be changed during execution. The rate at which it can be changed is to times per second maximum.
Question: What does the 7.5 digits of resolution for the PXI 4071 mean?
Answer: The digits of resolution indicates the quantity of digits displayed on the DMM’s reading. For 7 digits, this means 0000000 ~ 9999999 can be displayed. For 7.5 digits, this can be displayed when 00000000 ~ 19999999 are displayed. If ½ is used for the digits, it is used when the first digit is represented by only 0,1.
Question: What is the range of the PXI-4071?
Answer: The PXI-4071 offers voltage measurements from ±10 nV to 1000 V, current measurements from ±1 pA to 3 A, and resistance measurements from 10 ตΩ to 5 GΩ.
Question: Can the PXI-4071 be used to measure voltage higher than 10 V?
Answer: When the PXI-4071 is configured for the 10 V input range, the signal must remain within +/- 10.5 VDC.
Question: How can you configure the input resistance when using the PXI-4071 DMM in a VI?
Answer: The PXI-4071 DMM can be configured by using a property node.
PXI-4071 PDF Manuals
NI DIGITAL MULTIMETERS GETTING STARTED GUIDE.PDF
PCI 4070 PXI 4070 4071 4072 LETTER OF VOLATILITY.PDF
PXI-4071 CALIBRATION PROCEDURE.PDF
PXI-4071 Diagrams
Driver Downloads for PXI-4071
OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit
Why Buy From Apex Waves:
Verified
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
PXI-4071
Meters > National Instruments > NI-407x Series
PXI-4071, 7.5 Digit Resolution, 1.8 MS/s Sample Rate, PXI Digital Multimeter
1-800-915-6216
- Description
- Technical Specifications
- FAQ
- Manuals & PDFs
- Drivers
National Instruments PXI-4071 PXI Digital Multimeter
The NI PXI-4071 (Part Number: 778271-01) is a FlexDMM, multifunction 3U PXI module that gives the estimation ability found in a high-resolution digital multimeter (DMM) and a digitizer. As a DMM, the PXI-4071 makes quick, precise voltage estimations from ±10 nV to 1000 V, current estimations from ±1 pA to 3 An, resistance estimations from 100 Ω to 5 GΩ, and takes recurrence/period and diode estimations. The device has a DC current range of -3 A to 3 A. In the high-voltage, confined digitizer mode, the PXI-4071 can get DC-coupled waveforms at test rates up to 1.8 MS/s in all voltage and current modes. Utilizing the examination capacities in NI LabVIEW programming, the user can study these waveforms in time and recurrence. The PXI-4071 offers prevalent speed, exactness, and usefulness, making it a great choice for use in robotized tests.
This model outperforms traditional 7 1/2-digit DMM speed/execution boundaries by utilizing a modern architecture that exploits the fast PXI bus. At 7 1/2 digits, the PXI-4071 accomplishes DC reading rates of 7 S/s. For applications requiring higher throughput, it has a high DC reading rate of 10 kS/s at 4 1/2 digits (these rates are no less than five times quicker than the original GPIB-controlled DMMs). The device when AC coupled, has an auto range time of 250 ms (for both AC V and AC 1), a range/function change of 10/s, a trigger latency and maximum trigger rate of 2 µs and 1 kHz respectively. The device has a warm-up time of 1 hour before operation.
The PXI-4071 can import and export triggers, making it simple to coordinate them with any multiplexer/matrix switch modules. Specifically, the FlexDMM incorporates consistently with National Instruments switch offerings. For example, with NI switch modules and NI Switch Executive switch management software, the user can quantify a huge number of channels, consisting of voltages, thermocouples, RTDs, and thermistors. The user can also keep a firm control on the cost of their framework.
Additional specifications for the PXI-4071 can be found in the datasheets and manuals under the "Manuals & PDFs" tab.
Apex Waves stocks End-of-Life NI Hardware for purchase and repairs in perpetuity. While the PXI-4071 is no longer available with National Instruments, the Digital Multimeter will remain available with us.
| Model | PXI-4071 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 778271-01 |
| HTS Code | 8471804000 |
| Type | PXI Digital Multimeter |
| Maximum Sample Rate | 1.8 MS/s |
| DC Voltage Range | -1000V to 1000 V |
| DC Current Range | -3 A to 3 A |
| Digits of Resolution | 7.5 |
| Driver Software | NI-DMM driver |
| Calibration Interval | 2 years |
| Warm-Up Time | 1 hour |
| Maximum Trigger Rate (DC) | 6 kHz |
| Maximum Trigger Rate (AC) | 1 kHz |
| Maximum voltage to earth ground at AUX I/O connector | 5.5 V DC |
| Trigger Compatibility | LVTTL/TTL |
| Dimensions | 8.5 x 0.8 x 5.1 in. |
| Weight | 11 oz. |
| Warranty | Three Year Warranty |
| PXI-4071 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
National Instruments PXI-4071 Frequently Asked Questions
Question: Does the NI DMM 3.0.5 driver support the PXI-4071?
Answer: Yes, the NI DMM 3.0.5 driver supports the PXI-4071.
Question: My National Instruments NI PXI-4071 is failing when I run a self-test in Measurement & Automation Explorer. The error that appears is Error -223911. What does this mean and how do I prevent this error?
Answer: Error -223911 occurs after the DM module alias is renamed. This can be prevented by restarting Measurement & Automation Explorer (MAX) after every rename.
Question: While reading the PXI DMM 4071 specifications, I saw “Range or Function Changes = 10/s.” What are the Range or Function Changes?
Answer: For the PXI DMM 4071, the voltage/current range or the function can be changed during execution. The rate at which it can be changed is to times per second maximum.
Question: What does the 7.5 digits of resolution for the PXI 4071 mean?
Answer: The digits of resolution indicates the quantity of digits displayed on the DMM’s reading. For 7 digits, this means 0000000 ~ 9999999 can be displayed. For 7.5 digits, this can be displayed when 00000000 ~ 19999999 are displayed. If ½ is used for the digits, it is used when the first digit is represented by only 0,1.
Question: What is the range of the PXI-4071?
Answer: The PXI-4071 offers voltage measurements from ±10 nV to 1000 V, current measurements from ±1 pA to 3 A, and resistance measurements from 10 ตΩ to 5 GΩ.
Question: Can the PXI-4071 be used to measure voltage higher than 10 V?
Answer: When the PXI-4071 is configured for the 10 V input range, the signal must remain within +/- 10.5 VDC.
Question: How can you configure the input resistance when using the PXI-4071 DMM in a VI?
Answer: The PXI-4071 DMM can be configured by using a property node.
PXI-4071 PDF Manuals & Diagrams
PXI-4071 PDF Manuals
NI DIGITAL MULTIMETERS GETTING STARTED GUIDE.PDF
PCI 4070 PXI 4070 4071 4072 LETTER OF VOLATILITY.PDF
PXI-4071 CALIBRATION PROCEDURE.PDF
PXI-4071 Diagrams
