Keysight N2102A-H10, 2-Slot, 2 Output, PXI Pulse Pattern Generator
Need an Official Quote?

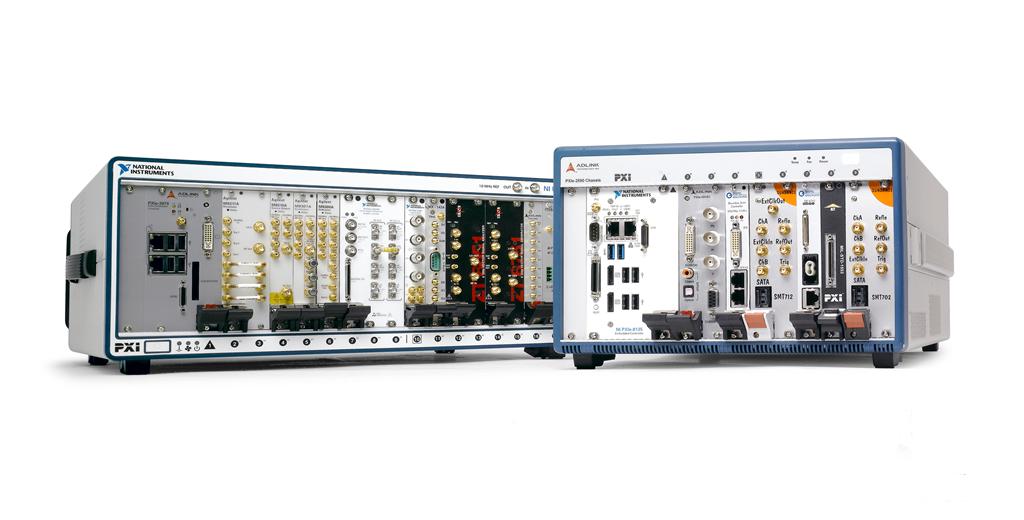

Keysight N2102A-H10 PXI Pulse Pattern Generator
The Keysight N2102A-H10 is a 2-Slot PXI instrument equipped for producing multiple low jitter patterns at rates to 8.5 Gb/s maximum, while utilizing a remotely provided clock. This module was formerly known as PXIT Model PX2000-337. ActiveX drivers give a simple-to-utilize software interface and a Graphical User Interface for manual functioning of the module. The N2102A-H10 Pulse Pattern Generator necessitates a clock input. The optimal clock input for this module can be provided by the Keysight N2099A Synthesizer.
The PXI Chassis that the N2102A-H10 is used in can be controlled two ways: with an external PC utilizing a PCI – cPCI/PXI remote bridge or an embedded PXI controller. If the user chooses to utilize the external PC method, then a few stipulations must be met. The PC must have 128 MB RAM, a Pentium processor of 133 MHz or more, and a Windows 2000 or XP operating system. The user must ensure that the N2102A-H10 PXI Pulse Pattern Generator is connected to the power source via the appropriate power cord for the country of operation. Also, the PXI Chassis holding the N2102A-H10 must be earth grounded with an appropriate air supply.
There are a variety of supported data rates and patterns for this module, as well as flexible modulation voltage, 2048-bit user pattern memory, differential NRZ data creation, and more. This PXI Pulse Pattern Generator can save a pattern with a length of 2^17 or 131,072 bits if it is saved within a 64 x 2048 array. This is because the FPGA processes the information in 64 bit increments.
Model | N2102A-H10 |
---|---|
Manufacturer | Keysight Agilent HP |
Type | PXI Pulse Pattern Generator |
Bit Rate Operation | Bands between 1.0 and 8.5 Gb/s |
Output Voltage Range | 25 mV – 1.6 V p-p |
Output Clock Level | +10 dBm @ 8.5 GHz |
Amplitude Resolution | 5 mV |
Slot Requirements | 2 |
Front Panel Connectors | SMA |
Warranty | 2-3 Year Warranty |
N2102A-H10 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Keysight N2102A-H10 Frequently Asked Questions
Question: What is the output amplitude DC coupled for the N2102A-H10?
Answer: The N2102A-H10 has an output amplitude DC coupled of 500 mV.
Question: What is the operation range of the Keysight N2102A-H10?
Answer: The operation range of the Keysight N2102A-H10 is 1.0 Gb/s to 2.5 Gb/s, 2.5 Gb/s to 3.3 Gb/s, 4.0 Gb/s to 6.6 Gb/s, and 7.4 Gb/s to 10.3125 Gb/s.
Question: How long is the user pattern memory for the N2102A-H10?
Answer: The user pattern memory for the N2102A-H10 is 2048-bit.
