SMB-2163 In Stock | Ships Today
SMB-2163, 32 DIO Channels, Digital I/O Accessory
Need an Official Quote?
National Instruments SMB-2163 Digital I/O Accessory

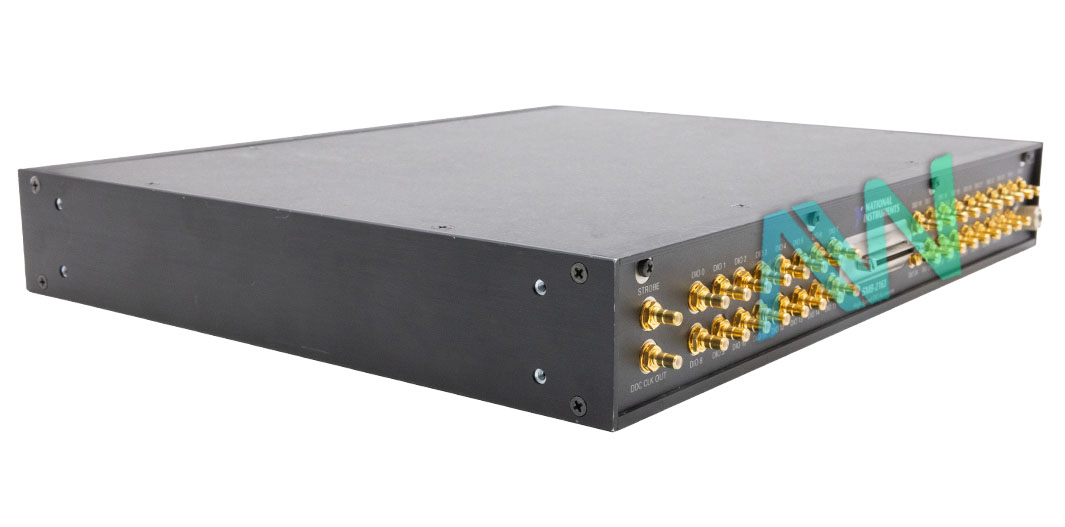

The NI SMB-2163 (Part Number: 778747-01) is a Digital I/O Accessory designed for NI digital waveform generators and analyzer modules. Through this accessory, you will be able to connect your waveform generator or analyzer to other devices easily. The availability of SMB connectors ensures easy access to control and data signals. This accessory is offered in a rack-mountable design. Thus, you can deploy it with your existing hardware infrastructure.

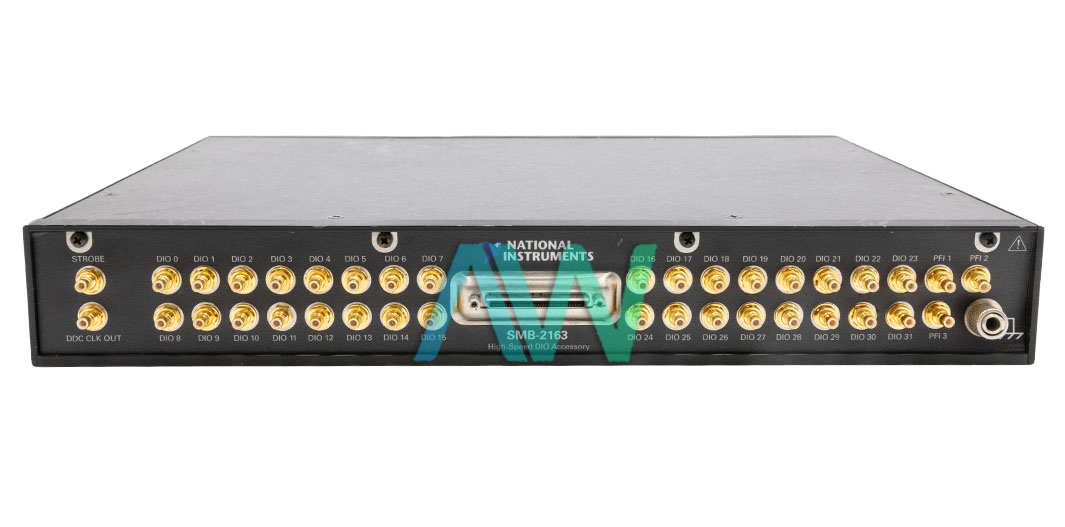

The NI SMB-2163 comes with a 68-pin DDC connector that can be used for interfacing with a variety of 68-pin National Instruments devices. This Digital I/O Accessory comes with 32 DIO, 2 PFI, 1 STROBE, and 1 DDC CLK OUT connector. All these connectors are provided on the front panel of the SMB-2163 and can easily be accessed by the user. The 68-pin connector of this shielded Digital I/O Accessory can be connected to the matching connector of the device through a C68-C68-D4 or SHC68-C68-D4 Cable.
| Model | SMB-2163 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 778747-01 |
| Type | Digital I/O Accessory |
| Compatible Models | NI single-ended digital waveform generator/analyzer modules |
| DIO Channels | 32, single-ended |
| Maximum Voltage Rating | 5.5 V |
| Dimensions | 12.0 x 1.77 x 10.43 in. |
| I/O Connectors | One 68-pin DDC connector, 37 SMB jack connectors, and one banana-style connector |
| Warranty | 2-3 Year Warranty |
| SMB-2163 Manual | User Manual and Maintenance Manual Available for Download |
| Pricing | Contact a Sales Representative for a quote. |
