Modular Systems > National Instruments > AT Series




Or speak to a sales representative for additional information:
AT-FBUS Request for Availablility
AT-FBUS, 1-Port, Foundation Fieldbus Device
Need an Official Quote?

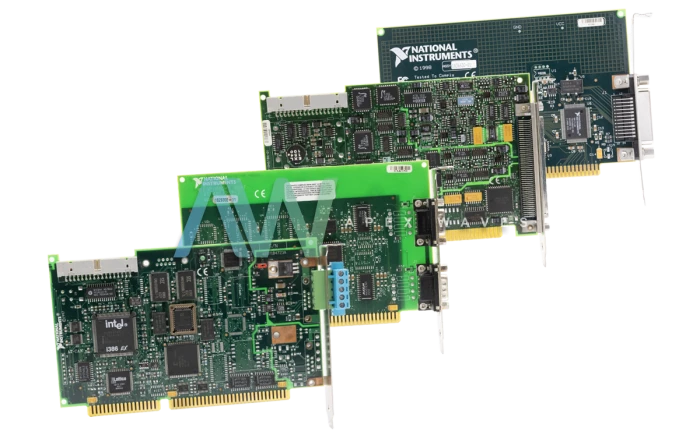

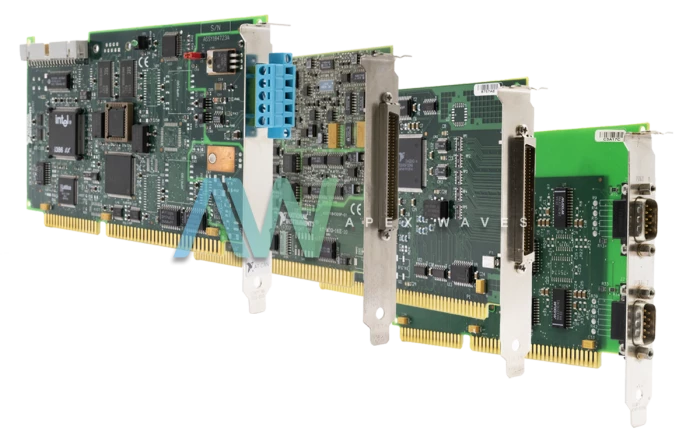

National Instruments AT-FBUS Foundation Fieldbus Device
The AT-FBUS is a Foundation Fieldbus Device manufactured by National Instruments. The NI AT-FBUS is constructed with part number 777281-01. The AT-FBUS is linked with the NI-FBUS software package. This device has a transformer-isolated fieldbus connection. The NI AT-FBUS is compatible with Windows 2000/NT/XP. This device can be used with the FP-3000 Fieldbus I/O Controller and a Fieldbus benchtop power supply co create a minimal Fieldbus control system.
The NI AT-FBUS is a removable interfacing device that is used to communicate between the network-configurable device and a personal computer. The network-configurable device is related to Foundation Fieldbus H1 protocols. The 16-bit ISA slot is used in PCs for communication purposes. The AT-FBUS is designed in a way that it can provide shared memory options. The NI AT-FBUS is built for a transfer rate up to 31.25 Kb/s associated with H1 specifications.
This device can be used with NI-FBUS Configurator software, as well as LabVIEW and Lookout. NI-FBUS CM can be utilized for numerous multithreaded applications and other processes. There are two types of AT-FBUS devices based on the number of ports. The AT-FBUS contains only one port for communication. The Fieldbus Device fabricated with two ports is represented as AT-FBUS/2. The NI AT-FBUS is equipped with a DB-9 male D-SUB input/output connector. Each pin is associated with one Fieldbus link. This device utilizes an Intel 80386EX microprocessor for the fieldbus communications software. The fieldbus interface chip is a Yamaha YTZ420. The typical current of the AT-FBUS Foundation Fieldbus Device is 750 mA and the maximum current is 850 mA.
Model | AT-FBUS |
---|---|
Manufacturer | National Instruments |
Part Number | 777281-01 |
Series | AT Series |
Type | Foundation Fieldbus Device |
Ports | 1 |
Processor | Intel 80386EX |
Fieldbus Interface Chip | Yamaha YTZ420 |
Driver Software | NI-FBUS Communications Manager |
I/O Connector | DB-9 male per fieldbus link |
Dimensions | 4.2 by 7.5 in. |
Warranty | 2-3 Year Warranty |
AT-FBUS Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for the AT-FBUS:
183046-01, 183046F-01, 183769-01, 183769A-01, 183769B-01, 183769C-01, 183769D-01, 777281-01, 777451D-01
AT-FBUS PDF Manuals
ARCHIVED FIELDBUS STACK INTERFACE REFERENCE MANUAL.PDF
ARCHIVED FIELDPOINT FP 3000 NETWORK MODULE USER MANUAL.PDF
ARCHIVED GETTING STARTED WITH YOUR AT-FBUS AND THE NI FBUS SOFTWARE FOR WINDOWS 95.PDF
ARCHIVED GETTING STARTED WITH YOUR AT-FBUS AND THE NI FBUS SOFTWARE.PDF
ARCHIVED GETTING STARTED WITH YOUR HSE LINKING DEVICE AND THE NI FBUS SOFTWARE.PDF
ARCHIVED GETTING STARTED WITH YOUR PCI FBUS AND THE NI FBUS SOFTWARE.PDF
ARCHIVED GETTING STARTED WITH YOUR PCMCIA FBUS AND THE NI FBUS SOFTWARE FOR WINDOWS.PDF
ARCHIVED NI FBUS FUNCTION BLOCK SHELL REFERENCE MANUAL.PDF
ARCHIVED NI FBUS OFFLINE CONFIGURATOR USER MANUAL.PDF
ARCHIVED READ ME FIRST FIELDBUS DEVICE DEVELOPER_S TOOLKIT INSTALLATION INSTRUCTIONS.PDF
NI FBUS COMMUNICATIONS MANAGER USER MANUAL.PDF
