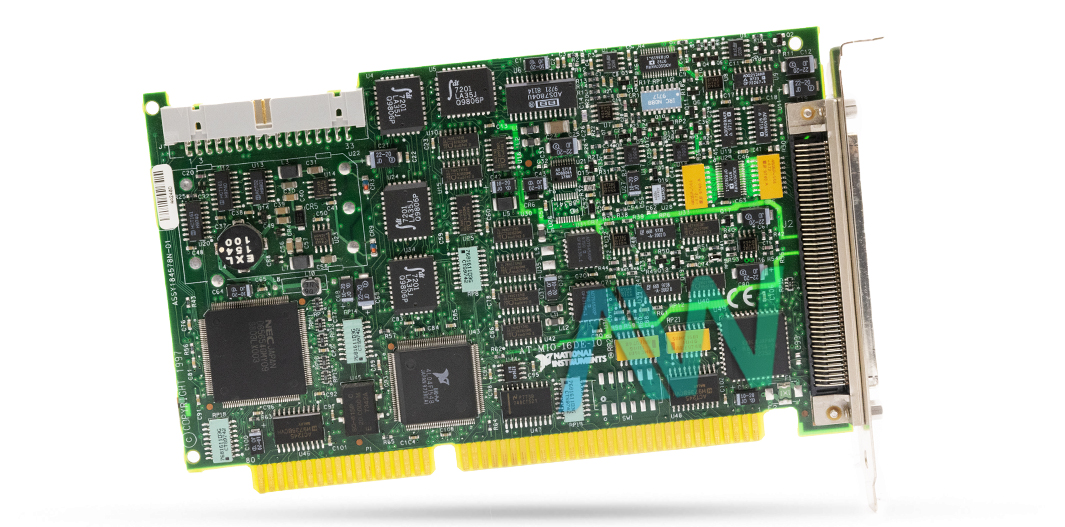

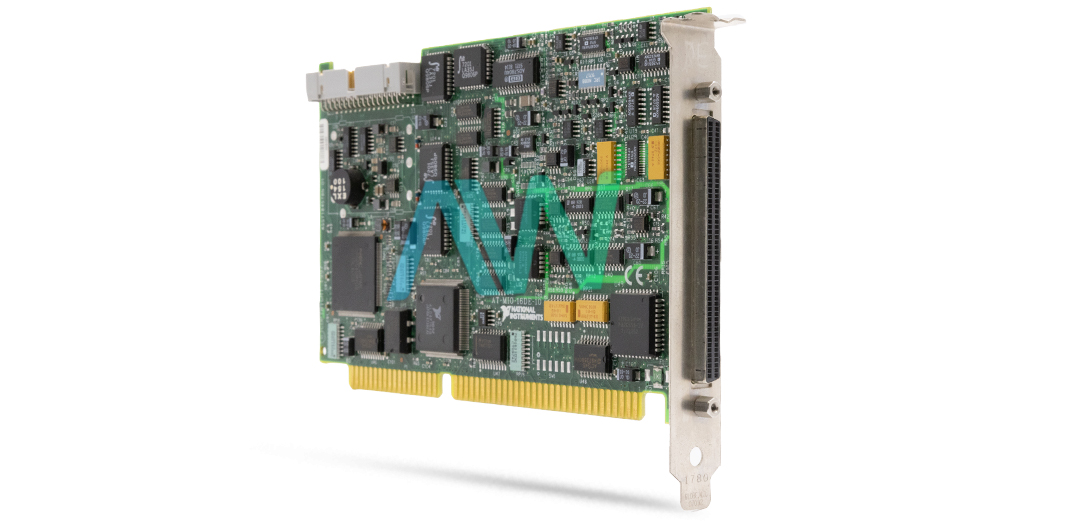

National Instruments AT-MIO-16DE-10 Multifunction DAQ
The AT-MIO-16DE-10 is a Multifunction DAQ by National Instruments. The NI AT-MIO-16DE-10 is available with part numbers 777640-01 and 184578P-01. The NI AT-MIO-16DE-10 is part of the E Series family. The AT-MIO-16DE-10 can be configured with the NI-DAQ legacy driver software on LabVIEW, Measurement Studio, and VI Logger. A CD containing the DAQ designer tool can be purchased and used with Windows (2000/NT/Me) operating systems.
The NI AT-MIO-16DE-10 is also classified as part of the NI-6021E family. This Multifunction DAQ has the capabilities to result in high performance within the protocols of E Series technology, as well as provide useful data acquisition techniques for multiple applications. The NI AT-MIO-16DE-10 is designed for the ISA bus for connections. This Multifunction DAQ has a maximum sampling rate of 100 kS/s. The National Instruments AT-MIO-16DE-10 uses 12-bits resolution for both the input and output channels. The NI AT-MIO-16DE-10 has 16 single-ended or 8 differential analog input channels and 2 analog output channels. The AT-MIO-16DE-10 can additionally perform digital triggering.
The AT-MIO-16DE-10 is configured with 32 digital I/O lines with TTL. The source voltage for these lines is 5V. There are two timers with 24-bits resolution and 20 MHz bandwidth. This Multifunction DAQ can be NIST-calibrated to maintain accuracy. In addition, the National Instruments AT-MIO-16DE-10 can be used with more than 70 signal conditioning accessories. The input/output voltage ranges for the AT-MIO-16DE-10 module are ±0.05 to ±10 V and ±10 V.
AT-MIO-16DE-10 Obsolete Status has been announced by National Instruments, but the multifunction DAQ will still be available for purchase and repairs by Apex Waves.
Model | AT-MIO-16DE-10 |
---|---|
Manufacturer | National Instruments |
Part Number | 777640-01, 184578P-01 |
Series | E Series |
Type | Multifunction DAQ |
Analog Input Channels | 16 SE/8 DI |
Analog Output Channels | 2 |
Input Range | ±0.05 to ±10 V |
Output Range | up to ±10 V |
Counters/Timers | 2, 24-bit |
Bus | ISA |
Warranty | Three Year Warranty |
AT-MIO-16DE-10 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for the AT-MIO-16DE-10:
182635-01, 182635A-01, 182635C-01, 182635D-01, 182637C-01, 184578-01, 184578-02, 184578N-01, 184578P-01, 184578U-01, 184578V-01, 776908-00, 776908-01, 776908-03, 777640-01, 777640-03, 184578P-02, 184578R-01, 184578R-02
National Instruments AT-MIO-16DE-10 Frequently Asked Questions
Question: What is different about revision N of the AT-MIO-16DE-10?
Answer: Revision N of the AT-MIO-16DE-10 is only compatible with NI-DAQ version 5.1 or greater for Windows 95/NT, or version 5.0.4 for Windows 3.1x. In addition, revision N requires the SH1006868 shielded cable (kit number 183849), to comply with CE emission requirements.
Question: Is the NI AT-MIO-16DE-10 compatible with NI-DAQmx?
Answer: No, the NI AT-MIO-16DE-10 is only compatible with traditional NI-DAQ.
Question: What is the resolution of the AT-MIO-16DE-10?
Answer: The resolution of the AT-MIO-16DE-10 is 12 bits.
AT-MIO-16DE-10 PDF Manuals
ARCHIVED AT E SERIES USER MANUAL.PDF
ARCHIVED AT MIO E SERIES REGISTER LEVEL PROGRAMMER MANUAL.PDF
ARCHIVED DAQ STC TECHNICAL REFERENCE MANUAL.PDF
ARCHIVED DISCONTINUATION OF REVISION D OF THE AT-MIO-16DE-10.PDF
ARCHIVED ER 8 16 USER MANUAL AND SPECIFICATIONS.PDF
ARCHIVED LABVIEW DATA ACQUISITION BASICS MANUAL.PDF
ARCHIVED LABVIEW FUNCTION AND VI REFERENCE MANUAL.PDF
ARCHIVED LABWINDOWS CVI STANDARD LIBRARIES REFERENCE MANUAL.PDF
ARCHIVED LOOKOUT 3.7 ADDENDUM.PDF
ARCHIVED LOOKOUT OBJECT REFERENCE MANUAL.PDF
ARCHIVED LOOKOUT REFERENCE MANUAL.PDF
ARCHIVED MEASURE DATA ACQUISITION USER MANUAL.PDF
ARCHIVED NI DAQ USER MANUAL FOR PC COMPATIBLES.PDF
ARCHIVED NOTE TO USERS WARNING MAXIMUM SIGNAL RATINGS FOR MIO AI E SERIES BOARDS.PDF
ARCHIVED NOTE TO USERS ABOUT REVISION N OF THE AT-MIO-16DE-10.PDF
ARCHIVED TRADITIONAL NI DAQ USER MANUAL.PDF
