AT-MIO-16E-10 In Stock | Ships Today
AT-MIO-16E-10, 2 Analog Output, 16 Analog Input, Multifunction DAQ
Need an Official Quote?

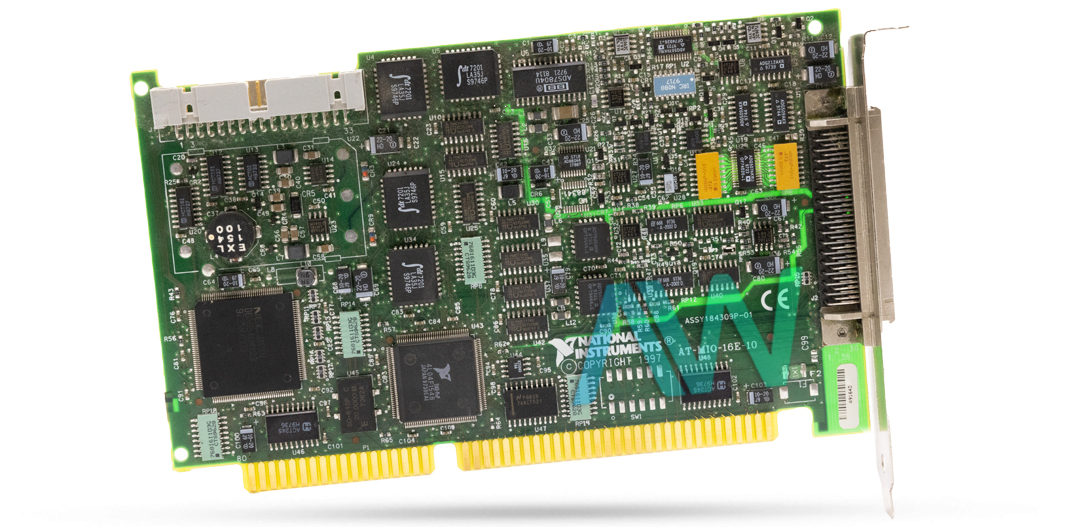

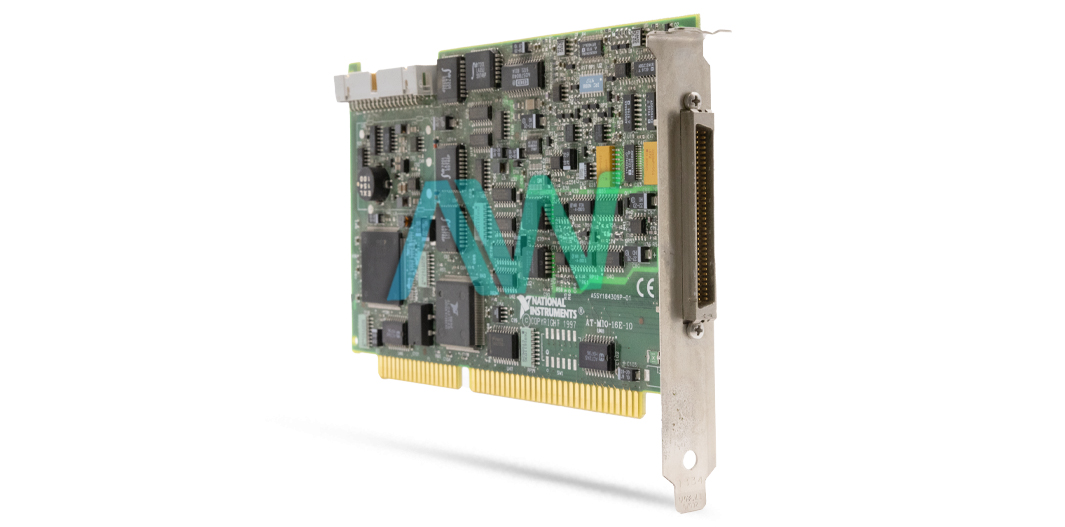

National Instruments AT-MIO-16E-10 Multifunction DAQ
The AT-MIO-16E-10 is a Multifunction Data Acquisition (DAQ) Device designed by National Instruments. The NI AT-MIO-16E-10 is produced with part number 777521-01. The NI AT-MIO-16E-10 comes from the E Series. The AT-MIO-16E-10 uses NI-DAQ drivers. These drivers are compatible with different types of, software including VI Logger, LabVIEW, and Measurement Studio. This Multifunction DAQ can be run on Windows 2000/NT/Me. It comes with a built-in DAQ designer package that supports the Windows Operating System.
The NI AT-MIO-16E-10 Multifunction DAQ uses E Series technology to provide excessive performance and has definitive DAQ capabilities to fulfill the requirements of various applications. The AT-MIO-16E-10 is fabricated for ISA and USB bus types. It takes the sampling rate with the 12-bit resolution to the level of 100 kS/s based on the type of hard drive. The NI AT-MIO-16E-10 is equipped with 16 single-ended analog input channels and two 12-bits analog output channels. This Multifunction DAQ comes with the special feature of digital triggering.
The National Instruments AT-MIO-16E-10 is built with 8 or 32 digital TTL input/output lines with a source voltage of 5V. The time duration can be measured by timers/counters. For this purpose, two 24-bits, 20 MHz timers are available with the DAQ. The NI AT-MIO-16E-10 can be NIST-traceable calibrated. This Multifunction DAQ can be used with over 70 signaling functions. The input voltage range is between ±0.05 to ±10 V, while the output voltage range is up to ±10 V.
AT-MIO-16E-10 Obsolete Status has been announced by National Instruments, but the multifunction DAQ will still be available for purchase and repairs by Apex Waves.
Model | AT-MIO-16E-10 |
---|---|
Manufacturer | National Instruments |
Part Number | 777521-01 |
Series | AT E Series |
Type | Multifunction DAQ |
Analog Input Channels | 16 SE/8 DI |
Analog Output Channels | 2 |
Digital I/O | 8 |
Sampling Rate | 100 kS/s |
Output Rate | 100 kS/s |
Driver Software | NI-DAQ |
Warranty | 2-3 Year Warranty |
AT-MIO-16E-10 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for the AT-MIO-16E-10:
182640C-01, 182640-01, 182642B-01, 182640B-01, 184309-01, 184309T-01, 184309U-01, 184309V-01, 184309W-01, 776909-00, 184309P-01, 184309R-01, 776909-01, 776909-03, 777521-01, 777521-03
Associated NSNs for the AT-MIO-16E-10:
5998014473135, 5998-01-395-0986 (5998013950986)
National Instruments AT-MIO-16E-10 Frequently Asked Questions
Question: What is the recommended configuration for the AT-MIO-16E-10?
Answer: The AT-MIO-16E-10 can be configured with the SCB-68 accessory (Part Number: 776844-01) and the SH6868-EP cable (Part Number: 184749-01).
Question: Does the National Instruments AT-MIO-16E-10 have a constant-current supply available?
Answer: No, the National Instruments AT-MIO-16E-10 does not have a constant-current supply. It does have a DAC, which can output a voltage, but it is does not supply much current. You may need to use SCXI modules for your application if you need a constant-current supply.
Question: Which type of triggering is available on the NI AT-MIO-16E-10?
Answer: The NI AT-MIO-16E-10 has digital triggering.
AT-MIO-16E-10 PDF Manuals
ARCHIVED AT E SERIES USER MANUAL.PDF
ARCHIVED AT MIO E SERIES REGISTER LEVEL PROGRAMMER MANUAL.PDF
ARCHIVED E SERIES CALIBRATION PROCEDURE FOR TRADITIONAL NI DAQ 5BLEGACY5D .PDF
ARCHIVED ER 8 16 USER MANUAL AND SPECIFICATIONS.PDF
ARCHIVED LABVIEW DATA ACQUISITION BASICS MANUAL.PDF
ARCHIVED LABVIEW FUNCTION AND VI REFERENCE MANUAL.PDF
ARCHIVED MEASURE DATA ACQUISITION USER MANUAL.PDF
ARCHIVED NI DAQ USER MANUAL FOR PC COMPATIBLES.PDF
ARCHIVED NOTE DISCONTINUATION OF REVISION C OF THE AT-MIO-16E-10.PDF
ARCHIVED NOTE TO USERS WARNING MAXIMUM SIGNAL RATINGS FOR MIO AI E SERIES BOARDS.PDF
ARCHIVED NOTE TO USERS ABOUT REVISION P OF THE AT-MIO-16E-10.PDF
ARCHIVED TRADITIONAL NI DAQ USER MANUAL.PDF
DAQ GETTING STARTED GUIDE FOR PCI PCI EXPRESS.PDF
DAQ GETTING STARTED READ ME FIRST NI DAQMX AND DAQ DEVICE INSTALLATION GUIDE.PDF
