AT-MIO-64F-5 In Stock | Ships Today
AT-MIO-64F-5, 64 AI, 2 AO, Multifunction I/O Board
Need an Official Quote?

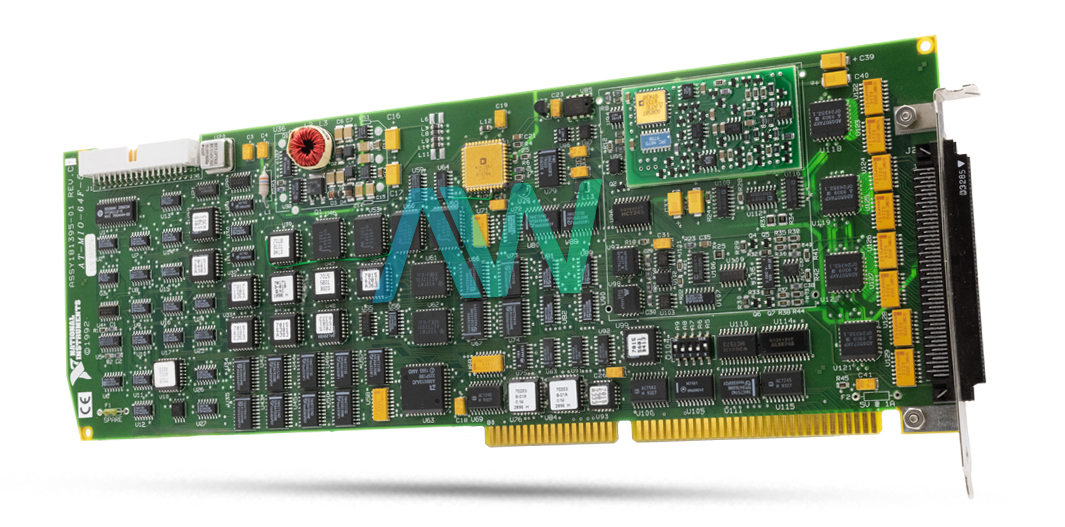

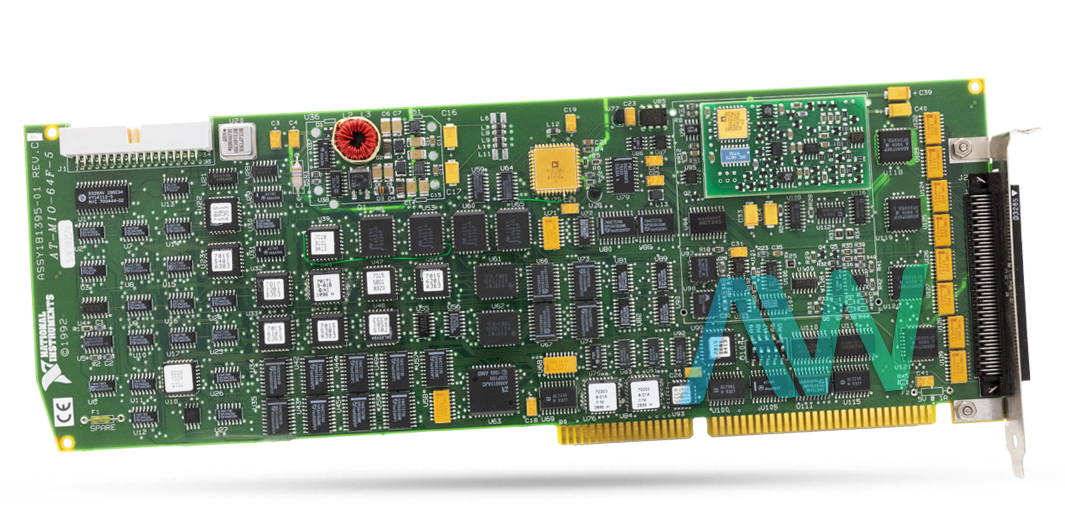

National Instruments AT-MIO-64F-5 Multifunction I/O Board
Featured with 8 digital I/O lines and 4 triggers, the NI AT-MIO-64F-5 is a multifunction digital, analog and timing I/O board designed for desktop PCs. This board comes equipped with a 12-bit, 5 µsec sampling analog-to-digital converter (ADC) capable of scanning 32 differential or 64 single-ended channels at a broad range of programmable gain settings.
The NI AT-MIO-64F-5 comes with 2 double-buffered multiplying digital-to-analog converters (DACs). You can configure these DACs for either bipolar or unipolar voltage output range. This Multifunction I/O Board is a powerful solution for a variety of different applications, such as machine control, level monitoring, and control, process control automation, chromatography, transient analysis, signal analysis, etc.
The NI AT-MIO-64F-5 has a unique hardware structure as its board contain different circuitry for different functions including; analog input and analog output circuitries, digital input and output circuitries, timing input and output circuitry, etc. By design, the NI AT-MIO-64F-5 is a full-size PC I/O channel adapter that can be deployed in any 16-bit expansion slot of AT Series Computers.
This Multifunction I/O Device supports various input modes and can be configured to operate in one of these three modes: DIFF, RSE, or NRSE. The 8 digital I/O lines incorporated in this model are configured as two 4-bit ports. You can configure each port individually through programming. Each digital port initiates to accept input whenever the system is started up or goes through a reset. This model has a 10 MHz internal timebase as well.
AT-MIO-64F-5 Obsolete Status has been announced by National Instruments, but the board will still be available for purchase and repairs by Apex Waves.
Model | AT-MIO-64F-5 |
---|---|
Manufacturer | National Instruments |
Type | Multifunction I/O Board |
Analog Input Channels | 64 single-ended, 32 differential |
Analog Input Resolution | 12-bit, 1 in 4,096 |
Analog Outputs | 2 |
Type of DAC | 12-bit, multiplying |
Dimensions | 13.3 by 4.5 in. |
Warranty | 2-3 Year Warranty |
AT-MIO-64F-5 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for the AT-MIO-64F-5:
181395-00, 181395-01, 181395-01C, 181570-01C, 776655-01
AT-MIO-64F-5 PDF Manuals
ARCHIVED AT AO 6 10 USER MANUAL EXPANSION BOARD FOR THE PC AT EISA.PDF
ARCHIVED AT DIO 32F USER MANUAL.PDF
ARCHIVED AT MIO 16D USER MANUAL.PDF
ARCHIVED AT MIO 16F 5 USER MANUAL.PDF
ARCHIVED AT MIO 16X USER MANUAL.PDF
ARCHIVED AT-MIO-64F-5 USER MANUAL.PDF
ARCHIVED ER 8 16 USER MANUAL AND SPECIFICATIONS.PDF
ARCHIVED GUIDESCXI 1350 MULTI CHASSIS ADAPTER INSTALLATION.PDF
ARCHIVED LABVIEW DATA ACQUISITION BASICS MANUAL.PDF
ARCHIVED LABVIEW FUNCTION AND VI REFERENCE MANUAL.PDF
ARCHIVED MEASURE DATA ACQUISITION USER MANUAL.PDF
ARCHIVED NOTE TO USERS DISCONTINUATION OF THE AT-MIO-64F-5.PDF
ARCHIVED SCXI 1140 USER MANUAL.PDF
ARCHIVED SCXI 1200 USER MANUAL AND SPECIFICATIONS.PDF
ARCHIVED WARNING MAXIMUM SIGNAL RATINGS FOR AT MIO SERIES BOARDS.PDF
DAQ GETTING STARTED GUIDE FOR PCI PCI EXPRESS.PDF
