779348-01, 37-Pin D-SUB Connector, 16 Analog Input, PCI-6010 Multifunction I/O Device

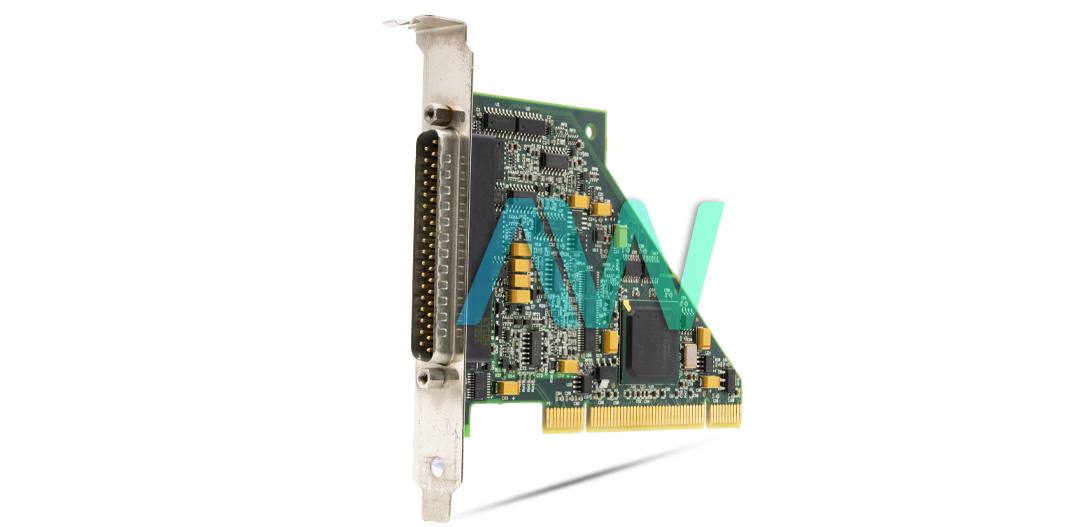

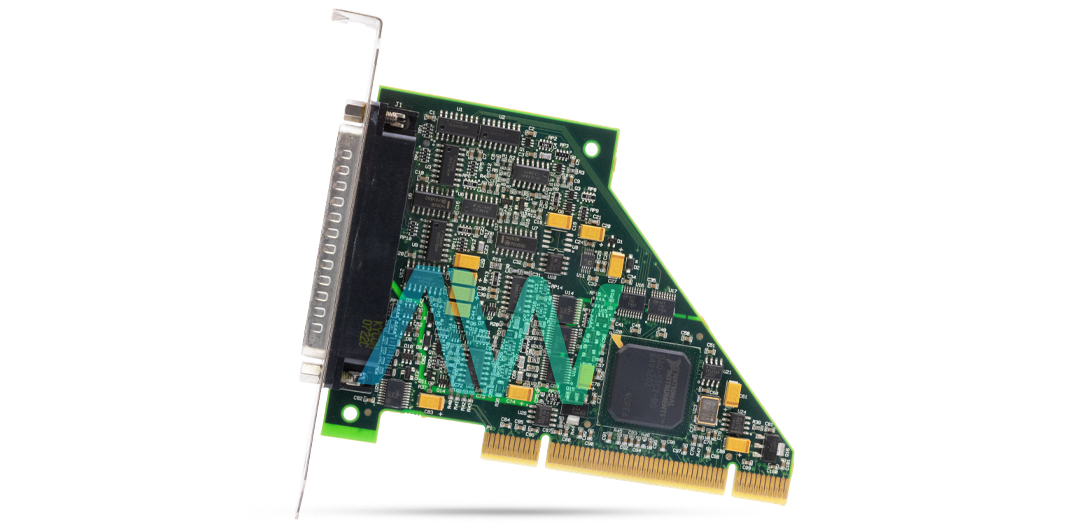

National Instruments 779348-01 Multifunction I/O Device
National Instruments part number 779348-01 is an identifying part number for the PCI-6010, a Multifunction I/O Device with 16 AI, 2 AO, 6 DI, 4 DO Channels and 16 bits Input/Output Resolution. This versatile model serves as a solution for counter/timer I/O applications, making it suitable for a wide array of OEM products or tasks across various industries such as manufacturing test, design verification, automation, laboratory research, and more. Featuring a D-SUB type 37-pin connector, the 779348-01 offers compatibility with numerous D-SUB components available in the market.
Equipped with two 32-bit counters/timers, it supports diverse counter measurements, including pulse, edge counting, period, semi-period, and two-edge separation, among others. Additionally, the integrated counters enable various output applications such as pulse, frequency division, and equivalent time sampling. Operating as a PCI-based I/O device, this module has 3 DMA channels (analog input, counter/timer 0, and counter/timer 1), providing flexibility in data transfer. Moreover, this device is adaptable to both 3.3 V and 5 V signal environments, ensuring compatibility with a range of systems.
The analog input channels of the 779348-01 facilitate DC input coupling and are capable of sampling at rates of 200 kS/s in single-channel mode and 33.3 kS/s during scanning operations. With input ranges spanning ±5 V, ±1 V, and ±0.2 V, these channels offer versatile data acquisition capabilities. Additionally, the device is equipped with a frequency generator and supports base clocks of 10 MHz and 100 kHz. The B Series data acquisition boards from National Instruments provide cost-effective and dependable PCI data acquisition functionalities.
For applications demanding up to 32 analog input channels, up to 48 digital I/O lines, and sampling rates of up to 250 kS/s, the M Series family of data acquisition products for PCI or PXI-based systems are a compelling choice.
| Part Number | 779348-01 |
|---|---|
| Model Name | PCI-6010 |
| Part Type | Multifunction I/O Device |
| Number of Channels | 16 Analog Inputs (16-Bit, 200 KS/s) or 8 differential 2 Analog Outputs 6 Digital Input 4 Digital Outputs 2 Counter/Timer I/O 32 bits |
| Sample Rate | 200 kS/s |
| Power Requirements | +5 V, +12 V, –12 V 0.3 A, 0.13 A, 0.08 A |
| Output Range | ±5 |
| Driver Software | National Instruments PCI-6010 DAQ Device |
| Input/Output Resolution bits | 16 |
| Trigger Type | Digital |
