BNC-2111 In Stock | Ships Today
BNC-2111, 24 BNC connectors, Shielded Connector Block
Need an Official Quote?
National Instruments BNC-2111 Connector Block

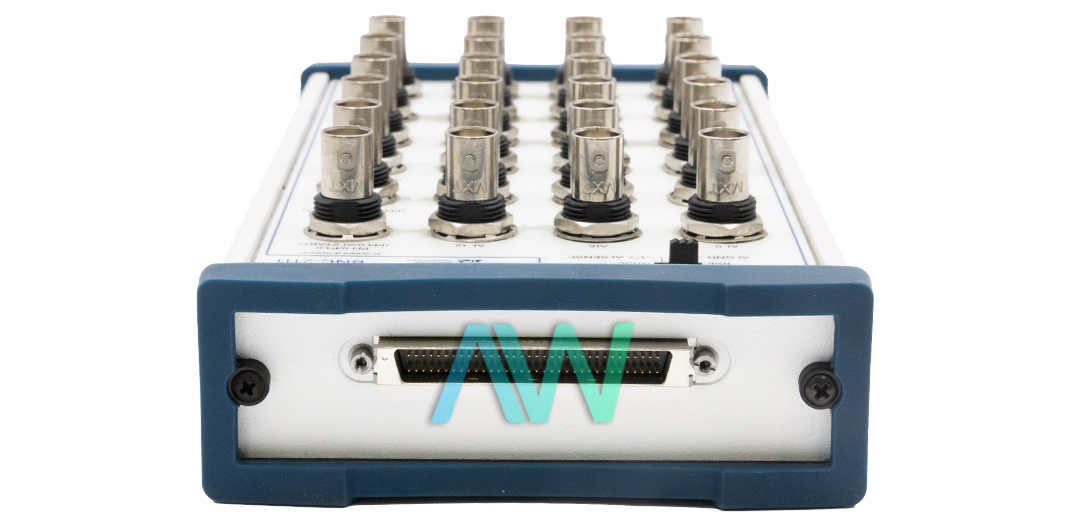

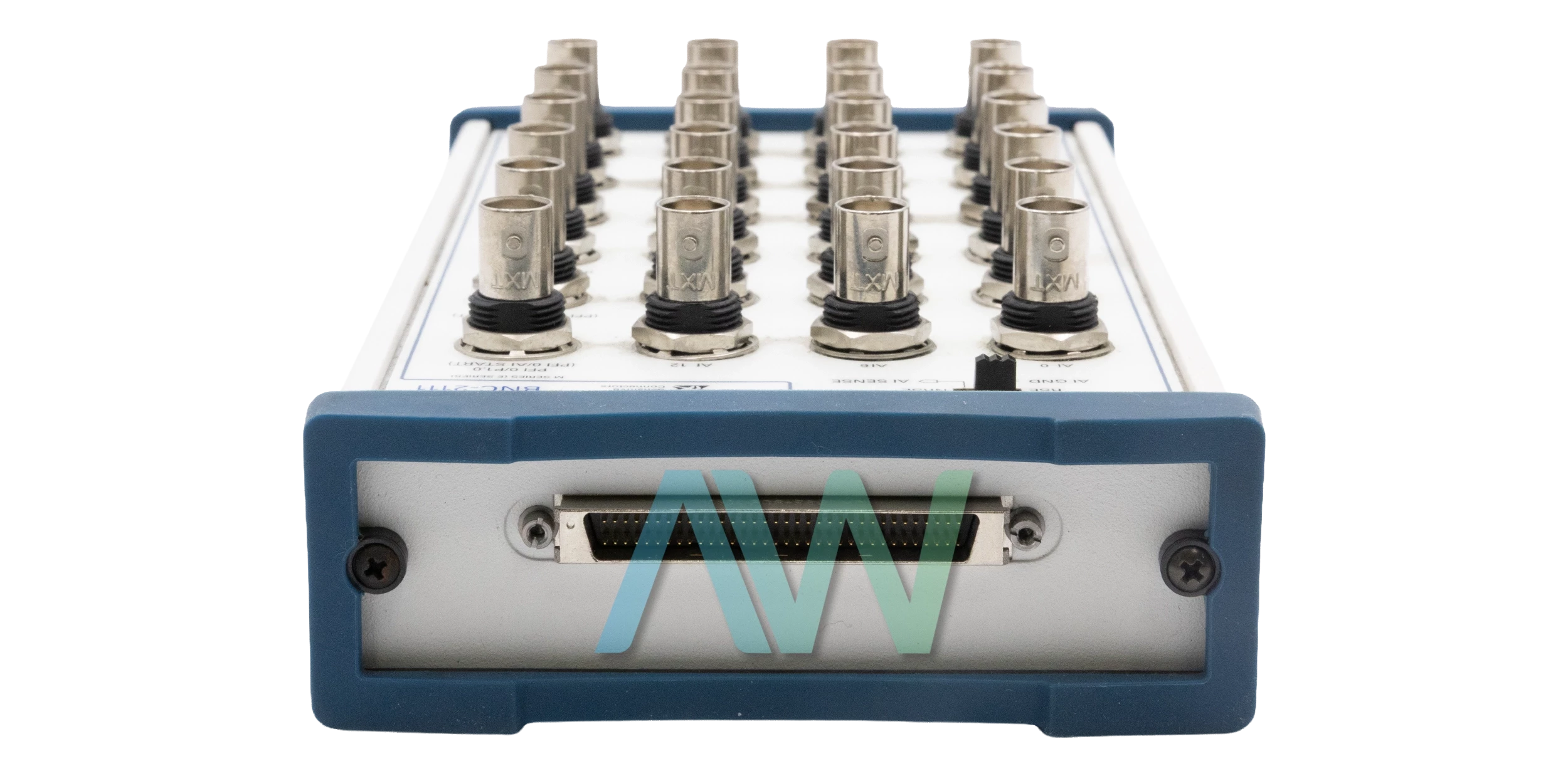

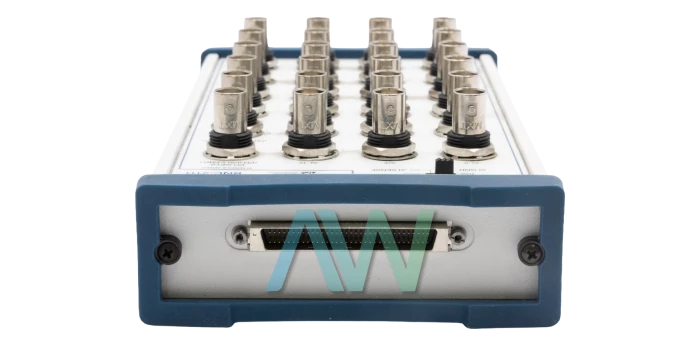

The NI BNC-2111 (Part Numbers: 779347-01 and 779347-02) is a Shielded Connector Block from National Instruments. This versatile accessory is compatible with a broad range of devices and can be utilized to achieve a variety of connection configurations. The BNC-2111 is considered an ideal solution for simplification of connections between DAQ devices and measurement apparatuses in laboratory, production, and test environments. This Connector Block comes with 24 BNC connectors and one 68-pin I/O connector. The shielding technology utilized in the construction of this Connector Block helps maintain the signal quality. Thus, you can use this device in electrically noisy, industrial environments.
The BNC connectors incorporated in this Connector Block are used for analog I/O, counter, trigger, and user-defined signals. This shielded Connector Block offers seamless connectivity with DAQ devices through its 68-pin I/O connector. The National Instruments BNC-2111 can simply be placed on a desktop near the host computer or you can acquire a DIN rail mounting kit. This device is exclusively designed for M Series and E Series DAQ devices from National Instruments and should not be connected to any other device.

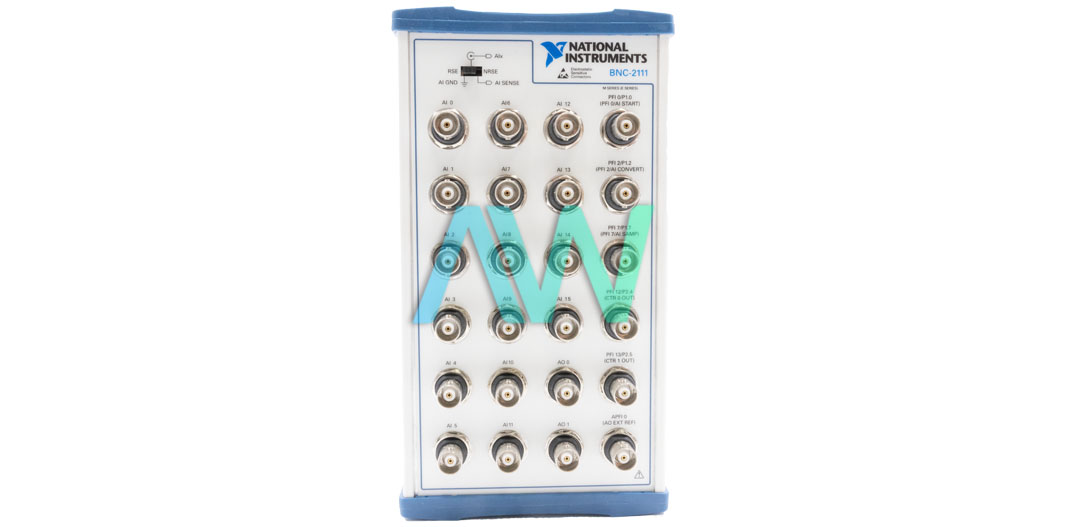

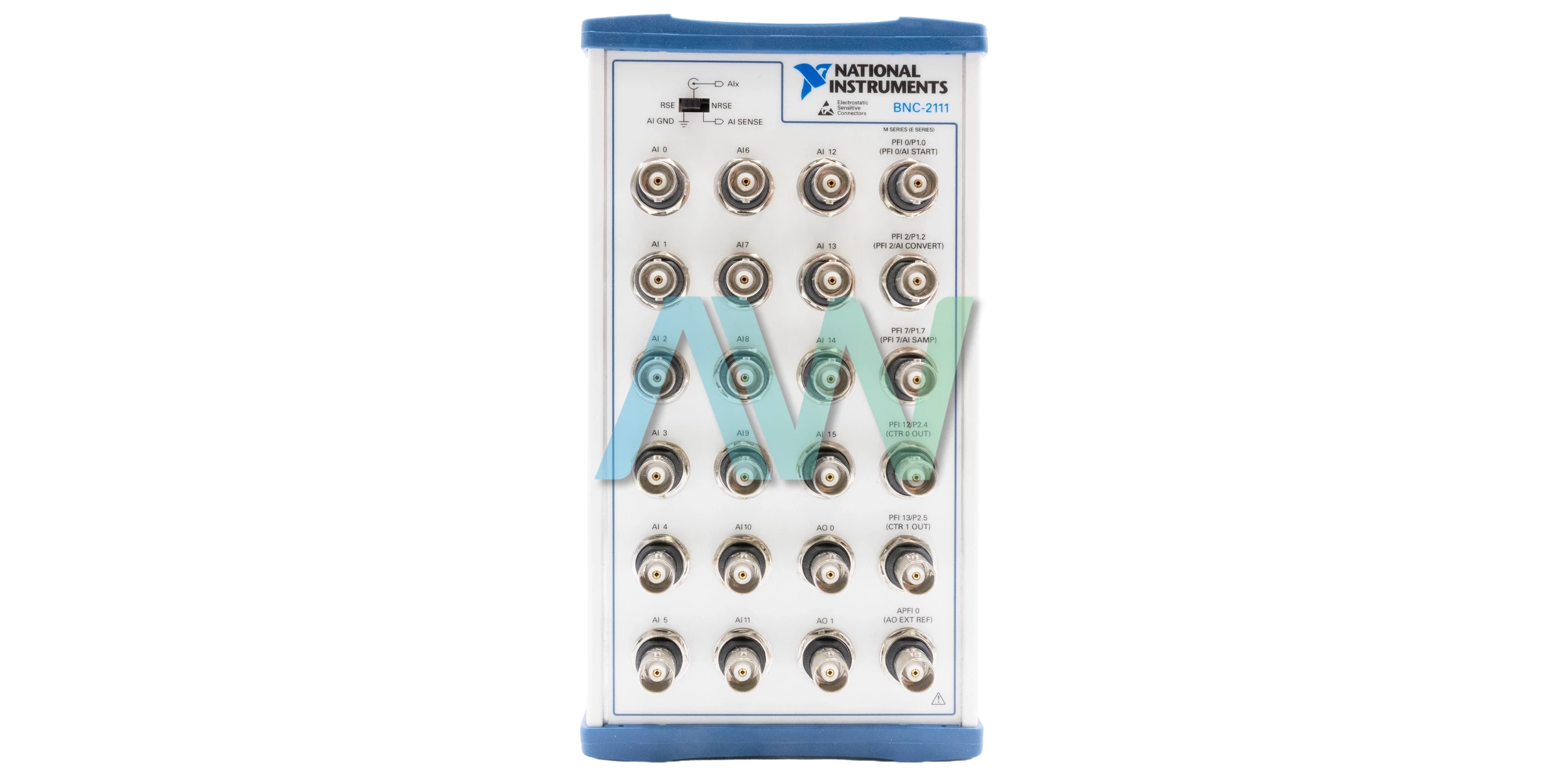

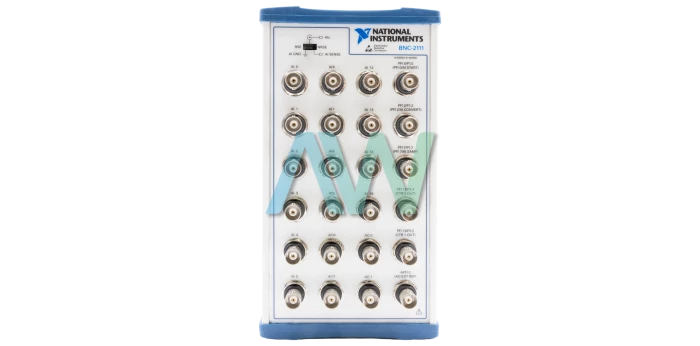

The National Instruments BNC-2111 is a simple device and has all the BNC connectors provided on its front panel. This helps keep the entire process of cabling as straightforward as possible. The 24 BNC connectors incorporated in this terminal block are used for two analog output signals, five PFI signals, and 16 analog input signals (single-ended). This accessory features a two-position switch for selecting between ground-referenced and floating source analog input signals.
BNC-2111 Obsolete Status has been announced by National Instruments, but the connector block will still be available for purchase and repairs by Apex Waves.
Model | BNC-2111 |
---|---|
Manufacturer | National Instruments |
Part Numbers | 779347-01 and 779347-02 |
Type | Connector Block |
Designed for | 68-pin M Series and B Series |
BNC Connectors | 24 |
I/O Connector | 68-pin male connector |
Dimensions | 7.4 by 3.5 by 2.0 in. |
Warranty | 2-3 Year Warranty |
BNC-2111 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for the BNC-2111:
192596A-01, 192596A-02, 192596A-03, 192596B-01L, 192596B-02L, 192596B-03L, 192596C-01L, 779347-01, 779347-02, 779347-03
