780916-01 In Stock | Ships Today
780916-01, Virtex-5 LX 30 FPGA, 8 Slots, cRIO-9112 Reconfigurable Chassis for CompactRIO
Need an Official Quote?

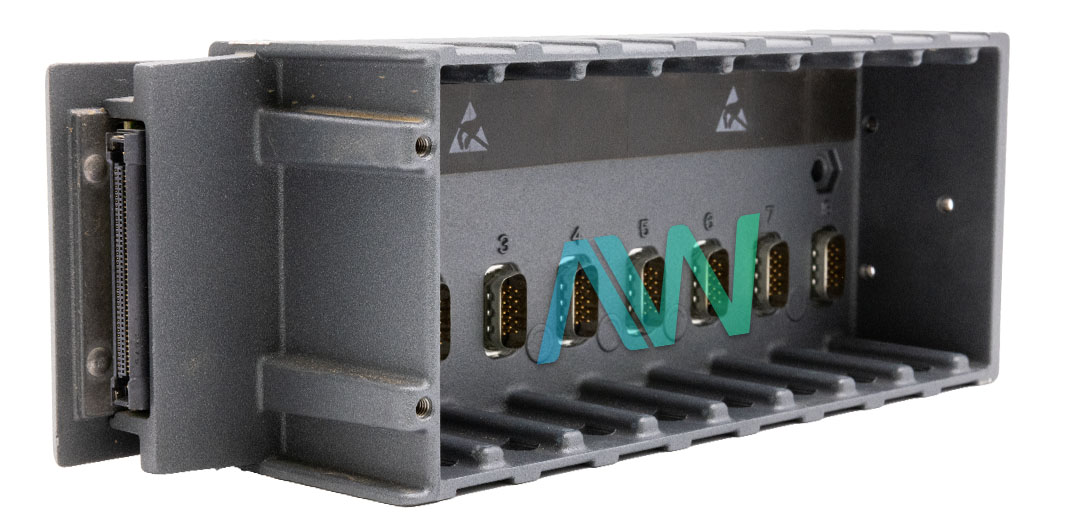

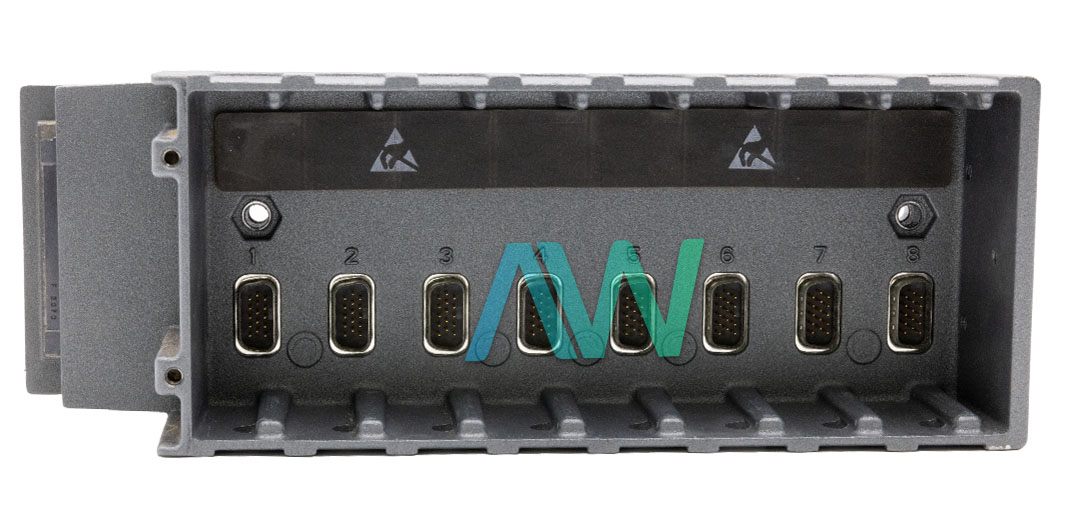

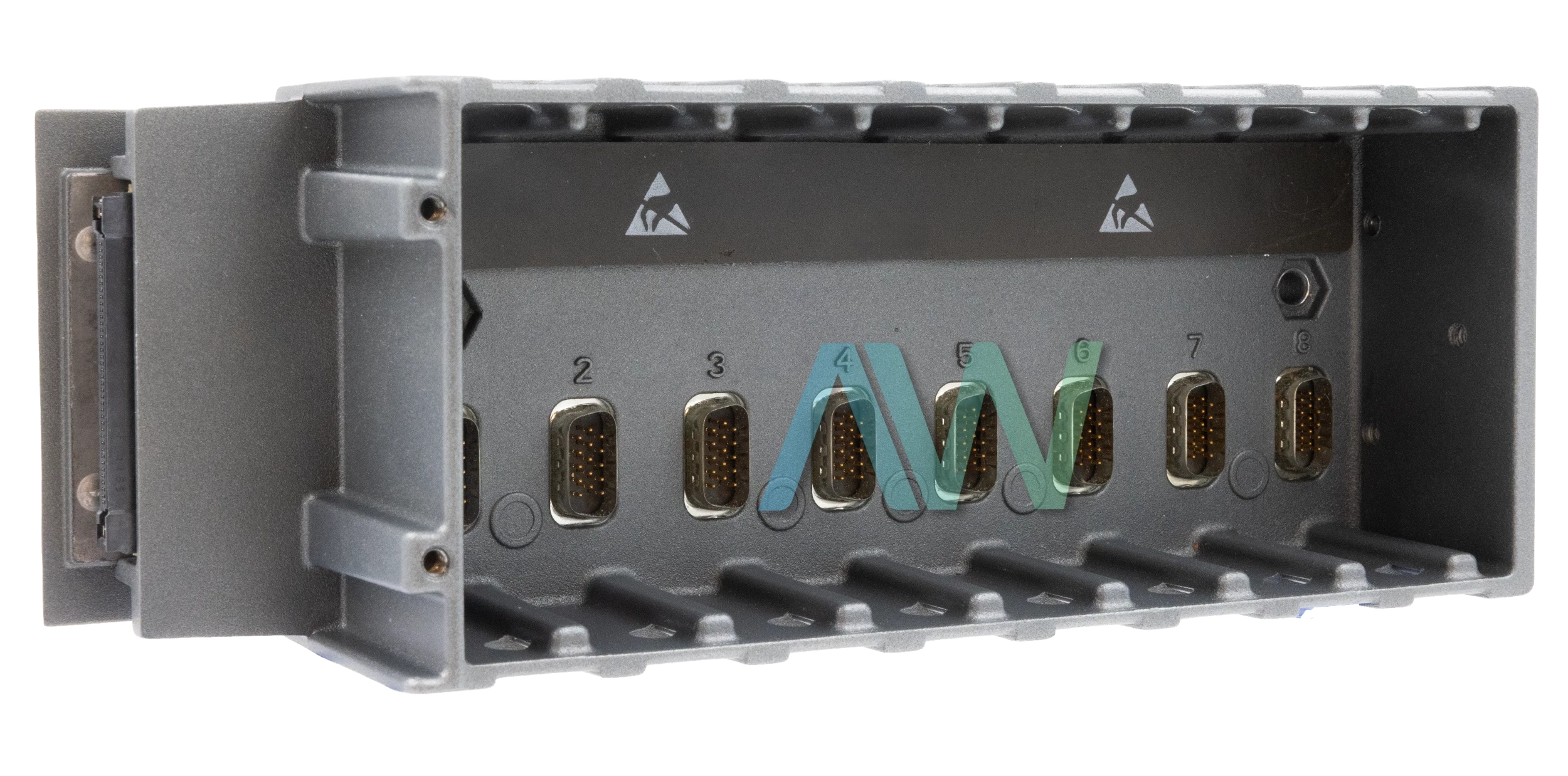

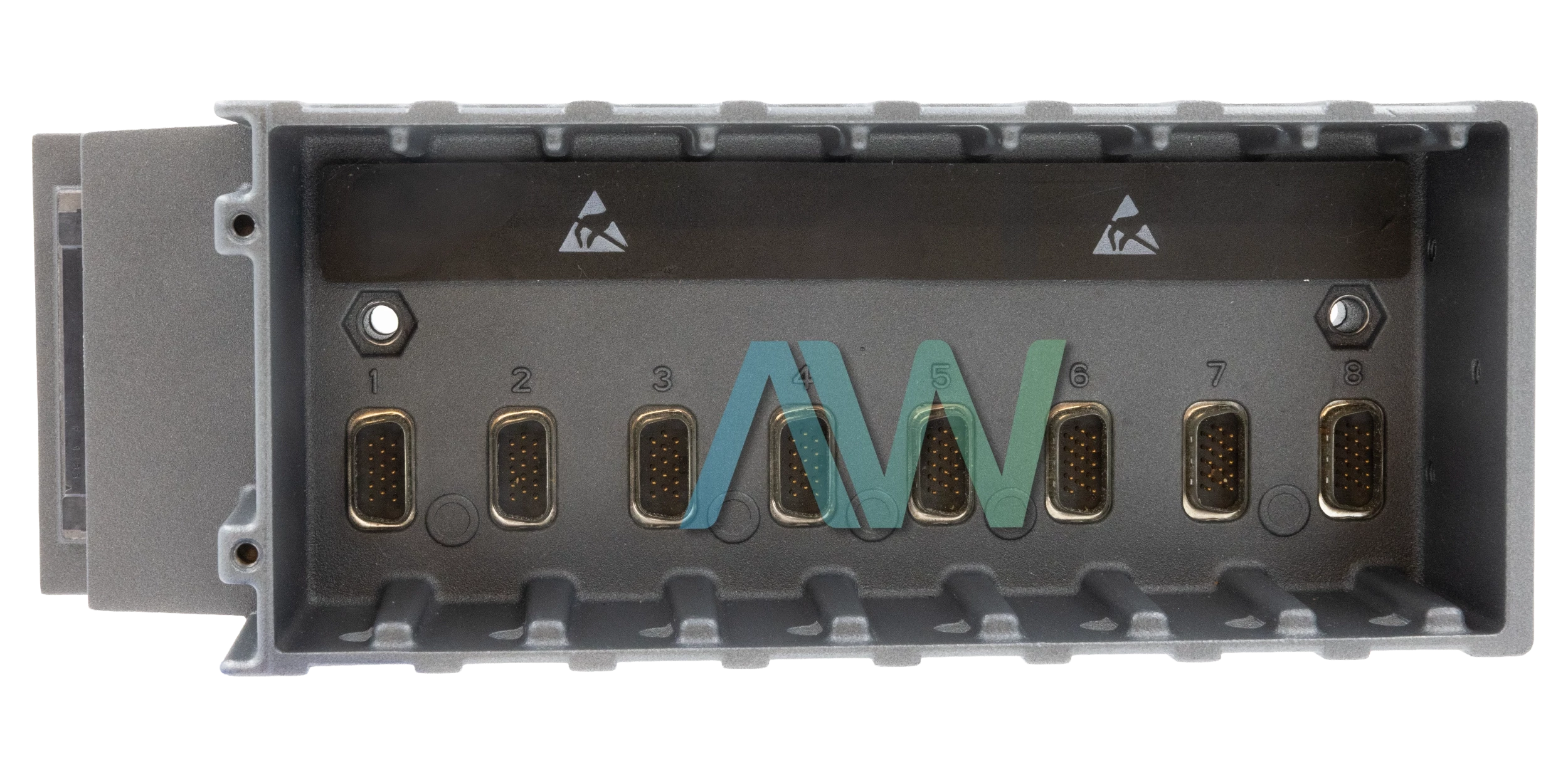

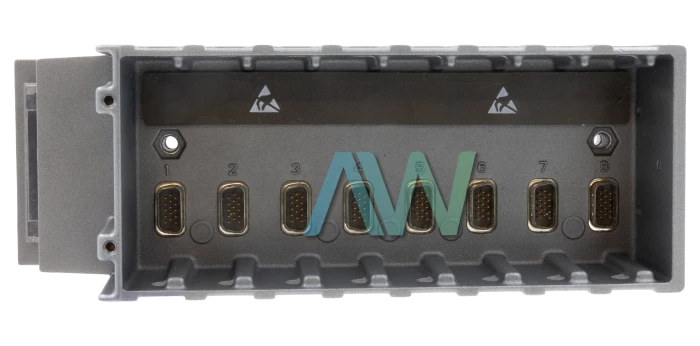

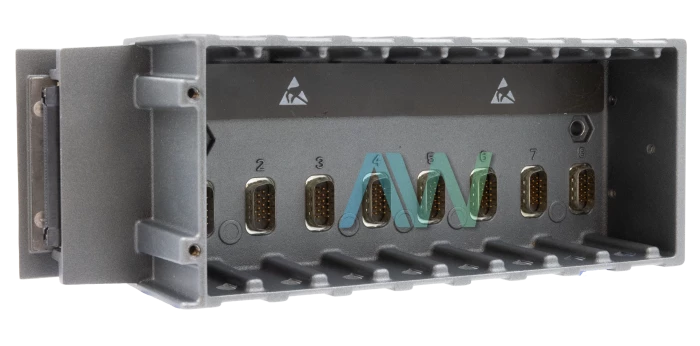

National Instruments 780916-01 CompactRIO Chassis
The part number 780916-01 from National Instruments is the identifying part number for the cRIO-9112 CompactRIO Chassis. This chassis supports a reconfigurable FPGA of type Virtex-5 LX30 that consist of 19,200 number of flip flops, 19,200 number of 6-input LUTs, 32 number of DSP48slices 25 x 18 multipliers and an embedded block RAM of 1,152 kbits, offering extensive resources for accurate timing and synchronization.
In terms of power requirements, the 780916-01 requires a power of 500 mW maximum at +5 VDC, 2,100 mW maximum at +3.3 VDC and a total chassis power consumption of 2,600 mW maximum. Physically, this module has a weights of approximate 880 g (31 oz). This compactRIO chassis features ingress protection rating of IP40 ensuring that it is dust and moisture protected while maintaining accuracy and efficiency of the chassis.
The 780916-01 CompactRIO Chassis is designed to operate at an ambient temperature of -40 degrees Celsius to 70 degrees Celsius tested in IEC 60068-2-1 standard with operating humidity of 10% RH to 90% RH, noncondensing and storage temperature of -40 degrees Celsius to 85 degrees Celsius with storage humidity ranging from 5% RH to 95% RH, noncondensing. This chassis is intended to be used for indoor use only and can be mounted at maximum height of 2000 meters with a pollution degree of 2.
The 780916-01 is made to work under harsh conditions having operating shocks of 30 g, 11 ms half sine; 50 g, 3 ms half sine; 18 shocks at 6 orientations with random operating vibrations of 5 grms, 10 Hz to 500 Hz tested under the IEC 60068-2-64 standard and sinusoidal operating vibration of 5 g, 10 Hz to 500 Hz tested under the IEC 60068-2-27 standard. This CompactRIO Chassis is compliant with many safety standard including the IEC 61010-1, EN 61010-1, UL 61010-1, CSA 61010-1, EN 60079-0:2012 and EN 60079-15:2010 ensuring its safe use in measurement, control and laboratory. It is also electromagnetic compatible that prevents electrical interference and thus maintaining product failure, and its safe operation in environments where electrical noise levels are high.
| Part Number | 780916-01 |
| Model Name | cRIO-9112 |
| Part Type | CompactRIO Chassis |
| FPGA type | Virtex-5 LX30 |
| Number of flip-flops | 19,200 |
| Number of 6-input LUTs | 19,200 |
| Number of DSP48 slices | 32 (25 x 18 multipliers) |
| Embedded block RAM | 1,152 kbits |
| Total chassis power consumption | 2,600 mW maximum |
| Weight | 880 g |
