Description: | 783407-01, 32-Bit, 8-Channel, C Series, NI-9361 Counter Input Module |
Need an Official Quote?
Or speak to a sales representative for additional information:
National Instruments 783407-01 Counter Input Module

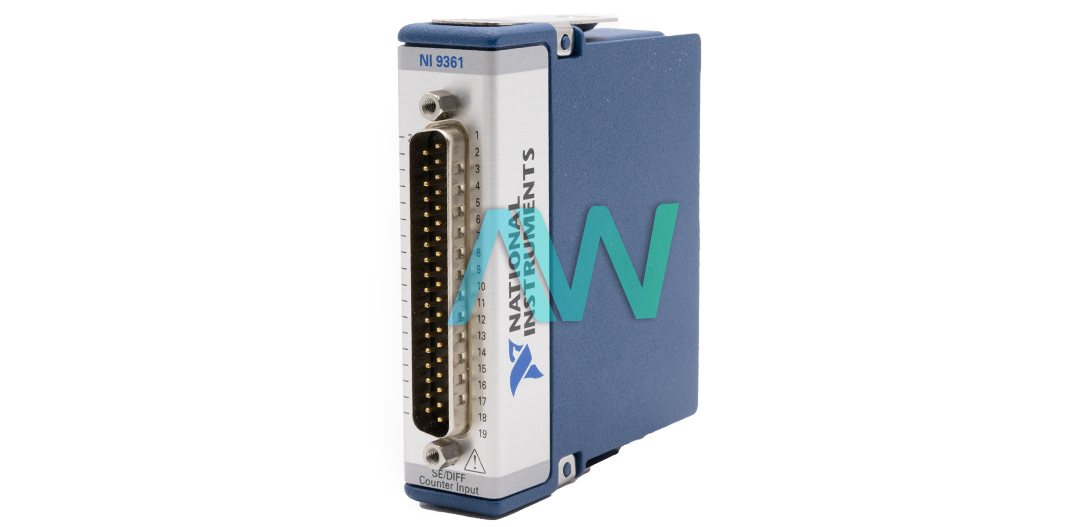

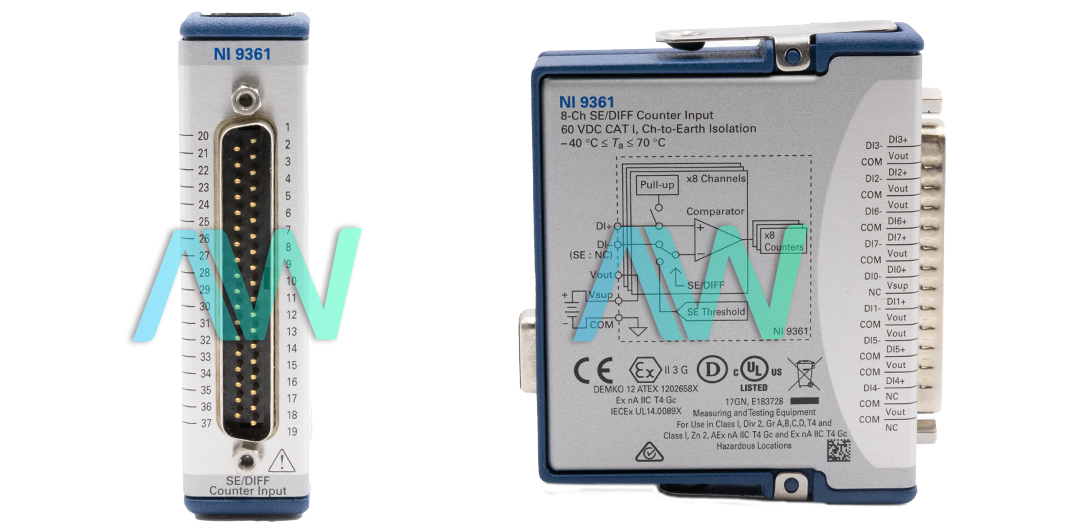

National Instruments part number 783407-01 is an identifying part number for the NI-9361, a C Series Counter Input Module. The NI‑9361 is a 32-bit, 8-channel C Series Counter Input Module offering both differential and single-ended input options. It allows expansion beyond the four counters in CompactDAQ, enabling up to 64 counters per 8‑slot chassis. Each channel can be configured to read a single pulse train or combine multiple channels to read up to four incremental encoders. Additionally, sensors with open-collector or push-pull outputs can be directly connected using an internal switchable 1 kΩ pull‑up resistor.
The NI‑9361 counters support encoder position and velocity measurements and can be synchronized with other analog, digital, and counter measurements within the chassis. The input voltage range for DI+ and DI- is 0 V to 5 V. The input high range spans from 200 mV to 5 V, while the input low range covers from -200 mV to -5 V. The part 783407-01 offers 8 inputs, each programmable as either differential or single-ended with pull-up or single-ended without pull-up. It supports an I/O signal rate of up to 1 MHz. This device features 8 counters with a resolution of 32 bits. It offers a maximum sample rate of 102.4 kHz for counter measurements. Multiple counter measurements are supported, including edge counting, pulse, pulse width, period, frequency, duty-cycle, and two-edge separation.
The NI-9361 module is designed to handle input voltages up to a maximum of 30 V DC and currents up to 1 A maximum. In comparison, the 783407-01 variant of the NI-9361 module does not feature conformal coating.
Part Number | 783407-01 |
---|---|
Model Name | NI-9361 |
Part Type | 32-bit 8-Channel C Series Counter Input Module |
Input Channels | 8 |
Resolution | 32-bit |
Conformal Coating | No |
Input Type Programmable Per Line | Differential, single-ended with pull-up, or single-ended without pull-up |
I/O Signal Rate | 1 MHz maximum |
Number of Counters | 8 counters |
Programmable Input Threshold Range | 1 V to 4 V |
