NI-9232 In Stock | Ships Today
NI-9232, ±30 V, 3-Channel, Dynamic Signal Acquisition Module Input Module
Need an Official Quote?
National Instruments NI-9232 C Series Sound and Vibration Input Module
Featured with software-selectable AC/DC coupling and IEPE signal conditioning (0 mA or 4 mA), the National Instruments NI-9232 (Part Numbers: 784397-01, 782000-01, 782000-02, 140188B-01L) is a C Series Dynamic Signal Acquisition Module. This 3-channel model offers up to 102.4 kS/s per channel sample acquisition rate and can simultaneously acquire samples on each of its three channels. It has an analog input voltage range of ±30 V (not -30 V to 30 V).

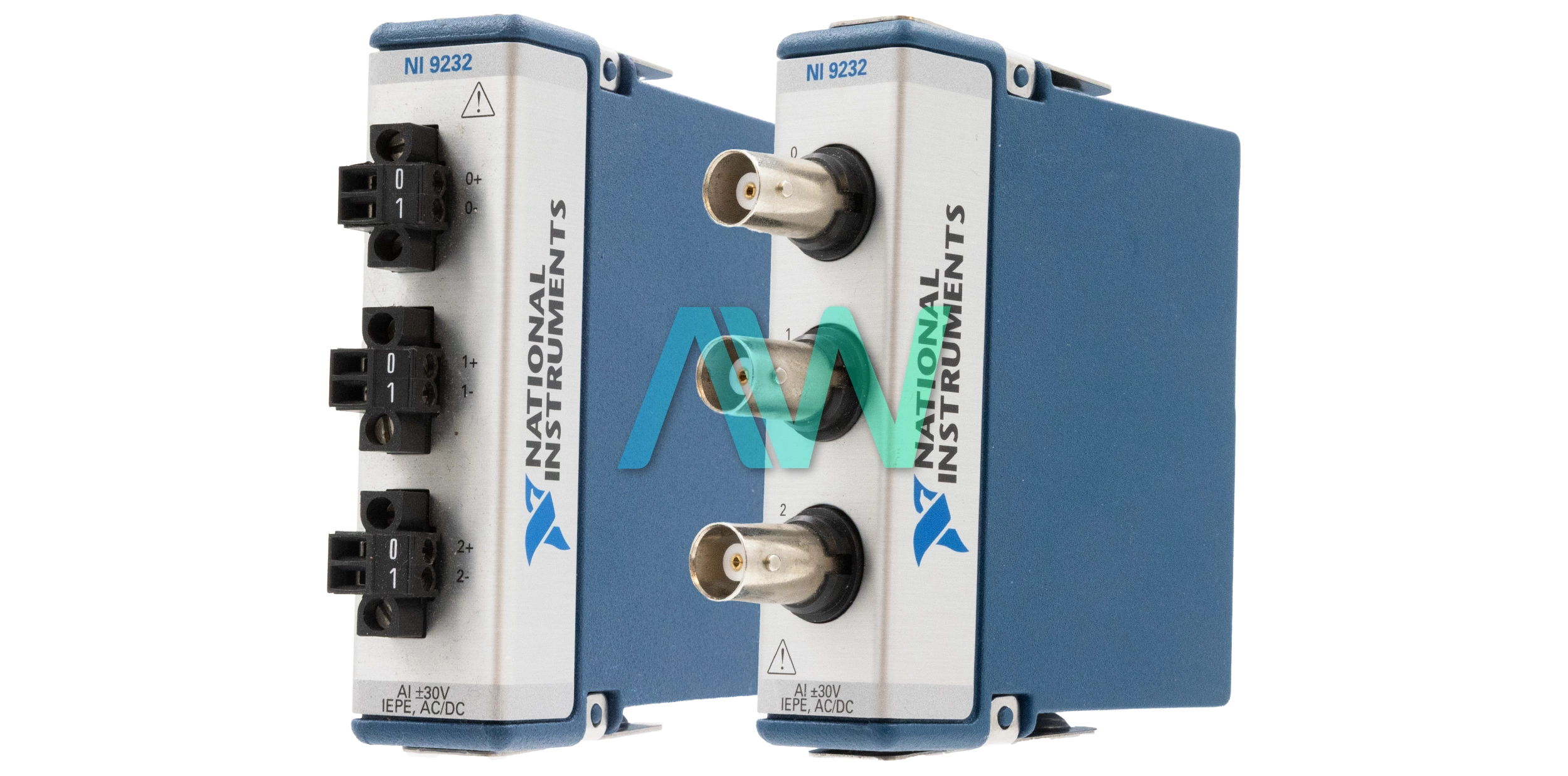

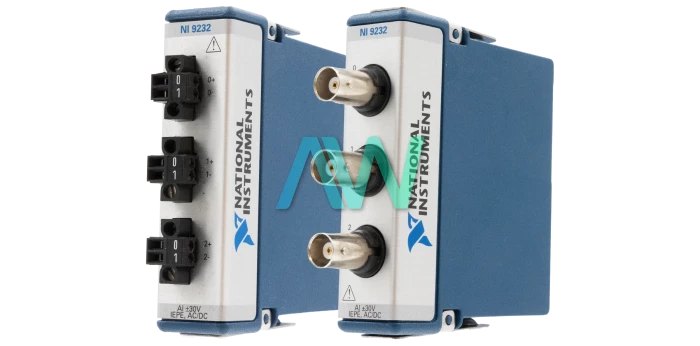

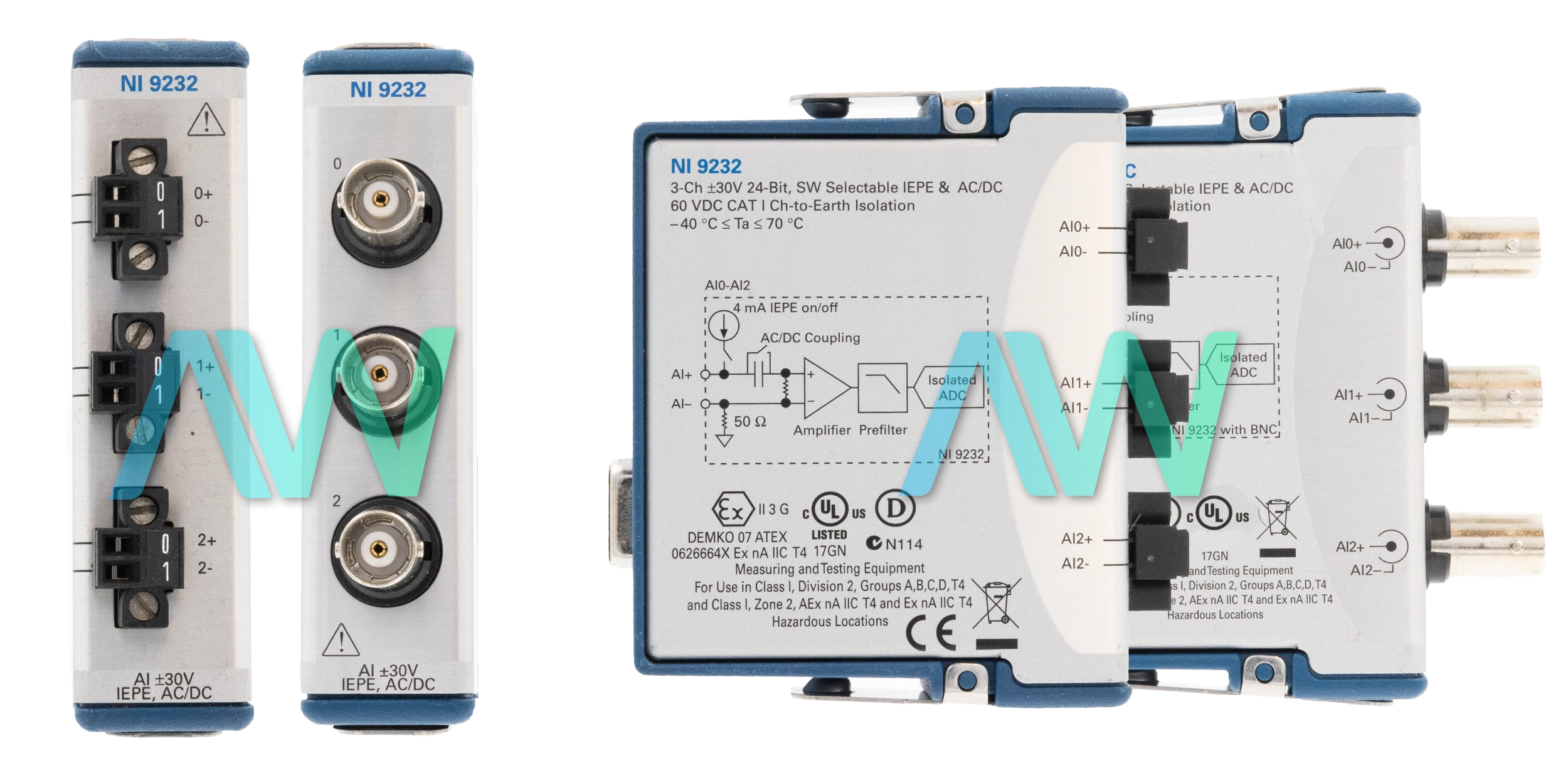

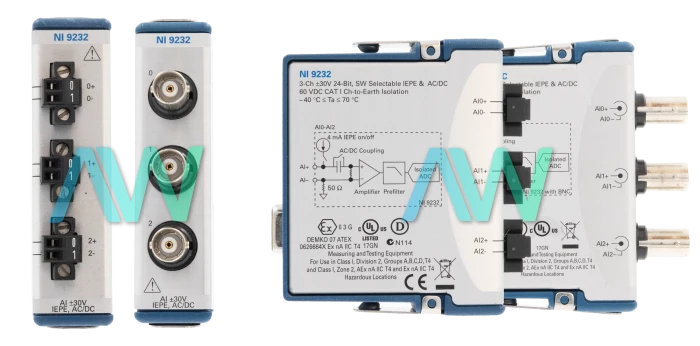

The NI-9232 is not only compatible with integrated electronic piezoelectric (IEPE) sensors but can also be used with non-IEPE sensors and smart TEDS sensors (IEEE 1451.4 TEDS Class I). This module is available with BNC connectors (Part Number: 784397-01) or screw-terminal connectivity (Part Numbers: 782000-01 and 782000-02). The different versions of the NI-9232 are identical in specifications, except the 782000-02 is conformal coated for added environmental protection.
The screw-terminal model of the NI-9232 has three 2-terminal removable screw-terminal connectors. These connectors provide access to three differential analog input channels, sampled simultaneously. The analog input channels of this module are referenced to ground through a 50 Ω resistor, and overvoltage protection of ±45 V is provided on each channel. The NI-9232 uses a combination of analog and digital filtering, ensuring an accurate representation of in-band signals while rejecting out-of-band signals.
This Dynamic Signal Acquisition Module is equipped with a 13.1072 MHz internal master timebase and can export its master timebase or accept an external master timebase. To synchronize the NI-9232 with other modules operating on different master timebases, users must ensure that all modules share a common master timebase source. The NI-9232 offers 60 VDC continuous channel-to-earth ground isolation and is tested to withstand a 1,000 Vrms surge voltage.
The screw-terminal model weighs 5.0 oz, while the BNC model weighs 5.6 oz. It has a recommended operating temperature range of -40°C to 70°C and a storage temperature range of -40°C to 85°C. The module can withstand random vibration of 5 grms and sinusoidal vibration of 5 g, both within a 10 Hz to 500 Hz frequency range.
| Model | NI-9232 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 784397-01, 782000-01, 782000-02, 140188B-01L |
| Type | C Series Dynamic Signal Acquisition Module |
| Differential Analog Input Channels | 3 |
| Maximum Sample Rate | 102.4 kS/s per channel |
| Analog Input Voltage Range | ±30 V |
| Front Connector | BNC or Screw Terminal |
| Weight | Screw Terminal- 5.0 oz; BNC- 5.6 oz. |
| ADC Resolution | 24-bit Delta-Sigma ADC |
| Overvoltage Protection | ±45 V for a Low Impedance Source |
| Input Coupling | Software-Selectable AC/DC |
Associated part numbers for the NI-9232:
140089A-01L, 140089B-01L, 140188A-01L, 140188B-01L, 140188C-01L, 199908A-01L, 199908B-01L, 199908C-01L, 199908D-01L, 199911A-01L, 199911A-03L, 199911B-01L, 199911B-03L, 199911C-01L, 199911C-03L, 199911D-01L, 199911D-03L, 782000-01, 782000-02, 784397-01
Associated NSNs for the NI-9232:
5963-01-647-0515 (5963016470515)
National Instruments NI-9232 Frequently Asked Questions
Question: What are the differences between the three part numbers for the NI 9232 module?
Answer: Part number 782000-01 for the NI 9232 module has a screw terminal front connector and is not conformal coated. The next part number, 784397-01, has BNC front connectors and is not conformal coated. The last part number, 782000-02, has screw terminal front connectors and is conformal coated.
Question: What is the analog input isolation of the NI 9232?
Answer: The analog input isolation of the NI 9232 is 60 VDC Ch-Earth Ground Isolation.
Question: Which type of filtering does the NI-9232 have?
Answer: The NI-9232 has analog and digital filtering to help deliver a precise depiction of in-band signals, while declining out-of-band signals.
Question: Does the NI-9232 support a sleep mode?
Answer: Yes, the NI-9232 supports a low-power sleep mode.
NI-9232 PDF Manuals
NI 9230 9232 CALIBRATION PROCEDURE.PDF
NI 9230 9232 LETTER OF VOLATILITY.PDF
NI-9232 GETTING STARTED GUIDE.PDF
