NI-9260, 2-Channel, 3 Vrms, C Series Voltage Output Module

Rated 4.9/5 | 5 ratings

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

National Instruments NI-9260 C Series Voltage Output Module

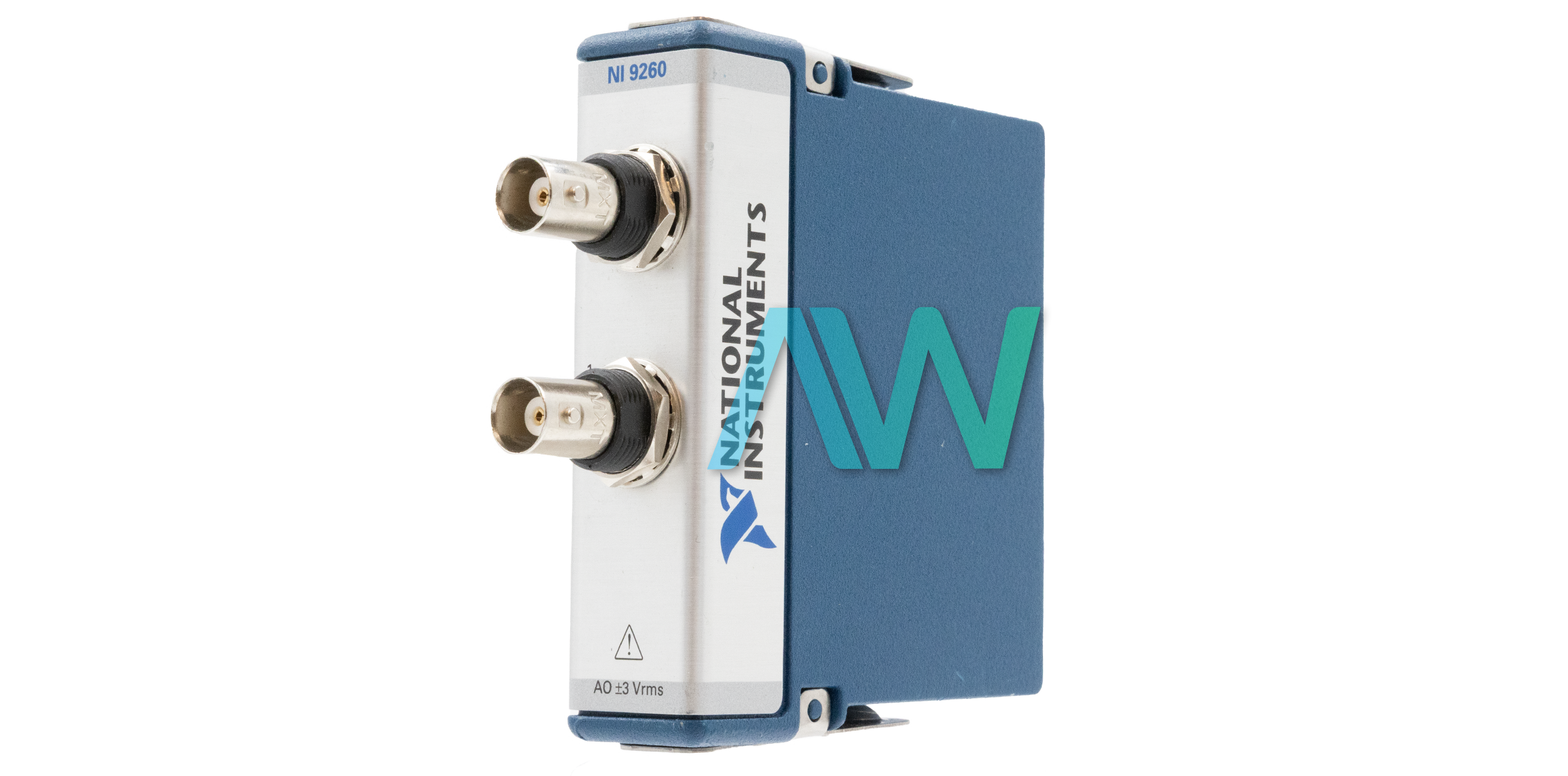

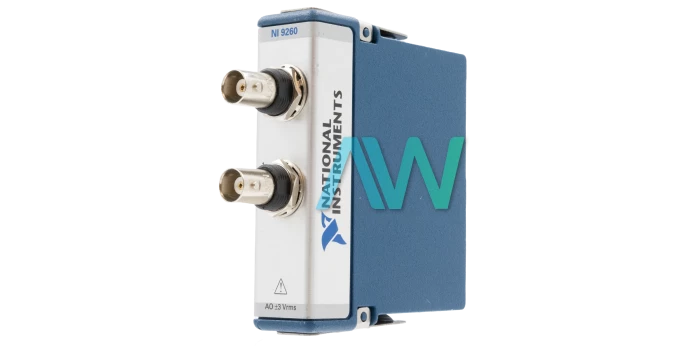

The National Instruments NI-9260 is a Voltage Output Module designed for testing the audio components as well as capabilities of consumer goods. Unlike other sound card based typical solutions, the National Instruments NI 9260 can be implemented swiftly and at a better pace. Moreover, to ensure enduring measurement repeatability users can have this device recalibrated, whereas soundcards lack this feature. This device is offered in two variations. One version of this device comes with BNC connectivity (Part Number: 783466-01), whereas the other version has Mini-XLR connectivity (Part Number: 783467-01). However, both versions come with similar specifications including range, resolution, number of channels, etc.

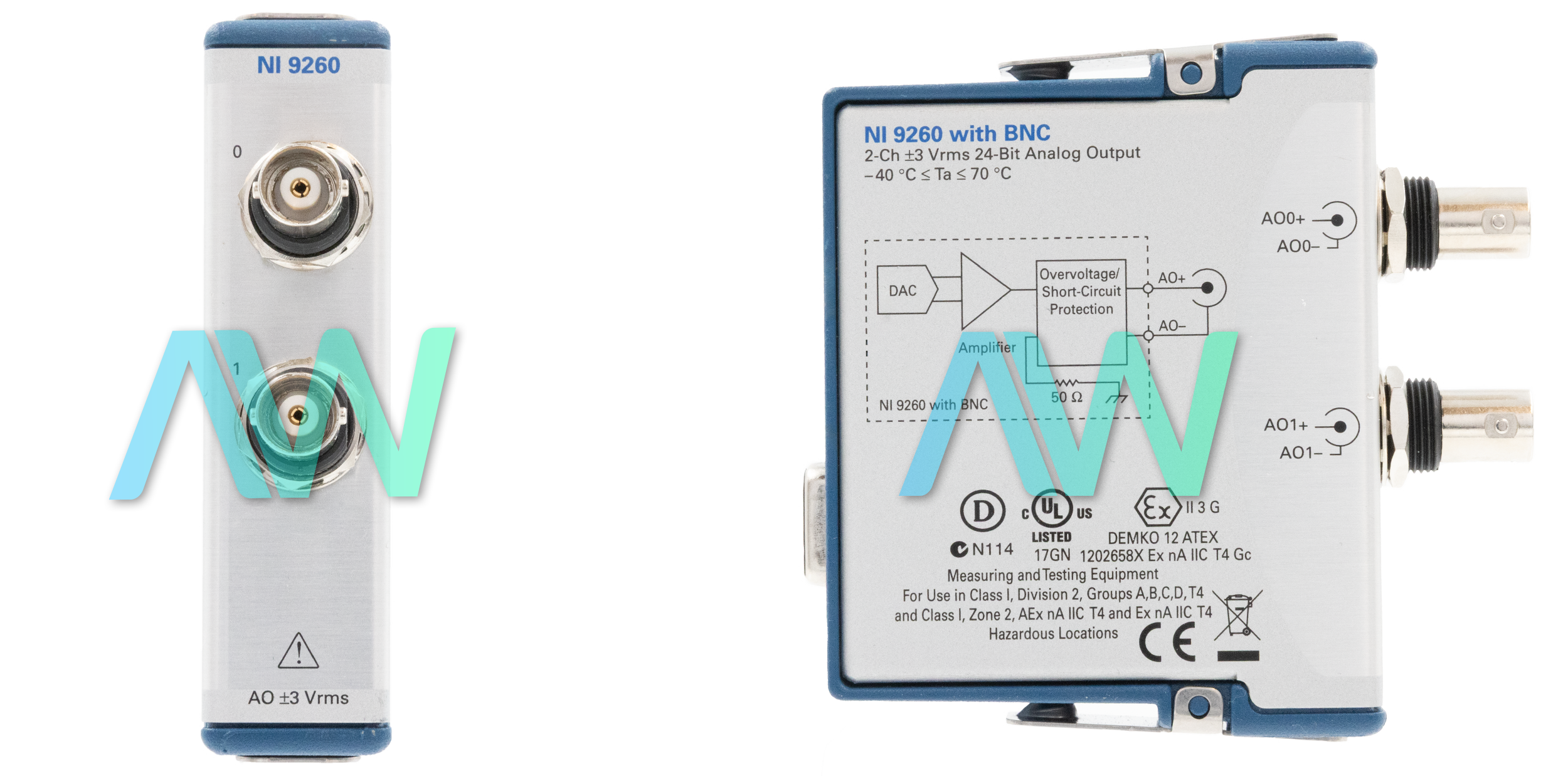

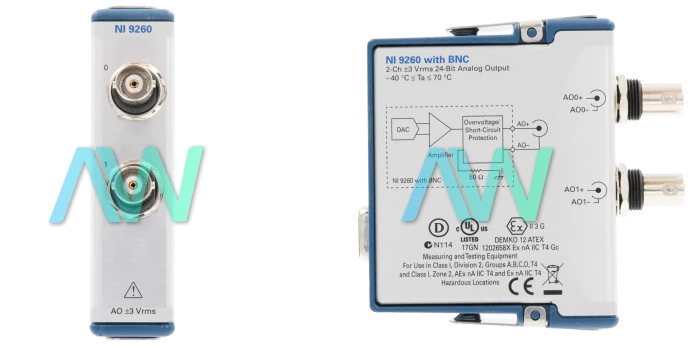

This 2-Channel Voltage Output Module offers 51.2 k Samples/second update rate, 3 Vrms output range, and 24-bit resolution. For safe deployment, the NI-9260 also offers short circuit protection and ±30 V overvoltage protection. With BNC connectors, the output stage of this Voltage Output Module is pseudo-differential; AO- is terminated through a 50 Ohm resistor to ground. The mini-XLR version features a balanced and fully differential output stage where the AO-pin corresponds to differential output driver`s one output.

The National Instruments NI 9260 Voltage Output Module comes equipped with a dedicated 24-bit, Delta-Sigma type Digital-to-Analog converter. Both versions of this module support DC output coupling. This model can operate at ±0.6%, ±0.05 dB gain error and ±0.7%, ±30 mV offset error in typical measurement conditions. In active mode, the NI 9260 consume 0.93 Watts of maximum power from the chassis.

ModelNI-9260
ManufacturerNational Instruments
Part Numbers783466-01, 783467-01
TypeC Series Voltage Output Module
Analog Output Channels2
Maximum Update Rate51.2 kS/s per channel
Analog Output Resolution24 bits
Front ConnectorBNC or Mini-XLR
WeightBNC- 5.3 oz; Mini-XLR- 4.9 oz.
Warranty2-3 Year Warranty
NI-9260 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.
