NI-9344, 4-Channel, LED, C Series User Interface Module
Need an Official Quote?
National Instruments NI-9344 C Series User Interface Module
The National Instruments NI-9344 (Part Number: 783609-01) is a fully user-programmable, 4-Channel User Interface Module that can be used to quickly interact with a CompactRIO or CompactDAQ system. Each switch incorporated in this model acts as an independent, manual digital input channel for starting and stopping processes, clearing errors, or debugging codes. On the NI 9344, each LED is powered through a digital output channel allowing users to program each LED individually to fetch both diagnostic and status updates.

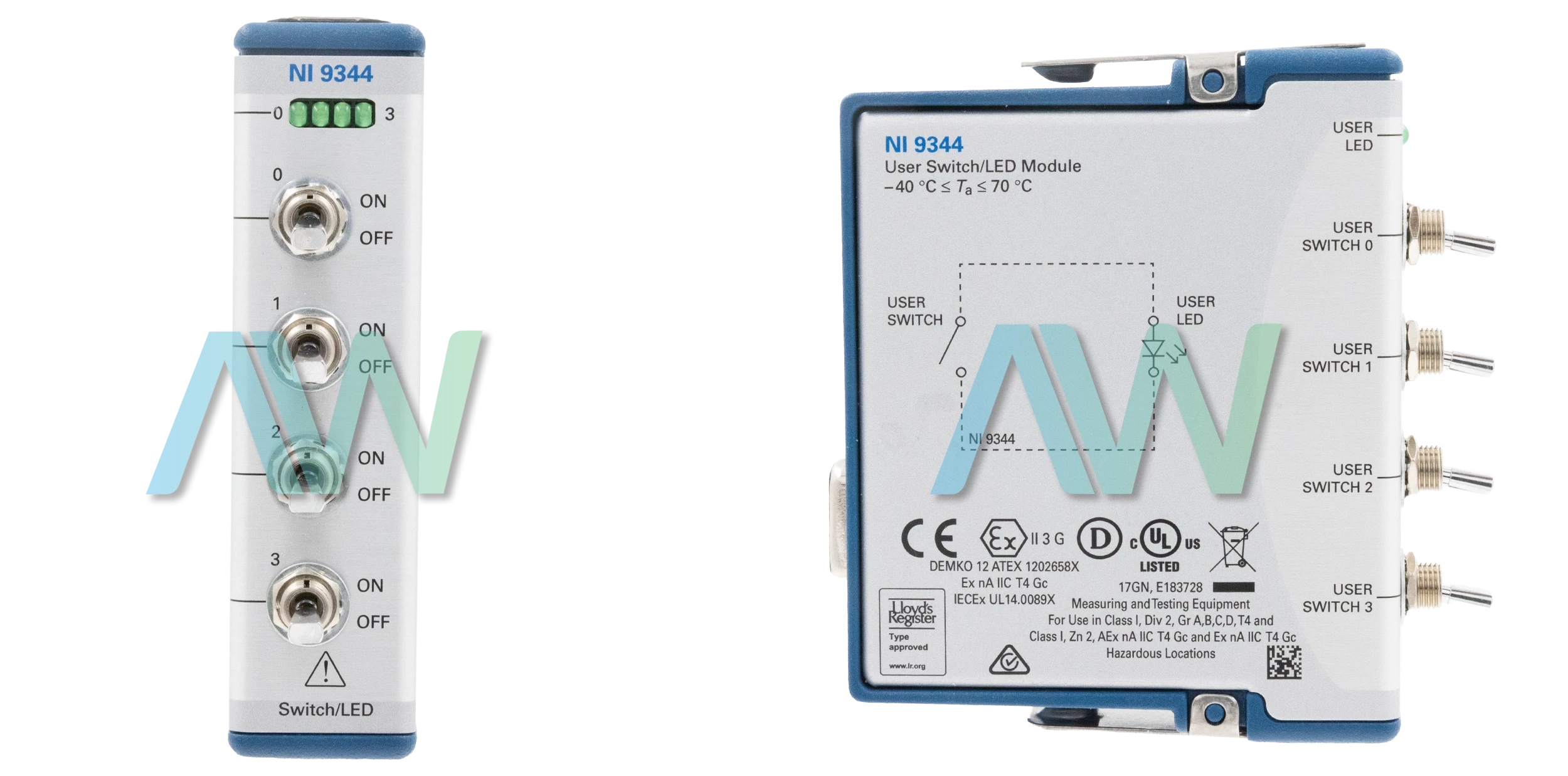

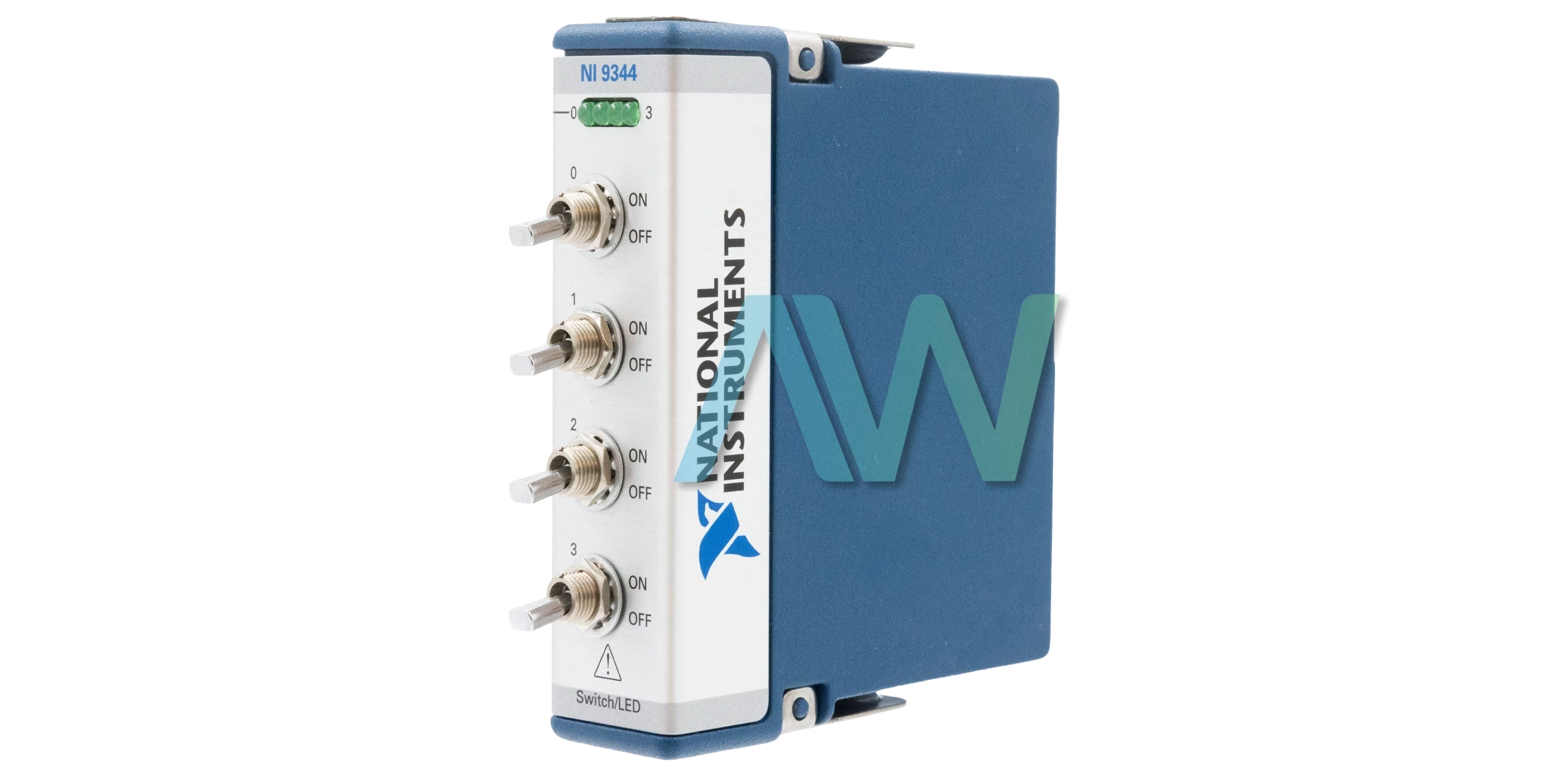

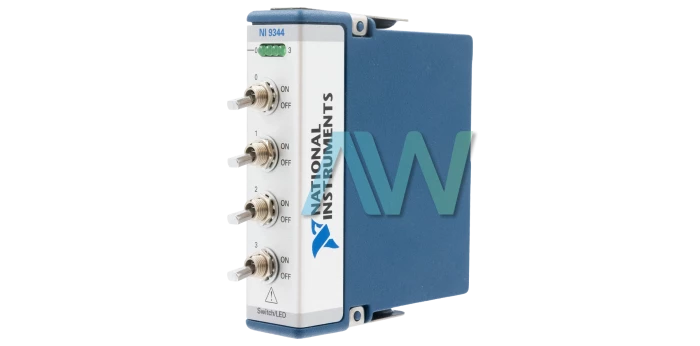

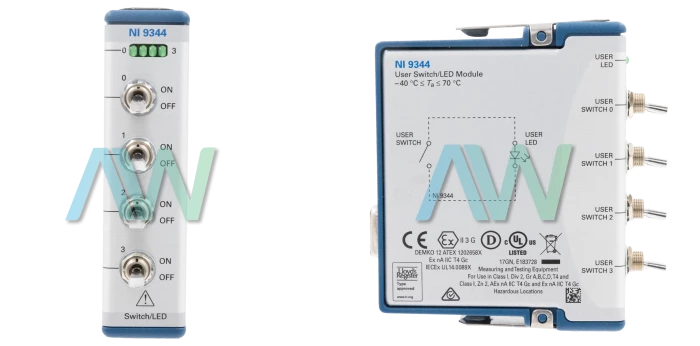

This model is an ideal solution for deployment environments or prototyping. The front panel of this device comes with 4 User LEDs (LED 0, 1, 2, and 3) and 4 User Switches (Switch 0, 1, 2, and 3). When any channel is programmed to be in the ON state, its respective LED indicator stays solid. Any LED in the OFF state shows that the channel it is representing is set to be in the OFF state. The National Instruments NI-9344 allows users to program LEDs as indicators for their software LEDs. Moreover, with this model users will be able to program the switches and LEDs independently.
This module comes with 4 digital input channels (switches) and four digital output channels (LEDs). The life expectancy of the switches utilized in this module is 50,000 operations. While operating in active mode, this module consumes 145 mW power (max) and in sleep mode it draws 25 μW of power (max) from the chassis. The National Instruments NI-9344 weighs around 150 g.
| Model | NI-9344 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 783609-01 |
| Type | C Series User Interface Module |
| Digital Input Channels | 4 channels, switches |
| Digital Output Channels | 4 channels, LEDs |
| Switch Life Expectancy | 50,000 operations |
| Power Consumption | Active Mode: 145 mW maximum; Sleep Mode: 25 uW maximum |
| Weight | 5.3 oz. |
| Warranty | 2-3 Year Warranty |
| NI-9344 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the NI-9344:
157250A-01L, 157250B-01L, 157250C-01L, 157250D-01L, 157256A-01L, 783609-01
National Instruments NI-9344 Frequently Asked Questions
Question: What does it mean when the user LEDs are solid on the NI 9344?
Answer: When the user LEDs are solid on the NI 9344, it means the channel has been programmed to be in the ON state.
Question: What are the power requirements for the power consumption from chassis for the NI-9344?
Answer: The power requirements for the power consumption from chassis for the NI-9344 are 145 mW maximum in active mode and 25 μW maximum in sleep mode.
Question: What can the LEDs be programmed for on the NI 9344?
Answer: The LEDs on the NI 9344 can be programmed as indicators for the user’s software application. The LEDs and switches can be programmed separately.
Question: Does the NI-9344 have isolation voltage?
Answer: No, the NI-9344 does not have channel-to-channel or channel-to-earth ground isolation voltage.
