NI-9871 In Stock | Ships in 5-10 Days
NI-9871, 4-Port, 3.68 Mbits/s Baud Rate, C Series Serial Interface Module
Need an Official Quote?

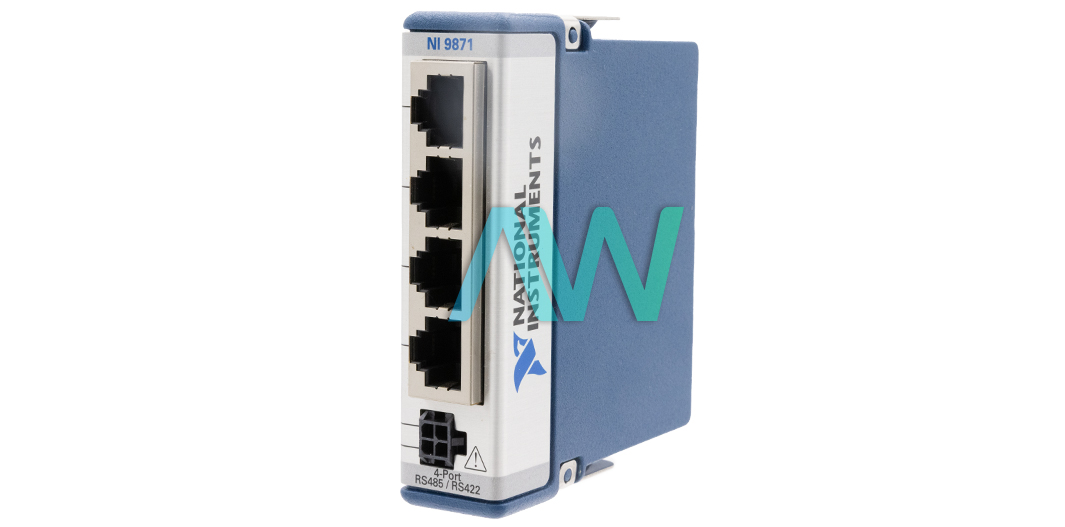

National Instruments NI-9871 C Series Serial Interface Module
The National Instruments NI-9871 (Part Numbers: 779892-01, 779892-02, 779892-03) is a 4-Port RS485/RS422 Serial Interface Module designed to add serial communication capabilities to CompactRIO systems. The four independent ports on the NI-9871 operate in isolation from each other and from the CompactRIO chassis.
Each serial port features a 64-byte FIFO buffer that simplifies programming and conserves FPGA space. The NI-9871 is designed to be programmed using the LabVIEW FPGA Module, allowing direct FPGA-based control for precise communication timing and processing. The module does not support the LabVIEW Full Development System alone—it requires LabVIEW FPGA.
The NI-9871 is available in multiple versions: Part number 779892-02: Standard version (without conformal coating), Part number 779892-03: Conformal-coated version, providing additional protection against moisture and contaminants, Part number 779892-01: Includes four 10P10C-DE9 cables (1 meter each). This C Series Serial Interface Module supports a maximum baud rate of 3.6864 Mbps, features ±15 kV ESD protection on data lines, and allows cable lengths of up to 1.2 km (4,000 ft). The maximum power consumption is 3.5 W from an external power source (+8 to +28 VDC).
For electrical isolation, the NI-9871 offers 60 VDC continuous port-to-earth ground isolation and is tested to withstand up to 1,000 Vrms surge voltage. It connects to an external power supply via a four-position female pigtail connector. The four RS485/RS422 ports are fully electrically isolated from each other and other modules in the system.

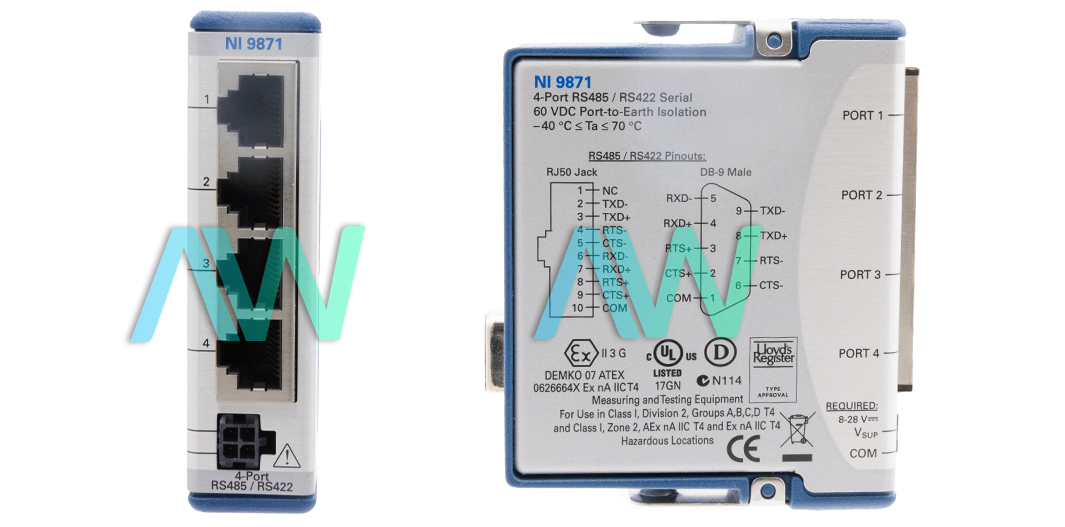

The NI-9871 features RJ-50 connectors for serial communication, which are adaptable to DB-9 connectors via cables. This module weighs 5.4 oz and has an operating temperature range of –40 to 70 °C and a storage temperature range of –40 to 85 °C. It withstands vibrations of 5 grms (random) and 5 g (sinusoidal) at frequencies from 10 to 500 Hz.
Model | NI-9871 |
---|---|
Manufacturer | National Instruments |
Part Numbers | 779892-01, 779892-02, 779892-03 |
Type | C Series Serial Interface Module |
Supported Serial Protocols | RS-422, RS-485 |
Maximum Baud Rate | 3.6864 Mbps |
Maximum Cable Length | 4,000 ft. |
Maximum Voltage | -8 to +13 VDC, maximum, Measurement Category I |
Weight | 5.4 oz. |
Front Connector Type | RJ-50 (Adaptable to DB-9 with cables) |
Operating Temperature | -40 to 70 °C |
Storage Temperature | -40 to 85 °C |
Associated part numbers for the NI-9871:
195929A-01L, 195929B-01L, 195929C-01L, 195929D-01L, 195929E-01L, 195929F-01L, 198851A-01L, 198851A-03L, 198851B-01L, 198851B-03L, 198851C-01L, 198851C-03L, 198851D-01L, 198851D-03L, 198851E-01L, 198851E-03L, 198851F-01L, 198851F-03L, 779892-01, 779892-02, 779892-03, 781275-01, 195929A-01
Associated NSNs for the NI-9871:
59-63-01-650-5748 (5963016505748)
National Instruments NI-9871 Frequently Asked Questions
Question: Why are there three part numbers for the NI 9871?
Answer: The NI 9871 has two part numbers with one difference; part number 779892-02 is not conformal coated, while part number 779892-03 is conformal coated. Part number 779892-01 is the version of the NI-9871 that comes with 4 10P10C-DE9 Cables that are 1 meter in length.
Question: Which serial protocols are supported by the NI-9871?
Answer: The NI-9871 supports RS422 and RS485 serial protocols.
Question: Are any accessories required for the NI 9871?
Answer: The NI-9871 requires an external power cable, such as the .35 m PC-MF4-PT CSeries Microfit Power Cable (female to pigtail) or the .2 m PC-MF4-Y CSeries Microfit Power Y-Adapter (male to 2-female), to connect to an external power supply (+8 to +28 VDC).
Question: What is the maximum baud rate of the NI-9871 module?
Answer: The NI-9871 has a maximum baud rate of 3.6864 Mbps.
NI-9871 PDF Manuals
ARCHIVED NI SERIAL HARDWARE SPECIFICATIONS AND FEATURES GUIDE.PDF
NI-9871 GETTING STARTED GUIDE.PDF
NI-9871 LETTER OF VOLATILITY.PDF
NI SERIAL HARDWARE SPECIFICATIONS AND FEATURES GUIDE.PDF
SERIAL QUICK REFERENCE GUIDE.PDF
