778617-08 In Stock | Ships Today

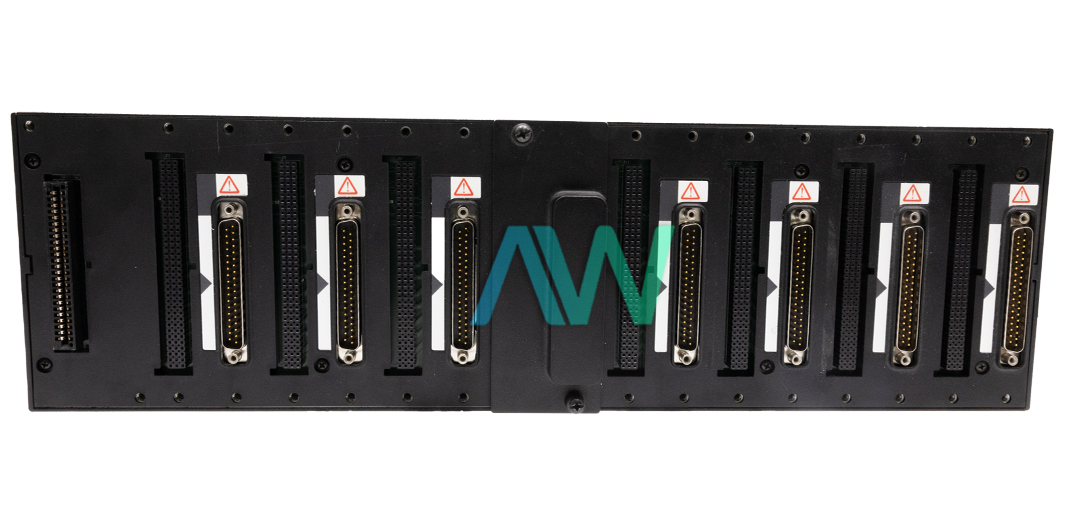

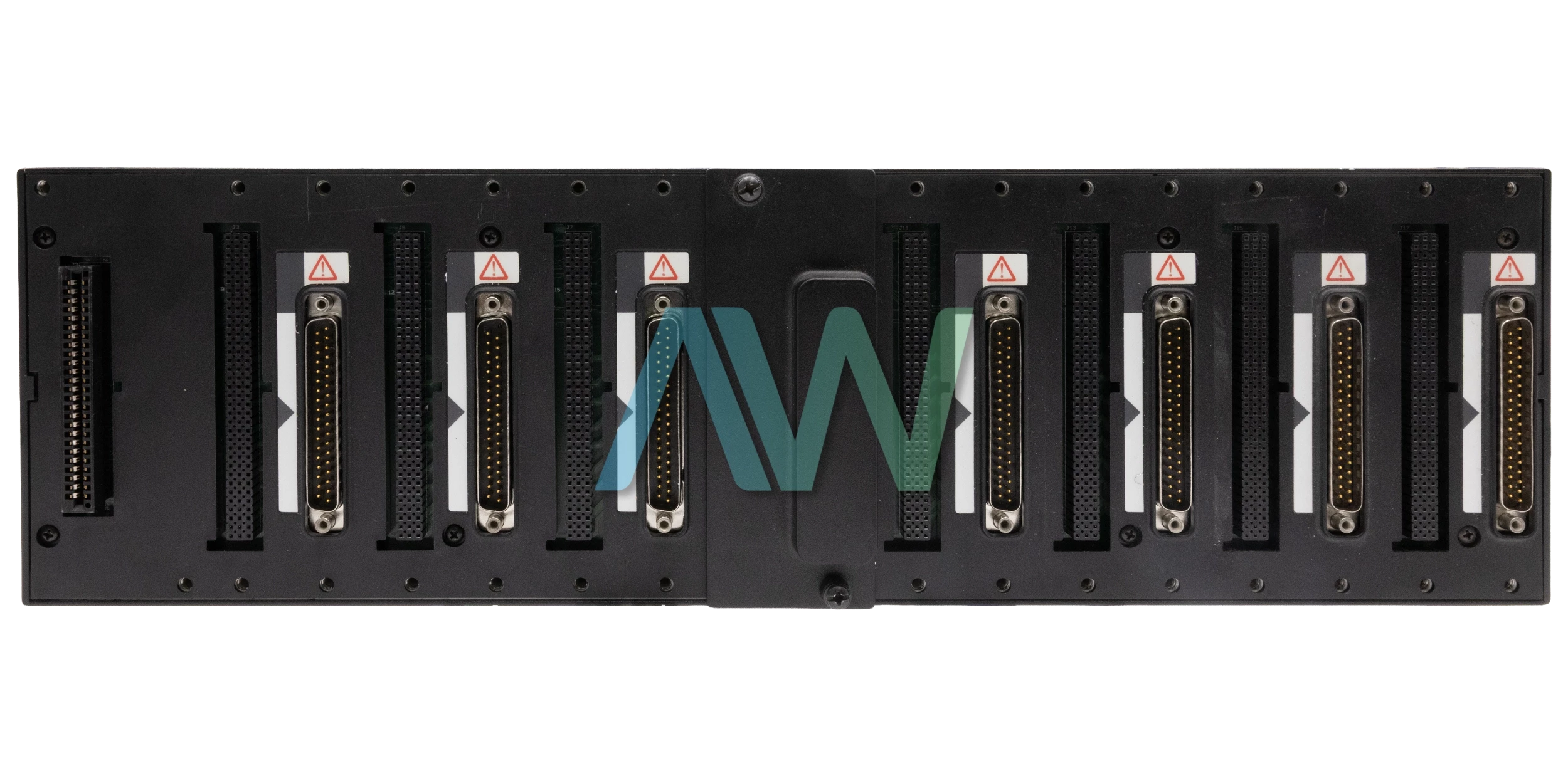

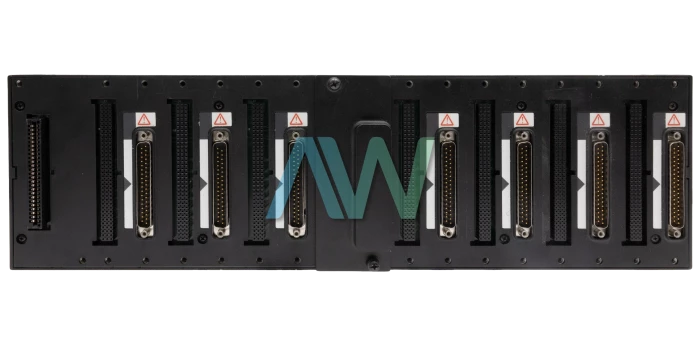

778617-08, 8 Slots, 37-pin D-SUB, cFP-BP-1166 Backplane for Compact FieldPoint
Need an Official Quote?
National Instruments 778617-08 Backplane for Compact FieldPoint
National Instruments part number 778617-08 is an identifying part number for the cFP-BP-1166, a Backplane for Compact FieldPoint with 8 slots and 37-pin D-SUB connectors. This Compact FieldPoint framework consists of a backplane, a cFP-21xx controller, one or more I/O modules, and one or more connector blocks. Each Compact FieldPoint system can be accessed by an unlimited number of PCs and controllers, creating a distributed computing system. The maximum number of cFP-21xx controllers that can be installed on an Ethernet network is limited only by the network topology.
FieldPoint software includes NI Measurement and Automation Explorer (MAX) as well as server and driver software for easy integration into application software packages. These software components manage low-level communications and hardware details, simplifying programmatic access to I/O channels. FieldPoint software runs on Windows 2000/NT 4.0 Service Pack 6+/XP and includes the following components: MAX, LabVIEW VIs, LabVIEW Real-Time Module, LabWindows/CVI functions, Measurement Studio instrument drivers, Lookout, OPC server, and VI Logger. NI provides four mounting options for Compact FieldPoint backplanes, including panel mounting, DIN-rail mounting, and 19-inch rack mounting.

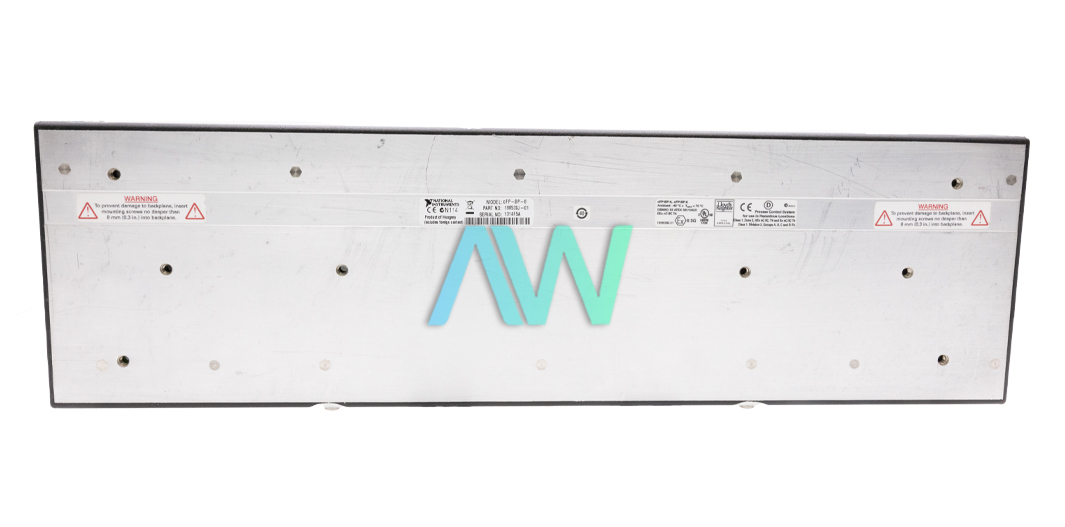

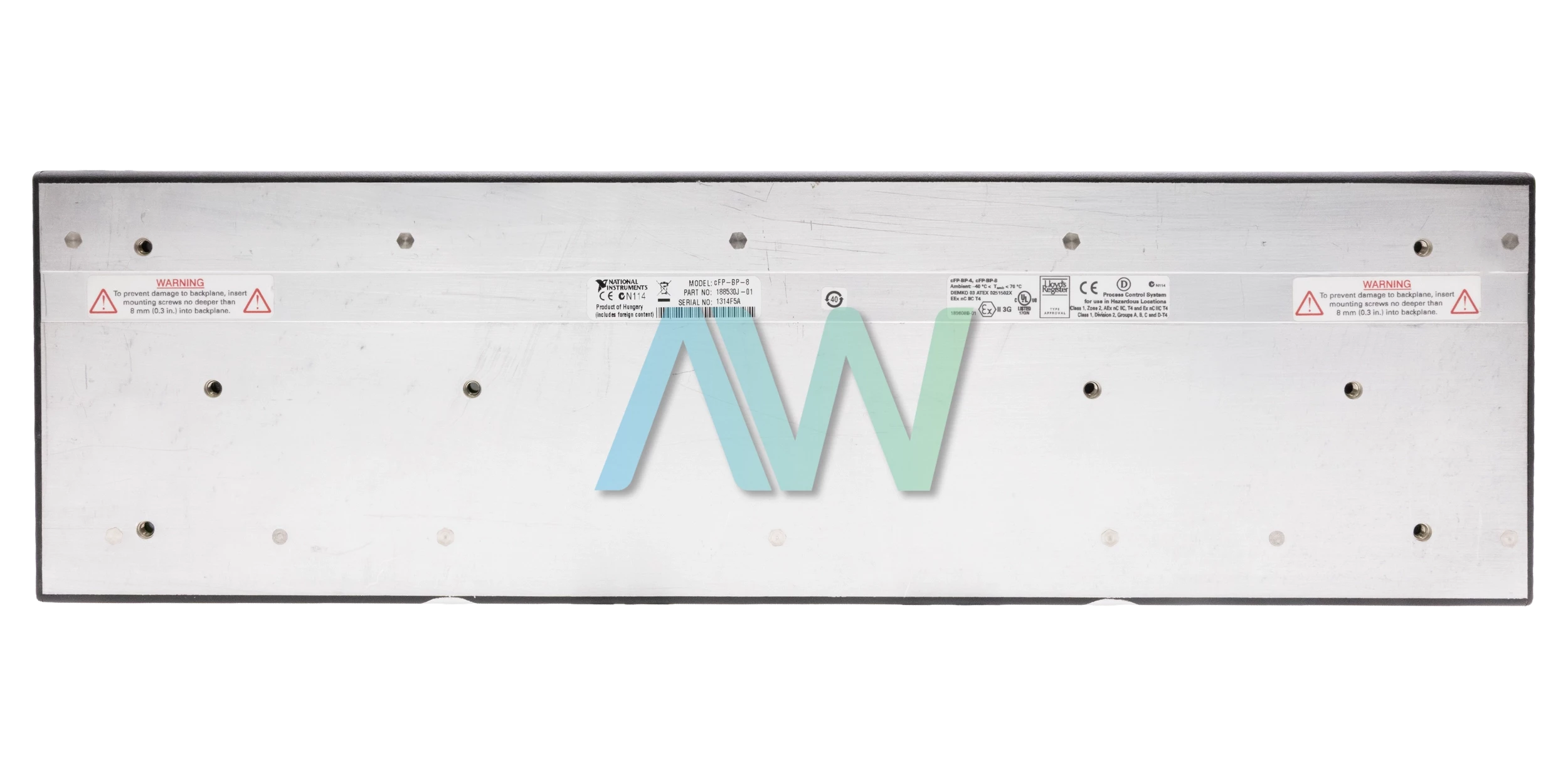

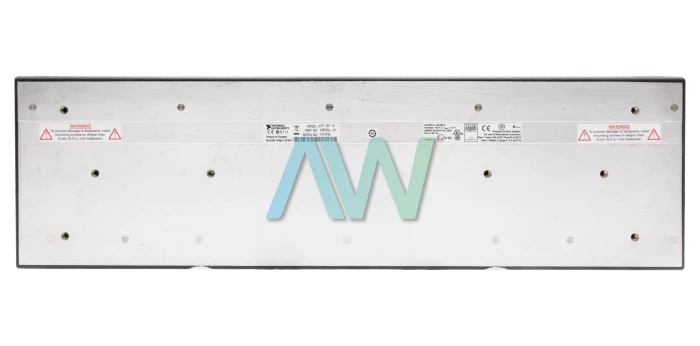

To endure high levels of shock and vibration, Compact FieldPoint backplanes are constructed from extruded metal, offering a sturdy mounting surface for the Compact FieldPoint modules. Additionally, the backplane features screw-down connections for the controller module, I/O modules, and connector blocks. The 778617-08 comes with a 37-pin D-SUB connector. Transient loads and operating voltages are measured through circuitry integrated into the device, facilitating testing and measurement. The 778617-08Backplane Module for Compact FieldPoint also includes the cFP-PM-H horizontal mounting bracket. This bracket features mounting holes on the sides of the cFP-BP-8 module, enabling straightforward panel mounting for users.
| Part Number | 778617-08 |
|---|---|
| Model Range | cFP-BP-1166 |
| Part Type | Backplane for Compact FieldPoint |
| Slots | 8 |
| Connectors | 37-pin D-SUB |
| Power Requirements with cFP System | 24 VDC, 20 W |
| Power Supply Range | 11 to 30 VDC |
| Software | LabVIEW Real-Time |
| Operating Temperature | -25 to 60 °C |
| Number of DIN rail Mounting clips needed | 2 |
