cFP-AI-110, 16-Bit, Analog Input Module for Compact FieldPoint

Rated 4.5/5 | 5 ratings

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

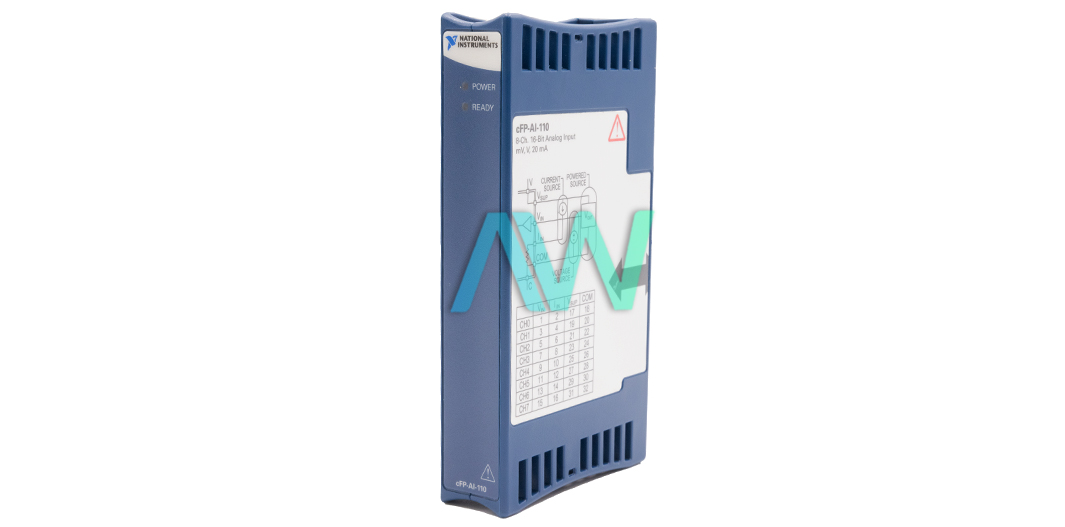

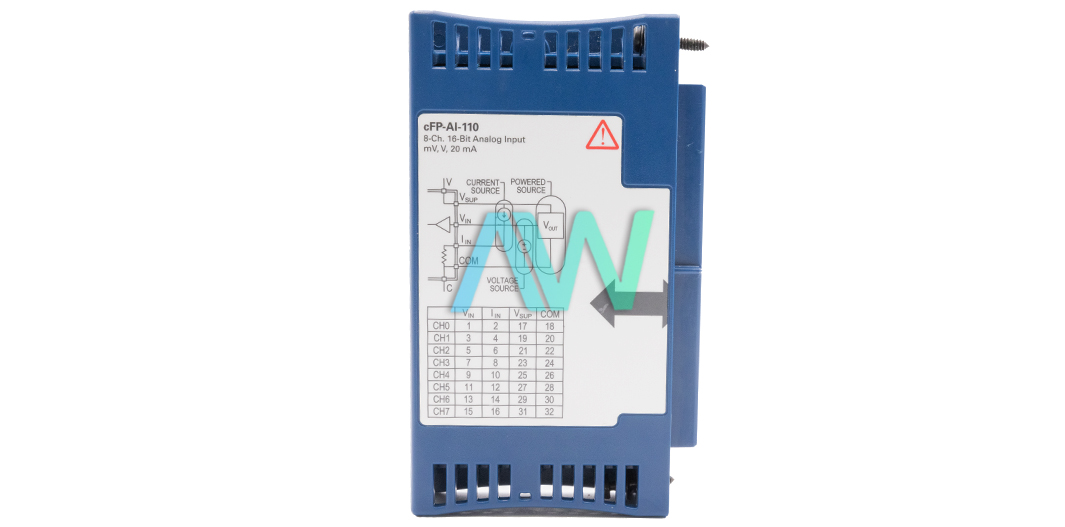

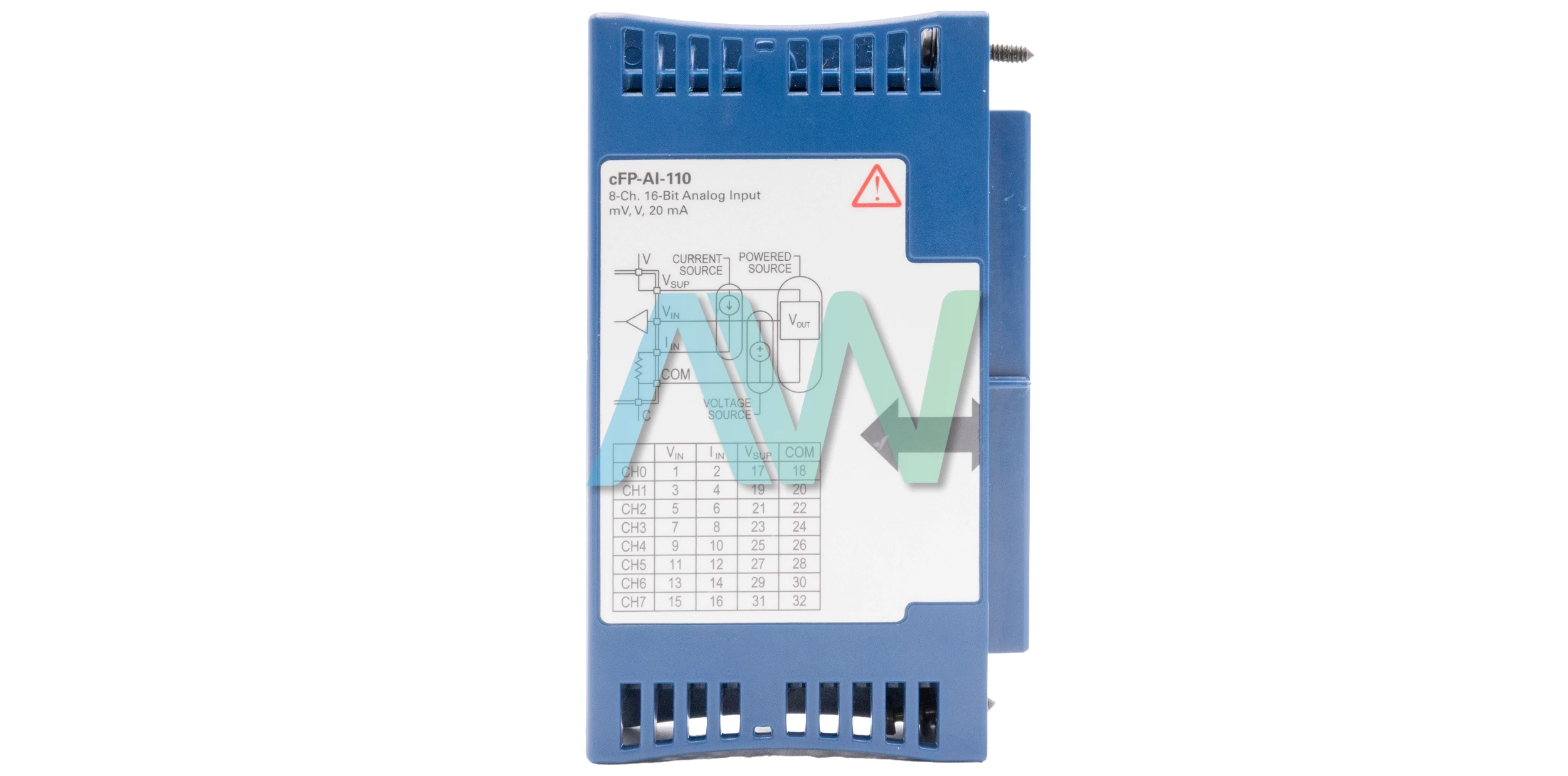

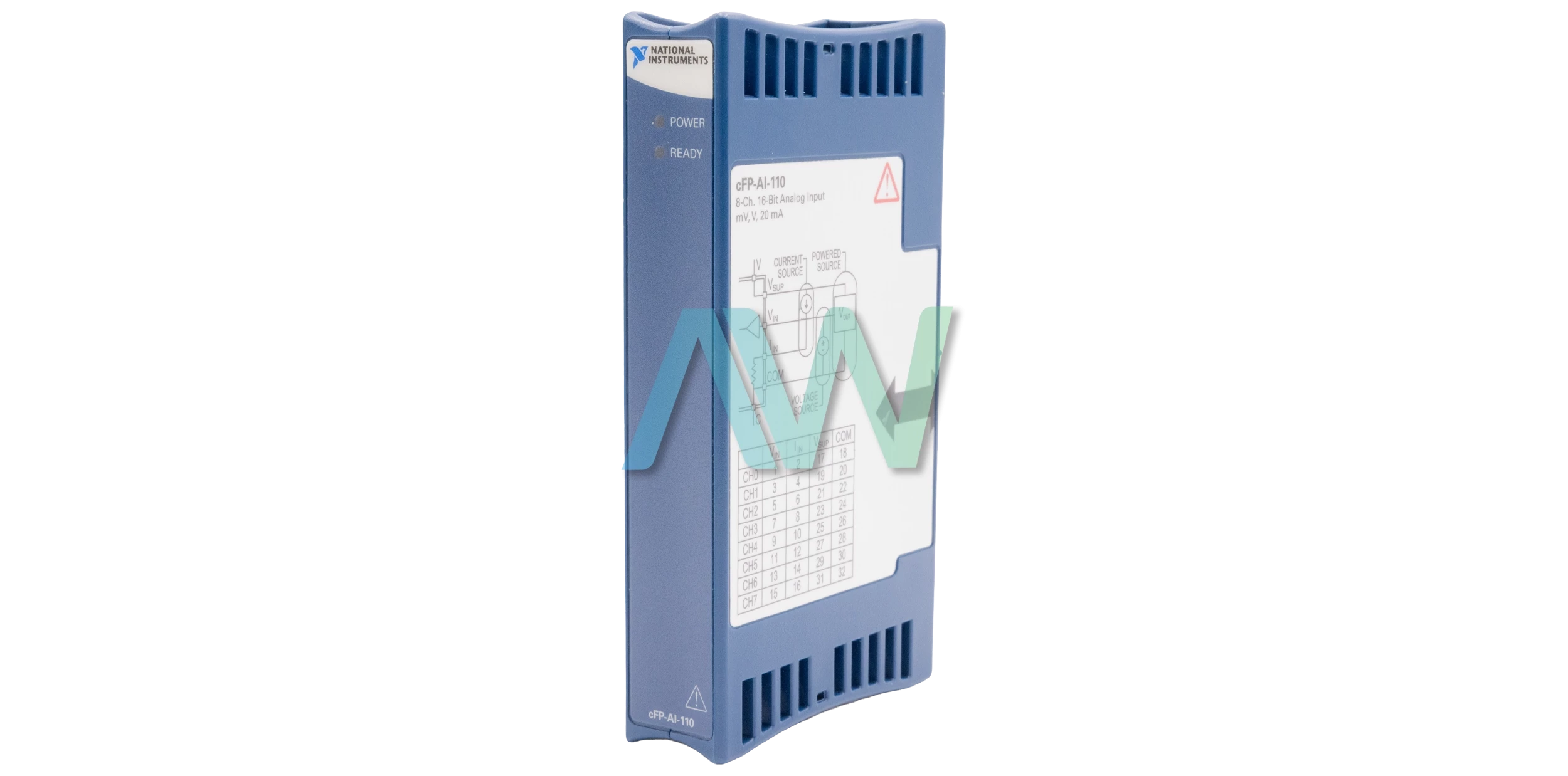

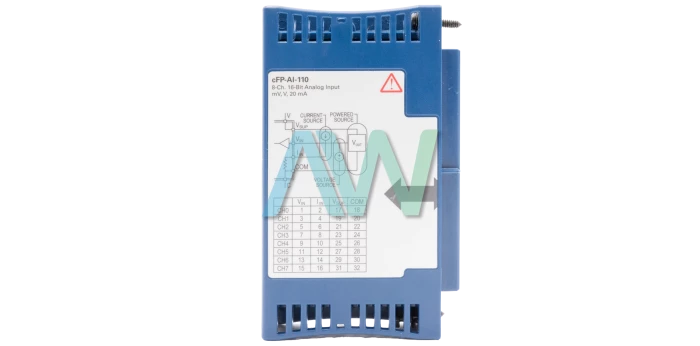

National Instruments cFP-AI-110 Analog Input Module for Compact FieldPoint

The National Instruments cFP-AI-110 (Part Number: 777318-110) is an 8-Channel, 16-Bit, Voltage and Current, Analog Input Module for FieldPoint and Compact FieldPoint. This model comes featured with a software selectable 50/60 Hz Noise Filter and offers 5 Hz to 0.66 Hz update rate on all channels. The NI cFP-AI-110 is a versatile input module that can be employed for measuring voltages from the millivolt to high voltage levels in applications like fuel-cell testing, battery-pack monitoring, and routine measurement from various types of transducers.

Below are some of the many features of the NI device:

- 8 analog voltage/current input channels

- 8 voltage input ranges of 0–1 V, 0–5 V, 0–10 V, ±60 mV, ±300 mV, ±1 V, ±5 V, and ±10 V.

- 3 current input ranges of 0–20, 4–20, and ±20 mA, and

- 3 filter settings of 50, 60, and 500 Hz.

 This module can also be used for the measurement of 0 mA or 4 to 20 mA from transducers and transmitters that are widely used in process, manufacturing, power generation, and other industries. For easy installation and maintenance, the cFP-AI-110 features a smart, integrated diagnostics function and an over-ranging function. This Analog Input Module allows the user to connect to any compatible industrial sensor or unit under test directly to get highly accurate measurements. This module comes with an ability to filter, calibrate, and scale raw signals which it receives from sensors; it keeps a check for issues with the wiring or the module. With under-ranging and over-ranging features, the NI cFP-AI-110 can measure sensors or inputs that are not calibrated according to the standard ranges.

This module comes featured with 250 Vrms of operational and 2,300 Vrms optical isolation. The NI cFP-AI-110 has a built-in bus for power distribution, which brings surplus power terminations on the module. This model consumes 350 mW of power, and has a recommended operating temperature range of –40 to 70 °C, and a storage temperature range of –55 to 85 °C. It weighs 4.8 oz., and measures 4.3 x 4.3 x 3.6 in. in physical dimensions.

ModelcFP-AI-110
ManufacturerNational Instruments
Part Number777318-110
TypeAnalog Input Module for Compact FieldPoint
Input Channels8
Resolution16 bits
Update Rate5 Hz to 0.66 Hz
Dimensions4.3 x 4.3 x 3.6 in.
Weight4.8 oz.
WarrantyThree Year Warranty
cFP-AI-110 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for cFP-AI-110:

National Instruments cFP-AI-110 Frequently Asked Questions



Question: Can I read a thermocouple using the NI cFP-AI-110?

Answer: Yes, you can take a thermocouple (TC) reading with a NI cFP-AI-110.



Question: What units of measure does the cFP-AI-110 collect?

Answer: The cFP-AI-110 can measure millivolt, low voltage, or milliampere current signals.



Question: What are the filter settings for the National Instruments cFP-AI-110?

Answer: There are three filter settings: 50, 60, and 500 Hz for the National Instruments cFP-AI-110.



Question: Why is my NI cFP-AI-110 running so slow?

Answer: If you’re experiencing slow running time on the NI cFP-AI-110, it sounds like the filter is being enabled. The update rate for your device is 1.23 seconds with the 60 Hz filter enabled.
