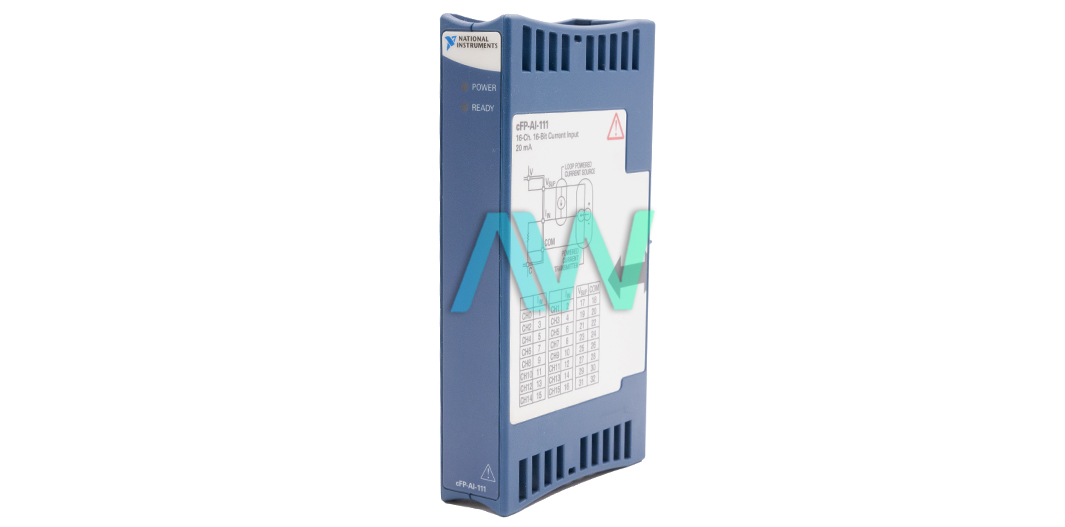

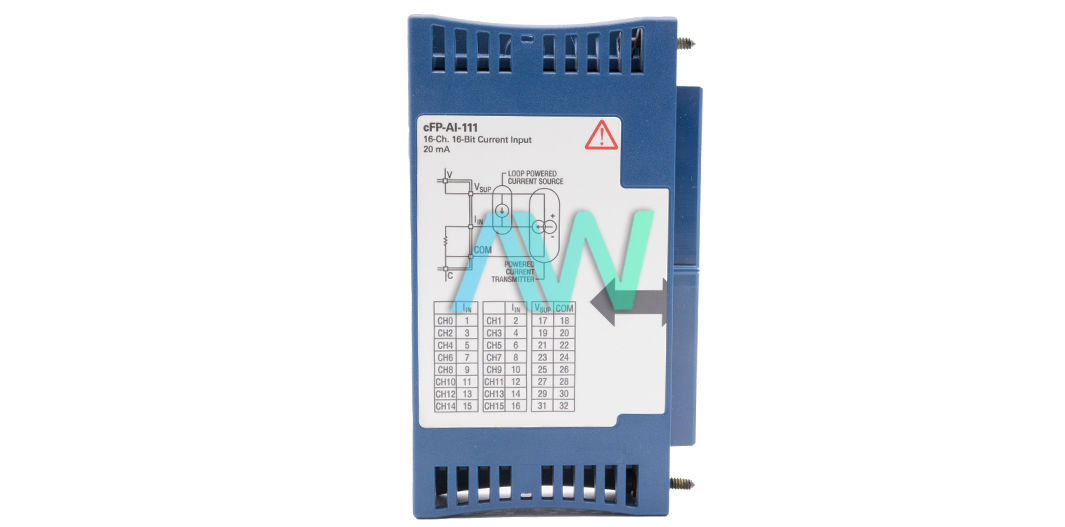

National Instruments cFP-AI-111 Analog Input Module for Compact FieldPoint
Designed for FieldPoint and Compact FieldPoint, the National Instruments cFP-AI-111 (Part Number: 777318-111) is a 16-Channel, 16-bit Analog Input Module. The channels on this model are single-ended analog input channels. It has an input impedance of 100 Ω. This model also has three filter settings, 50 Hz, 60 Hz and 500 Hz, as well as three input ranges, ±20 mA, 4 mA to 20 mA, and 0mA to 20 mA. Additionally, the device has an update rate of 3 Hz to 0.83 Hz. The NI cFP-AI-111 offers integrated overvoltage protection for transients up to 2,300 Vrms. This Analog Input Module can be installed on an already running and powered, Compact FieldPoint backplane since it will not disrupt the ongoing operation of the bank.
The 16 input channels on the National Instruments cFP-AI-111 module share a common, isolated ground reference. These input channels operate under an integrated overcurrent protection set at ±30 mA. In current measurements, the current entering Iin terminal is taken as positive, whereas the current departing the terminal (Iin) is read as negative.
The over-ranging feature incorporated in this Analog Input Module enables the device to measure 5% beyond each range`s nominals. Thus, the user will be able to measure ±21 mA with ±20 mA range selected. The filter provided in this device offers three settings for each channel. These filters are comb filters; thus, they offer notches of rejection at harmonics or multiples of any fundamental frequency. At the fundamental frequency, 95 dB of rejection is applied and at least 60 dB of rejection is offered at harmonics.
The NI device weighs 4.8 oz, and measures 4.3 x 4.3 x 3.6 in. in physical dimensions. It has a recommended operating temperature range of –40 to 70 °C, a storage temperature range of –55 to 85 °C, a noncondensing humidity range of 10 to 90% RH, and a random and sinusoidal operating vibration of 5 grms and 5 g respectively – all at a frequency range of 10 to 500 Hz.
cFP-AI-111 Obsolete Status has been announced by National Instruments, but the input module will still be available for purchase and repairs by Apex Waves.
| Model | cFP-AI-111 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 777318-111 |
| Type | Analog Input Module for Compact FieldPoint |
| Input Channels | 16 |
| Resolution | 16 bits |
| Update Rate | 3 Hz to 0.83 Hz |
| Dimensions | 4.3 x 4.3 x 3.6 in. |
| Weight | 4.8 oz. |
| Warranty | Three Year Warranty |
| cFP-AI-111 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the cFP-AI-111:
185837B-02, 185837C-02, 185837D-02L, 185940E-02L, 777318-111
Associated NSNs for the cFP-AI-111:
5998-01-538-1540 (5998015381540)
National Instruments cFP-AI-111 Frequently Asked Questions
Question: Can you use the cFP-AI-111 to power a sensor?
Answer: Yes, you can use the cFP-AI-111 with a wire to connect V and Vsup, C and COM, and wire your sensor.
Question: Is there a noise filter available on the NI cFP-AI-111?
Answer: Yes, there is a software-selectable noise filter on the NI cFP-AI-111.
Question: Can you use the cFP-AI-111 to read the signal on a Burkert Flowmeter?
Answer: Yes, you can use the cFP-AI-111 to read signals on the Burkert Flowmeter.
Question: How do I wire a two-wire loop using the NI cFP-AI-111 and cFP-CB-1?
Answer: When wiring with a loop powered sensor, connect Vsup from a given channel to the + of the sensor. Connect a line of the same channel to the – of the sensor. You can use a twisted pair cable to help minimize the noise. You will need an external 24V supply connected to the c and v terminals of the NI cFP-AI-111 to power the module and all the loops.
cFP-AI-111 PDF Manuals
FIELDPOINT SAFETY AND RADIO FREQUENCY INTERFERENCE READ ME FIRST.PDF
FP AI 111 AND CFP AI 111 OPERATING INSTRUCTIONS.PDF
USING FIELDPOINT AND COMPACT FIELDPOINT SAFELY IN HAZARDOUS LOCATIONS 5BNOTE TO USERS5D.PDF
