cFP-DO-400, 8-Channel, Sourcing Digital Output Module for Compact FieldPoint

Rated 4.6/5 | 6 ratings

Please fill out the form below to send in your quote request and a representative will contact you with a formal quote. View blog post on Model Name vs. Part Numbers

+Add more parts

Prefer to send a text message?

Text your name, e-mail, and parts to quote to:   1-919-809-5227

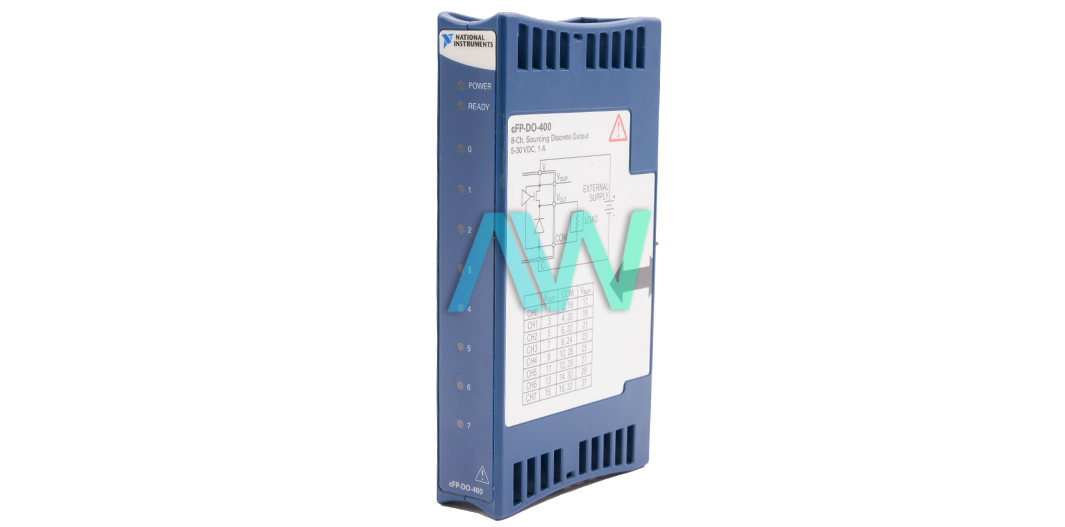

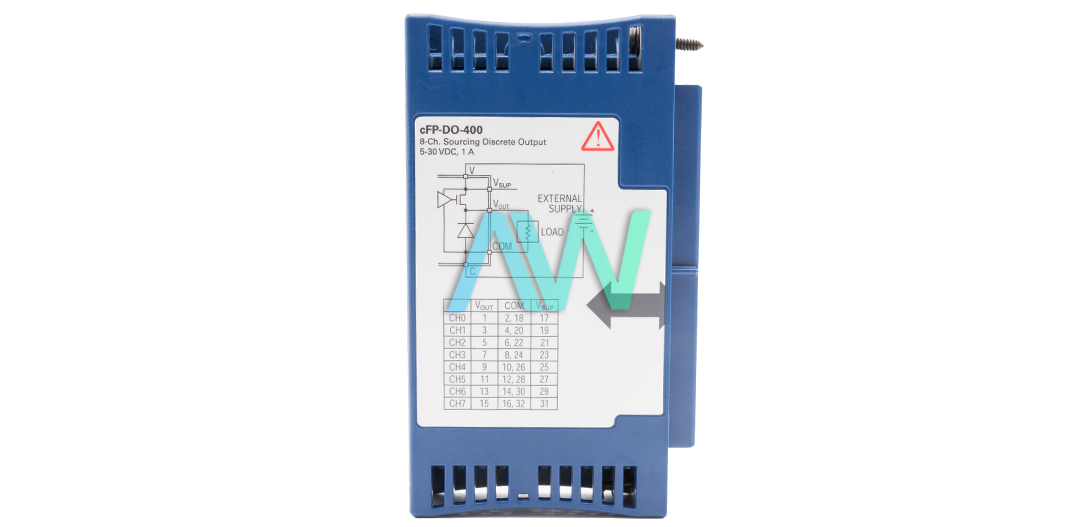

National Instruments cFP-DO-400 Digital Output Module for Compact FieldPoint

The cFP-DO-400 (Part number: 777318-400) is a flexible Digital Output Module developed by National Instruments. The module helps control digital signals ranging from 5 V to 30 V. This module is suitable to control CMO and external relays devices. It can also be used to control TTL devices and indicator lights. The NI cFP-DO-400 has built-in diagnostics, which help guarantee distress-free connection and maintenance.
This module has 8 digital outputs and uses a common ground plane for the output channels.  All channels have the update rate of 20 KHz. The NI cFP-DO-400 module provides a current of 2 A for each output channel.
Software loop and network speeds determine the data throughput. This module is structured with optical bank isolation and has 2300 Vrms of breakdown isolation. The module does not have any channel to channel isolation. The NI cFP-DO-400 includes a built-in power supply bus. This module includes multiple connections for power and enables the user to attach a field-wired power supply. It is connected to the different terminals, including voltage and other common terminals. They are linked to a power supply bus and provide extra escape terminals for the common and voltage supply. These terminals carry a suitable way to divide power to field devices which require external power.
The NI cFP-DO-400 has the output impedance of 0.3 Ohms for the voltage range from 10 to 30 volts. The greatest output current on all channels is 8 A. The output delay time is 20 µs when the module is on, but the value is 50 µs when the device is off.
The cFP-DO-400 weighs 4.8 oz, and measures 4.2 x 4.3 x 3.6 in. in physical dimensions. It has recommended operating and storage temperature ranges of –40 to 70 °C and –55 to 85 °C respectively, a non-condensing relative humidity range of 10 to 90%, random and sinusoidal operating vibrations of 5 grms and 5 g respectively–all at a frequency 10 to 500 Hz. The FieldPoint module is designed to comply with the following electrical safety standards: IEC 61010-1, EN 61010-1, UL 3121-1, UL 61010C-1, and CAN/CSA C22.2 No. 1010.1.

ModelcFP-DO-400
ManufacturerNational Instruments
Part Number777318-400
TypeDigital Output Module for Compact FieldPoint
Output Channels8
Output Range10 to 30 VDC, sourcing
All Channel Update Rate20 kHz
DImensions4.2 x 4.3 x 3.6 in.
Weight4.8 oz.
WarrantyThree Year Warranty
cFP-DO-400 ManualUser Manual and Maintenance Manual Available for Download
PriceContact a sales representative for a quote.

Associated part numbers for cFP-DO-400:

National Instruments cFP-DO-400 Frequently Asked Questions



Question: Is it possible to enable the cFP-DO-400 to switch between On and Off states two or three times per second?



Answer: The cFP-DO-400 update rate is 1 ms, so it is possible to allow it to switch between on and off states two or three times per second.



Question:  Is there a way that you can write code to turn on and off the output ports for the cFP-DO-400?



Answer: Yes, you can write code to turn on and off the output ports for the cFP-DO-400. You need to supply a DC voltage to the cFP-DO-400 for the digital outputs. The 5 V TTL signal is used to turn on the internal transistor switch.



Question: Does the cFP-DO-400 have plug and play operation or does it need to be set up and configured?



Answer: The cFP-DO-400 features HotPnP, a plug and play operation and is automatically and identified by the configuration software.
