cDAQ-9137 In Stock | Ships in 5-10 Days
cDAQ-9137, 8-Slot, CompactDAQ Controller
Need an Official Quote?

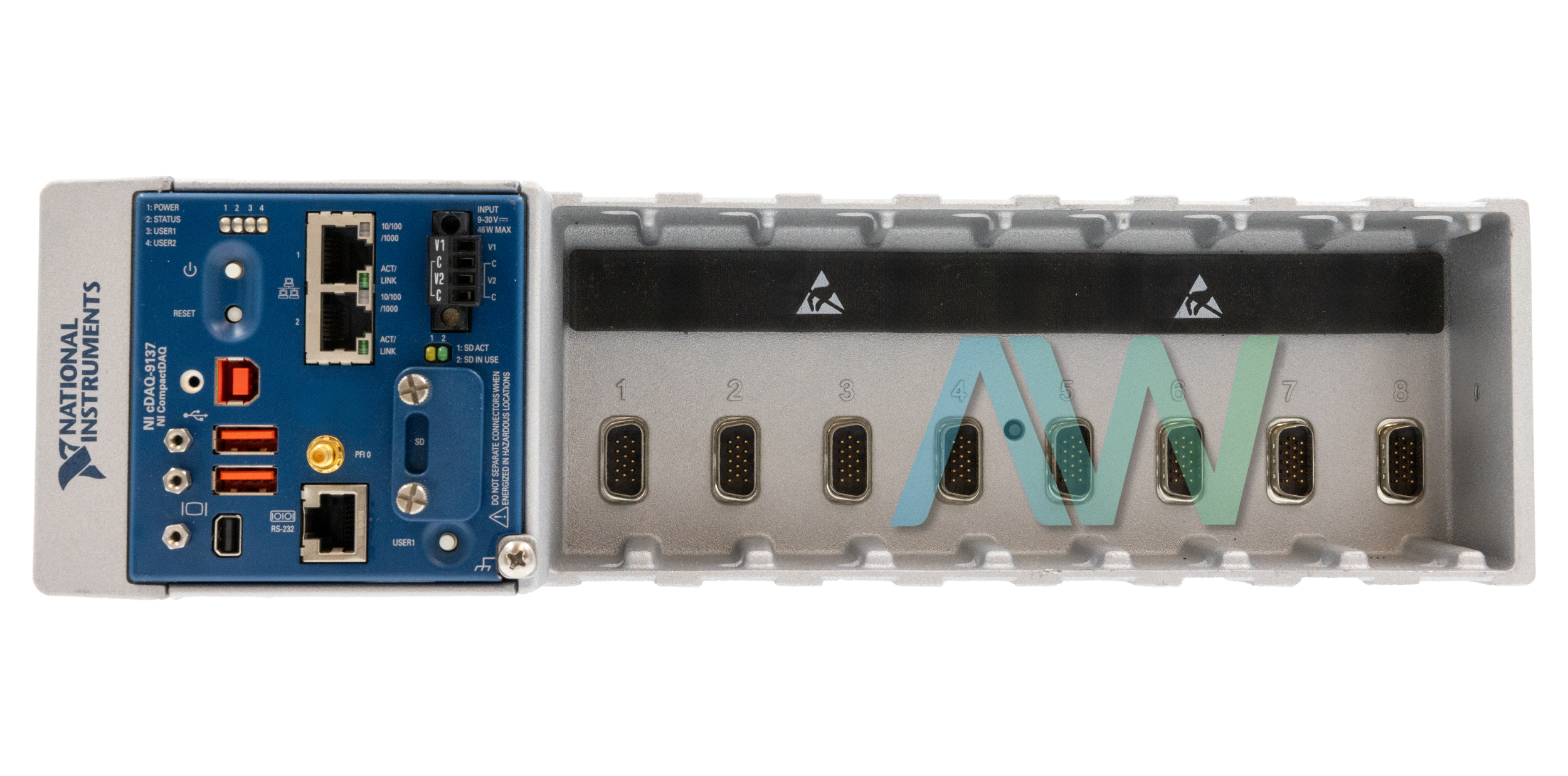

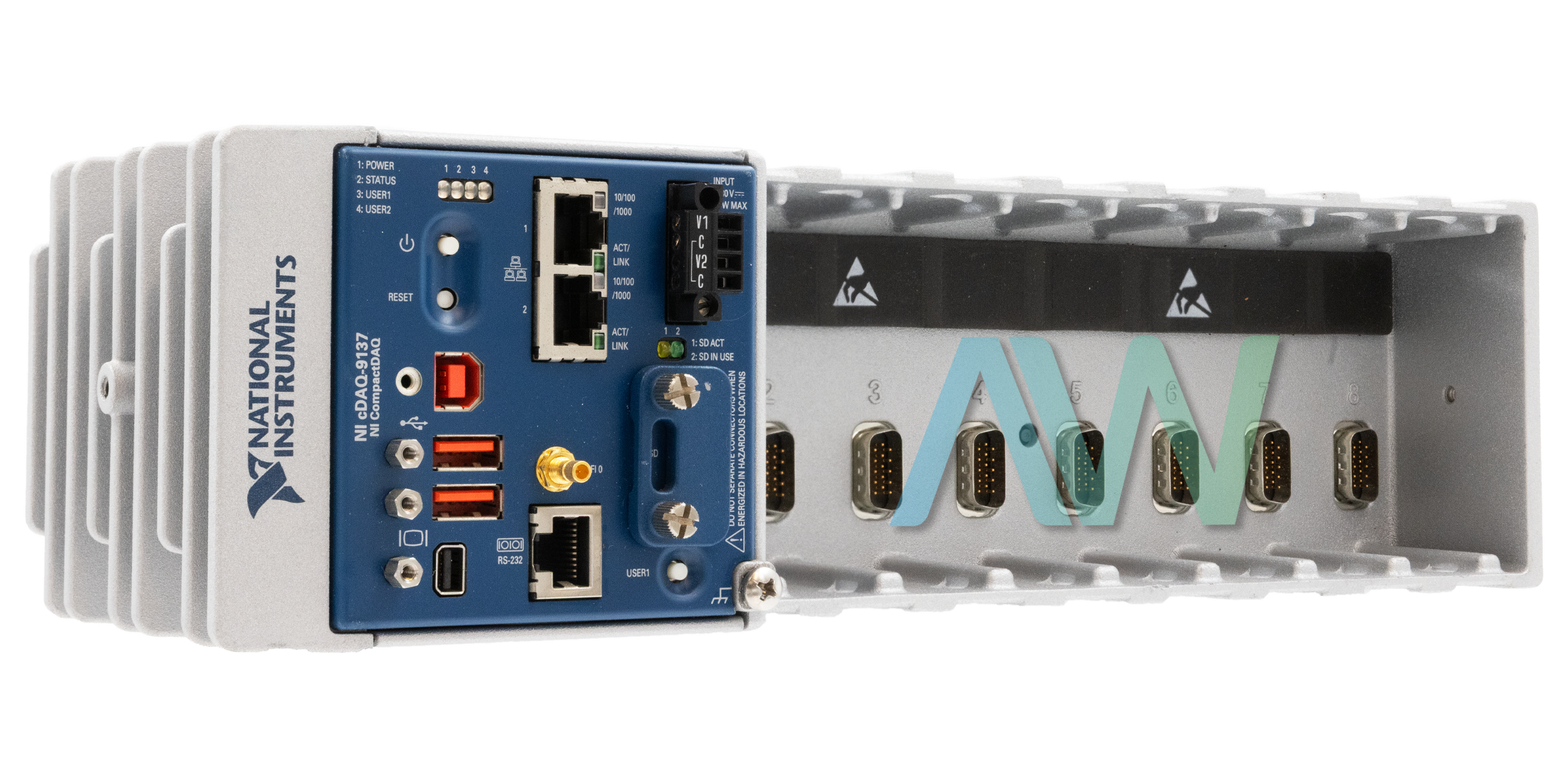

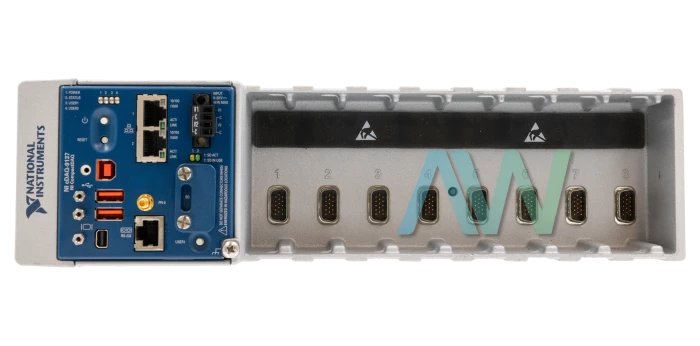

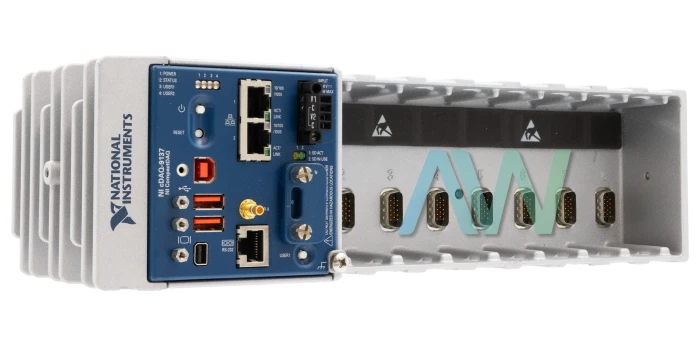

National Instruments cDAQ-9137 CompactDAQ Controller
The cDAQ-9137 (Part numbers: 784240-01 and 784241-01) is a data acquisition Controller by National Instruments. This model is equipped with a 1.91 GHz Quad-Core Atom Processor. This model has 32 GB nonvolatile storage. The NI cDAQ-9137 is structured with four general purpose counters/timers with a resolution of 16-bits. The device is also equipped with two Gigabit Ethernet ports and two USB ports, as well as an RS232 serial port and a mini display port. Moreover, this model has an SMB trigger line, an SD slot, and USB device configuration. The device is capable to run seven hardware timed analog and digital terminals concurrently. It can also operate counter/timer operations instantaneously.
The NI cDAQ-9137 has one channel to generate frequency. The frequency generator has 16 divisors with a base clock precision of 50 ppm. The module has multiple data stream types available, including AI, AO, and NI -XNET. It also includes digital input, digital output, counter/timer input, and counter/timer output. The NI cDAQ-9137 has 3.4 W standby power usage at 24 VDC input. The NI cDAQ 9137 can interface with C Series modules.
The operating humidity is from 10 to 90% RH and the storage humidity is from 5%to 95% RH. The NI cDAQ-9137 has the random operating vibration of about 5 grms and an operating shock value of 30 g. The device justifies the EMC necessities for electrical equipment. These standards are essential for control, measurement, and lab use. This model also has a hazardous locations certification.
| Model | cDAQ-9137 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 784240-01, 784241-01 |
| Type | CompactDAQ Controller |
| Slots | 8 |
| Hard Drive Memory Size | 32 GB |
| Processor Core | 1.91 GHz Quad Core Intel Atom |
| Dimensions | 12.95 x 3.47 x 4.67 in. |
| Weight | 5 lb., 8.2 oz. |
| Warranty | 2-3 Year Warranty |
| cDAQ-9137 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the cDAQ-9137:
157119B-03L, 157119B-04L, 157119C-04L, 159062A-11L, 159062A-12L, 159287A-01L, 159287A-02L, 159287B-01L, 159287B-02L, 159287C-01L, 159287C-02L, 159287D-01L, 159287D-02L, 784240-01, 784241-01
National Instruments cDAQ-9137 Frequently Asked Questions
Question: Why does the NI cDAQ-9137 have two different part numbers? Do they have any important differences?
Answer: The NI cDAQ-9137 is available for two different operating systems. The first version, part number 784240-01, has Windows Embedded Standard 7 OS. The second version, part number 784241-01, has NI Linux Real-Time OS.
Question: I’ve set up the NI cDAQ-9137 for unsupervised, continuous data capture and logging for an extended period of time using LabVIEW and adding the cDAQ as a target. However, the C Series Module prompt is missing when I try to add targets. What do I need to do?
Answer: With the NI cDAQ-9137, you should be able to read I/O without explicitly adding in C Series Modules with your CompactDAQ Controller. No FPGA interface is required, so the controller can read I/O directly from the cDAQ-9137.
Question: How many host ports does the NI cDAQ-9137 Controller have?
Answer: The NI cDAQ-9137 Controller has 2 Host ports with 2 standard A connectors.
Question: Which type of SD cards does the cDAQ-9137 work with?
Answer: The cDAQ-9137 is compatible with SD and SDHC standards.
cDAQ-9137 PDF Manuals
NI CDAQ 9133 9135 9137 FOR LABVIEW REAL TIME QUICK START.PDF
NI CDAQ 9133 9135 9137 FOR WINDOWS QUICK START.PDF
NI CDAQ 9136 9137 LETTER OF VOLATILITY.PDF
NI CDAQ 9137 SAFETY ENVIRONMENTAL AND REGULATORY INFORMATION.PDF
NI CDAQ 9137 SPECIFICATIONS.PDF
CDAQ CHASSIS AND CONTROLLERS CALIBRATION PROCEDURE.PDF
Driver Downloads for cDAQ-9137
OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit
