783376-01
Modular Systems > National Instruments > CompactRIO Controllers
| Description: | 783376-01, NI-9149, Compact RIO Chassis |
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

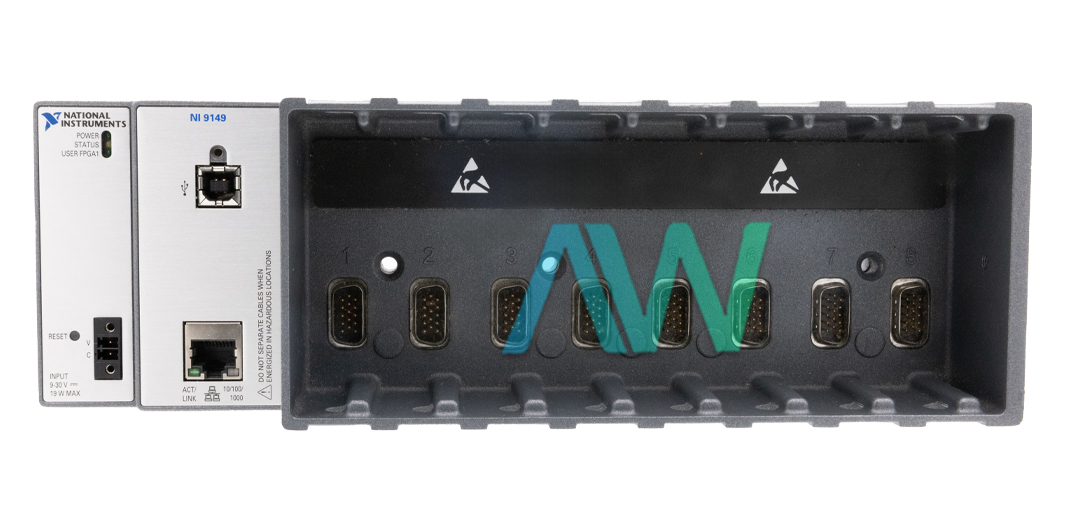

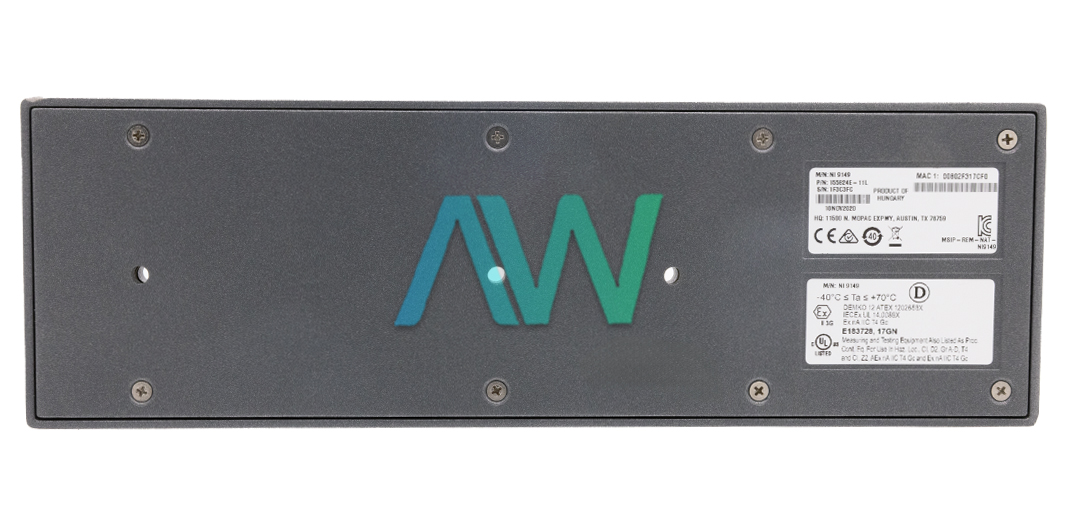

National Instruments 783376-01 Compact RIO chassis
The part number 783376-01 from National Instruments is the identifying part number for the NI-9149 Compact RIO chassis. This chassis runs on the NI Linux Real-Time (32-bit) operating system and is designed for Compact RIO controllers from National Instruments. The chassis supports the LabVIEW 2014 SP1 or later and LabVIEW FPGA Module 2014 SP1 or later software and is compatible with the NI CompactRIO 14.5 or later driver software.
This chassis features 512 MB of Nonvolatile memory and 256 MB of DRAM. The Chassis supports the 10Base-T, 100Base-T, 1000Base-T Ethernet network interface and is compatible with the IEEE 802.3 protocol. It has network communication speeds of 10 Mb/s, 100 Mb/s, and 1,000 Mb/s auto-negotiated. The chassis also features a USB 2.0 Hi-Speed, with a standard B connector that has a maximum data rate of 480 Mb/s.
With a reconfigurable FPGA Xilinx Zynq-7000, XC7Z020 All Programmable SoC, the 783376-01 Compact RIO chassis has 85,000 logic cells, 106,400 flip-flops, 53,200 6-input LUTs, 220 DSP slices, 4480 kbits of block RAM, 16 DMA channels and 32 interrupts. The typical battery life of this chassis with a power cord connected is 10 years, while its storage is 5.7 years with a temperature of 55 degrees Celsius.
The chassis should be operated in an environment with an ambient temperature of -40 degrees Celsius to 70 degrees Celsius, and stored in a temperature between -40 degrees Celsius to 85 degrees Celsius. The operating humidity rating of this chassis is 10% RH to 90% RH, noncondensing while the storage is 5% RH to 95% RH, noncondensing. The module has Ingress protection of IP40 and pollution degree level 2. The chassis has an operating voltage range of 9 V DC to 30 V DC with reverse voltage protection of 30 V DC maximum.
The maximum power input, with four C Series modules, is 19 watts approximately while the Maximum power input, without C Series modules, is 11 watts. This chassis has dimensions of 272.8 mm × 88.1 mm × 62.3 mm (10.74 in. × 3.47 in. × 2.45 in.) and weighs 1,048 g (36.97 oz).
| Part Number | 783376-01 |
| Model Name | NI-9149 |
| Part Type | Compact RIO chassis |
| Supported Operating System | NI Linux Real-Time (32-bit) |
| Application Software | LabVIEW 2014 SP1 or later LabVIEW FPGA Module 2014 SP1 or later |
| Driver Software | NI CompactRIO 14.5 or later |
| Nonvolatile Memory | 512 MB |
| Volatile Memory (DRAM) | 256 MB |
| Network Interface | 10Base-T, 100Base-T, 1000Base-T Ethernet |
| Dimensions (unloaded) | 272.8 mm × 88.1 mm × 62.3 mm (10.74 in. × 3.47 in. × 2.45 in.) |
