cRIO-9035 In Stock | Ships Today
cRIO-9035, 8-Slot, Kintex-7 70T FPGA, Embedded CompactRIO Controller
Need an Official Quote?

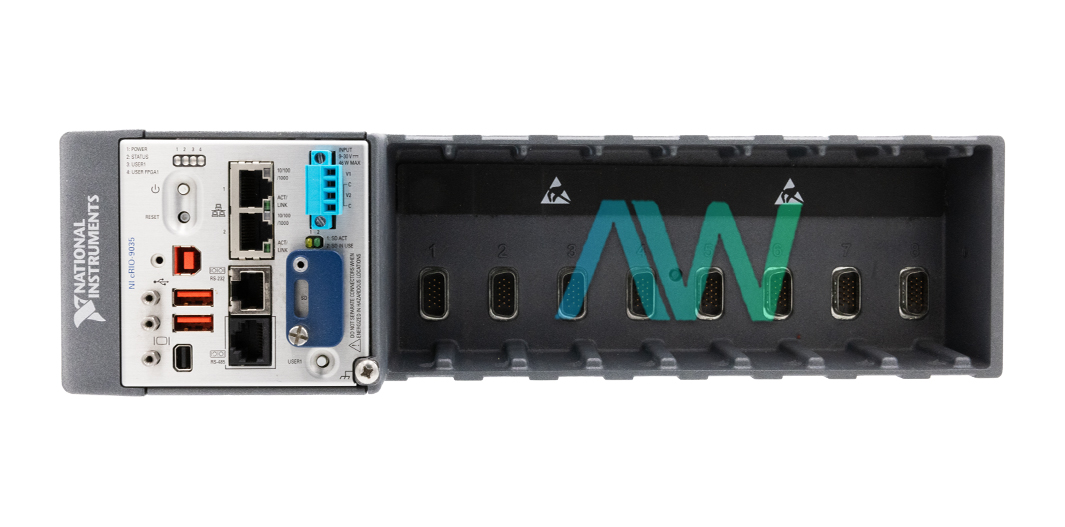

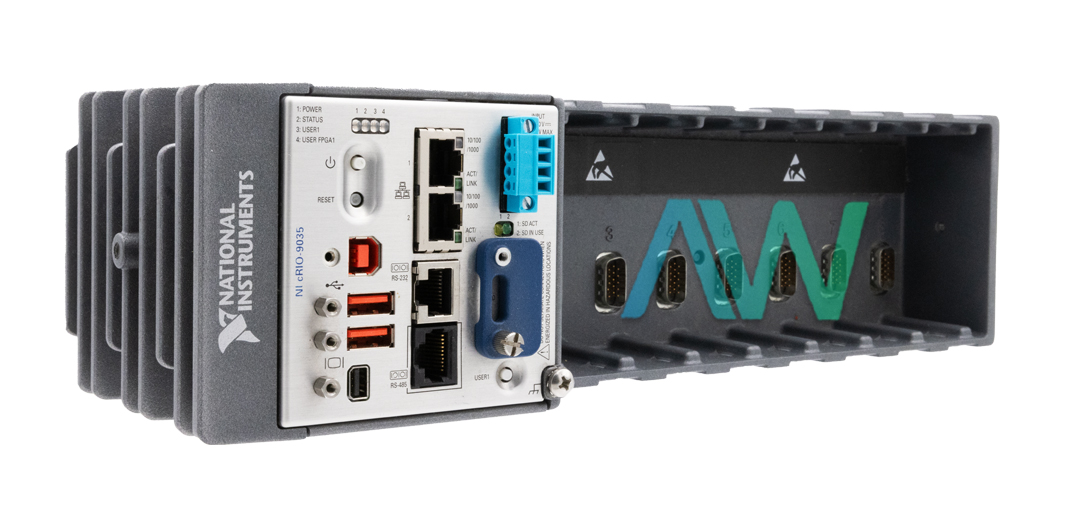

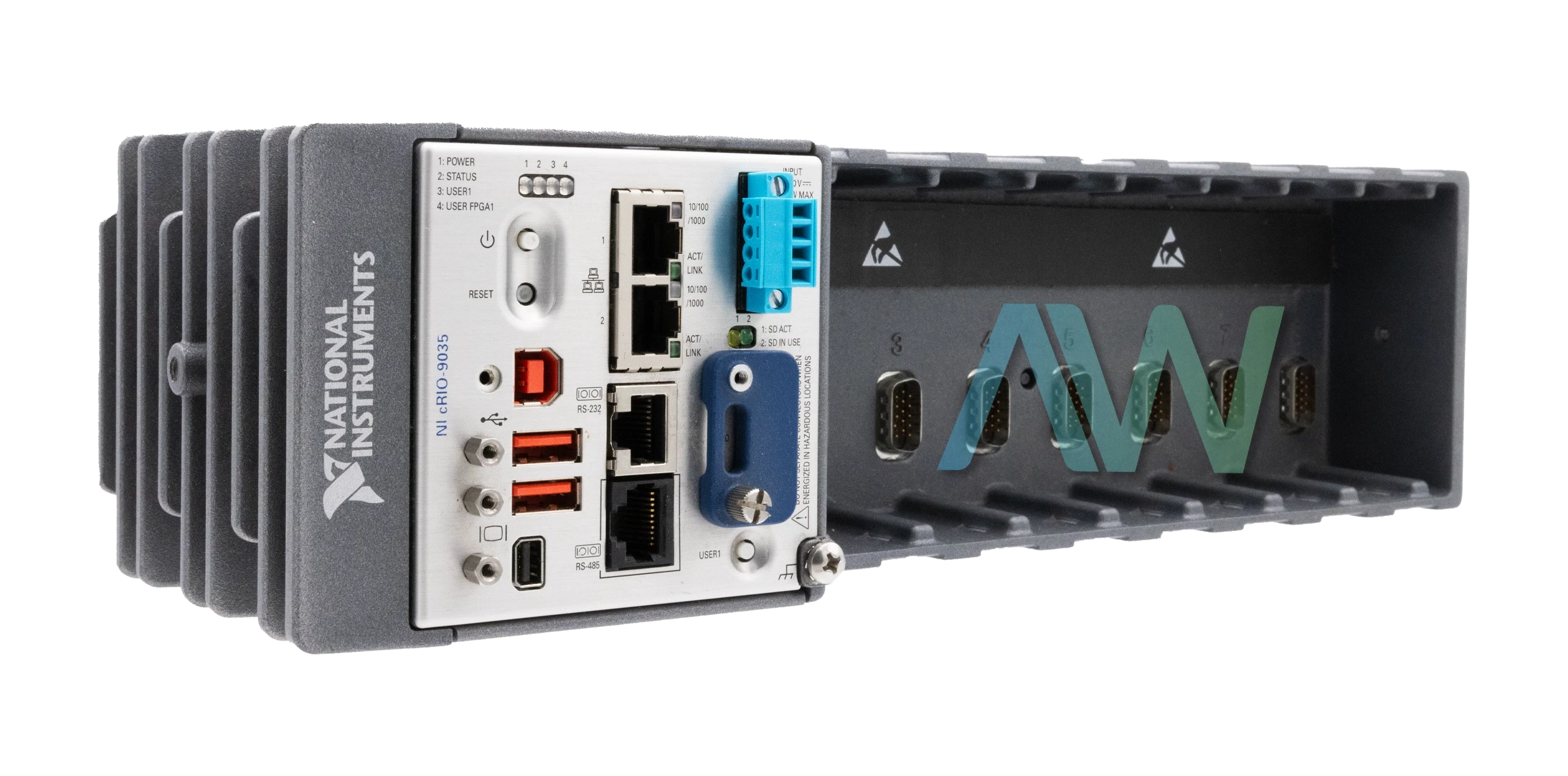

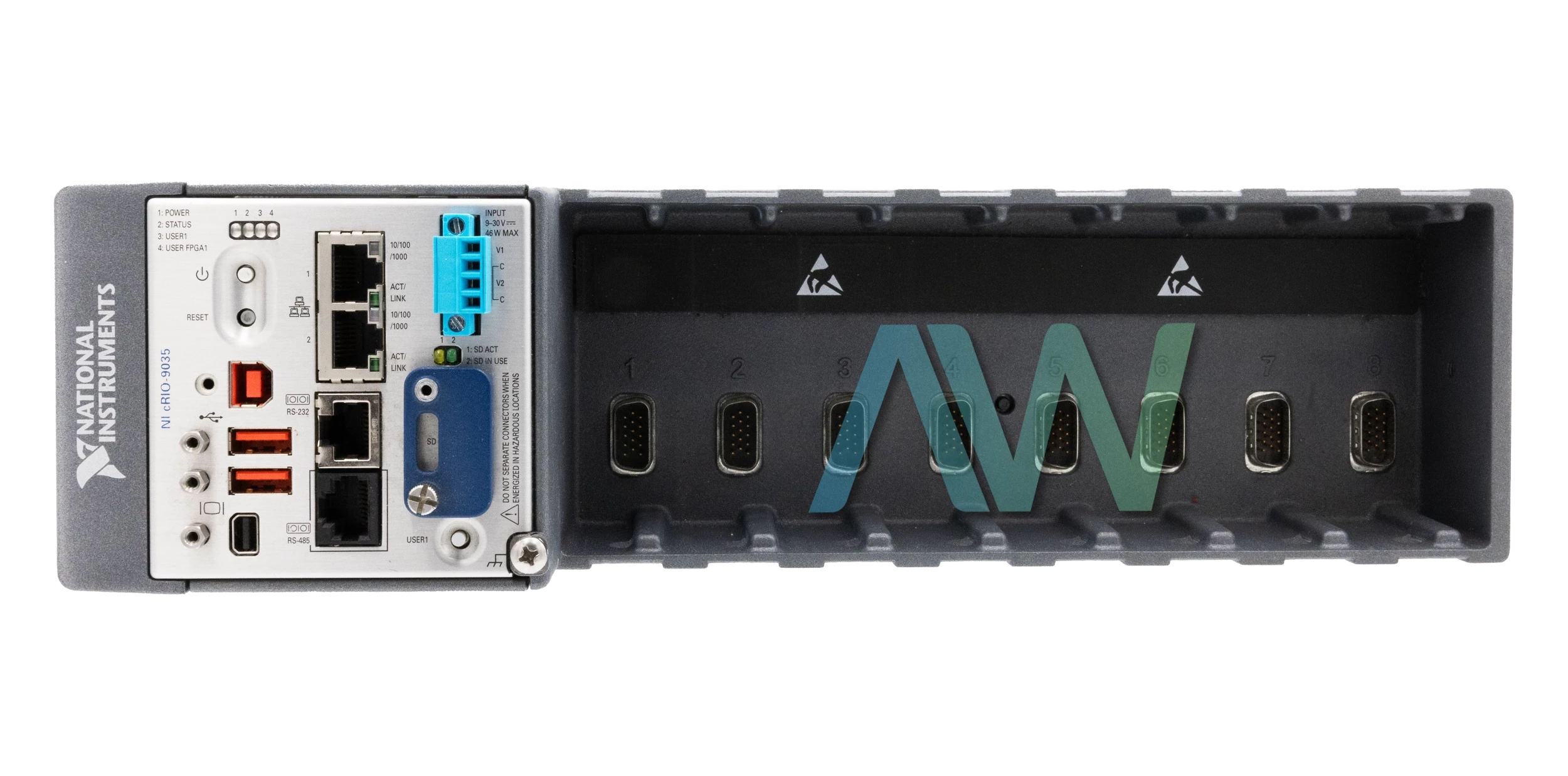

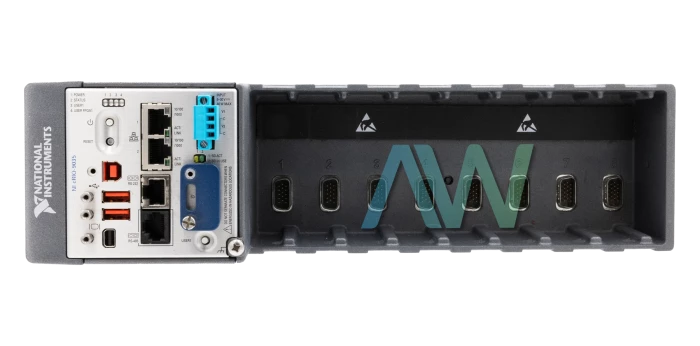

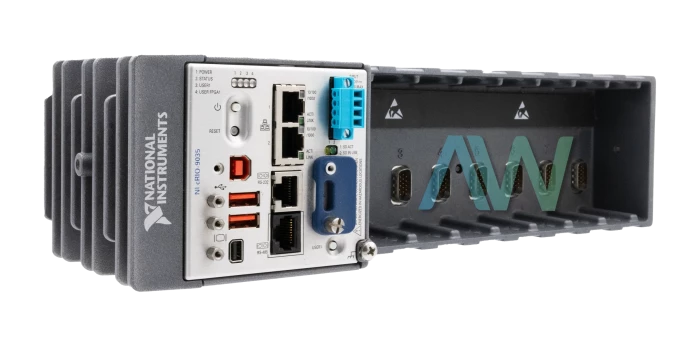

National Instruments cRIO-9035 CompactRIO Controller
The cRIO-9035 (Part numbers: 784774-01 and 783848-01) is an embedded CompactRIO Controller developed by National Instruments. It is available in two versions: cRIO-9035 Sync and cRIO-9035. The Sync version features IEEE 1588 and GPS synchronization capabilities, while the standard cRIO-9035 does not. This rugged, highly customizable controller supports motion vision, HMI, modular I/O, and advanced control applications.
The cRIO-9035 is powered by an Intel Atom E3825 dual-core processor (1.33 GHz, 1 MB L2 cache) and supports the NI Linux Real-Time (64-bit) operating system. It is compatible with LabVIEW 2014 SP1 or later, the LabVIEW Real-Time Module, the LabVIEW FPGA Module, and C/C++ Development Tools for NI Linux Real-Time. The required driver version is NI CompactRIO and Drivers February 2015 or later.
The cRIO-9035 features a Xilinx Kintex-7 70T FPGA with 82,000 flip-flops, 41,000 six-input LUTs, 240 DSP slices (18 × 25 multipliers), and 4,860 kbits of embedded block RAM. It includes 1 GB DDR3L RAM and 4 GB solid-state storage, with support for SD/SDHC removable storage up to 32 GB.
This model includes 2 Gigabit Ethernet ports (10/100/1000 Mb/s, IEEE 802.3 compliant), 1 RS-232 serial port, 1 RS-485/RS-422 serial port (60V DC isolation), and 3 USB 2.0 ports (1 device, 2 host, 480 Mb/s per port). The power input range is 9V to 30V DC, with a maximum power consumption of 46 W.
| Model | cRIO-9035 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 783848-01, 784774-01 |
| Type | CompactRIO Controller |
| CPU | Intel Atom E3825 dual-core, 1.33 GHz, 1 MB L2 cache |
| CPU Frequency | 1.33 GHz |
| Network/Ethernet Ports | 2 |
| Dimensions | 12.94 × 3.47 × 4.30 in. (328.8 × 88.1 × 109.2 mm) |
| Weight | 4 lbs., 15 oz. (2,250 g) |
| Number of DMA Channels | 16 |
| Operating System | NI Linux Real-Time (64-bit) |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the cRIO-9035:
141099A-11L, 141099B-11L, 141099C-11L, 141099D-11L, 154782A-01L, 154782B-01L, 154782C-01L, 157732A-11L, 157732B-11L, 157732C-11L, 157732D-11L, 157732F-11L, 159264A-11L, 159264B-11L, 159264C-11L, 200230A-01, 200238A-01, 783848-01, 784774-01
National Instruments cRIO-9035 Frequently Asked Questions
Question: Is the NI cRIO-9035 able to be used in LabVIEW 2014?
Answer: The NI cRIO-9035 requires LabVIEW 2014 SP1 and above. Update your LabVIEW to this version.
Question: Does the cRIO-9035 support GigE Vision?
Answer: The cRIO-9035 includes two Gigabit Ethernet ports, which may support GigE Vision if used with compatible NI software and drivers. Check NI Vision Acquisition Software documentation for compatibility.
Question: Can I synchronize acquisition between my cRIO-9035 and other Time Sensitive Networking devices?
Answer: The standard cRIO-9035 does not support Time-Sensitive Networking (TSN). However, the cRIO-9035 Sync model supports synchronization using IEEE 1588 and GPS timing.
