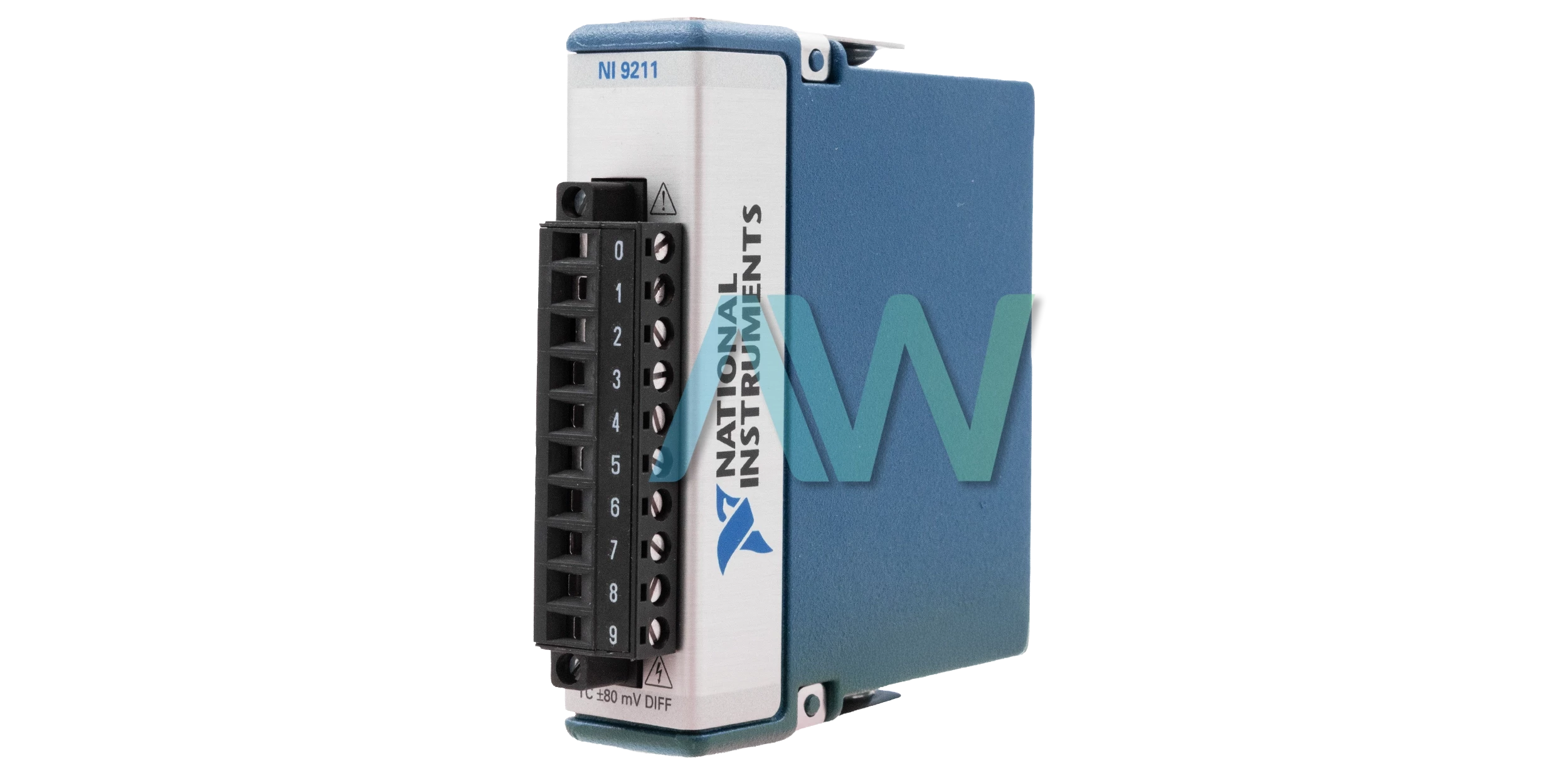

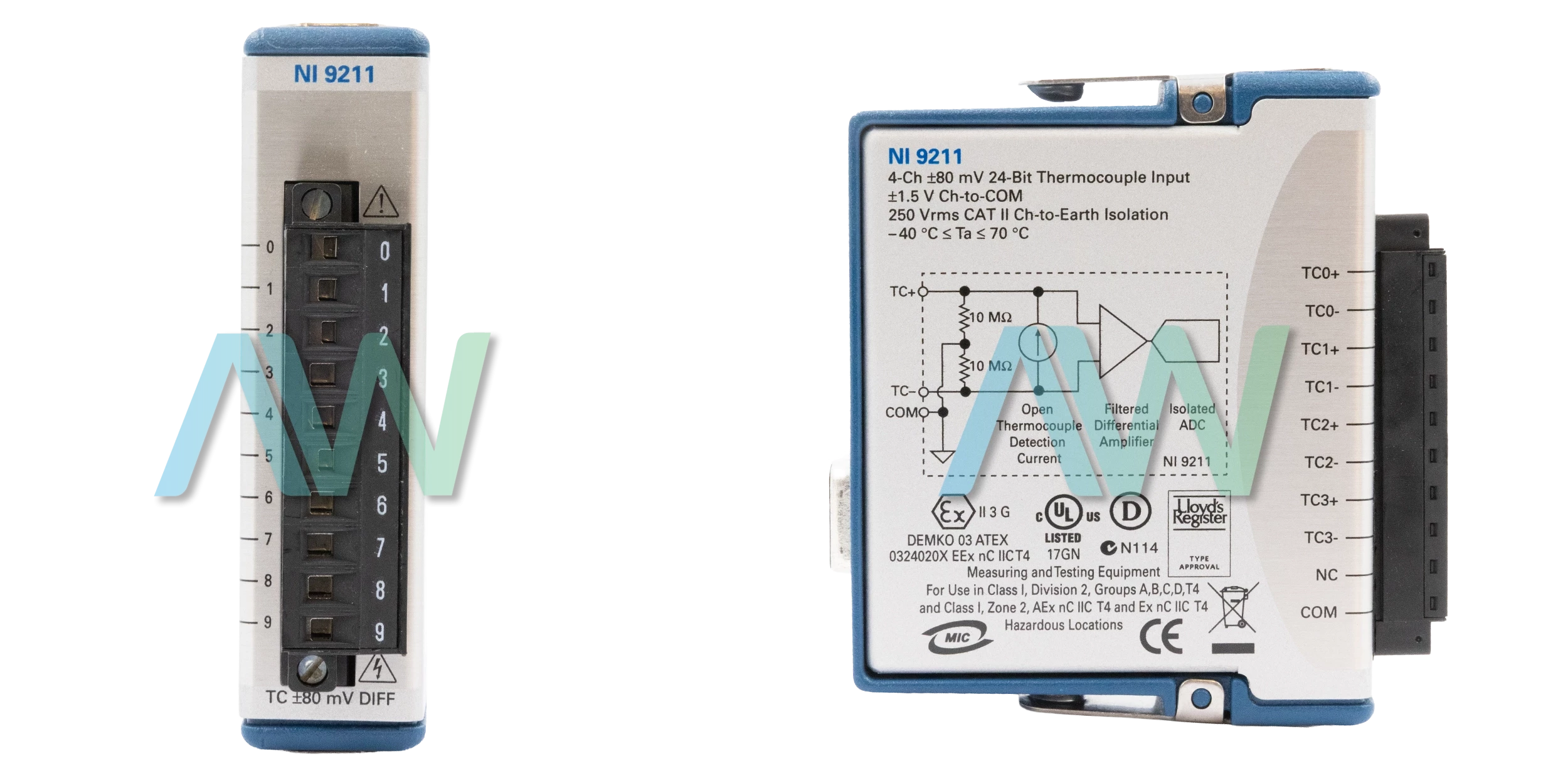

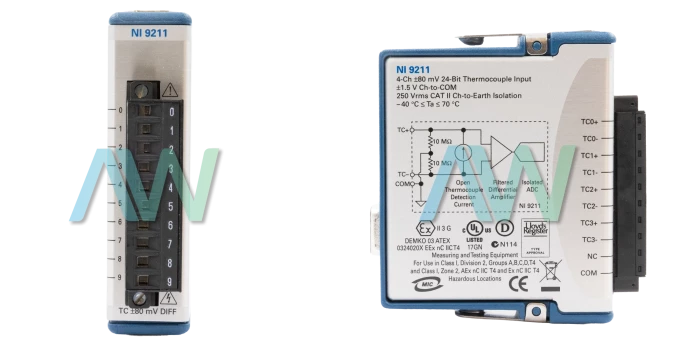

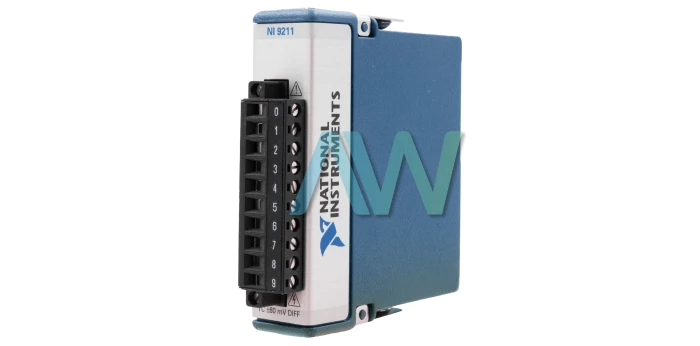

National Instruments NI-9211 Temperature Input Module

The National Instruments NI-9211 (Part Number: 779001-01) is a high-precision, multipurpose data acquisition module intended for industrial automation applications. It has a number of important characteristics that are designed to guarantee precise and trustworthy measurements in a variety of settings. Anti-aliasing filters are built into the NI-9211 to guarantee the accuracy of sampled data. In situations where accurate analog signal capture is crucial, this function is indispensable.

Additionally, it has open-thermocouple detection features that improve system reliability by enabling early thermocouple defect detection. Furthermore, by correcting for temperature changes at the cold junction, cold-junction compensation guarantees precise temperature readings. The NI-9211 meets a variety of temperature measuring requirements by providing high-resolution measurements across its four thermocouple channels with a 24-bit Delta-Sigma ADC. Because it works with J, K, T, E, N, B, R, and S thermocouple types as defined by NIST, it can be used in a variety of industrial environments.

The NI-9211 places a high priority on safety features, as evidenced by its double isolation barrier between the earth and ground, channel-to-earth, and overvoltage protection up to ±30 V. By shielding workers and equipment from any risks, these precautions guarantee a secure working environment. The voltage measuring range of ±80 mV, common-mode voltage ranges, and remarkable common-mode rejection ratios are among the module's input features. These requirements allow precise measurements even when common-mode voltages and noise are present.

In addition, the NI-9211 ensures minimal interference and precise data capture with its superior noise rejection, differential input impedance, and low input current. Because of its high MTBF (Mean Time Between Failures) of more than 633,000 hours, it is very reliable for applications that are important to missions. With an operating temperature range of -40°C to 70°C and tolerance to shock, vibration, and humidity, the NI-9211 performs dependably under challenging circumstances. Energy efficiency is ensured by its low power consumption in both sleep and active modes, which makes it appropriate for applications requiring continual monitoring.
