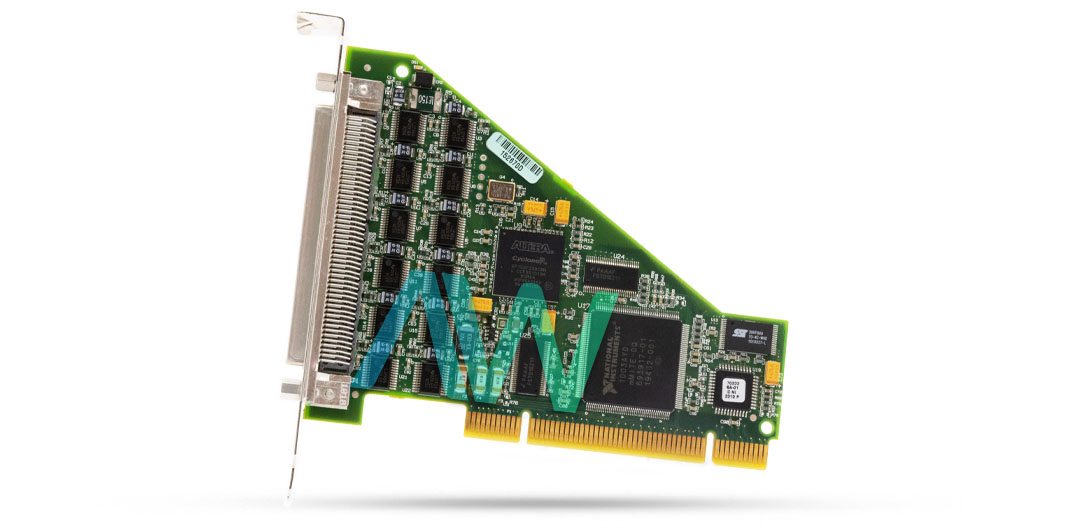

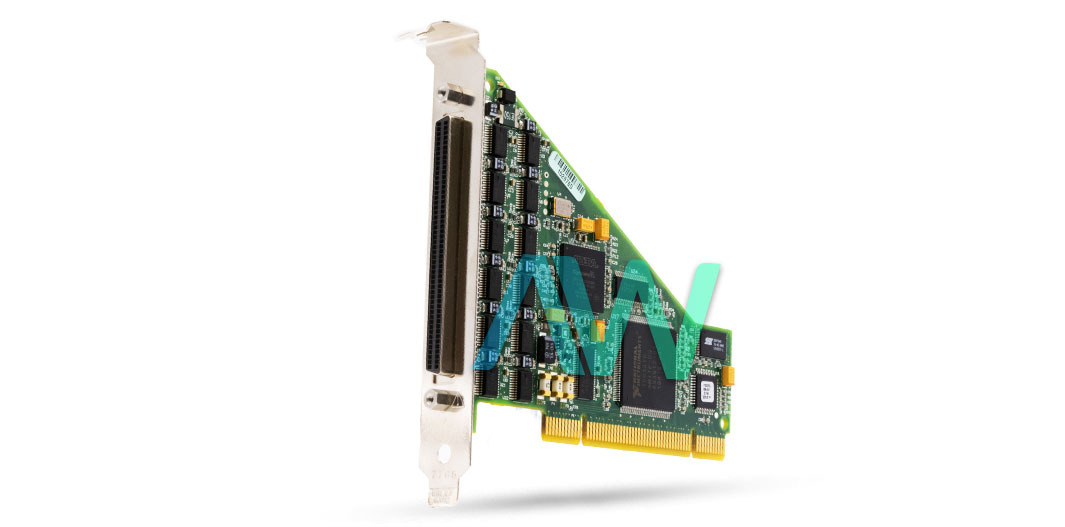

National Instruments 778792-01 Digital I/O Device

The National Instruments 778792-01 Digital I/O Device is a part of the PCI-6509 model line. It can directly drive external digital devices like solid-state relays (SSRs) thanks to its 96 channels of 5V TTL/CMOS digital I/O. Because each port can be set up for input or output, outputs do not require an extra power source. When linked to industrial actuators like pumps, valves, motors, and relays, this device's customizable power-up states guarantee error-free, secure operations.

To ensure safe recovery from fault circumstances and detection in the case of a computer or application malfunction, the 778792-01 utilizes digital I/O watchdogs to switch to a user-defined safe output state.desired condition when power is applied.

Multiple high-reliability features on the 778792-01 are intended to automate demanding applications. Software configuration of the first output states is ensured by programmable power-up states, hence avoiding wrong states at power-up. For linked actuators to operate safely, this functionality is essential. Strong protection against a range of fault circumstances, such as PCI bus failures, driver crashes, application failures, and computer crashes, is offered by the digital I/O watchdogs.

When a fault is identified, these watchdogs make sure the digital outputs return to a safe state, enabling safe recovery. Until the device is disarmed by the program, reset, or restarted, it stays in the watchdog status. The 778792-01's change detection feature enables it to automatically start a software program that executes a digital read operation when one or more digital lines experience a digital change of state, such as a rising or falling edge. By removing the requirement for polling and for the device to emit an interrupt in order to wake up the program, this feature reduces processor consumption.

The software application receives notification of the event via the NI-DAQmx software technology, which initiates an automatic read operation. To ensure dependable operation in noisy environments, programmable input filters can be used in conjunction with change detection to prevent false events brought on by noise or glitches.

A further significant feature of the 778792-01 is its programmable input filters, which are intended to debouncing digital switches and relays and eliminate noise, glitches, and spikes on inputs. To avoid inaccurate readings brought on by noise, this is particularly important in loud industrial settings. Every digital line can have its input filter configured by the user.
