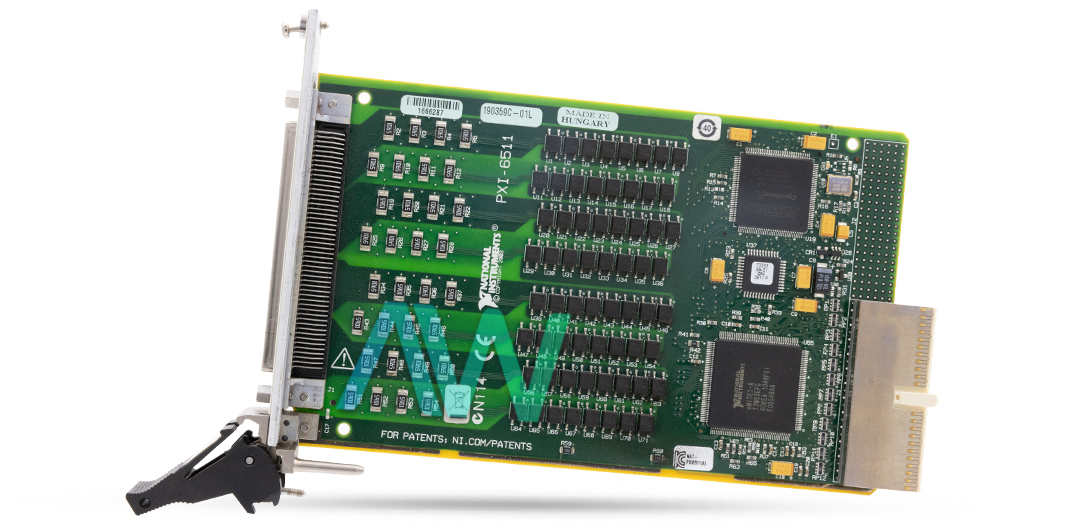

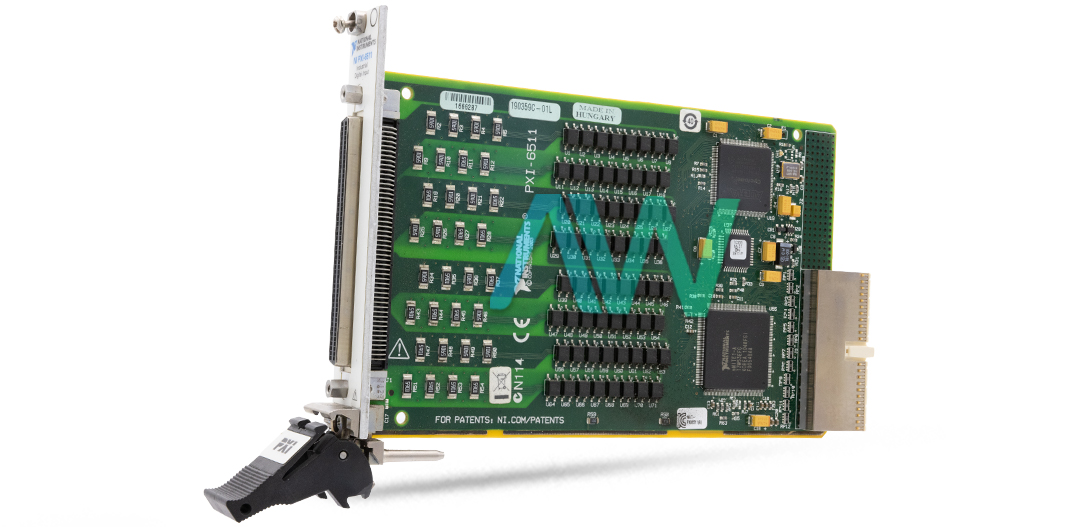

National Instruments 778967-01 PXI Digital I/O Moduie
Part Number 778967-01 is the identifying part number for the National Instruments PXI-6511 Industrial Digital I/O Module. This device from the NI 651x family of low-cost, industrial digital I/O modules is ideal for general-purpose data acquisition, industrial control, and automated manufacturing tests. Therefore, it is widely used in the field of factory automation, embedded machine control, and production line verification
The 778967-01 has a rich set of highly reliable industrial features. First, it has 64-bank, optically isolated input lines that can be configured in a source or sink configuration. Such isolation allows an extended voltage range of ± 30 VDC and also supports direct connection to a variety of industrial electronic devices, sensors, and actuators.
Likewise, it also supports programmable power-up states, which means you can configure the initial states of the digital I/O thus ensuring safe, glitch-free operations. Furthermore, the digital I/O watchdogs inside the 778967-01 protect against computer crashes, application crashes, driver crashes, and PCI bus failures. In addition, the change detection feature allows you to monitor digital events with minimal processor use. Lastly, the programmable input filters eliminate noise, glitches, and spikes on inputs and provide debouncing for switches and relays.
The 779867-01 requires a NI-DAQmx 7.2 driver, which is included free with the purchase of the module. You can program the module in LabVIEW, ANSI C, Microsoft Visual C++, C#, and Visual Basic. NET. Likewise, the NI-DAQmx technology speeds up development with automatic code generation and enables multithreading capabilities that can improve performance by a thousand times.
The 100-pin high-density SCSI connector on the 778967-01 connects the module to 100-pin ribbon or shielded cables. It is recommended to use the SH100-100-F (185095-02) cable for shielded connectivity and the R1005050 ribbon cable with SCB-100 (776990-01) connector block for unshielded connectivity.
The 778967-01 measures 8.3 x 5.12 in. in physical dimensions, and weighs 4.8 oz. The device is meant to be operated at 0° to 55°C, (with a relative humidity of 10% to 90%) and stored at -20° to 70°C (with a relative humidity of 5% to 95%).
| Part Number | 778967-01 |
|---|---|
| Model Name | PXI-6511 |
| Part Type | PXI Digital I/O Module |
| Number of digital input channels | 64 (source/sink) |
| Digital Input Voltage Range | -30V to 30V |
| Input logic voltage | Input Low Logic Voltage (VIL): 0 V (min), ± 4V (max) Input High Logic Voltage (VIH): ± 11V (min), ± 30V (max) |
| Input current | 4.5 mA/line (max.) at 11 V inputs 12.5 mA/line (max.) at 30V inputs |
| Power consumption | 250 mA at +5 VDC (±5%) 300 mA at +3.3 VDC (±5%) |
| Data Transfers | Interrupts, programmed I/O |
| Operating Temperature | 0° to 55°C |
| Manufacturer | National Instruments |
