PCI-6509 In Stock | Ships Today
PCI-6509, 96 I/O Channel, 5 V, 24 mA, Digital I/O Device
Need an Official Quote?

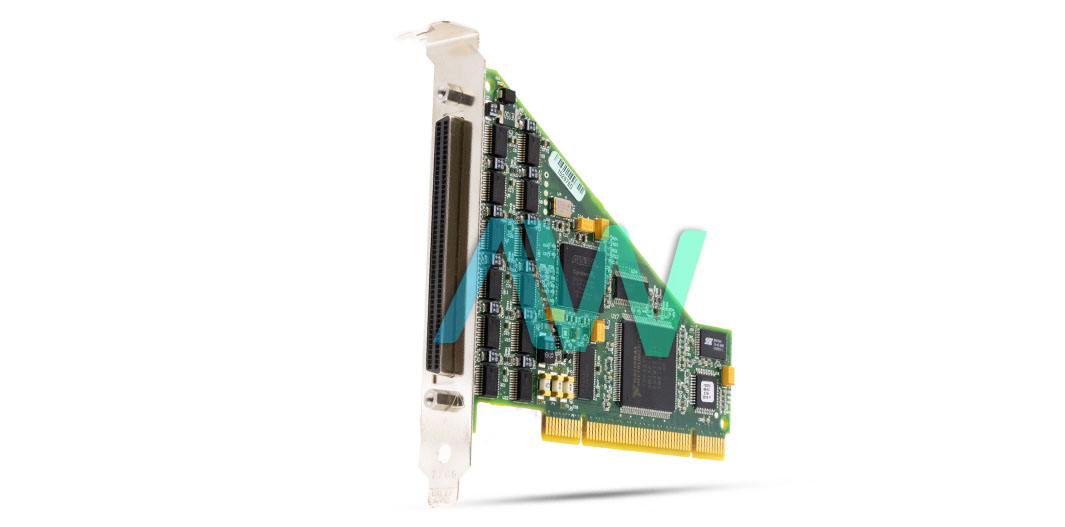

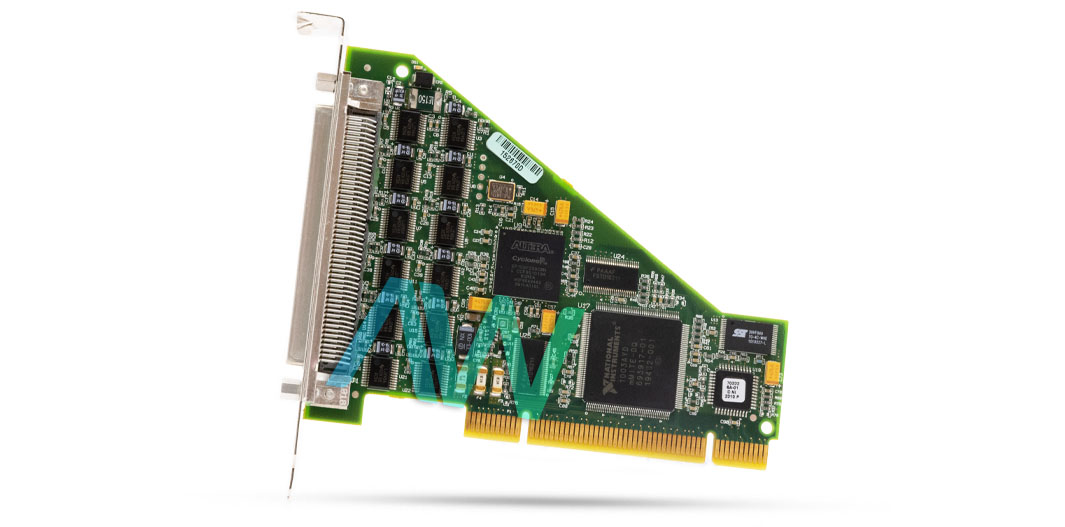

National Instruments PCI-6509 Digital I/O Device
The National Instruments PCI-6509 (Part Number: 778792-01, 778936-01, 189700E-01L, 189700C-01) Digital I/O Device can straightforwardly drive external digital gadgets, such as Solid-State Relays (SSR). Part number 778936-01 is for the bundle kit version PCI-6509. The user can arrange each port for input or output and no outside power supply is required for the outputs. By utilizing programmable power states, the user can arrange the initial output states in the software to guarantee safe, rebound-free operations when associated with industrial actuators. If a PC or application failure happens, the NI PCI-6509 can utilize advanced I/O watchdogs (guardians) to go to a configurable and secure output state to guarantee safe detection and recuperation from fault conditions. Programmable input filters eliminate rebounds/spikes and provide stability for digital relays/switches through a digital filter selectable by software. The NI device is equipped with a 100-pin female 0.050 series SCSI I/O connector.
Additionally, the user can program the DIO lines on the PCI-6509 to power up at a predefined state: input, high output, or low output. Programmable power-up states guarantee that the NI PCI-6509 powers up in a known state. The user can also program the PCI-6509 to send an interruption when a change happens on any input line. The NI PCI-6509 device can monitor changes on selected input lines or on all input lines. It can monitor for rising edges (0 to 1), falling edges (1 to 0), or both.
When an input change happens, the PCI-6509 DIO creates an interruption and alerts the software. After a modification, the NI PCI-6509 does not recount which line was altered or whether the line was rising or falling. After an alteration, the user can view the input lines to decide the present line states. The rate of change detection is decided by the software reaction time, which changes from framework to framework. The PCI-6509 is run using the NIDAQmx driver software which can be programmed using application development environments (ADEs) such as LabVIEW or LabWindows/CVI.
PCI-6509 Mature Status has been announced by National Instruments, but will still be available for purchase and repairs by Apex Waves.
| Model | PCI-6509 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 778792-01, 778936-01, 189700E-01L, 189700C-01, |
| Series | DIO Series |
| Type | Digital I/O Device |
| Channels | 96 I/O |
| I/O Connector | 100-pin female 0.050 series SCSI |
| Dimensions | 4.9 in. × 3.8 in. |
| Weight | 2.5 oz. |
| Warranty | Three Year Warranty |
| PCI-6509 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the PCI-6509:
189700B-01, 189700C-01, 189700D-01L, 189700E-01L, 189702B-01, 778792-01, 778936-01
Associated NSNs for the PCI-6509:
5998-01-555-0718 (5998015550718)
National Instruments PCI-6509 Frequently Asked Questions
Question: Does the PCI 6509 connect to logic devices?
Answer: Yes, the PCI 6509 has direct connection to 5 V logic devices as well as most solid-state relays.
Question: Is an external power supply required for outputs on the NI PCI-6509?
Answer: No, an external power supply is not required for outputs on the NI PCI-6509.
Question: How many digital I/O lines does the PCI 6509 NI have?
Answer: The PCI 6509 NI has 96 bidirectional digital I/O lines with high current-drive capabilities.
PCI-6509 PDF Manuals
DAQ GETTING STARTED GUIDE FOR PCI PCI EXPRESS.PDF
DAQ GETTING STARTED READ ME FIRST NI DAQMX AND DAQ DEVICE INSTALLATION GUIDE.PDF
NI 65XX PINOUT LABEL FOR THE SCB 100A NOTE TO USERS.PDF
NI 65XX PINOUT LABELS FOR THE SCB 100 NOTE TO USERS.PDF
PCI-6509 LETTER OF VOLATILITY.PDF
PCI PXI PCIE 6509 USER GUIDE AND SPECIFICATIONS.PDF
STATIC DIO REGISTER LEVEL PROGRAMMER MANUAL FOR 6509 651X 6520 6521 AND 6528 DEVICES.PDF
