PXI-6511 In Stock | Ships Today
PXI-6511, 64-Channel, Sink/Source Inputs, PXI Digital I/O Module
Need an Official Quote?

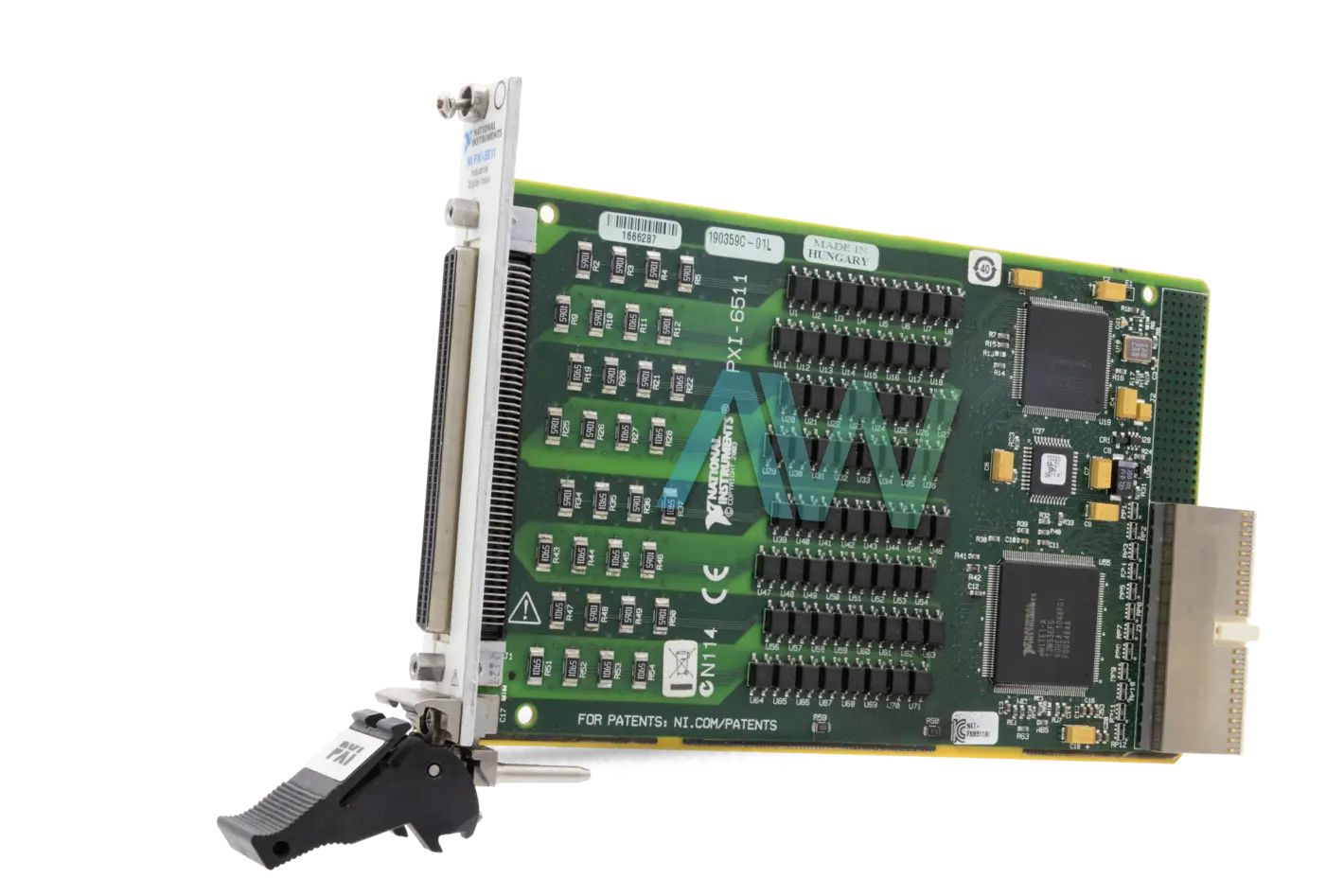

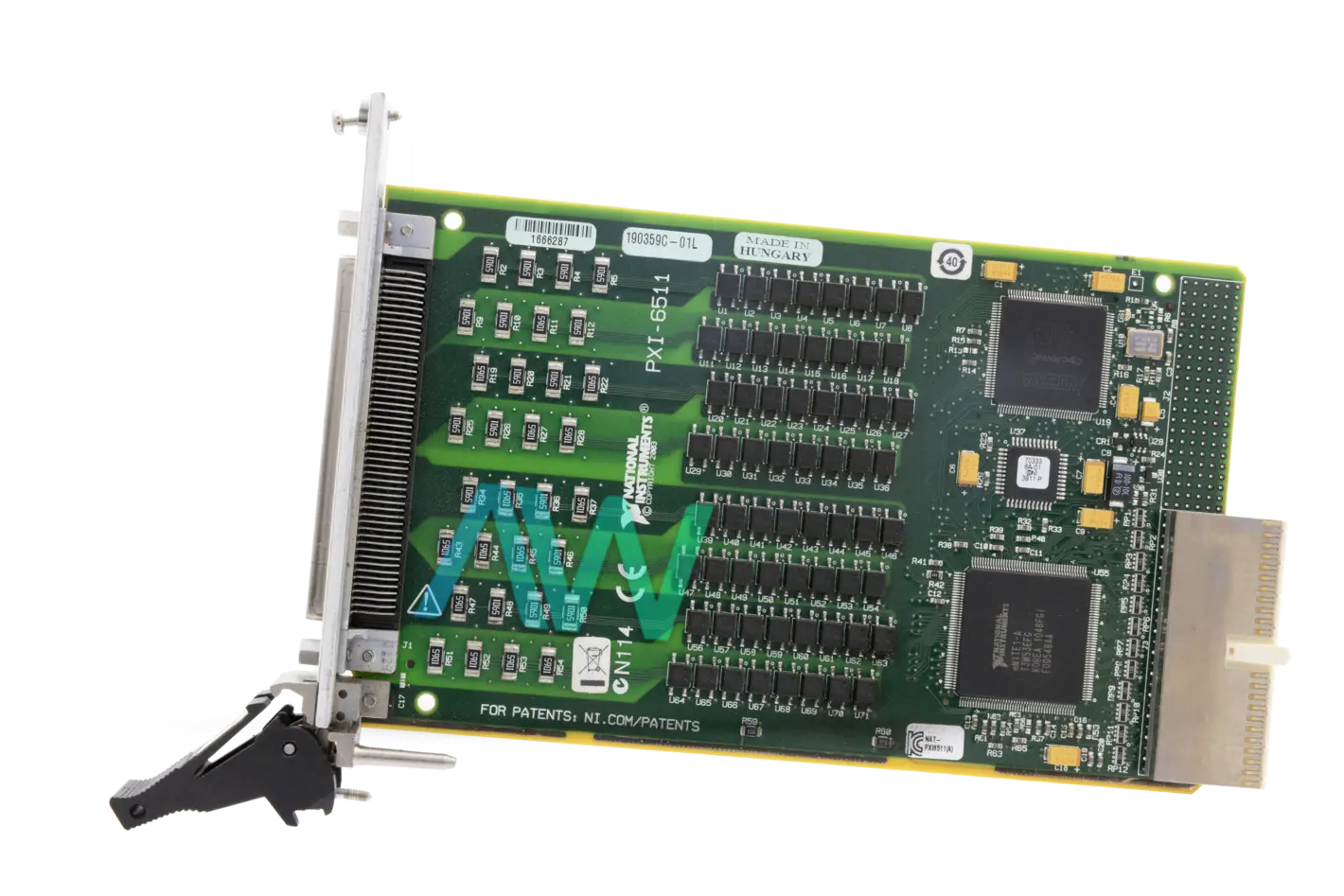

National Instruments PXI-6511 Digital I/O Module
The National Instruments PXI-6511 (Part Number: 778967-01) is a 64-Channel, Bank-Isolated, Sink/Source Inputs, ±30 VDC PXI based Digital I/O Module. It has a digital input voltage range of -30 V to 30 V, and digital I/O logic levels of 24 V. This model is designed to be utilized as an industrial grade digital I/O interface with eight banks of completely isolated channels. If a software application or hardware (computer) related fault occurs, the PXI-6511 can use the integrated, digital I/O watchdogs to trigger switchover to a user-configured safe output state to ensure detection and recovery from fault conditions safely. In addition, the programmable input filters eliminate spikes and provide sufficient denouncing for digital relays/switches by means of a software-selectable digital filter.
This module comes equipped with a high-density 100-pin keyed female SCSI connector that provides access to the digital inputs. The input lines on the National Instruments PXI-6511 consist of input photocouplers. These photocouplers react to both the voltage differential and voltage increase. With this module, the user can configure power-up states as required, ensuring device power-up in a predefined, known state. The user can have the power-up states defined simply by using the Measurement & Automation Explorer (MAX) tool. To eliminate glitches/spikes on the input lines, this model offers a digital filtering option. Filtering can also minimize the number of changes when it is used with the change detection feature.
The PXI-6511 is run using the NIDAQmx driver software which can be programmed with software packages or application development environments (ADEs) such as LabVIEW or LabWindows/CVI.
The NI PXI-6511 also allows the user to configure the digital I/O channels to pass across a digital filter stationed after the photocouplers. In addition, the user can define and control the timing interval the digital filter uses.
The NI device weighs 4.8 oz, and measures 8.38 x 5.12 in. in physical dimensions. It has recommended operating and storage temperature ranges of 0 to 55 °C and –20 to 70 °C respectively, operating and storage humidity ranges of 10 to 90% and 5 to 95%, operating and non-operating random vibrations of 0.3 grms and 2.4 grms respectively–all at a frequency range of 5 to 500 Hz.
| Model | PXI-6511 (778967-01) |
|---|---|
| Manufacturer | National Instruments |
| Type | PXI Digital I/O Module |
| Digital Input Channels | 64 |
| Digital Input Voltage Range | -30 V to 30 V |
| Digital I/O Logic Levels | 24V |
| Dimensions | 8.38 x 5.12 in. |
| Weight | 4.8 oz. |
| Warranty | Three Year Warranty |
| PXI-6511 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the PXI-6511:
190359A-01, 190359B-01L, 190359C-01L, 190359D-01L, 778967-01
Associated NSNs for the PXI-6511:
5998016593128, 5998-01-659-3128 (5998016593128)
National Instruments PXI-6511 Frequently Asked Questions
Question: What type of signaling does the PXI-6511 have?
Answer: The PXI-6511 has single-ended signaling.
Question: What is the common-mode isolation on the NI PXI-6511?
Answer: The common-mode isolation on the NI PXI-6511 is 30 VDC (bank-to-bank and bank-to-bus).
Question: How many isolated outputs does the PXI-6511 have?
Answer: The PXI-6511 does not have any isolated outputs.
Question: What is the programmable power-up state’s response time on the NI PXI-6511?
Answer: On the NI PXI-6511, the programmable power-up state’s response time is 400 ms.
PXI-6511 PDF Manuals
DAQ GETTING STARTED GUIDE FOR PXI PXI EXPRESS.PDF
DAQ GETTING STARTED READ ME FIRST NI DAQMX AND DAQ DEVICE INSTALLATION GUIDE.PDF
NI 651X 20 21 LETTER OF VOLATILITY.PDF
NI 65XX PINOUT LABEL FOR THE SCB 100A NOTE TO USERS.PDF
NI 65XX PINOUT LABELS FOR THE SCB 100 NOTE TO USERS.PDF
NI PXI-6511 6512 LETTER OF VOLATILITY.PDF
STATIC DIO REGISTER LEVEL PROGRAMMER MANUAL FOR 6509 651X 6520 6521 AND 6528 DEVICES.PDF
PXI-6511 Diagrams
Why Buy From Apex Waves:
Verified
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
PXI-6511
Modular Systems > National Instruments > DIO Series
PXI-6511, 64-Channel, Sink/Source Inputs, PXI Digital I/O Module
1-800-915-6216
- Description
- Technical Specifications
- FAQ
- Manuals & PDFs

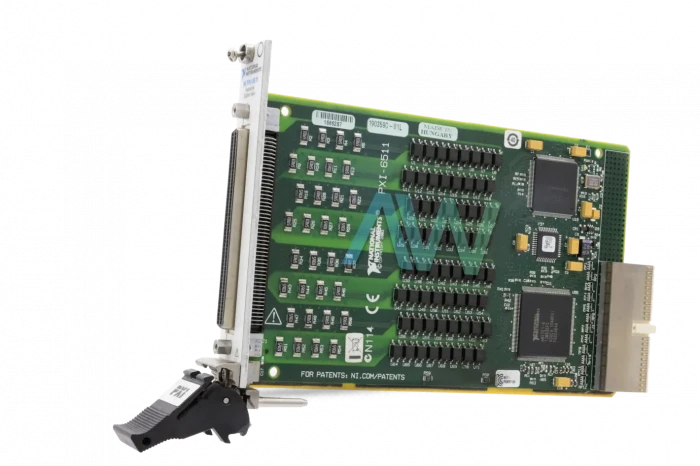

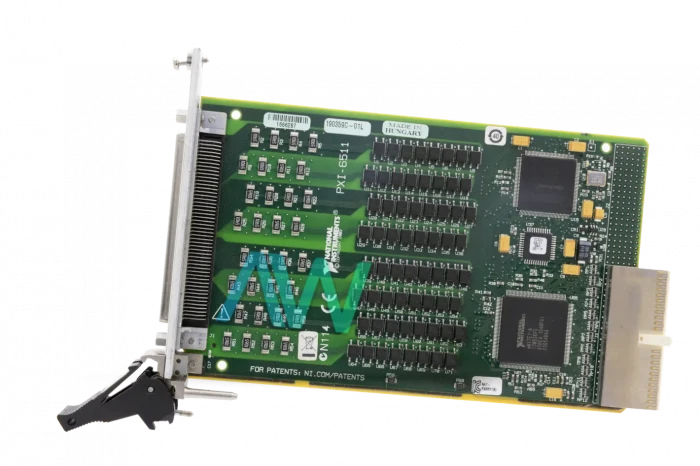

National Instruments PXI-6511 Digital I/O Module
