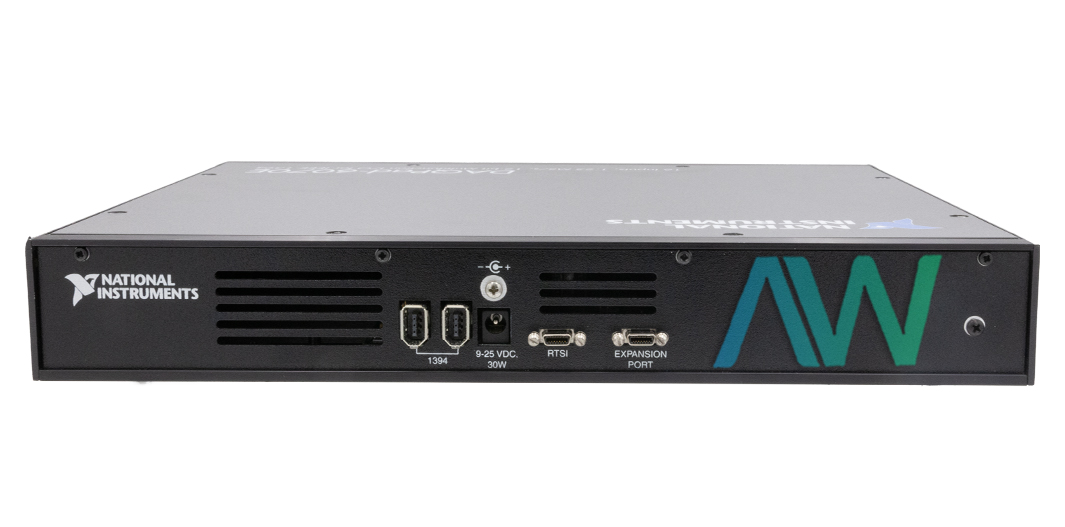

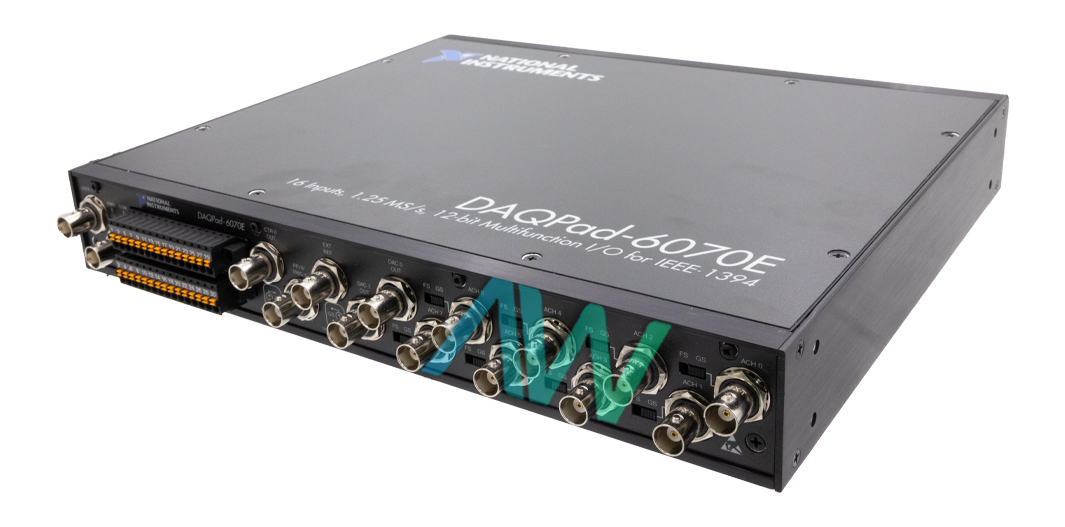

National Instruments DAQPad-6070E Multifunction I/O Device
The DAQPad-6070E is an efficient Multifunction I/O Device. The DAQPad-6070E has been designed and developed by National Instruments. The DAQPad-6070E is specifically designed for FireWire. The DAQPad-6070E is available with two different types of connectors. One comes with mass termination, whereas the other version has BNC Termination. The two versions of the DAQPad-6070E are available with different voltage levels corresponding to compatibility in different countries. The available part numbers of the mass termination version are 777867-01 (US 120 VAC), 777867-04 (Universal Euro 240 VAC), and 777867-06 (UK 240 VAC). The BNC version of the DAQPad-6070E comes with part numbers 777803-01 (US 120 VAC), 777803-04 (Universal Euro 240 VAC), and 777803-06 (UK 240 VAC).
The DAQPad-6070E is a 12-bit device, which features 16 analog input channels. These input channels are programmable and can be used as single-ended or differential channels. The NI DAQPad-6070E can perform sampling at a maximum rate of 1.25 MS/s. The number of output channels on this Multifunction I/O Device is 2. In addition, the NI DAQPad-6070E is equipped with 8 digital I/O channels. Other special features include built-in counters/timers and analog and digital triggers. The DAQPad-6070E accessories include an AC adapter kit and a 4 m FireWire cable. The AC adapter is universal so it can be used with multiple power cables.
This Multifunction I/O Device is a suitable choice for both desktop and portable applications. The DAQPad-6070E is effectively useful in those applications where limited space is available. The major applications of the NI DAQPad-6070E include in-vehicle automotive, data logging, and aircraft testing.
| Model | DAQPad-6070E |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 777867-01, 777867-04, 777867-06, 777803-01, 777803-04, 777803-06 |
| Series | E Series |
| Type | Multifunction I/O Device |
| Bus | FireWire IEEE 1394 |
| Maximum Sampling Rate | 1.25 MS/s |
| Maximum Output Rate | 1 MS/s |
| Input Range | ±0.05 to ±10 V |
| Output Range | ± 10 V |
| Analog Inputs | 16 SE/8 DI |
| Analog Outputs | 2 |
| Dimensions | 12.1 in. × 10 in. × 1.7 in. |
| Weight | 4 lb 4.9 oz. |
| I/O Connector | 68-pin male 0.050 D-type |
| Warranty | 2-3 Year Warranty |
| DAQPad-6070E Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the DAQPad-6070E:
18494.6, 184946B-01, 184946C-01, 184946C-03, 184946D-01, 18635.2, 186352-01, 186352A-01, 186352B-01, 186352C-01, 186352D-01, 186352F-01, 186352G-01, 186352H-01, 186648-01, 186648A-01, 186648B-01, 186648C-01, 186648D-01, 187092C-02, 187092D-02, 777803-01, 777803-04, 777803-06, 777803-07, 777867-01, 777867-04, 777867-06, 777867-07, 778544-01
DAQPad-6070E PDF Manuals
ARCHIVED E SERIES CALIBRATION PROCEDURE FOR TRADITIONAL NI DAQ 5BLEGACY5D .PDF
ARCHIVED LABVIEW DATA ACQUISITION BASICS MANUAL.PDF
ARCHIVED NI DAQ USER MANUAL FOR PC COMPATIBLES.PDF
ARCHIVED TRADITIONAL NI DAQ USER MANUAL.PDF
BNC 2111 INSTALLATION GUIDE.PDF
DAQ GETTING STARTED GUIDE FOR PCI PCI EXPRESS.PDF
DAQ GETTING STARTED READ ME FIRST NI DAQMX AND DAQ DEVICE INSTALLATION GUIDE.PDF
GUIDE D_INITIATION DAQ POUR PCI PCI EXPRESS.PDF
MULTIFUNCTION IO PRODUCT FLYER.PDF
NI 6070E 6071E FAMILY SPECIFICATIONS.PDF
C3A0 LIRE EN PREMIER GUIDE DE28099INSTALLATION DE NI DAQMX ET DES PC3A9RIPHC3A9RIQUES DAQ.PDF
