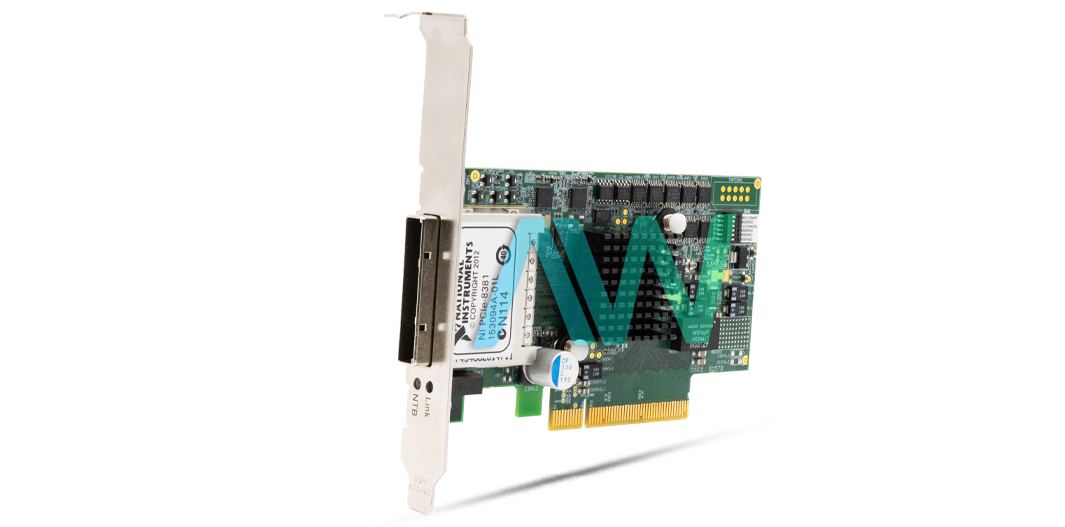

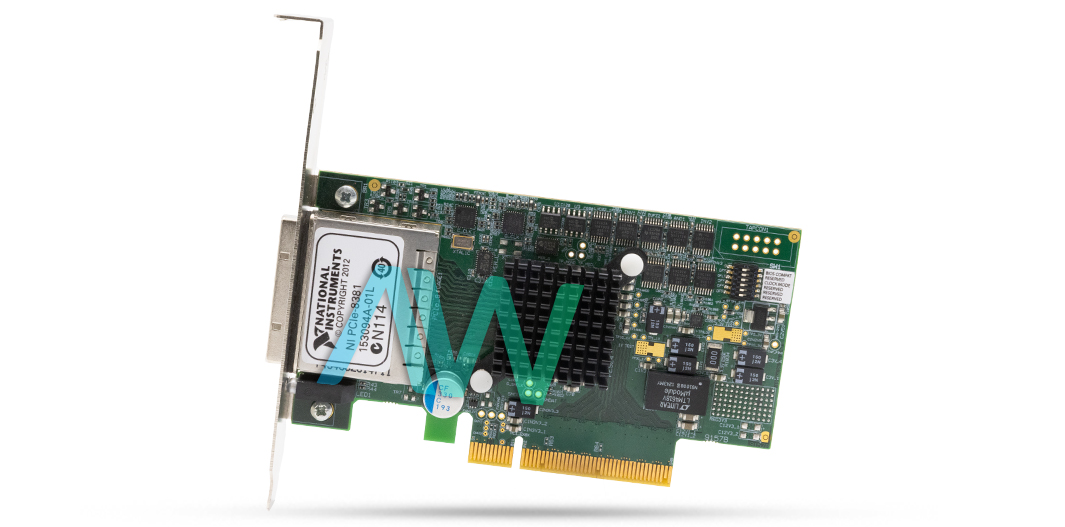

National Instruments PCIe-8381 Device for PXI Remote Control
National Instruments developed the PCIe-8381 (Part Number: 782361-01), an MXI-Express remote controller, to enable PCI Express communication across extended distances of up to 5 meters. having its x8 PCI Express interface, PXI systems may be easily controlled from a PC having a PCI Express slot. There are two versions of this remote controller available: one that works with copper wires and the other that works with fiber-optic connections. Applications that call for remote control or the isolation of the automation or measurement system from the host PC will find the PCIe-8381 to be especially helpful. It enables PXI Express or CompactPCI Express backplane control, hence facilitating adaptable system setups. With this controller, a single PCI Express-based PC or PXI Express embedded controller can control numerous PXI Express or CompactPCI Express chassis. The PCIe-8381's transparent operation to software programs and drivers is one of its primary benefits.
This implies that industry-standard desktop PCs and servers may easily control linked devices without the need for further programming. The PCI Express switches in the kit allow the PCI-Express fabric to be extended, which makes it easier for the host PC and the PXI system to communicate. It's important to remember, though, that some host computers' BIOS might not accept this extension, which could lead to problems booting up or with functionality.
National Instruments provides NI MXI-Express BIOS Compatibility Software to help lessen this. The PCIe-8381 weighs 0.06 kg and measures 6.89 x 12.70 cm. It is completely compatible with PCI Express Specification, Revisions 1.0a, 1.1, and 2.0 and only needs one slot (PCI Express, x8 or wider). It is meant only for indoor usage, with a maximum operating height of 2,000 meters. In terms of environmental parameters, the PCIe-8381 functions within a range of 0 to 55 °C for ambient temperature and 10 to 90% for relative humidity. It can be stored in environments with temperatures between -20 and 70 °C and relative humidity levels between 5 and 95%.
Model | PCIe-8381 |
---|---|
Manufacturer | National Instruments |
Part Number | 782361-01 |
Series | MXI-Express Gen II x8 Series |
Type | Device for PXI Remote Control |
Number of Ports | 1 |
Slot Type | PCI Express Gen II x8 or wider |
Slot Requirements | One slot (PCI Express, x8 or wider) |
Cable Support | MXI-Express x8 Copper |
Maximum Distance | 5 m |
Compatibility | Fully compatible with the PCI Express Specification 1.0a, 1.1, and 2.0 |
Sustained Throughput | 3.2 GB/s |
LED Indicators | 1 Tri-color LED |
Power Requirements | +3.3 V, +3.3 VAux, +12 V - 500 mA, 0 A, 350 mA |
Dimensions | 2.71 in. × 5 in. |
Weight | 0.14 lb. |
Warranty | 2-3 Year Warranty |
PCIe-8381 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for the PCIe-8381:
153094A-01, 153094A-01L, 153094B-01L, 154058A-01L, 782361-01
Associated NSNs for the PCIe-8381:
5998-01-675-9416 (5998016759416)
National Instruments PCIe-8381 Frequently Asked Questions
Question: What should I do if my PC says the BIOS is corrupted when I have the PCIe-8381 installed?
Answer: If you have a message saying the BIOS is corrupted when you’re using the PCIe-8381, you need to upgrade the BIOS to the latest version available.
Question: Do I need to configure the NI PCIe-8381 to read it in Visual C++?
Answer: The NI PCIe-8381 is transparent, which means that you do not need to complete any configurations in order to read it.
Question: What does it mean if the LEDs are not lighting up when installing the PCIe-8381?
Answer: If the LEDs are not lighting up when you’re installing the PCIe-8381, it means that it is not connected and therefore not getting power. You can try a different slot. If it still doesn’t light up, your PCIe-8381 may be defective.
PCIe-8381 PDF Manuals
LETTER OF VOLATILITY FOR NI PCIE 8381 X8 GEN 2 MXI EXPRESS REMOTE CONTROL INTERFACE.PDF
MXI EXPRESS GEN II X8 SERIES USER MANUAL AND SPECIFICATIONS.PDF
NOTE TO USERS MXI EXPRESS SERIES USER MANUAL.PDF
