cRIO-9036 In Stock | Ships Today
The NI cRIO-9036 is an Embedded CompactRIO Controller with 8 Slots. It features Extended Temperature Capabilities.
Need an Official Quote?

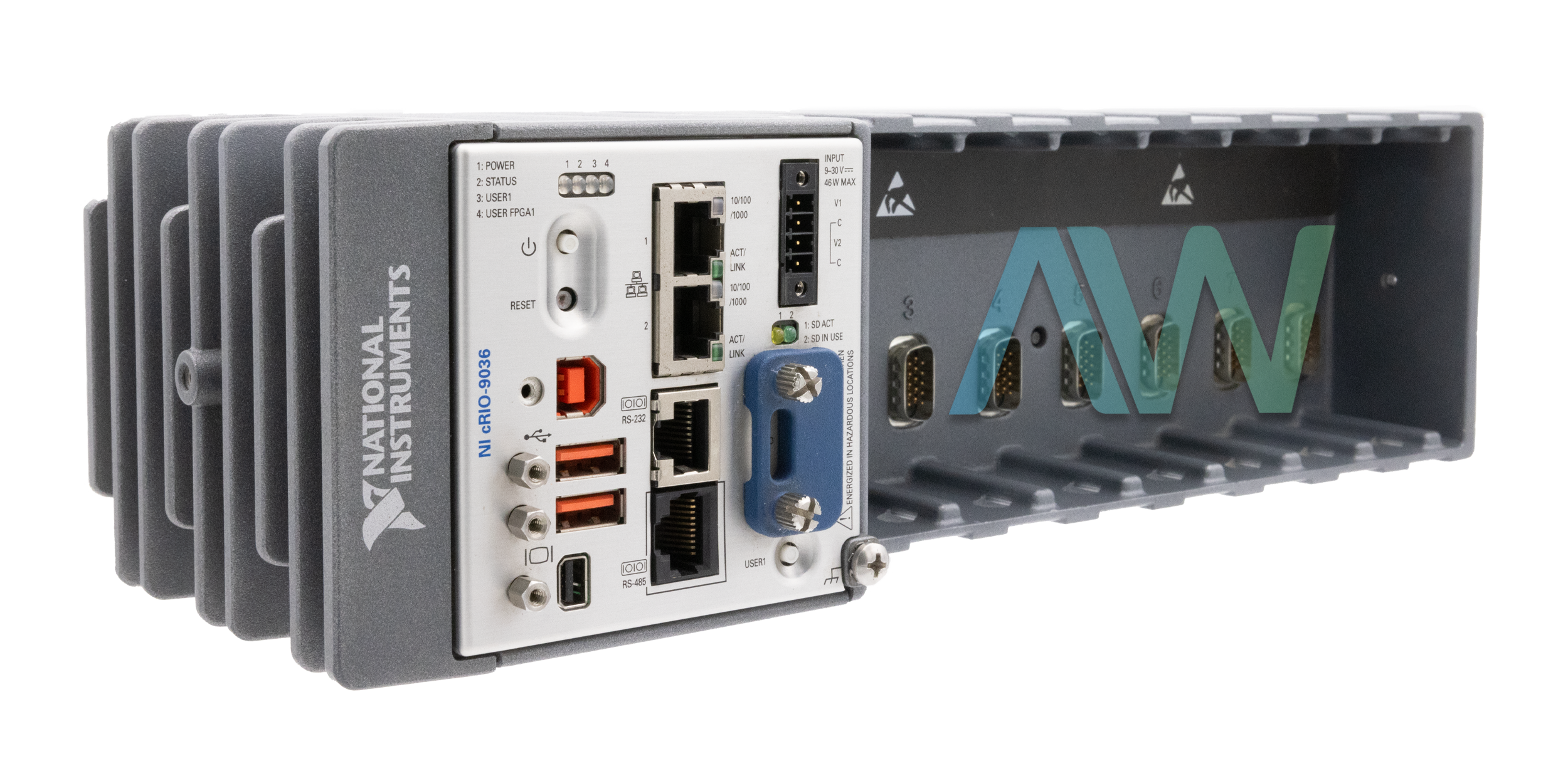

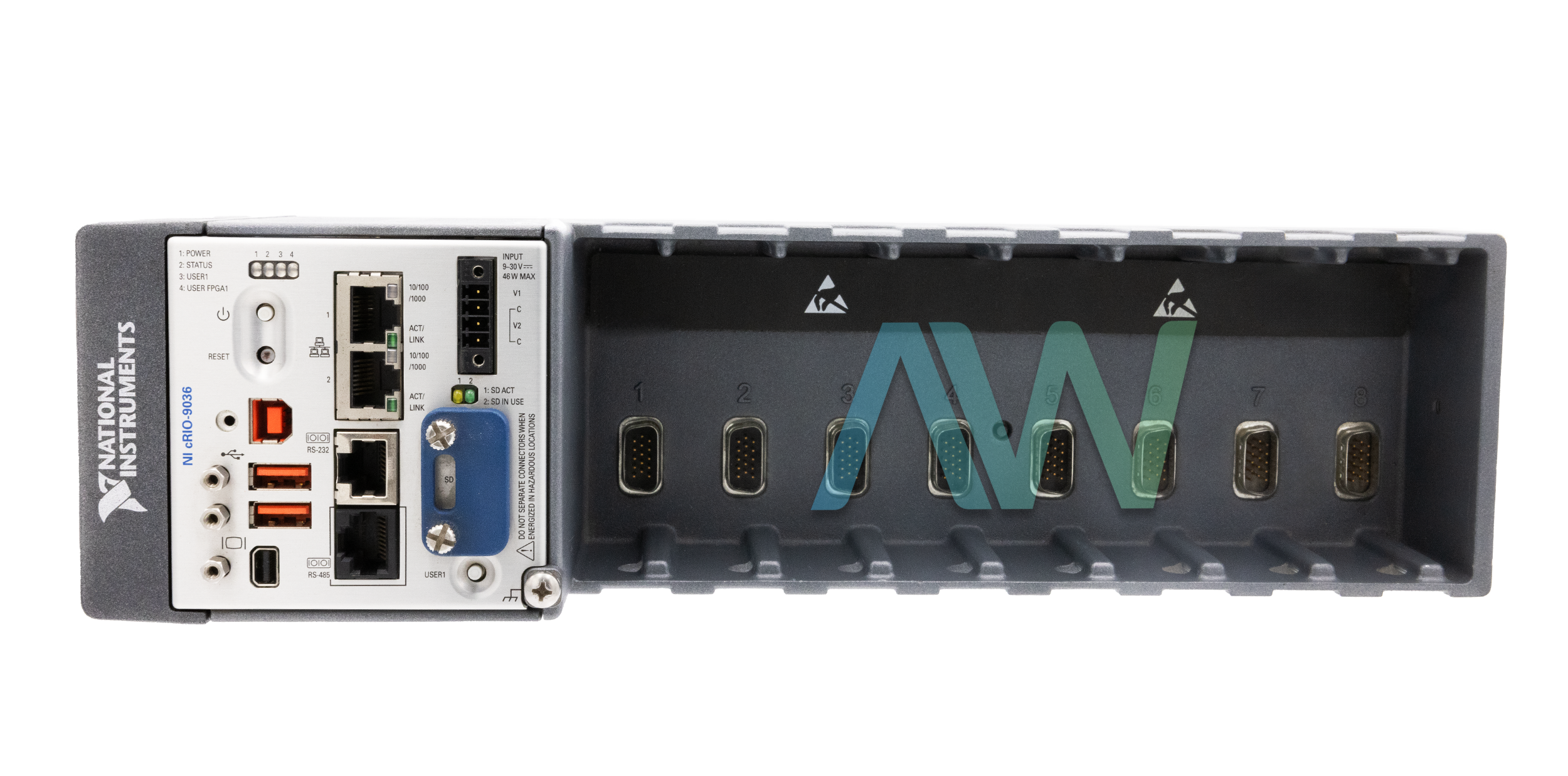

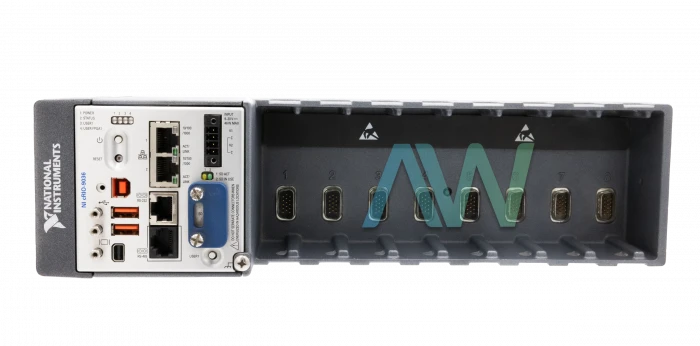

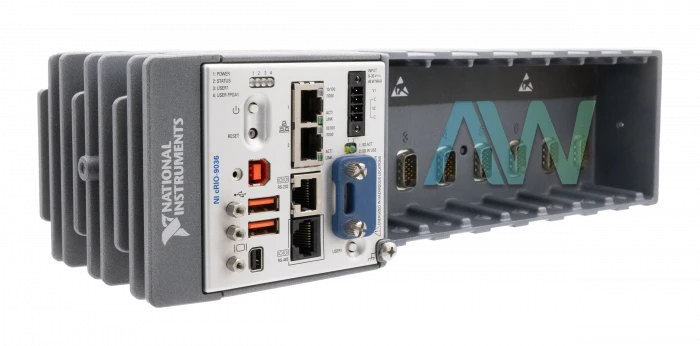

National Instruments cRIO-9036 CompactRIO Controller
The National Instruments cRIO-9036 (Part Number: 783849-01) is an embedded controller designed for advanced control and monitoring applications. It is robust and fanless. With two cores, 1.33 GHz Intel Atom E3825 CPU, and 1 MB of shared L2 cache, it provides strong performance for real-time processing applications.
For industrial settings, this software-designed controller offers dependability and flexibility through operation on the NI Linux Real-Time OS. The cRIO-9036 offers programmable hardware acceleration for sophisticated algorithms and signal processing thanks to its FPGA, the Xilinx Kintex-7 7K70T. With 240 DSP slices, 41,000 6-input LUTs, and 82,000 flip-flops, it provides more than enough power to develop control schemes and data processing algorithms.
With two tri-speed RJ-45 Gigabit Ethernet ports, there are plenty of connectivity options to enable high-speed data transfer. The USB 2.0 compliant two USB host ports and one USB device port provide flexible connectivity for peripherals and data storage. With a maximum resolution of 2560 × 1600 at 60 Hz, the Mini DisplayPort enables a local human-machine interface (HMI) for application development. The cRIO-9036 offers two RS-232 ports and one RS-485/422 port for serial communication, supporting a range of data formats, flow control techniques, and baud rates.
These ports increase the controller's interoperability by allowing interface with industrial and legacy devices. Up to 32 GB of nonvolatile storage can be supported by an SDHC slot that is compatible with both SD and SDHC standards. For dependable and quick data storage, the controller also comes with a 4 GB solid-state drive. The cRIO-9036 is appropriate for severe industrial environments since it can operate in an extended temperature range of -40°C to 70°C and has an IP20 ingress protection rating. It can operate in humidity ranges of 10% to 90% RH, guaranteeing dependable performance under a variety of circumstances.
Model | cRIO-9036 |
---|---|
Manufacturer | National Instruments |
Part Number | 783849-01 |
Type | CompactRIO Controller |
CPU | Intel Atom E3825 |
CPU Frequency | 1.33 GHz |
Network/Ethernet Ports | 2 |
Dimensions | 12.94 x 3.47 x 4.30 in. |
Weight | 4 lbs., 15 oz. |
Warranty | 2-3 Year Warranty |
cRIO-9036 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for the cRIO-9036:
157732A-01L, 157732B-01L, 157732C-01L, 157732D-01L, 783849-01
National Instruments cRIO-9036 Frequently Asked Questions
Question: Can I set up the RS485 port on the cRIO-9036 to a 2-wire mode?
Answer: Yes, you can set up the RS485 port on the cRIO-9036 to a 2-wire mode by using a property node on your VISA wire and setting the wire mode to two wire.
Question: Why does the NI cRIO-9036 connected to DisplayPort not show up all the time?
Answer: If your NI cRIO-9036 is not always showing up, make sure that the Embedded User Interface is enabled.
Question: What is the CPU frequency of the cRIO-9036?
Answer: The CPU frequency of the cRIO-9036 is 1.91 GHz.
cRIO-9036 PDF Manuals
CARRYING HANDLE FOR COMPACTRIO AND COMPACTDAQ USER GUIDE.PDF
COMPACTRIO CONTROLLERS PRODUCT FLYER.PDF
CRIO 9036 LETTER OF VOLATILITY.PDF
INDUSTRIAL RACK MOUNT KIT FOR COMPACTRIO AND COMPACTDAQ INSTALLATION GUIDE.PDF
MODULE IMMOBILIZATION ACCESSORY INSTALLATION GUIDE.PDF
NI CMS 9036 MAINTAINING HARDWARE.PDF
NI CRIO 9036 GETTING STARTED GUIDE.PDF
NI CRIO 9036 SPECIFICATIONS.PDF
NI CRIO 9038 GETTING STARTED GUIDE.PDF
NI CRIO 903X LETTER OF VOLATILITY.PDF
Driver Downloads for cRIO-9036
OS Compatibility:
Win XP 32-bit, Win 7 32-bit, Win 10 32-bit
