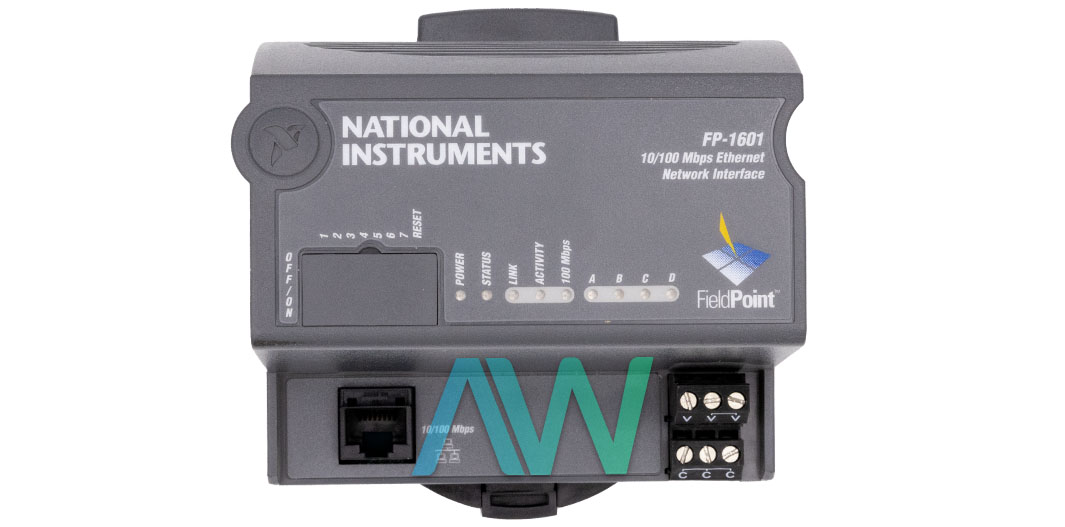

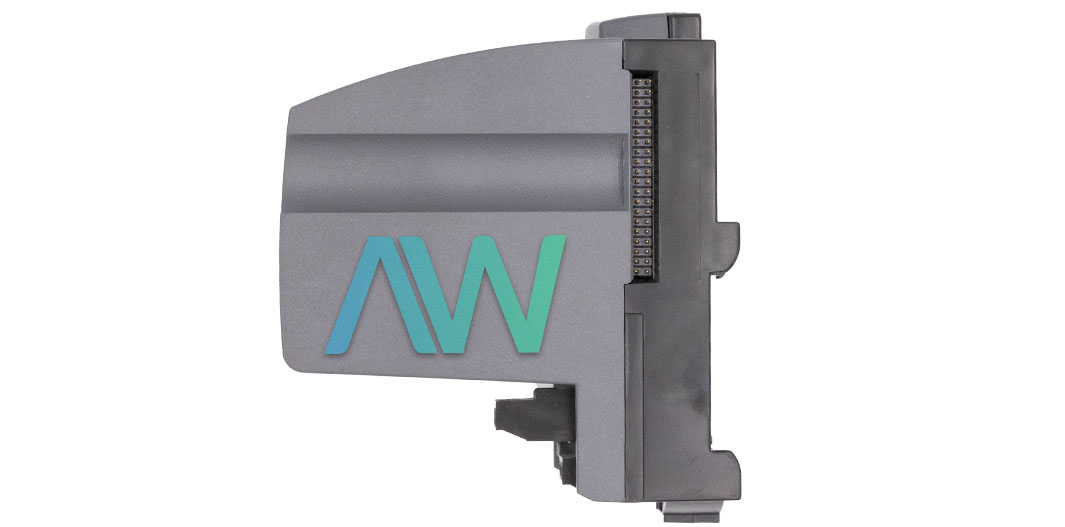

National Instruments FP-1601 Ethernet Interface for FieldPoint
The FP-1601 (Part number: 777792-01, 187684F-01) is a FieldPoint Ethernet Interface manufactured by National Instruments. This model can link a 10/100 Ethernet network to FieldPoint I/O modules. The total number of FP-1601 modules installed on a network is given by the network topology. The FP-1601 Ethernet Interface links as many as nine FieldPoint I/O modules to a high-speed Ethernet network. The NI FP-1601 is embedded with LED indicators. These indicators help communicate status information. This model is also equipped with DIP switches. These switches are used to perform different functions. The FP bank includes one network module. It also consists of more than one I/O module and terminal base.
This Ethernet Interface has an event driven protocol, 1 port, 100 Mb/s maximum data communication rates, and a 10/100 BaseTX network interface. These features make the NI FP-1601 simple to interface with a PC and easy to utilize. Other features include configurable I/O powerup states, a network watchdog timer, automatic self-diagnostics, and more. The device has a power supply range of 12 to 30 VDC, and a power consumption value of 4.5 watts + 1.1 * ∑(I/O Module Consumption).
The FieldPoint FP-1601 automatically detects the connection speed. It has an onboard system to configure the connection speed. Each bank can be logged on by either LabVIEW RT enabled devices or host computers. Infinite FP banks are used with the help of Ethernet. The FP-1601 National Instruments includes a local bus connector and a power connector. It also consists of a rail clip and an Ethernet port. The module has built-in driver software, which is Measurement & Automation Explorer and OPC server (2.0 compliant). This model also has configuration utility software. This software helps integrate the module into different applications. These software components provide assistance in hardware details. They also help in low-level communication. Furthermore, they simplify the pragmatic access to I/O channels.
The FP-1601 is run using the Fieldpoint software (version 3.0) which includes components such as LabVIEW VIs, LabWindows/CVI Functions, Lookout driver, and so on. The NI device weighs 8.3 oz. It has a recommended operating and storage temperature range of –25 to 55 °C and –40 to 85 °C respectively.
| Model | FP-1601 |
|---|---|
| Part Number | 777792-01, 187684F-01 |
| Manufacturer | National Instruments |
| Type | Ethernet Interface for FieldPoint |
| Network Interface | 10BaseT and 100BaseTX Ethernet |
| Compatibility | IEEE 802.3 |
| Communications Rate | 10 Mb/s, 100 Mb/s, autonegotiated |
| Power Consumption | 4.5 W + 1.1 (I/O module power requirements) |
| Weight | 8.3 oz. |
| Warranty | Three Year Warranty |
| FP-1601 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the FP-1601:
186327B-02, 186327C-02, 186330B-02, 186330C-02, 186330D-02, 18768.4, 187684A-01, 187684B-01, 187684C-01, 187684D-01, 187684F-01, 188484A-01, 188484B-01, 188484C-01, 188484D-01, 777792-01, 777792-11
National Instruments FP-1601 Frequently Asked Questions
Question: What is the maximum number of I/O modules per bank for the FP-1601 National Instruments?
Answer: The FP-1601 National Instruments can have 9 terminal bases as the maximum number of I/O modules per bank.
Question: What is the power supply range for the FieldPoint FP-1601?
Answer: The power supply range for the FieldPoint FP-1601 is 11 to 30 VDC.
Question: What is the operating temperature range of the NI FP-1601?
Answer: The operating temperature range of the NI FP-1601 is -25 to 55 °C.
Question: When the status LED flashes once on the FP-1601, what does this indicate?
Answer: The status LED flashing once indicates the FP-1601 is in reset mode or is not configured.
