National Instruments 777662-01 Image Acquisition Module

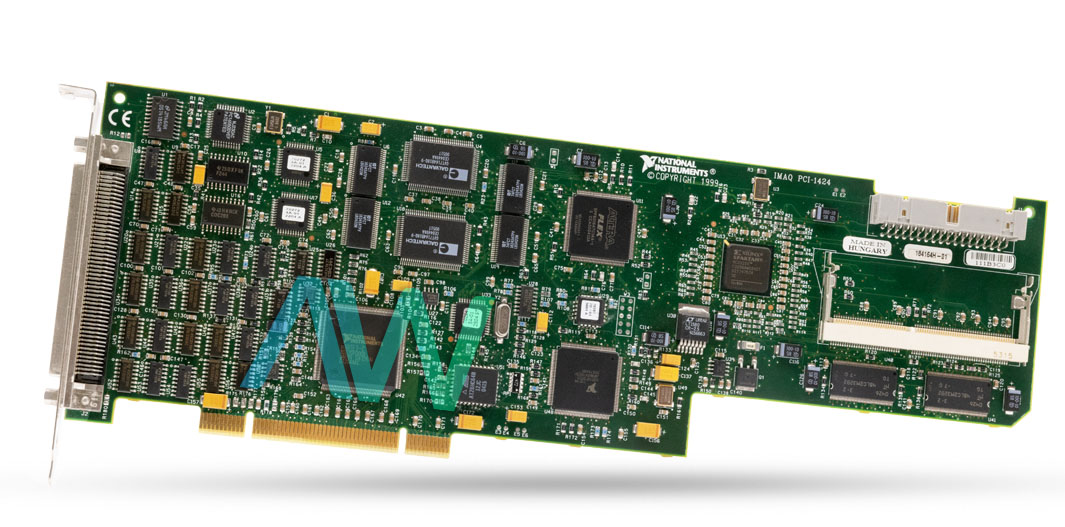

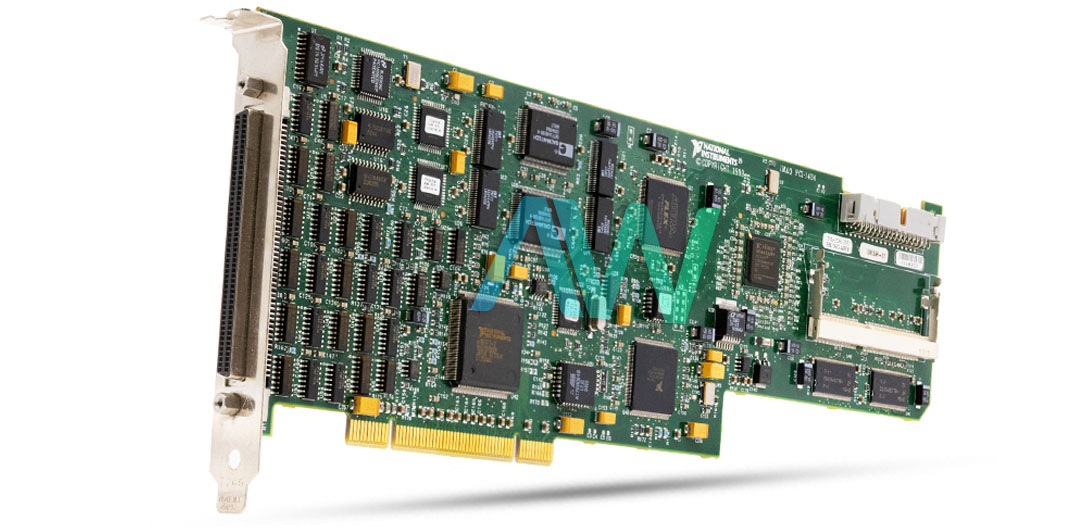

Often called the PCI-1424, the 777662-01 is a highly configurable PCI-based image capture module by National Instruments that is intended to work with a variety of digital cameras. This board can take pictures in real time in both monochrome and color, storing them in system memory or straight into its onboard frame memory. This module is a potent instrument for both industrial and scientific settings since it can process up to 32 bits of data at once at clock speeds of up to 50 MHz.

Because the 777662-01 is easy to configure, installation is a breeze and image acquisition may happen instantly. It includes the complete IMAQ driver software from National Instruments, called NI-IMAQ, which makes direct control of the PCI-1424 and other IMAQ hardware components possible. Without the requirement for low-level programming, users may launch their apps immediately thanks to this driver.

The 777662-01 has a fast data route and can handle video data with up to 32 bits of differential or TTL level. It has four external I/O lines that can be used as triggers or high-speed digital I/O lines, as well as four general-purpose control lines that can produce exact timing signals for digital camera acquisition. This versatile instrument can be connected with the National Instruments data acquisition (DAQ) product range for more sophisticated triggering or digital I/O requirements.

Real-Time System Integration (RTSI) bus, a feature of the 777662-01 that makes it noteworthy, enables synchronization of several functions to a single trigger or timing event. To facilitate synchronized picture captures across numerous devices, the RTSI bus may connect up to four National Instruments DAQ or IMAQ boards.

A broad range of image analysis solutions can be achieved by integrating the part with other National Instruments products like as LabVIEW, BridgeVIEW, and LabWindows/CVI, and enabling picture acquisition and storage through the use of NI-IMAQ driver software. The IMAQ Vision Builder makes it easier to prototype image analysis applications, while the IMAQ Vision software offers powerful image processing and analysis capabilities.
