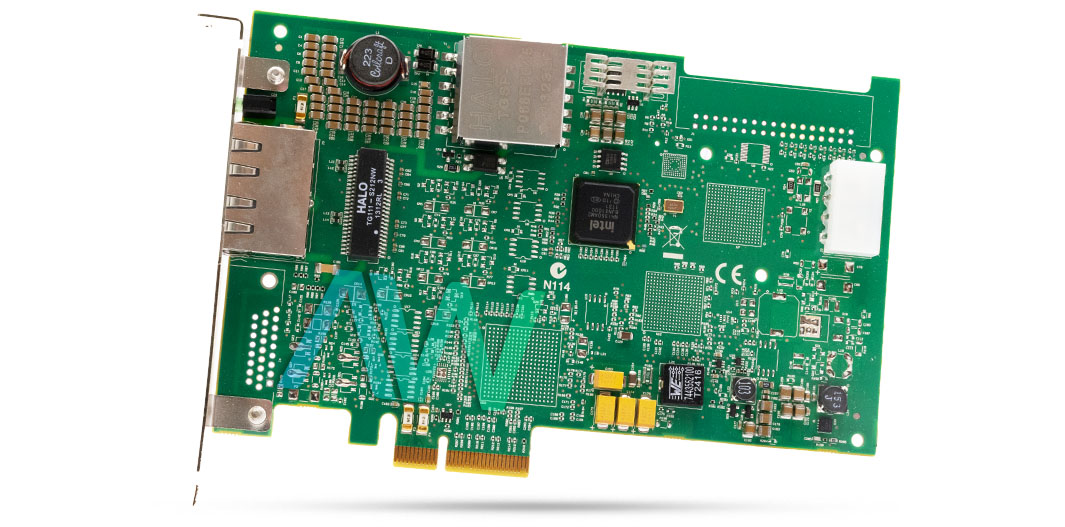

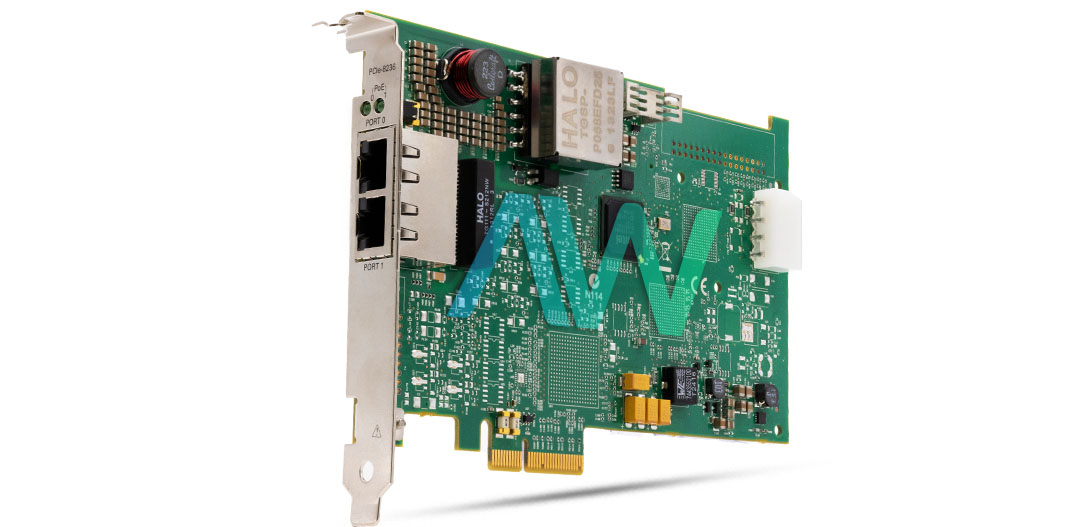

National Instruments 782524-01 Frame Grabber Device

The National Instruments part number 782524-01 is the identifying part number for the PCIe-8236 Frame Grabber Device. This high performance device is made specifically for GigE Vision applications. Through its interface with PCI Express (PCIe) slots, this device allows Power over Ethernet (PoE) to supply linked cameras with both power and data connectivity. Applications including industrial inspection, medical imaging, and scientific research that call for fast image acquisition and processing are well suited for the frame grabber.

Complying with IEEE 802.3 and supporting 10BASE-T, 100BASE-TX, and 1000BASE-T Ethernet protocols are among the 782524-01 Frame Grabber Device's key features. It has two RJ45 Ethernet ports with a maximum data transfer rate of 1000 Mbps for each. With a power output of 15.4 W per port, the device supports power classes 0, 1, 2, and 3 and complies with IEEE 802.3af specifications for PoE. It can power PoE-compatible cameras straight from the frame grabber, with this feature it makes system setup easier and requires less wiring.

The 782524-01 is a small device in terms of size, measuring 11.1 cm by 16.8 cm (4.4 in. × 6.6 in.) and weighs about 150 grams. With an operational temperature range of 0 degrees Celsius to 55 degrees Celsius and a storage temperature range of -20 degrees Celsius to 70 degrees Celsius, it is intended for indoor use only. The gadget is classified as Pollution Degree 2 and is capable of operating in non-condensing situations with relative humidity ranging from 5% to 90%. To operate the 782524-01, its power requirements are 0.34 A at +12 V and 0.74 A at +3.3 V.

To guarantee correct setup and operation, there are multiple procedures involved in installing the 782524-01 Frame Grabber Device. In order to guard against electrostatic discharge (ESD) damage, users must install the software before installing the hardware. The gadget plugs into a PCIe slot on a computer, and for PoE capability, an extra 4-pin peripheral ATX power connector can supply power. Measurement & Automation Explorer from National Instruments can be used to configure and test the device after it has been installed.
