National Instruments 778209-01 GPIB Controller

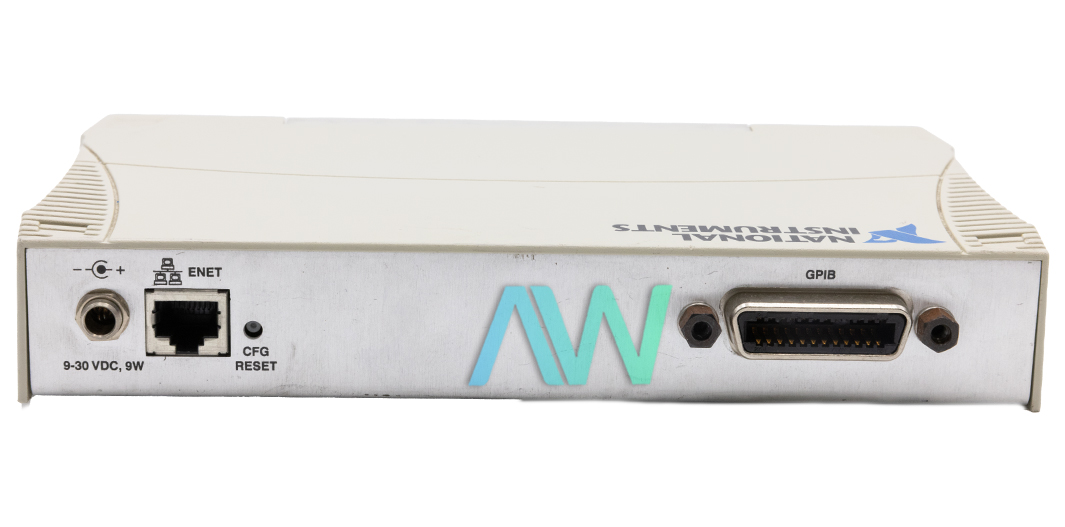

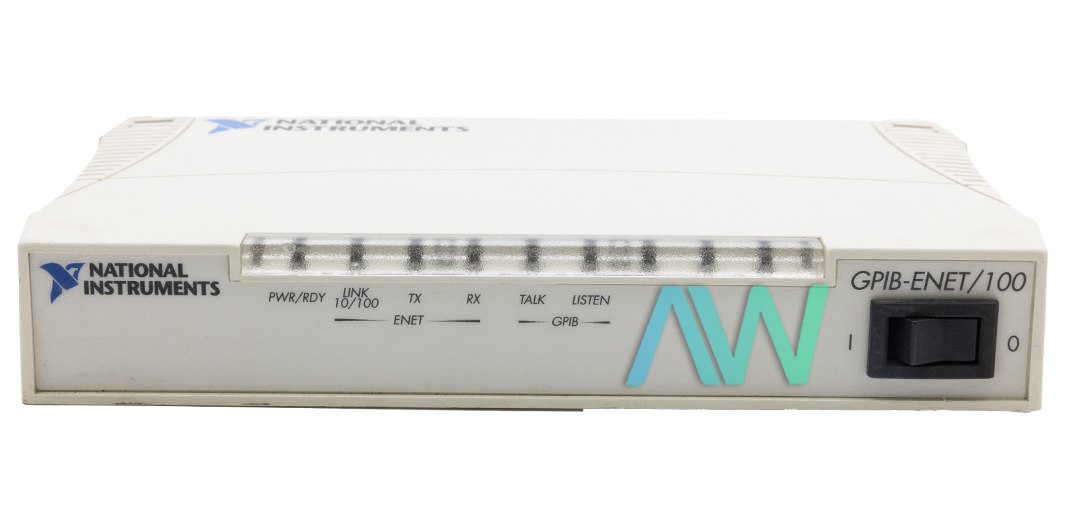

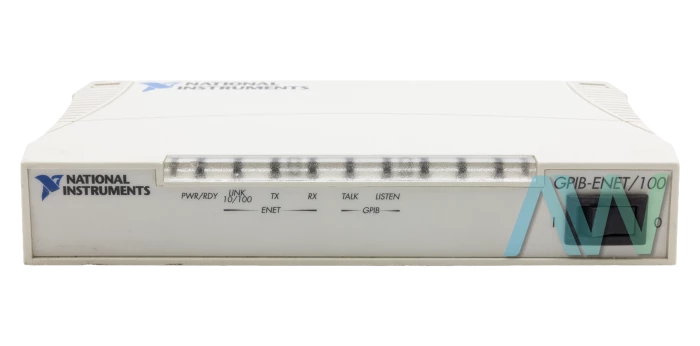

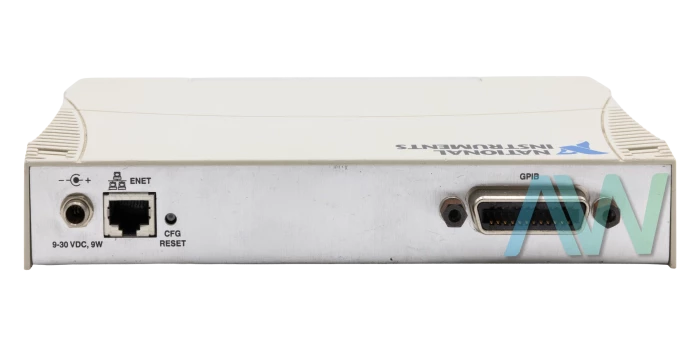

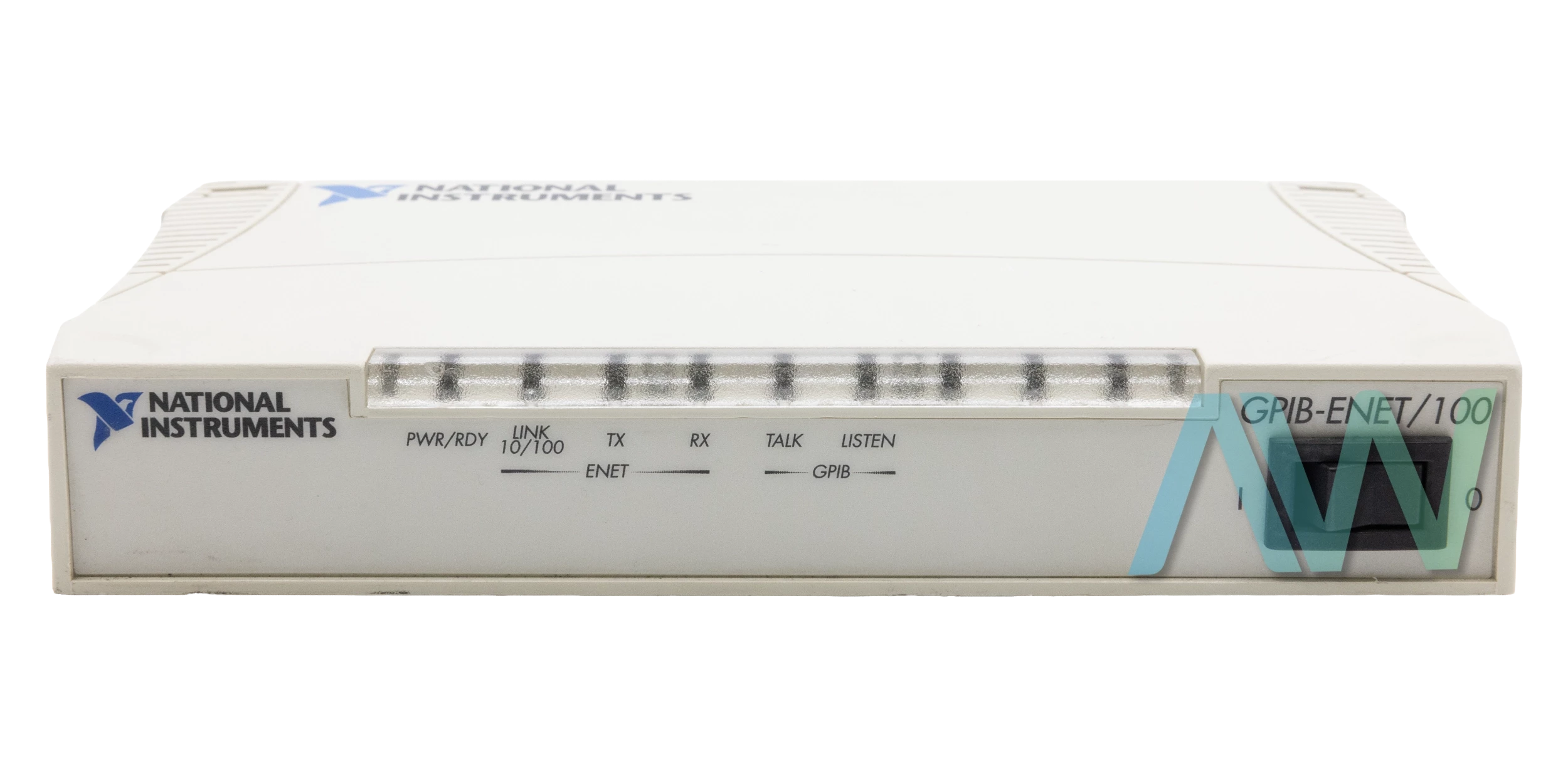

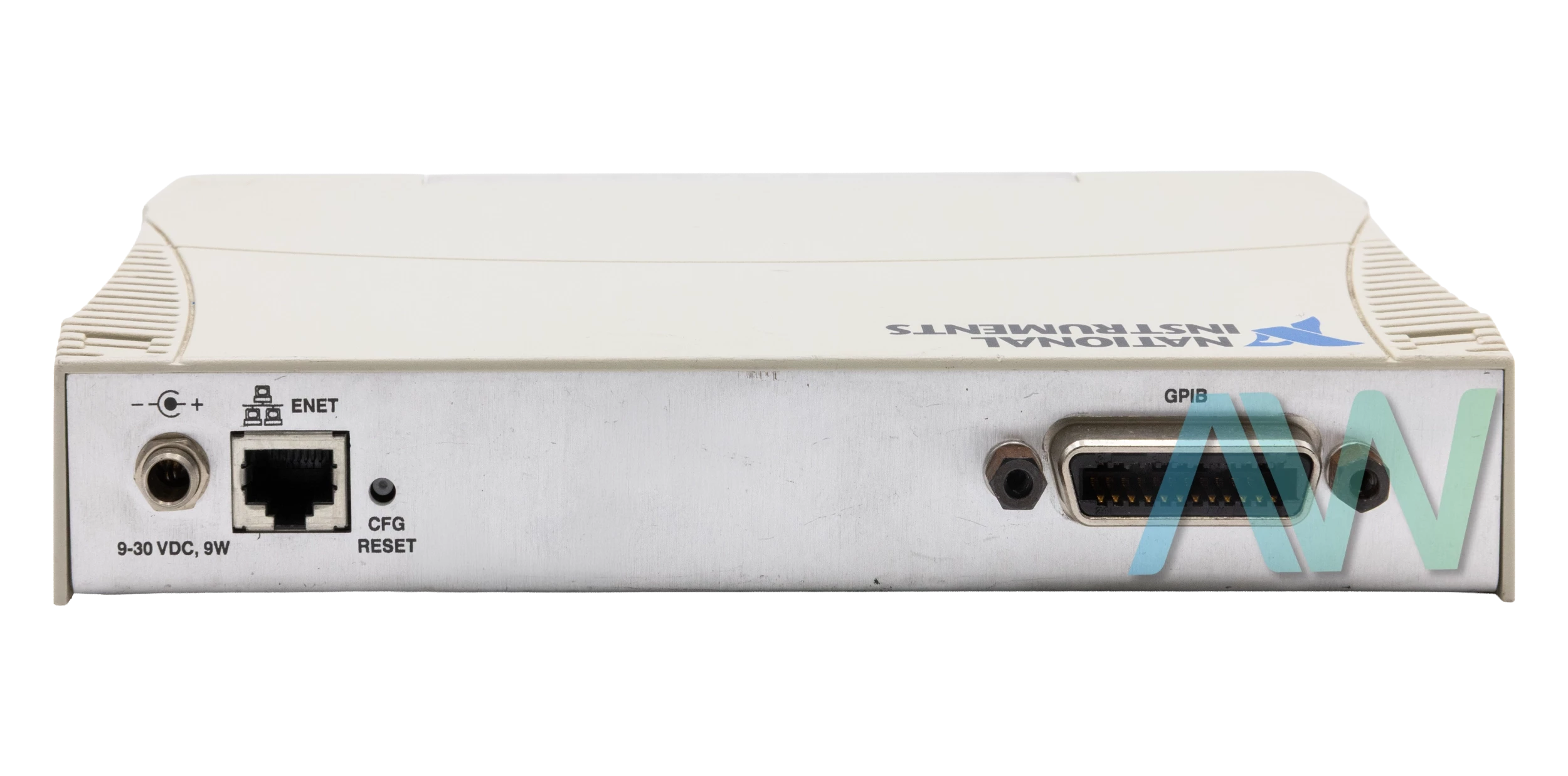

National Instruments part number 778209-01 is an identifying part number for the GPIB-ENET/100 Ethernet GPIB Controller, which features a IEEE 488 standard 24 pin and a RJ-45 Ethernet I/O Connector. The NI 778209-01 comes with various input options. This GPIB Controller offers several useful features, including global access via Transmission Control Protocol/Internet Protocol (TCP/IP) for remote testing equipment. It can use either a 10Base-T or 100Base-TX network to access remote test equipment. When used with a new architecture that incorporates HS488 or 100Base-TX Ethernet, the 778209-01 can deliver performance comparable to plug-in boards.
The National Instruments 778209-01 is a high-performance GPIB controller that integrates a 32-bit CPU, a fast Ethernet controller, a TNT family GPIB interface ASIC, substantial onboard buffer RAM, and an efficient firmware design. It achieves typical sustained data throughput of over 900 kbytes/s, comparable to GPIB plug-in boards. However, data transfer rates can vary significantly due to network traffic and the specific operating characteristics of each subnet. Each device from this module range is assigned a unique 48-bit Ethernet hardware address at the factory.
This address is used to specify the source and destination of Ethernet packets. Additionally, the TCP/IP protocols of the require a separate 32-bit Internet address to locate a device on the network. The Internet address is unrelated to the Ethernet hardware address. It can be operated using Linux, Solaris, or Windows 2000. Compatible software includes Measurement Studio and LabVIEW, with NI-488.2 as the driver software. The firmware code is stored in the flash EEPROM, eliminating the need for a physical EEPROM. Additionally, this device requires an input power of 9 to 30 VDC.
| Part Number | 778209-01 |
|---|---|
| Model Name | GPIB-ENET-100 |
| Part Type | Ethernet GPIB Controller |
| GPIB I/O Connectors | IEEE 488 standard 24 pin |
| Ethernet I/O Connectors | RJ-45 |
| IEEE 488 Compatibility | IEEE 488.1 and IEEE 488.2 compatible |
| Connection Type | IEEE 802.3 compliant 10BaseT (10 Mb/s) 100BaseTX (100 Mb/s) |
| Duplex Mode | Half Duplex |
| IEEE 488 interlocked handshake performance | More than 900 kbytes/s |
| IEEE 488 non-interlocked (HS488) handshake performance | More than 1.1 Mbytes/s |
778209-01 PDF Manuals
CONNECTING AN NIETHERNET DEVICE TO A NETWORK OTHER THAN 10BASE T OR 100BASE TX.PDF
GPIB HARDWARE INSTALLATION GUIDE AND SPECIFICATIONS.PDF
