National Instruments GPIB-140A GPIB Extender

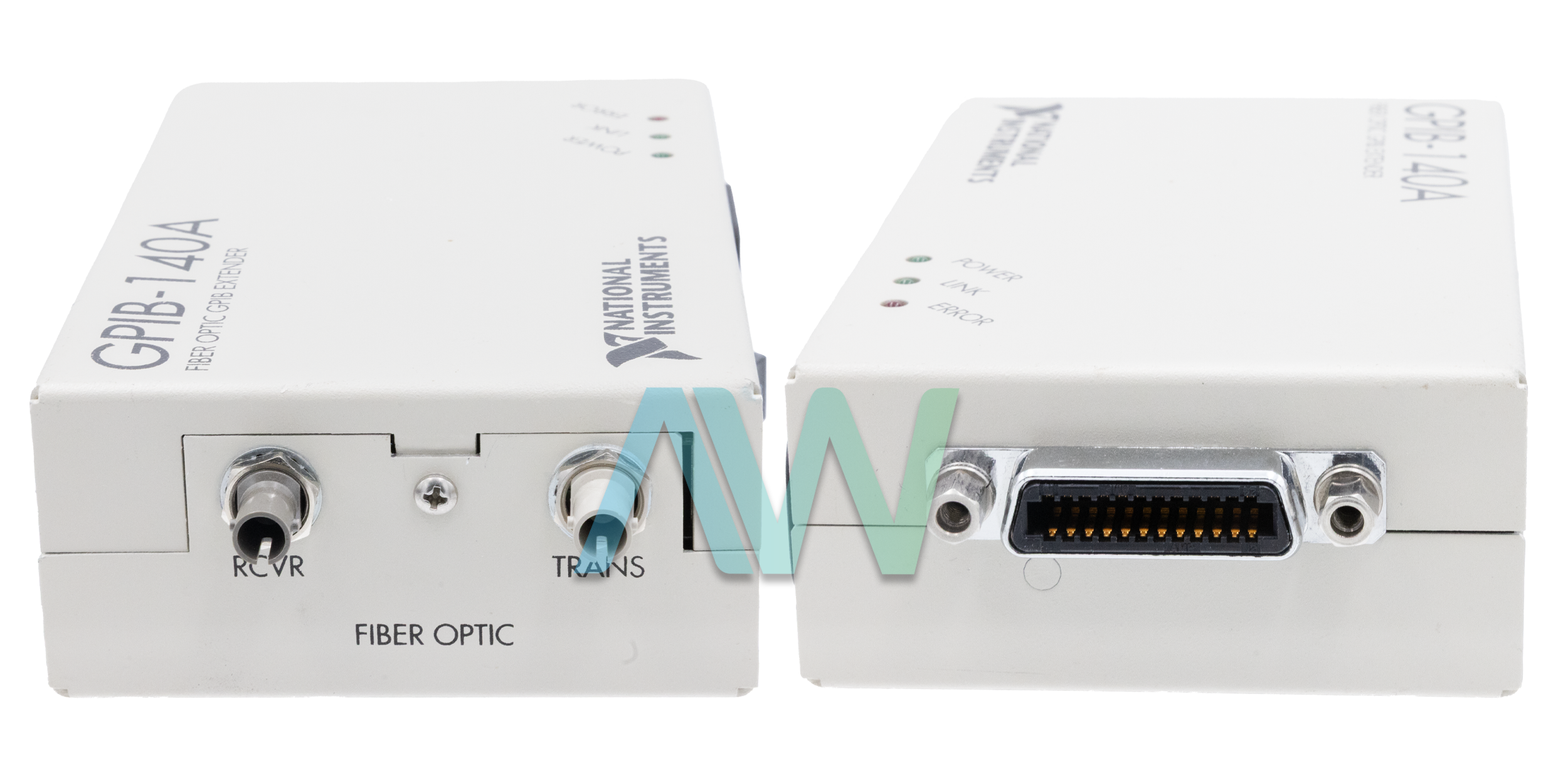

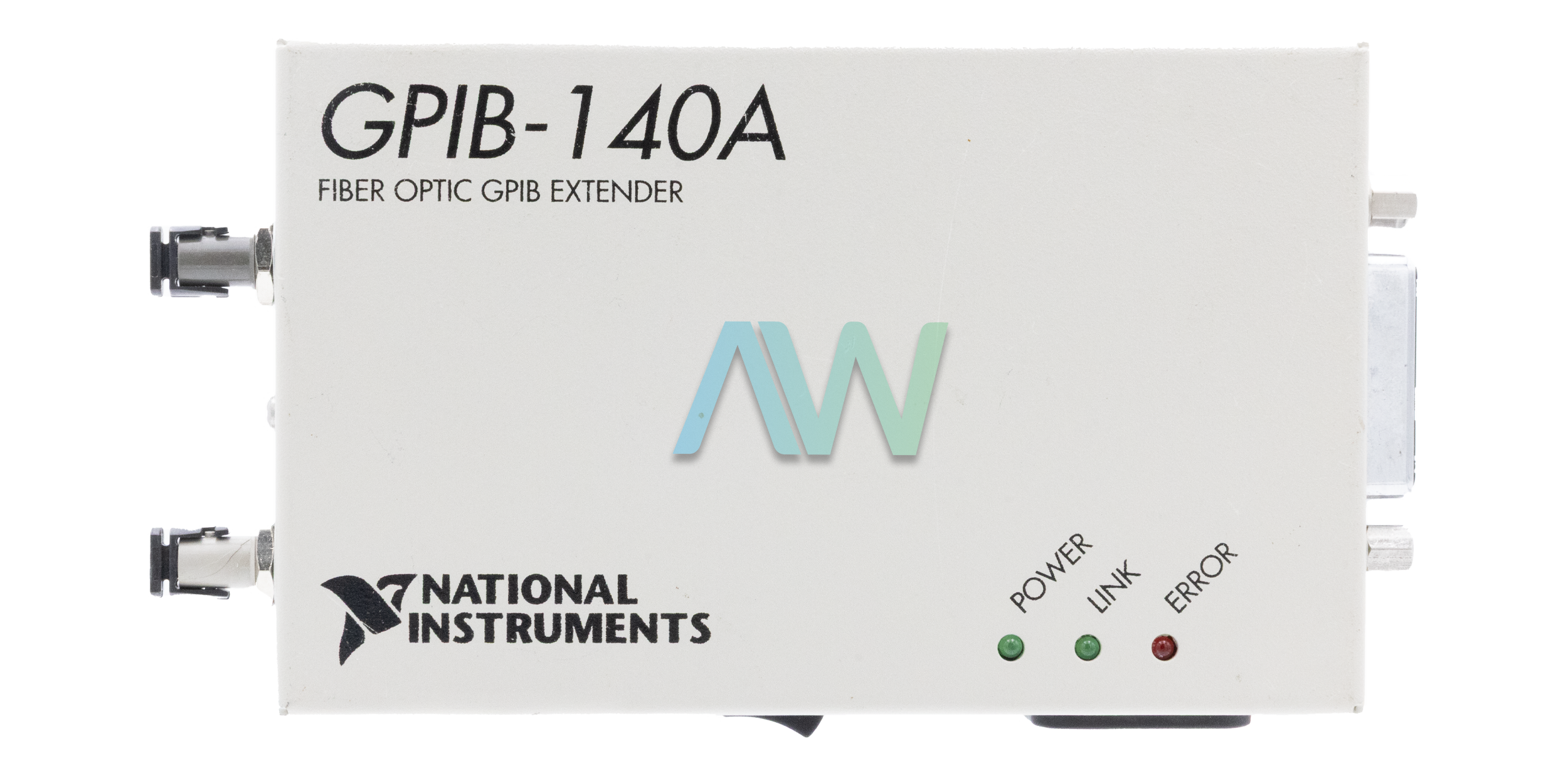

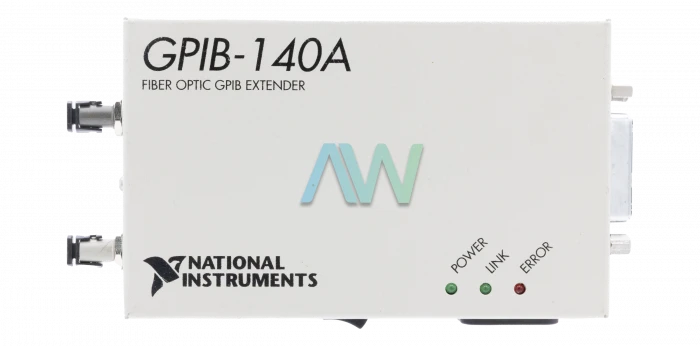

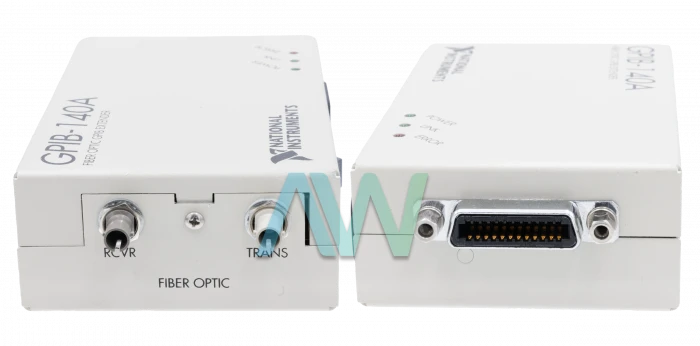

The NI GPIB-140A (Part Numbers: 777997-01, 777997-02, 777997-03, 777997-04, 777997-05, 777997-06, 185135B-01) is a GPIB Bus Extender. This device easily eradicates the cable length and device loading related restrictions which are compulsory by the IEEE 488 standard. The GPIB-140A is fully compatible with IEEE 488.1 and IEEE 488.2 standards. As per the IEEE 488 standard, the total length of any GPIB system cannot exceed 20 m. A pair of these GPIB Extenders can reach a total distance of 1 km without any modifications and without affecting the integrity of the user’s GPIB system.
This GPIB Extender can support up to 1 km fiber-optic cable. The NI GPIB-140A comes with a buffered transfer technique, making this model one of the quickest GPIB Bus Extenders available. With this model, the user can achieve faster than 2.8 Mbytes while operating in the HS488 protocol. This GPIB Extender can be deployed with minimal effort does not require additional hardware. In typical scenarios, a computer device is connected to a cable extender on one end. On the far end, a GPIB instrument is connected to a similar cable extender. Both cable extenders are then interconnected via a fiber-optic cable.
Each NI GPIB-140A continuously monitors GPIB activity and translates GPIB signals into parallel or serial signals for transmission to the receiving extender. The receiving extender receives serial or parallel signals from the transmitting extender and converts them to IEEE 488 signals. The NI GPIB-140A does not necessitate modification in existing software applications because it is software transparent.
| Model | GPIB-140A |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 777997-01, 777997-02, 777997-03, 777997-04, 777997-05, 777997-06, 185135B-01 |
| Type | GPIB Extender |
| Transfer Rates | IEEE 488.1: 1.1 Mbytes/s maximum HS488: 2.8 Mbytes/s maximum |
| Distance per Extension | 1 km maximum |
| Loading per Extension | as many as 13 additional devices |
| Dimensions | 3.5 × 5.65 × 1.62 in. |
| Weight | 0.55 lb. |
| Warranty | 2-3 Year Warranty |
| GPIB-140A Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the GPIB-140A:
18613.5, 186135A-01, 186135A-31, 186135A-32, 186135B-01, 186135B-02, 186135B-31, 186135B-32, 186135C-01, 186135C-02, 186135C-31, 186135C-32, 186135D-01, 186135D-02, 186135D-31, 186135D-32, 186135F-01, 186135F-02, 186135F-31, 186135F-32, 186135G-01, 186135G-02, 186135G-31, 186135G-32, 186135H-01L, 186135H-02L, 186135H-31L, 186135H-32L, 186135J-01L, 186135J-31L, 776948-00, 776948-01, 776948-02, 776948-03, 776948-04, 776948-05, 776948-06, 776948-30, 777134-01, 777134-02, 777134-03, 777134-04, 777134-05, 777134-06, 777997-01, 777997-02, 777997-03, 777997-04, 777997-05, 777997-06, 777997-07, 777997-09, 777997-10, 777997-11, 777997-12, 1.82783E-26, 1.82783E-27, 1.86135E-26, 1.86135E-27, 147564A-01L, 181880F-31, 181880J-31, 181880L-31, 181880M-31L, 1827.83, 182745A-01, 182745B-01, 18278.3, 182783-01, 182783-02, 182783-31, 182783-32, 182783A-01, 182783B-01, 182783B-02, 182783B-31, 182783C-01, 182783C-31, 182783D-01, 182783D-02, 182783D-31, 182783D-32, 183231A-01, 1861.35, 186104A-01, 186104B-01, 186104C-01, 186104D-01L
Associated NSNs for the GPIB-140A:
5998-01-449-8656 (5998014498656), 6060-01-516-3551 (6060015163551)
National Instruments GPIB-140A Frequently Asked Questions
Question: What are the differences between the six part numbers for the GPIB-140A?
Answer: The GPIB-140A has six power source options: part number 777997-01 with U.S. 120 VAC, part number 777997-02 with Swiss 220 VAC, part number 777997-03 with Australian 240 VAC, part number 777997-04 with Universal Euro 240 VAC, part number 777997-05 with North American 240 VAC, or part number 777997-06 with United Kingdom 240 VAC.
Question: Are multiple extensions permitted on the NI GPIB-140A?
Answer: Yes, multiple extensions are permitted on the NI GPIB-140A if they are in any combination or linear or star pattern.
Question: Can the GPIB-140A be utilized to communicate with a GPIB-140 or GPIB-140/2?
Answer: No, the GPIB-140A cannot be utilized to communicate with a GPIB-140 or GPIB-140/2.
Question: Which cable can be used with the NI GPIB-140A?
Answer: The 10, 50, 100, 500, or 1000 m T7 cable can be used with the NI GPIB-140A.
GPIB-140A PDF Manuals
ARCHIVED GETTING STARTED WITH YOUR GPIB 1284CT AND THE NI 488.2 SOFTWARE FOR WINDOWS.PDF
ARCHIVED GPIB HARDWARE GUIDE.PDF
GPIB HARDWARE INSTALLATION GUIDE AND SPECIFICATIONS.PDF
