GPIB-485CT-A
Modular Systems > National Instruments > GPIB Instrument Control Modules
| Description: | GPIB-485-CT-A, 256 KB RAM buffer, GPIB-to-RS485 Controller |
Need an Official Quote?
Or speak to a sales representative for additional information:
Phone:1-800-915-6216
Email:sales@apexwaves.com

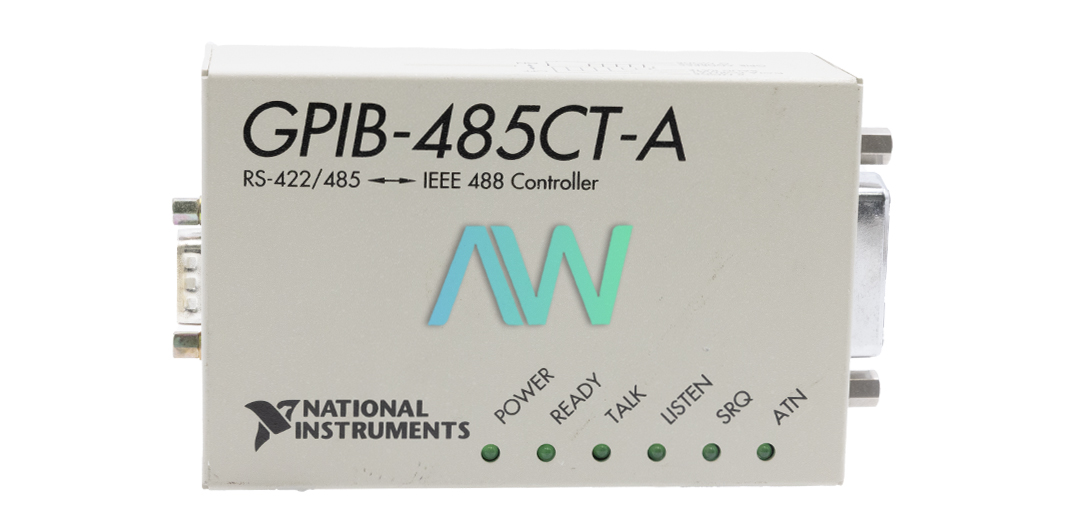

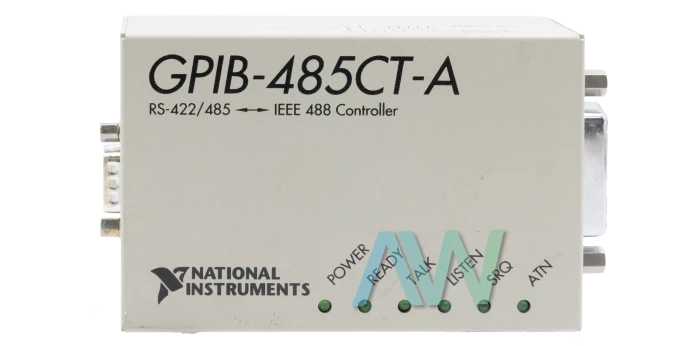

National Instruments GPIB-485CT-A GPIB Serial Controller
The NI GPIB-485CT-A (Part Numbers: 777146-01, 777146-02, 777146-03, 777146-04, 777146-05, 777146-06, 777147-01, 777147-31, 777148-01, 777148-02, 777148-03, 777148-04, 777148-05, 777148-06, 777149-01, and 777149-31) offers RS-485 serial connections and can turn a regular PC into a fully functional IEEE 488.2 Controller. The RS-485 port on the NI GPIB-485CT-A utilizes a 9-pin shielded, standard D-sub male connector.

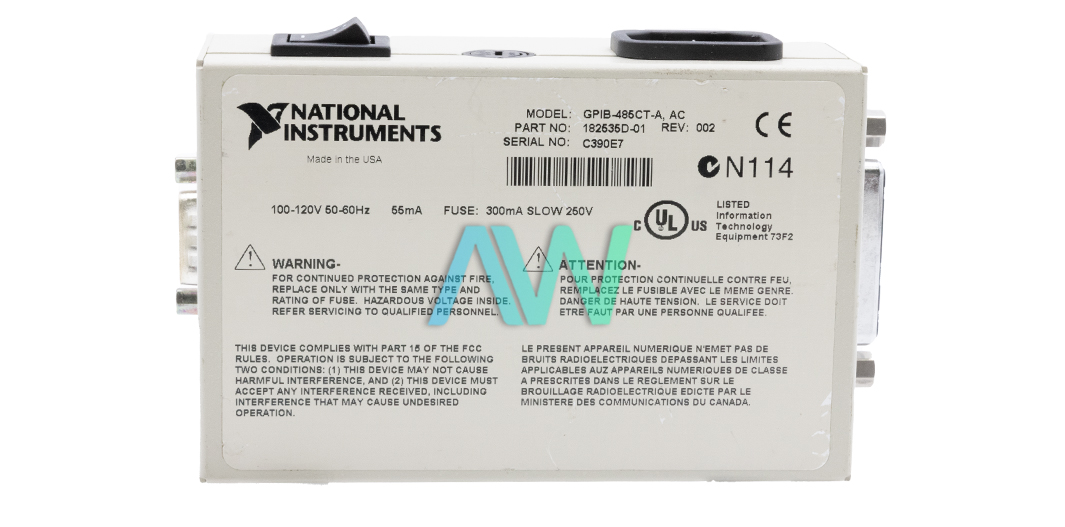

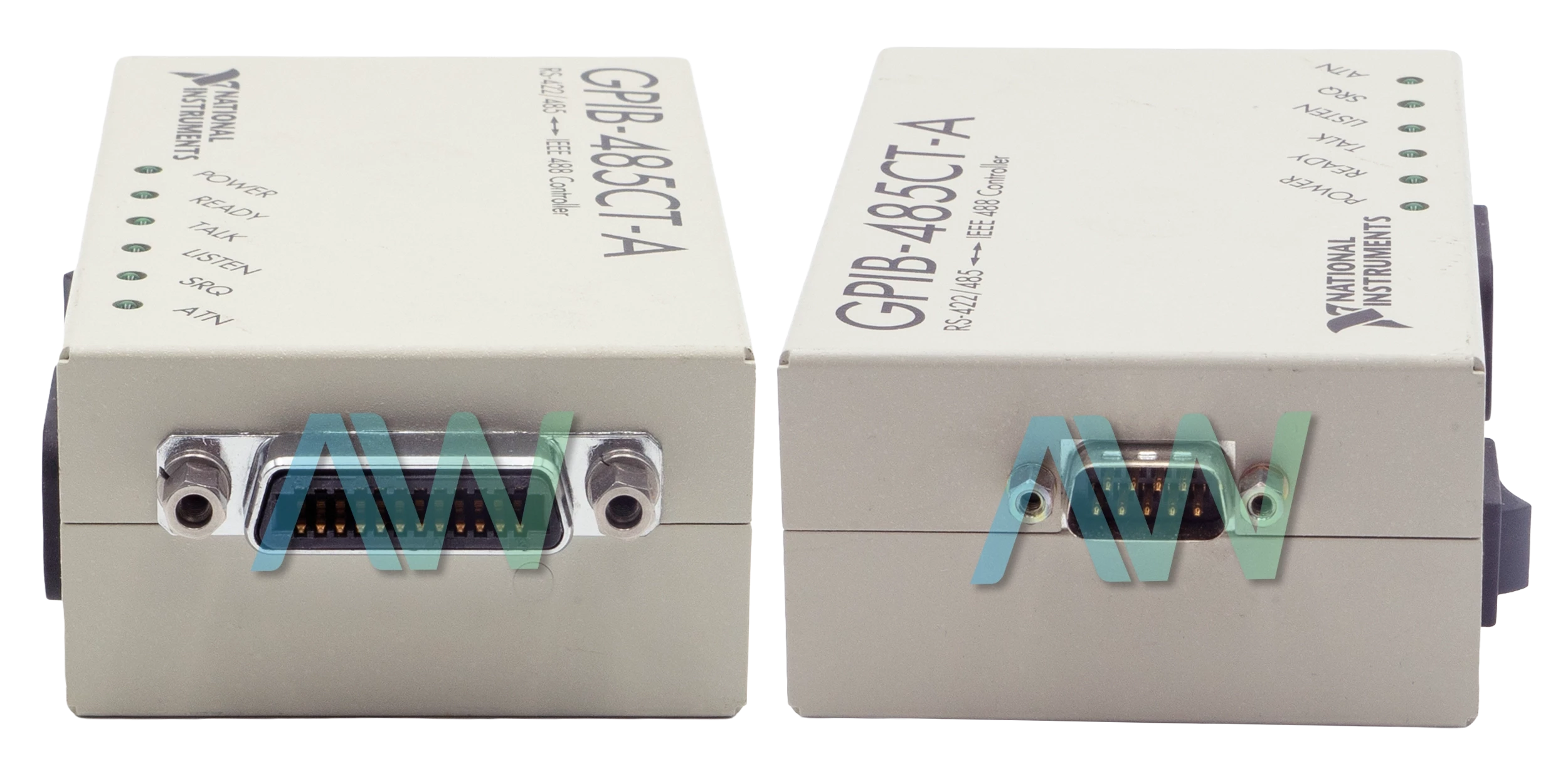

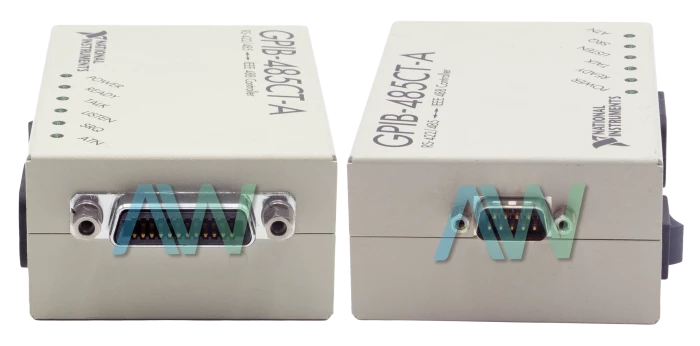

The RS-485 connector couples with standard D-sub 9-pin female connectors. The GPIB connector used in this device is a 24-pin, standard female connector with screw lock hardware. The two connectors are provided on opposite side panels of the device. Like its predecessors, the GPIB-485CT-A is offered in AC and DC versions. The AC version comes with a power cord receptacle mounted on the front panel, whereas a DC power jack is provided on the DC version.
This GPIB Serial Controller can be configured to operate in G or S mode. For mode configuration, data format, baud rate, and GPIB address, DIP switches are provided on the device’s rear panel. Users who want to utilize this device solely as a listener and talker should use G mode. However, those who wish to operate their NI GPIB-485CT-A as a GPIB Controller should configure it for S mode operation.
This device comes featured with various controller capabilities. Thus, it can accept data continuously from the GPIB or serial port even when the other port is busy. Moreover, it can handle both the requested and continuous types of error and status reporting in either numeric or symbol form. The GPIB-485CT-A supports XON/XOFF and hardware handshake communication protocols.
| Model | GPIB-485CT-A |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 777146-01, 777146-02, 777146-03, 777146-04, 777146-05, 777146-06, 777147-01, 777147-31, 777148-01, 777148-02, 777148-03, 777148-04, 777148-05, 777148-06, 777149-01, 777149-31 |
| Type | GPIB Serial Controller |
| RS485 Data Transfer Rates | up to 38.4 kb/s |
| RAM Buffer | 256 KB |
| Driver | NI-488.2 for Windows 3.1/DOS |
| Dimensions | AC Version: 3.0 by 1.7 by 4.7 in. DC Version: 3.0 by 1.1 by 4.7 in. |
| Weight | 12 oz. |
| Warranty | 2-3 Year Warranty |
| GPIB-485CT-A Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the GPIB-485CT-A:
1.82535E-26, 1.82535E-27, 181925-52B, 181925C-52, 1825.35, 18253.5, 182535-01, 182535-02, 182535-31, 182535-32, 182535B-01, 182535B-02, 182535B-31, 182535B-32, 182535C-01, 182535C-02, 182535C-31, 182535C-32, 182535D-01, 182535D-02, 182535D-31, 182535D-32, 182535F-01, 182535F-02, 182535F-31, 182535F-32, 182536-01, 182536-02, 182536B-01, 182536B-02, 182536C-01, 182536C-02, 777146-00, 777146-01, 777146-02, 777146-03, 777146-04, 777146-05, 777146-06, 777146-30, 777147-00, 777147-01, 777147-06, 777147-31, 777148-01, 777148-02, 777148-03, 777148-04, 777148-05, 777148-06, 777149-01, 777149-06, 777149-07, 777149-31, 777830-02
Associated NSNs for the GPIB-485CT-A:
5998-01-511-5374 (5998015115374), 5998-01-623-8899 (5998016238899)
National Instruments GPIB-485CT-A Frequently Asked Questions
Question: What are the differences between the numerous part numbers for the GPIB-485CT-A?
Answer: The GPIB-485CT-A has both AC and DC versions, as well as a version with just the GPIB-485CT-A controller and another with the NI-488.2 for Windows 3.1/DOS included. The AC version with just the controller comes with a power cord for U.S. 120 VAC (Part Number: 777146-01), Swiss 220 VAC (Part Number: 777146-02), Australia 240 VAC (Part Number: 777146-03), Universal Euro 240 VAC (Part Number: 777146-04), North America 240 VAC (Part Number: 777146-05), or United Kingdom 240 VAC (Part Number: 777146-06). The DC version with only the controller has either a 115 VAC Power Supply (Part Number: 777147-01) or a 230 VAC Power Supply (Part Number: 777147-31). The AC version with NI-488.2 for Windows 3.1/DOS comes with a power cord for U.S. 120 VAC (Part Number: 777148-01), Swiss 220 VAC (Part Number: 777148-02), Australia 240 VAC (Part Number: 777148-03), Universal Euro 240 VAC (Part Number: 777148-04), North America 240 VAC (Part Number: 777148-05), or United Kingdom 240 VAC (Part Number: 777148-06). The DC version with NI-488.2 for Windows 3.1/DOS comes with either a 115 VAC Power Supply (Part Number: 777149-01) or a 230 VAC Power Supply (Part Number: 777149-31).
Question: What are the power requirements for the NI GPIB-485CT-A?
Answer: The NI GPIB-485CT-A requires 5 VA at 100 to 120 ±10% VAC and 220 to 240 ±10% VAC for the AC version (50 to 60 Hz). However, the DC version requires 700 mA at 5 to 13 VDC.
Question: Which type of I/O connectors does the National Instruments GPIB-485CT-A have?
Answer: The National Instruments GPIB-485CT-A has an IEEE 488 standard 24-pin GPIB port and a standard 9-pin male D-Sub serial port.
Question: What is the difference between the GPIB-232CT-A and the GPIB-485CT-A?
Answer: The GPIB-485CT-A is designed for RS-485 serial connections, while the GPIB-232CT-A is designed for RS-232 serial connections.
GPIB-485CT-A PDF Manuals
ARCHIVED GETTING STARTED WITH LABWINDOWS CVI.PDF
ARCHIVED GETTING STARTED WITH MEASUREMENT STUDIO LABWINDOWS CVI.PDF
ARCHIVED GPIB 232 485CT A USER MANUAL AND SPECIFICATIONS.PDF
ARCHIVED LABVIEW FUNCTION AND VI REFERENCE MANUAL.PDF
ARCHIVED LABVIEW USER MANUAL.PDF
ARCHIVED USING YOUR NI 488.2 SOFTWARE FOR DOS OR WINDOWS 3 WITH WINDOWS 95 98.PDF
