PCI-6280, 16 AI, 24 DIO, 18-Bit, Multifunction DAQ
Need an Official Quote?

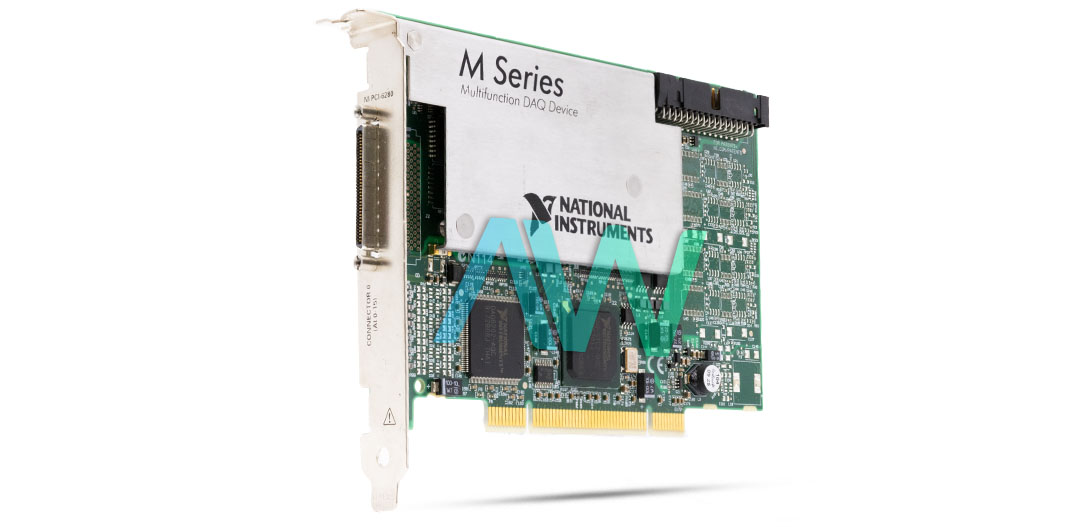

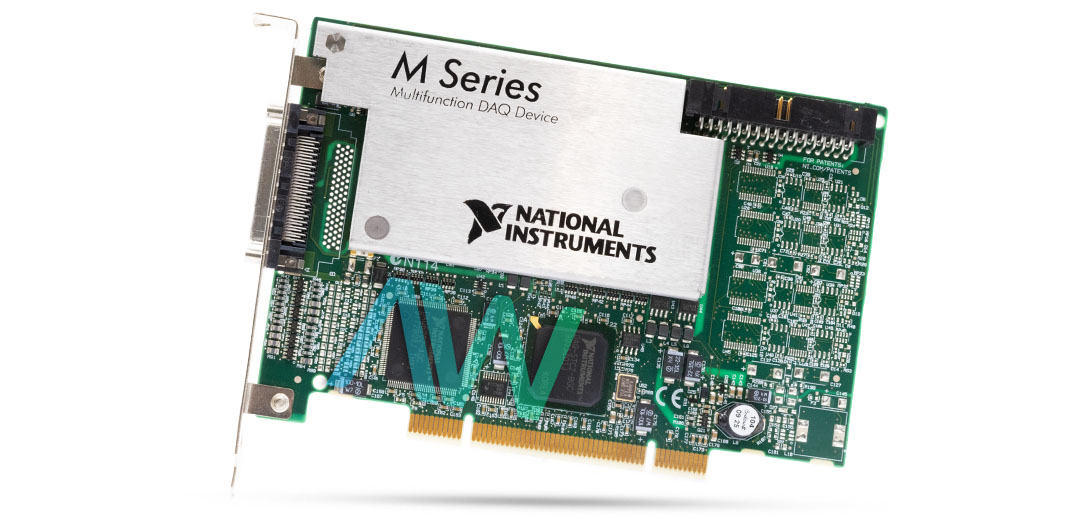

National Instruments PCI-6280 Multifunction DAQ
The PCI-6280 is a Multifunction DAQ designed by National Instruments. This model is available under part numbers 779108-01 and 191342E-04L. This device is a low cost yet reliable DAQ card for PCI slots. The PCI-6280 device supports SCC and SCXI signal conditioning modules. The PCI-6280 device has a built-in configuration utility and NI-DAQmx driver. These features make it simple to configure the card for measurements. The module features analog and digital terminals, along with built-in timers in a single device. This device is used in many research and industry applications.
The PCI-6280 Multifunction DAQ incorporates eight differential channels as inputs. The ADC resolution of these channels is 18 bits. It can read samples at a maximum rate of 625 kS/sec. The input voltage of the analog channels is from +10 V to +0.1V. The default range of the working voltage is +10V. The PCI-6280 device has protection against overvoltage and can bear up to +25 V without getting damaged. When an overvoltage is given to input terminals, the input current is +20 mA. An analog trigger is also provided in the PCI-6280 with an accuracy of +1 %. The input impedance of the analog trigger is 10 kΩ. The analog channels of the PCI-6280 device are DC-coupled. 24 digital channels are also provided in the PCI-6280. Each channel can be programmed independently as inputs or outputs.
The PCI-6280 device has two 32-bit general-purpose counters/timers. The counters have both internal and external base clocks. The FIFO buffer memory of counters is two samples. This device is also equipped with a frequency generator with a base clock accuracy of 50 ppm.
| Model | PCI-6280 |
|---|---|
| Manufacturer | National Instruments |
| Part Numbers | 779108-01, 191342E-04L |
| Series | M Series |
| Type | Multifunction DAQ Device |
| Analog Input Channels | 16 (18-Bit, 625 kS/s) or 08 differential |
| Digital Input/Output | 24 |
| Timing I/O | 2 Counter/Timer I/O (32 bits, 80 MHz) |
| Frequency Generator Channels | 1 |
| I/O Connector | 1 68-pin VHDCI |
| Power Requirements | +5 V, +3.3 V, +12 V, -12 V -- 0.03 A, 0.78 A, 0.40 A, 0.06 A |
| Dimensions | 4.2 in. × 6.1 in. |
| Weight | 0.33 lb. |
| Driver Software | NI-DAQmx |
| Warranty | 2-3 Year Warranty |
| PCI-6280 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the PCI-6280:
191342A-04, 191342B-04L, 191342D-04L, 191342E-04L, 191342F-04L, 191342G-04L, 779108-01
National Instruments PCI-6280 Frequently Asked Questions
Question: Error 88705 appeared on the NI PCI 6280. I removed the board, but it still shows up in MAX. I cannot install it in a different slot because it cannot be deleted; the option is grayed out. How do I resolve the problem?
Answer: The issue may be a result of corruption of the MAX database. If you clear the MAX database, then you should be able to re-install the NI PCI 6280 in a different slot.
Question: Are the connectors of the PCI 6280 male or female?
Answer: PCI DAQ Boards such as the PCI 6280 have male connectors.
Question: Which types of measurement software are required for the NI PCI-6280?
Answer: The NI PCI-6280 requires LabVIEW SignalExpress LE data-logging software, NI- DAQmx driver software, and Measurement & Automation Explorer configuration utility.
Question: Does the PCI-6280 require any accessories?
Answer: Yes, the PCI-6280 requires a Connector Block such as the SCB-68A Noise Rejecting, Shielded I/O Connector Block (Part Number: 782536-01) and a Multifunction Cable like the 2 m SHC68-68-EPM Shielded Cable, 68-D-Type to 68 VHDCI Offset (Part Number: 192061-02).
PCI-6280 PDF Manuals
DAQ GETTING STARTED GUIDE FOR PCI PCI EXPRESS.PDF
DAQ GETTING STARTED READ ME FIRST NI DAQMX AND DAQ DEVICE INSTALLATION GUIDE.PDF
NI 6280 DEVICE SPECIFICATIONS.PDF
NI 62XX 63XX PINOUT LABELS FOR THE SCB 68 NOTE TO USERS.PDF
NI 62XX 63XX PINOUT LABELS FOR THE SCB 68A NOTE TO USERS.PDF
PCI PXI 628X LETTER OF VOLATILITY.PDF
