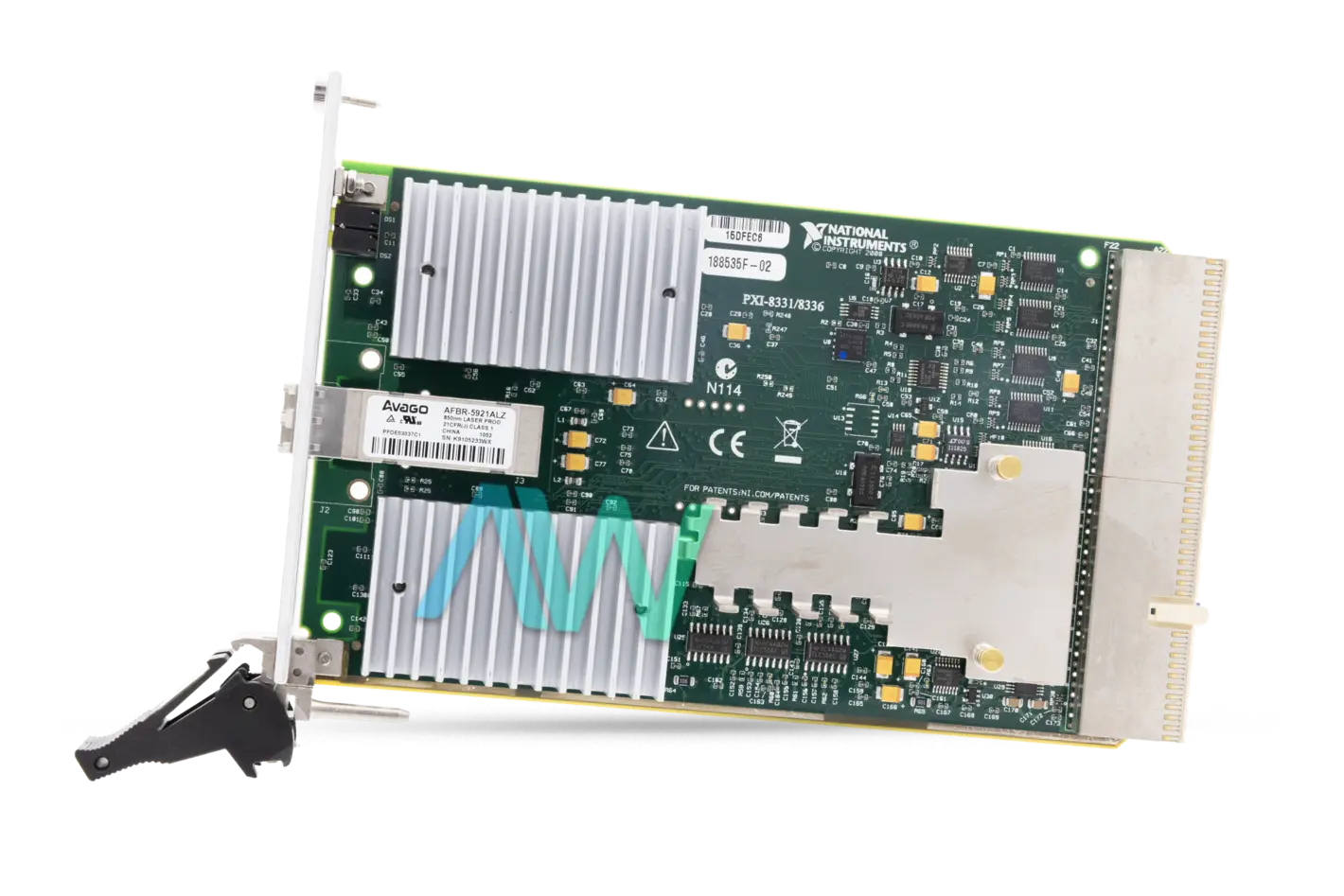

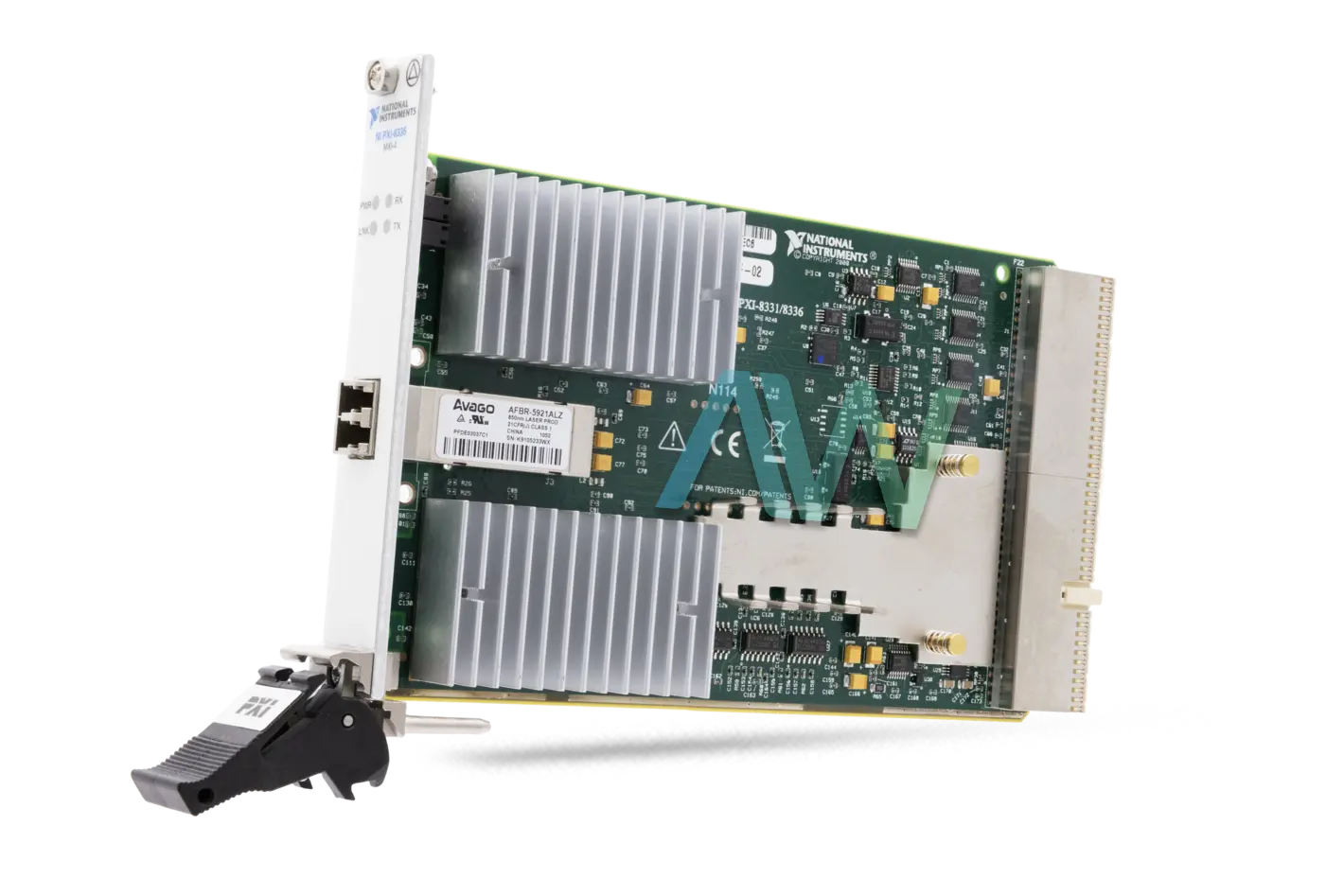

National Instruments PXI-8336 Interface Module
Featured with fiber-optic connectors, the National Instruments NI PXI-8336 (Part Number: 778957-01) is an MXI-4 Interface Module. The PXI-8336 can be paired with the PCI-8336 or another PXI-8336 card. This card is one of four offered in the MXI-4 Series. The MXI-4 is a system which is used to couple two physically separate buses. This coupling is achieved through a data link capable of offering up to 1.5 GB/s in data transfer rates. With a PXI-8336 and PCI-8336 based system, the user can control a CompactPCI/PXI backplane through a PCI based computer. The device requires 1 slot for operation.
Also, the controlling of a PXI/CompactPCI backplane through another CompactPCI/PXI based system will be possible through this interface module and a compatible interface board. In addition, the PXI-8336 and other cards from the MXI-4 Series can bring surplus PXI or CompactPCI slots for the user’s application. With this solution, users can achieve a swift separation between their automation or measurement systems from a host PC. The MXI-4 offers the user the required resources for combining CompactPCI, PCI, and PXI devices in one system. This card can be used in two basic configurations. It can be inserted in the controller slot or a non-controller slot of a compatible PXI/CompactPCI chassis.
The NI PXI-8336 comes with the capability of detecting whether it is in a non-controller or controller slot and it keeps itself configured accordingly. With the help of more than one MXI-4 pair, a user can achieve large PXI/CompactPCI/PCI systems. The MXI-4 based hardware, including the PXI-8336, offers everything to support PCI provisions for the simultaneous existence of up to 255 bus segments in a PCI hierarchy.
The device is run on the NI-VISA driver software which enables use of the MXI-4 connection monitor. The device software is compatible with application development environments (ADEs) such as LabVIEW Real-Time module. The LabVIEW RT module can be updated using the Measurement & Automation Explorer (MAX) tool. The device weighs 0.55 lbs., and measures 3.9 x 6.3 in. in physical dimensions.
PXI-8336 Obsolete Status has been announced by National Instruments, but the module will still be available for purchase and repairs by Apex Waves.
| Model | PXI-8336 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 778957-01 |
| Series | MXI-4 Series |
| Type | MXI-4 Multi-System Extension Interface |
| Slot Requirements | 1 slot |
| Serial Data Rates | 1.5 Gb/s |
| Dimensions | 3.9 by 6.3 in. |
| Weight | .55 lb. |
| Warranty | Three Year Warranty |
| PXI-8336 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
Associated part numbers for the PXI-8336:
1885.35, 188535A-02, 188535B-02, 188535C-02, 188535D-02, 188535F-02, 188535G-02L, 189051A-02, 189051B-02, 189051D-02, 778641-10, 778957-01
Associated NSNs for the PXI-8336:
7025-01-580-6107 (7025015806107), 7025015806107, 7025-01-580-6107 (7025015806107)
National Instruments PXI-8336 Frequently Asked Questions
Question: What is the difference between the MXI-4 Interface Modules and the MXI-4 Interface Boards?
Answer: The PXI-8331 and PXI-8336 are Interface Modules, while the PCI-8331 and PCI-8336 are Interface Boards. The MXI-4 cards have to be installed as a pair of PXI cards or the combination of a PCI card and a PXI card.
Question: How much does the PXI-8336 weigh?
Answer: The PXI-8336 weighs approximately .55 lbs.
Question: What is the power requirement for the NI PXI-8336?
Answer: The NI PXI-8336 has a power requirement of <.34 A at 3.3 V and <1.4 A at 5 V.
Question: What is the maximum cable length for the fiber-optic cable for the NI PXI-8336?
Answer: The NI PXI-8336’s fiber-optic cable has a maximum length of 200 m.
PXI-8336 PDF Manuals
ARCHIVED MXI 4 SERIES USER MANUAL AND SPECIFICATIONS.PDF
ARCHIVED MXI EXPRESS X1 SERIES USER MANUAL AND SPECIFICATIONS.PDF
ARCHIVED SET UP YOUR MXI 4 SYSTEM.PDF
LETTER OF VOLATILITY FOR NI PCI PXI MXI 4.PDF
MXI EXPRESS X1 SERIES USER MANUAL.PDF
NOTE TO USERS MXI EXPRESS SERIES USER MANUAL.PDF
PXI REMOTE CONTROL AND SYSTEM EXPANSION PRODUCT FLYER.PDF
Why Buy From Apex Waves:
Verified
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
PXI-8336
Modular Systems > National Instruments > MXI-4 Series
PXI-8336, Fiber-Optic Cable, MXI-4 Interface Module
1-800-915-6216
- Description
- Technical Specifications
- FAQ
- Manuals & PDFs

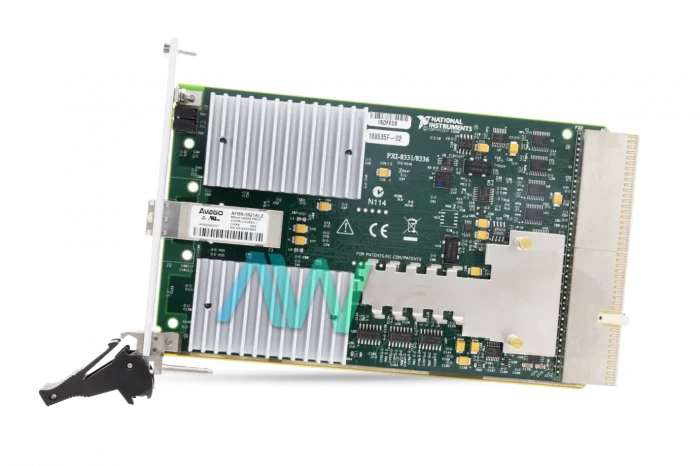

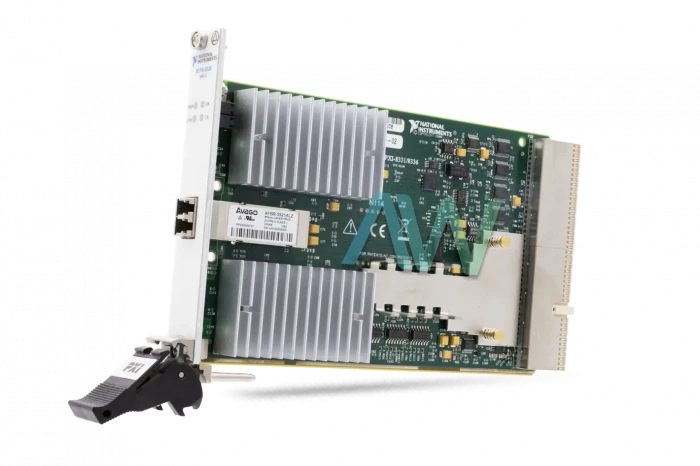

National Instruments PXI-8336 Interface Module
