National Instruments PXI-PCI8336 MXI-4 Interface Kit
The National Instruments PXI-PCI8336 (Part Number: 778641-10) is an MXI-4 Interface Kit designed for PXI systems. This kit is used in scenarios where direct control of PXI systems is required through regular desktop PCs. The NI PXI-PCI8336 utilizes a high-bandwidth and secure MXI-4 link for communication. MXI-4 is a rare type of link that remains transparent to drivers and software applications. Thus, it is considered an ideal solution for controlling a PXI system through servers or desktop computers. MXI-4 is designed to work as a PCI-to-PCI bridge that achieves hardware and software transparency, and it is constructed by splitting the typical PCI-to-PCI bridge architecture into two halves. These two halves are connected by means of a 1.5 GB/s serial link. The device is equipped with one 3U PXI system controller or peripheral slot.

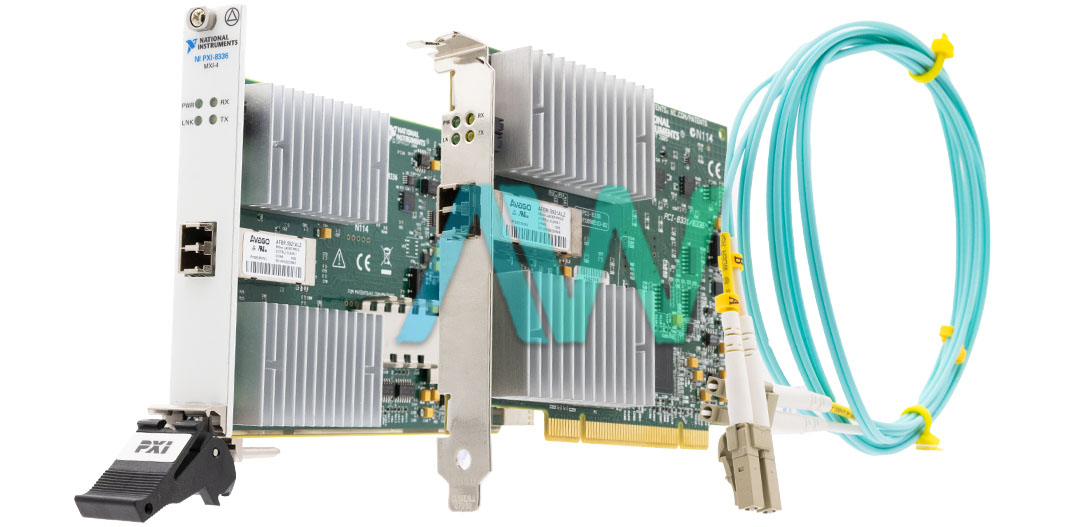

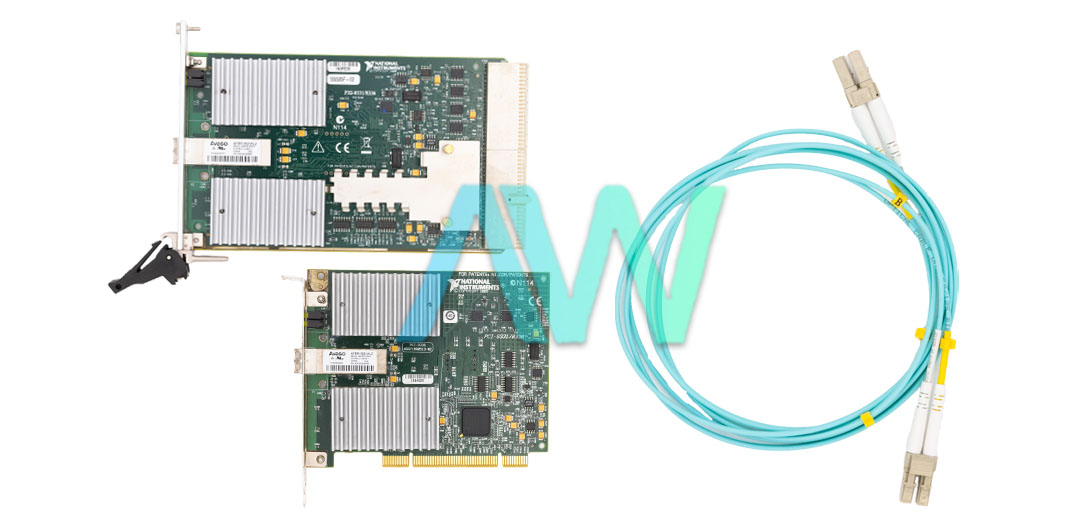

In this MXI-4 Interface Kit, a PXI remote controller and a PCI controller are used. These two separate cards are interconnected through an optical fiber cable. Another variant of this kit is also available with copper connectivity. However, optical fiber links are much better as they enable you to go farther and with minimal signal losses. The NI PXI-PCI8336 is fully compatible with both 3.3 V and 5 V PCI slots. This kit includes 1 PCI-8336 board, 1 PXI-8336 board, and a 10 m fiber-optic cable. The PCI board is deployed in the PCI slot of the host computer and the PXI board is deployed in Slot 1 of a PXI chassis. All these parts are available for purchase separately in the market. Otherwise, you can acquire an NI PXI-PCI8336 kit that comes with all the required devices.
The Ni device measures 3.9 x 6.3 in. in physical dimensions. It has recommended operating and storage temperatures ranges of 0 to 55 °C and –20 to 70 °C respectively, non-condensing operating and storage humidity ranges of 10 to 90% RH and 5 to 95% RH respectively, operating and non-operating random vibrations of 0.3 grms and 2.4 grms respectively – all at a frequency range of 5 to 500 Hz.
NI has announced that the PXI-PCI8336 is Obsolete, but the interface kit will remain available for both purchase and repair services in perpetuity with Apex Waves.
| Model | PXI-PCI8336 |
|---|---|
| Manufacturer | National Instruments |
| Part Number | 778641-10 |
| Type | MXI-4 Interface Kit |
| Cable Type | Fiber-optic |
| Maximum Cable Length | 200 m |
| Slot Requirement | One 3U PXI system controller slot or peripheral slot |
| Dimensions | 3.9 by 6.3 in. |
| Warranty | Three Year Warranty |
| Compatibility | Compatible with PCI Hardware Specification 2.2 as well as PXI Hardware Specification 2.1 |
| Operating Temp Range | 0° to 55 °C |
| Storage Temp Range | –20° to 70 °C |
| Relative Humidity Range | 10% to 90% (Operating), 5% to 95% (Storage) |
| Random Vibration | 5 to 500 Hz, 0.3 grms (Operating) and 2.4 grms (Storage) |
| Operational Shock | Half-Sine, 11 ms Pulse, 30 g Peak |
| PXI-PCI8336 Manual | User Manual and Maintenance Manual Available for Download |
| Price | Contact a sales representative for a quote. |
National Instruments PXI-PCI8336 Frequently Asked Questions
Question: Which OS version is the PXI-PCI8336 compatible with?
Answer: The PXI-PCI8336 is compatible with Windows 10, as it is supported by version 18 of the NI PXI Platform Services.
Question: What is the benefit of the fiber optic cabling of the PXI-PCI8336?
Answer: The MXI-4 controllers with copper cables are designed for use with short distances, while fiber optic cables are designed for use with longer length, electrical isolation, and EMI resistance.
Question: Can my system be extended beyond the max cable length?
Answer: Yes, the max cable length can be doubled from 200 m to 400 m when a second MXI-4 link is added to the PXI-PCI8336.
Question: Can a MXI-3 board be directly used with a MXI-4 board?
Asnwer: No, the cable connectors of MXI-3 Boards and MXI-4 Boards are incompatible with one another.
