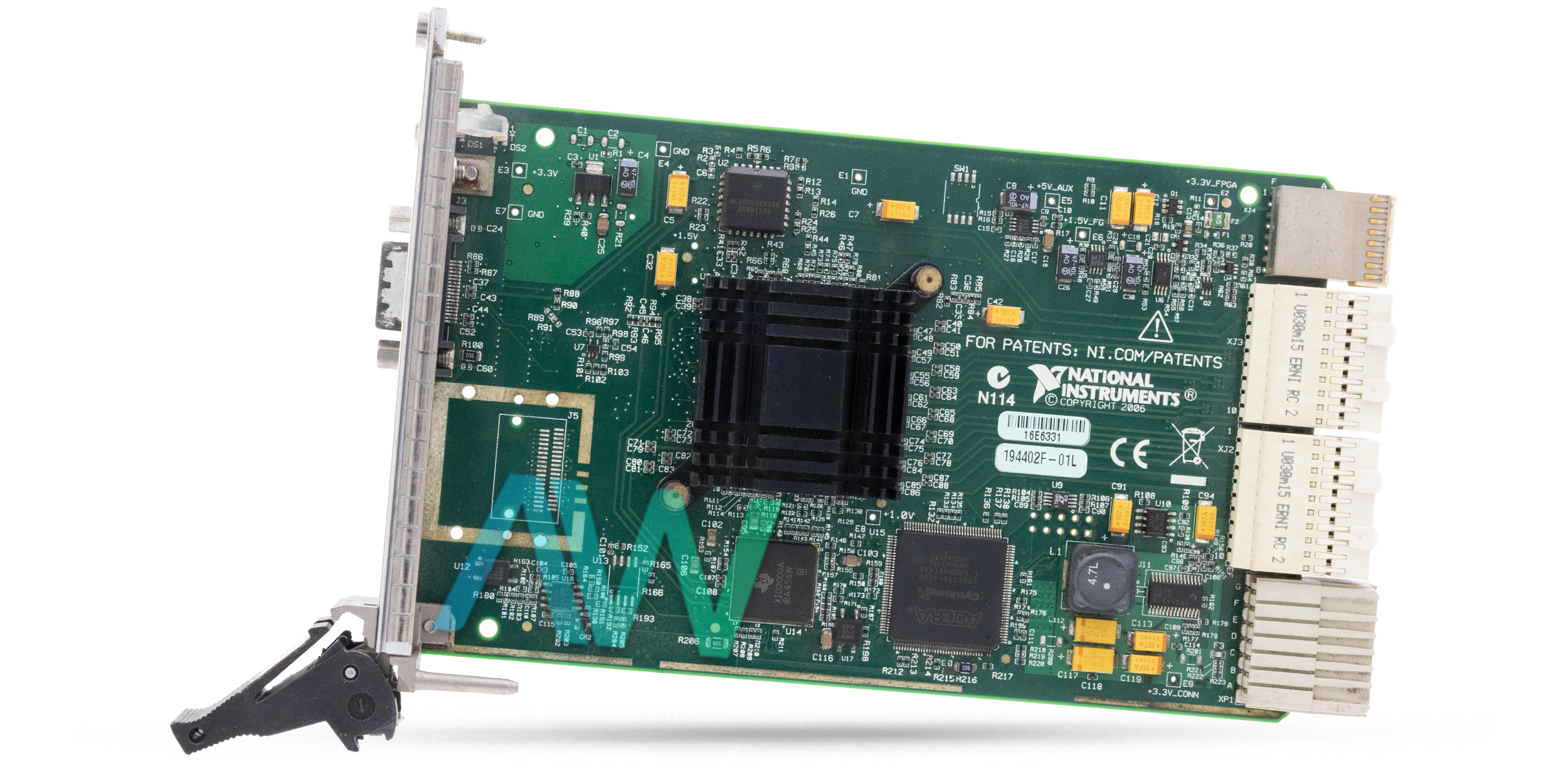

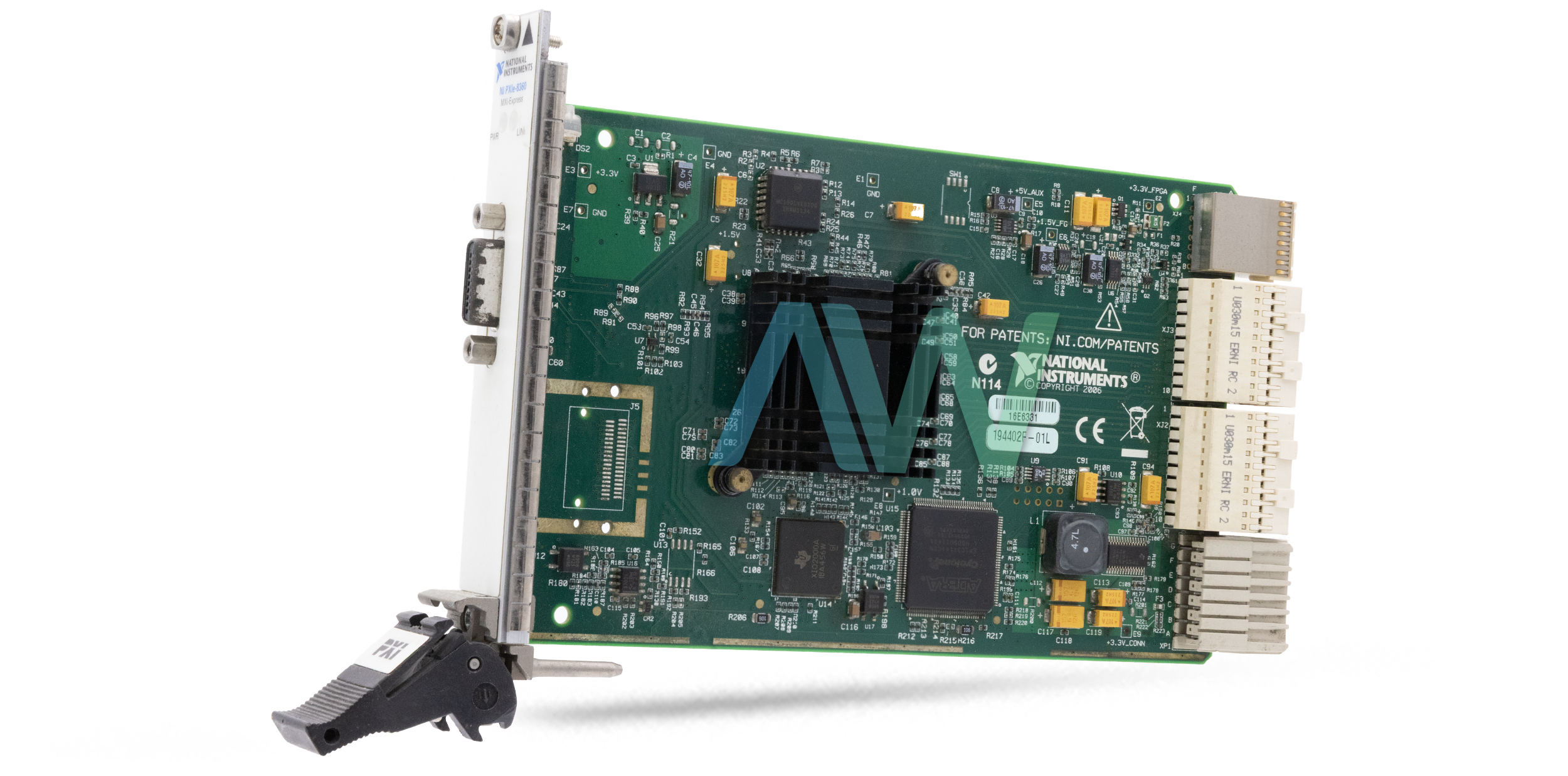

National Instruments PXIe-8360 PXI Remote Control Module
The PXIe-8360 (Part Number: 779700-01, 194402F-01) is a high-performance Remote Control Module in the MXI-Express x1 Series by National Instruments. The NI PXIe-8360 comes with an MXI-Express interface, which enables the user to carry out various advanced measurements, including the control of PXI and CompactPCI systems. This control operation is carried out with the help of a PC. The PC makes use of the MXI-Express link. This link is totally transparent and is controlled through software without any programming required. The system can be configure with the PXI platform Services Software and the Measurement & Automation Explorer (MAX) tool. The PXIe-8360 also includes two LEDs, which inform the user about the different states of operation of the module. These operations include the power supply status and link state of the module.
The NI PXIe-8360 can be utilized with a PCIe 8362 board and another PXIe 8360 module to control two PXI Express systems at the same time. However, it is not possible for the NI PXIe-8360 module to daisy chain numerous PXI Express chassis.
The PXIe-8360 has a PXIe Controller bus connector and supports MXI-Express x1 copper cables. This module makes use of a PCI Express to PCI Bridge to implement the interfacing mechanism. The module can be used with a cable length of 1, 3, or 7 meters. The MXI bandwidth is 250 MB/s for this module. The National Instruments PXIe 8360 Remote Control Module has a pollution degree of 2 and is meant for indoor use only. The NI PXIe 8360 module is fully compatible with PXI Express hardware. It is equipped with 1 PXI Express system slot.
The PXIe-8360 Remote Control Module incorporates many advanced operational capabilities, which makes it suitable for various testing requirements at the industrial level. This includes applications in mobile field testing, vehicle data logging, NVH, and NDT. This module is additionally useful for RF testing requirements.
The NI device weighs 0.37 lb, and measures 6.3 x 3.9 in. in physical dimensions. It has a recommended operating temperature range of 0 to 55 °C, and a storage temperature range of -40 to 71 °C.
Model | PXIe-8360 |
---|---|
Part Number | 779700-01, 194402F-01 |
Manufacturer | National Instruments |
Type | PXI Remote Control Module |
MXI Communication Level | MXI-Express x1 |
Supported Cable Type | Copper |
MXI Bandwidth | 250 MB/s |
Dimensions | 6.3 x 3.9 in. |
Weight | 0.37 lb. |
Warranty | Three Year Warranty |
PXIe-8360 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for the PXIe-8360:
194402A-01, 194402B-01, 194402C-01, 194402C-11, 194402E-01L, 194402F-01L, 194402G-01L, 194402H-01L, 779700-01
National Instruments PXIe-8360 Frequently Asked Questions
Question: What are the slot requirements for the PXIe-8360?
Answer: The slot requirements for the PXIe-8360 are one PXI Express system slot.
Question: How many ports does the NI PXIe-8360 have?
Answer: The NI PXIe-8360 has 1 port.
Question: What do the two LEDs on the PXIe-8360 indicate?
Answer: On the PXIe-8360, one of the LEDs indicates the power supply status and the other indicates the link state.
Question: What is the maximum cable length for the NI PXIe-8360?
Answer: The NI PXIe-8360 has a maximum cable length of 7 m.
PXIe-8360 PDF Manuals
LETTER OF VOLATILITY FOR NI PXIE 8360.PDF
MXI EXPRESS X1 SERIES USER MANUAL.PDF
NI EXPRESSCARD MXI SERIES USER MANUAL.PDF
NOTE TO USERS MXI EXPRESS SERIES USER MANUAL.PDF
SET UP YOUR MXI EXPRESS SYSTEM.PDF
Why Buy From Apex Waves:
"Hand carrying parts to fedex directly to make sure I get them overnight. Great service"
"They were very helpful to get me the test equipment that I need."
PXIe-8360
Modular Systems > National Instruments > MXI-Express x1 Series
PXIe-8360, MXI-Express Interface, Copper Cable, PXI Remote Control Module
1-800-915-6216
- Description
- Technical Specifications
- FAQ
- Manuals & PDFs

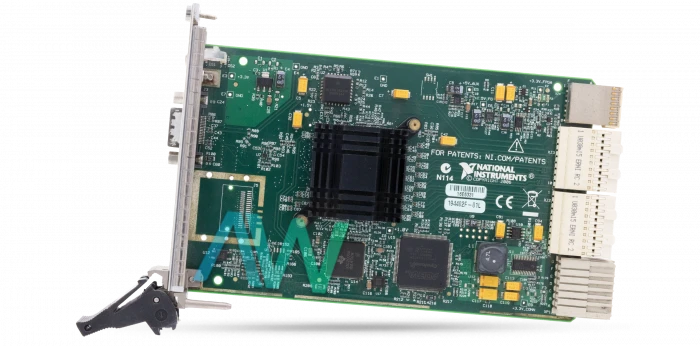

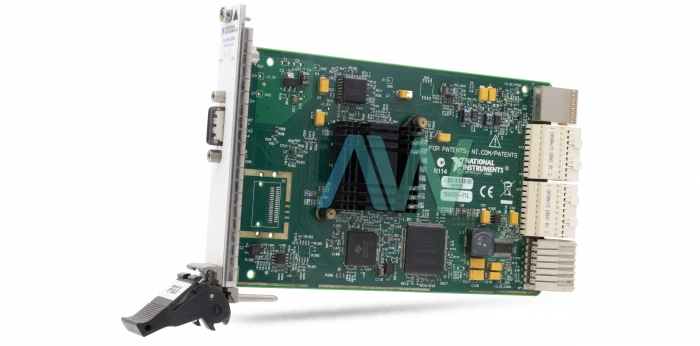

National Instruments PXIe-8360 PXI Remote Control Module
