PXIe-8375 In Stock | Ships Today
PXIe-8375, MXI-Express Interface with Connector for Fiber Cable, Remote Control Module
Need an Official Quote?

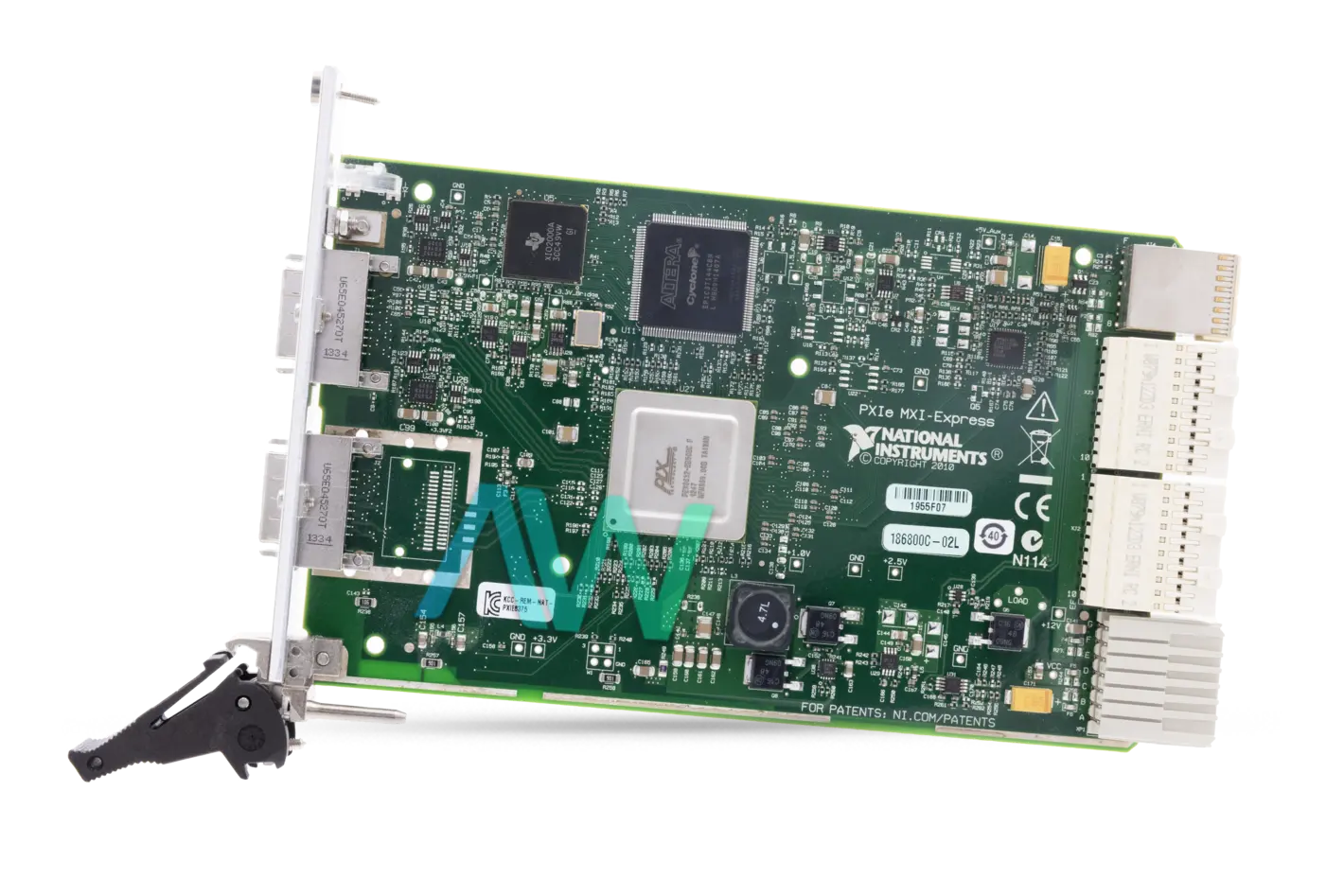

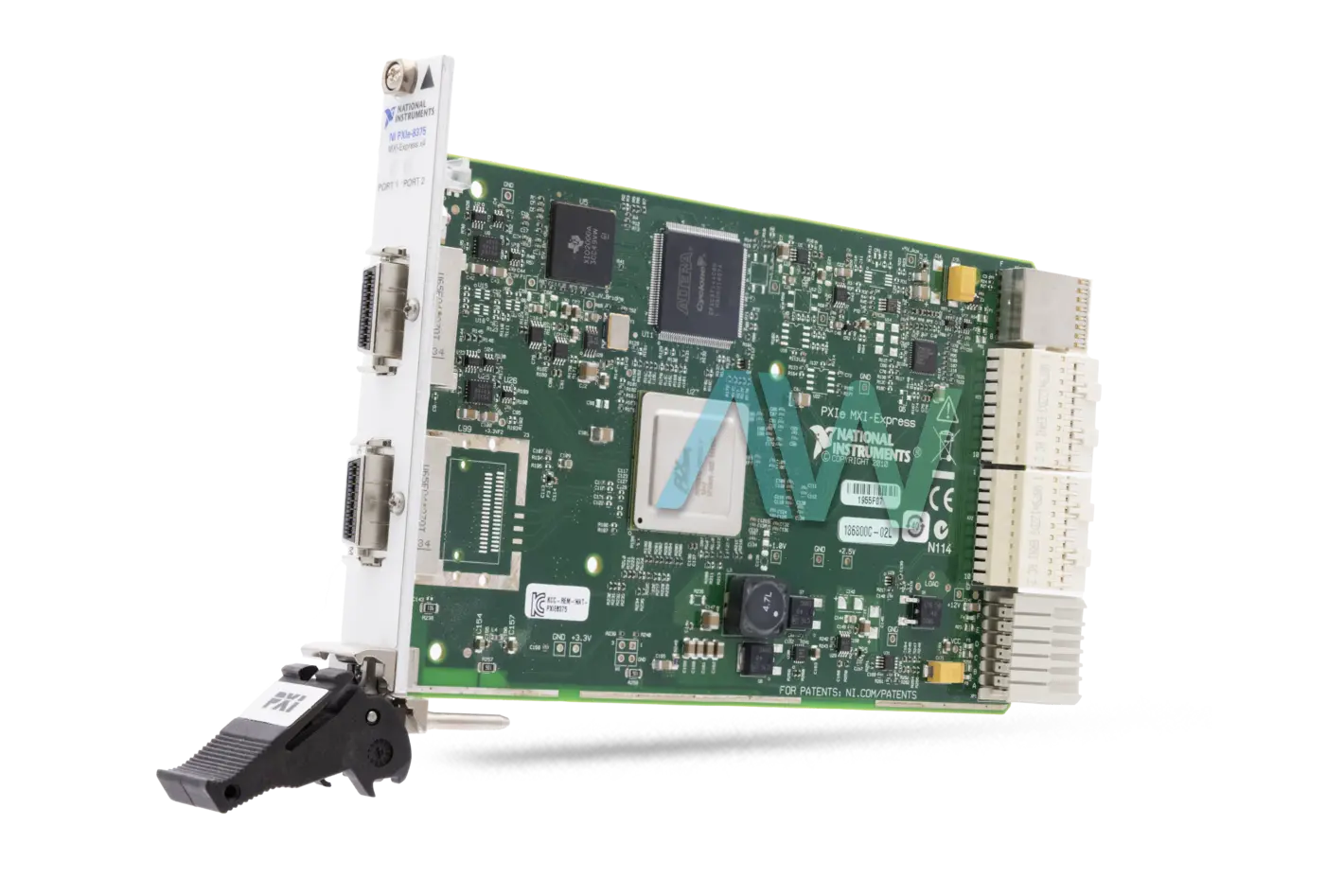

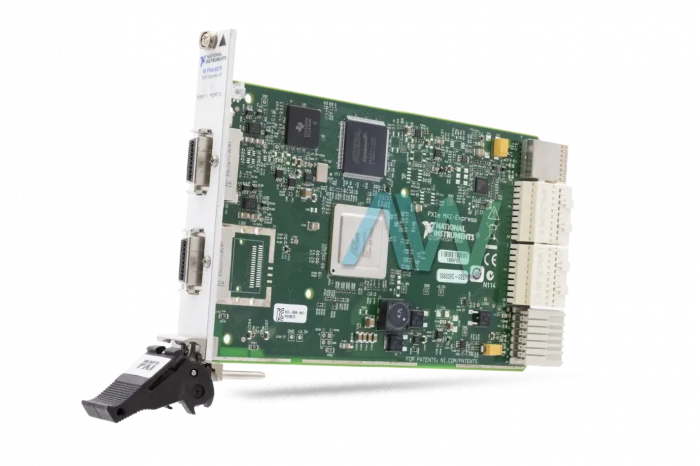

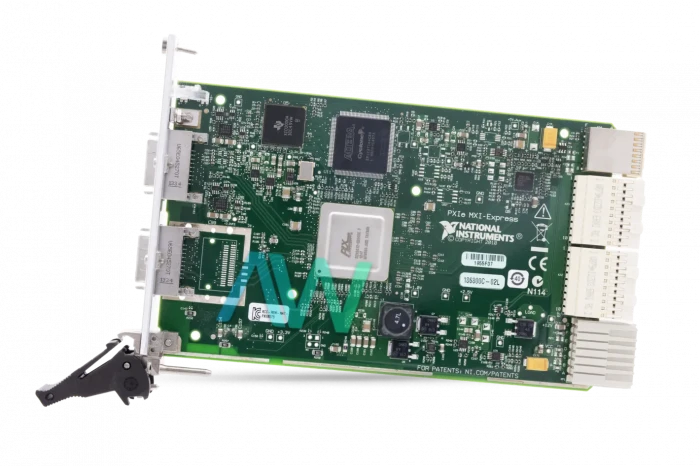

National Instruments PXIe-8375 PXI Remote Control Module
The National Instruments PXIe-8375 (Part Number: 781040-01, 186800C-02L, 186800B-02L) with the MXI-Express x4 for PXI Express connection allows the user to control a PXI Express framework from a PCI Express x4 opening or higher. Then, they can utilize National Instruments desktop servers and servers, Dell or Hewlett-Packard workstations to control PXI Express frameworks. MXI-Express x4 for PXI Express highlights a completely straightforward, high-data bus capacity, cabled PCI Express connection where all PXI and PXI Express modules show up as PCI sheets inside the PC itself. However, the user will benefit from the expanded number of slots, power and cooling per slot, module selection, and synchronization highlights given by PXI Express. The device has a requirement of 1 PXI Express system slot for operation. It has a MXI bandwidth of 1 GB per second.
The MXI-Express x4 for PXI Express connection comprises of an NI PCIe-8375 board in the PC that is associated by means of a x4 MXI-Express fiber-optic link to an NI PXIe-8375 module in slot 1 of a PXI Express chassis. With the fiber-optic NI PXIe-PCIe-8375 unit, the user can electrically disconnect their PXI Express estimation equipment from the PC with extended length cabling up to 100 m.
This PXI Remote Control Module offers a multichassis PXI Express framework interfaced to a similar framework PC, allows the user to create star, tree, or daisy-chain setups, can connect up to 8 PXI undercarriage to a similar framework PC, has a System PC that can be a NI installed controller or a PC, and has a software-straightforward connection that requires no programming. The device hardware is installed using the PXI Platform Services software which includes the NI-DAQmx and NI-VISA drivers.
The NI device weighs 0.37 lb, and measures 3.9 x 6.3 in. in physical dimensions. It has a recommended operating temperature range of 0 to 55 °C, a storage temperature range of –40 to 71 °C, a noncondensing operating and storage humidity range of 10 to 90% and 5 to 95% respectively, and an operating and non-operating random vibration of 0.3 grms and 2.4 grms respectively–all at a frequency range of 5 to 500 Hz.
Model | PXIe-8375 |
---|---|
Manufacturer | National Instruments |
Part Numbers | 781040-01, 186800C-02L, 186800B-02L |
Type | PXI Remote Control Module |
MXI Bandwidth | 1 GB/s |
Maximum Cable Length | 100 m |
Slot Requirements | One system slot (PXI Express or CompactPCI Express) |
Weight | 0.37 lb. |
Warranty | Three Year Warranty |
PXIe-8375 Manual | User Manual and Maintenance Manual Available for Download |
Price | Contact a sales representative for a quote. |
Associated part numbers for the PXIe-8375:
186800A-03L, 186800B-02L, 186800C-02L, 781040-01
Associated NSNs for the PXIe-8375:
5998-01-613-5193 (5998016135193)
National Instruments PXIe-8375 Frequently Asked Questions
Question: What is the maximum cabling per link that the PXIe-8375 can provide?
Answer: The maximum cabling per link that the PXIe-8375 provides is 200 m.
Question: What type of cabling does the PXIe 8375 have?
Answer: The PXIe 8375 has fiber optic cabling to provide electrical isolation between the PC and PXI chassis.
Question: Can I connect the NI PXIe-8375 to my laptop using an ExpressCard 8360?
Answer: The NI PXIe-8375 is not compatible with the ExpressCard 8360. You will need to use the PCIe-8375 with a PC.
PXIe-8375 PDF Manuals
ARCHIVED NI PXIE 8375 LETTER OF VOLATILITY.PDF
FIBER OPTIC MXI EXPRESS X4 FOR PXI EXPRESS SERIES USER MANUAL AND SPECIFICATIONS.PDF
LETTER OF VOLATILITY FOR NI PXIE 8375.PDF
NOTE TO USERS MXI EXPRESS SERIES USER MANUAL.PDF
SET UP YOUR FIBER OPTIC MXI EXPRESS 28X429 FOR PXI EXPRESS SYSTEM.PDF
